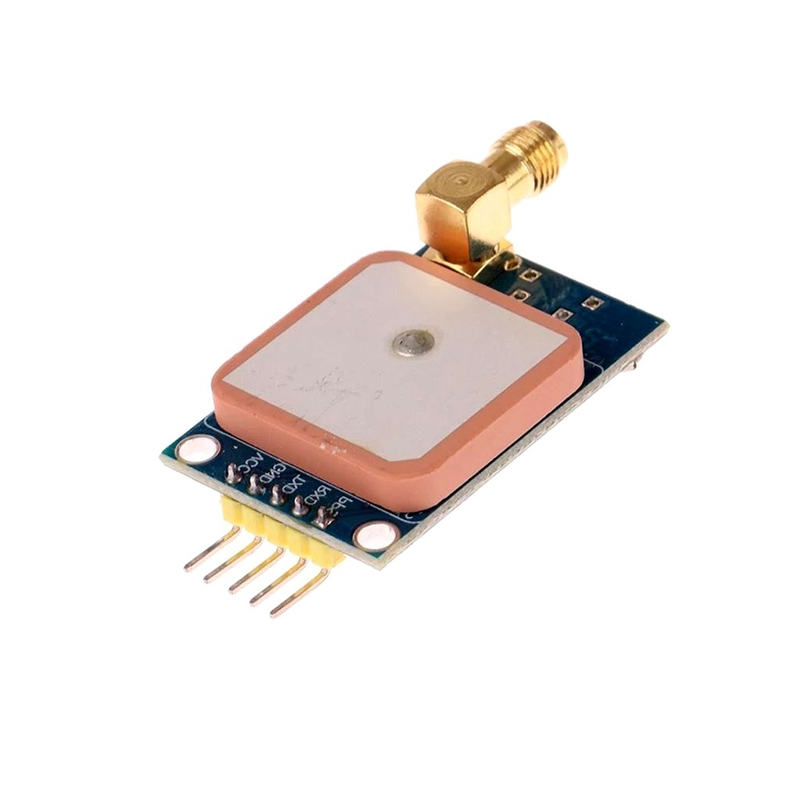

NEO-7M GPS Satellite Positioning Module for Arduino

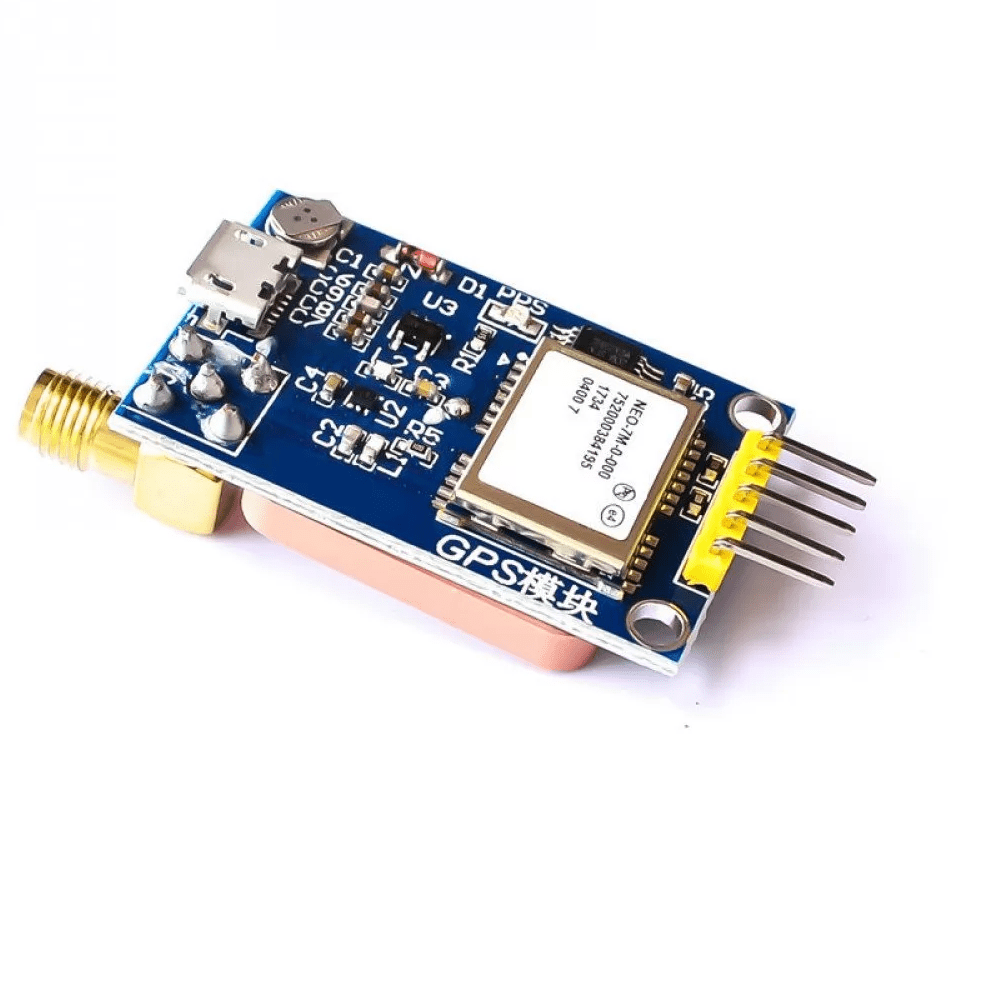

NEO-7M GPS Satellite Positioning Module for Arduino - Image 2

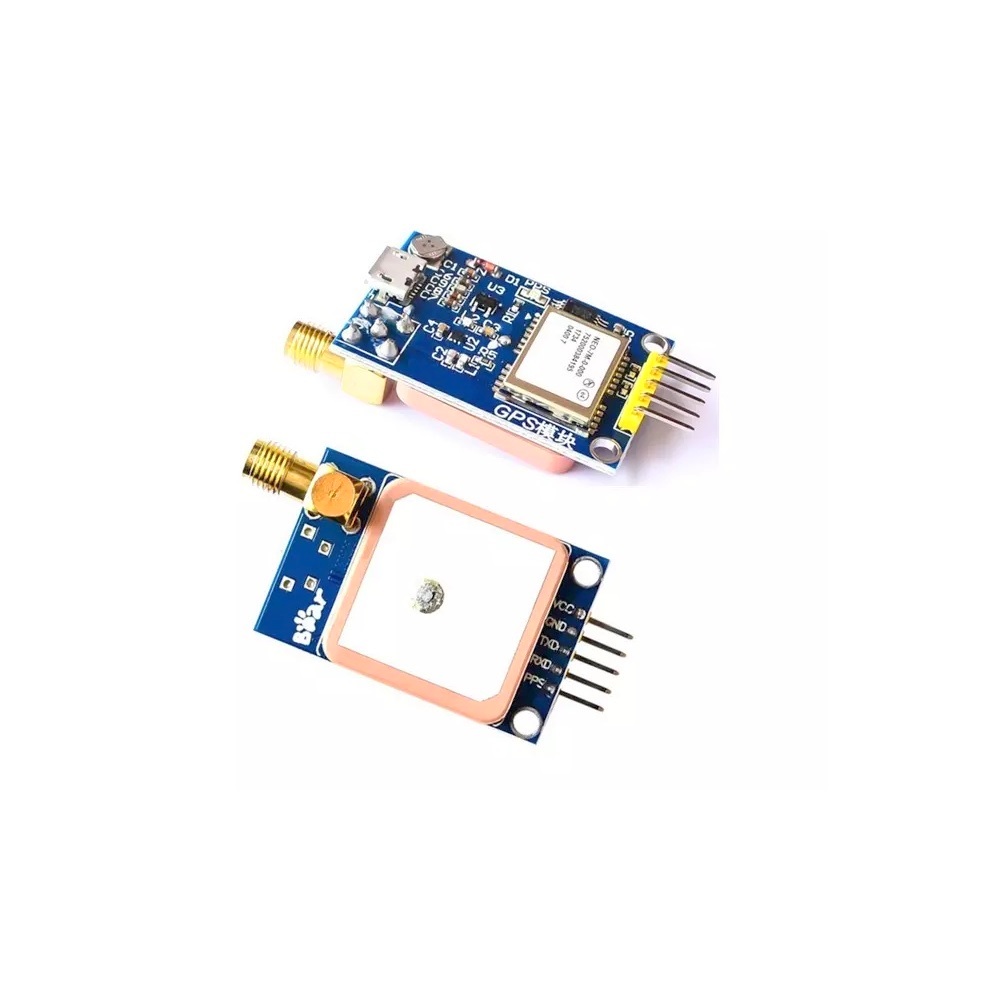

NEO-7M GPS Satellite Positioning Module for Arduino - Image 3

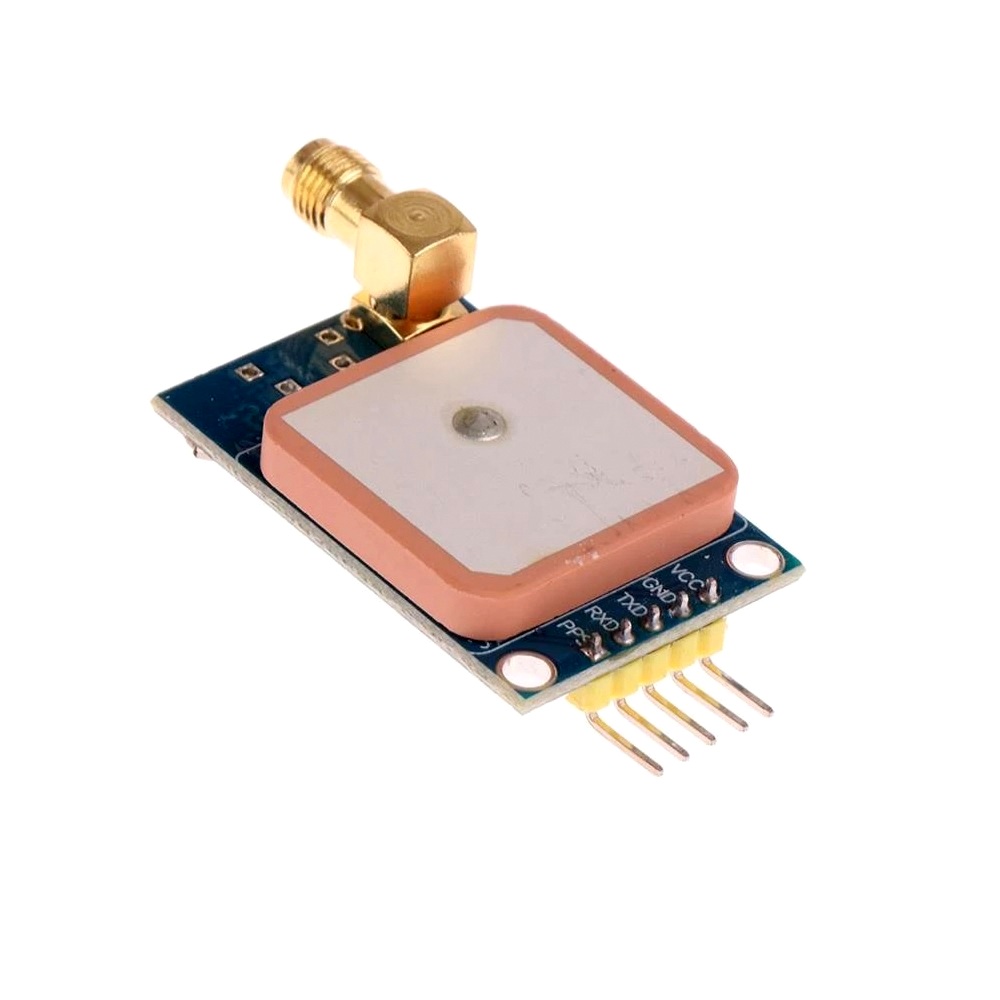

NEO-7M GPS Satellite Positioning Module for Arduino - Image 4

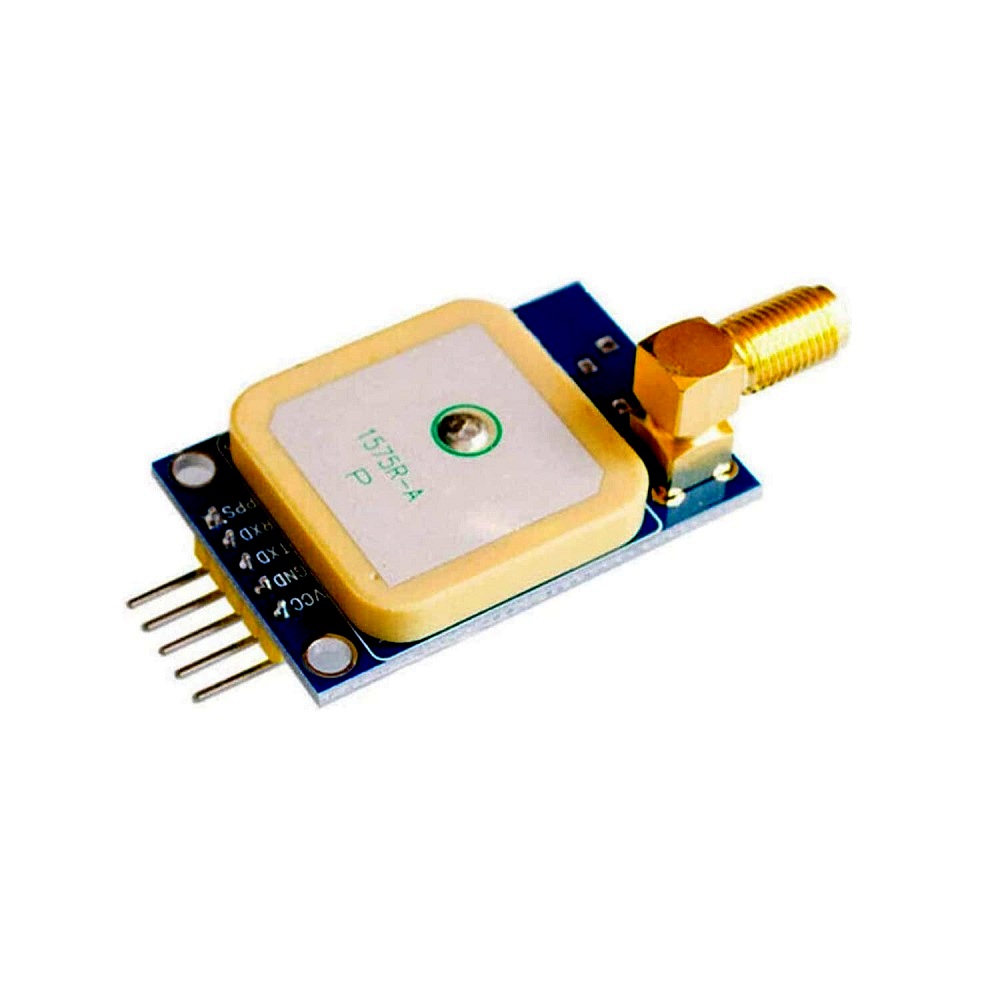

NEO-7M GPS Satellite Positioning Module for Arduino - Image 5
SKU: DRFC-0833
📋 GST Invoice Available

NEO-7M GPS Satellite Positioning Module for Arduino

₹569.00 (Inclusive of all taxes)
Out of Stock

This NEO-7M GPS module provides reliable satellite positioning for development projects, featuring an onboard ceramic antenna for quick acquisition and an SMA head for external antenna integration. Designed for Arduino, STM32, and 51 microcontrollers, it offers flexible debugging via micro USB or serial port for seamless integration.

Features

  • Integrated ceramic antenna for rapid satellite acquisition in open environments.
  • SMA connector for optional external antenna, enhancing signal strength and positioning.
  • Flexible integration with micro USB and reserved serial port for various microcontrollers.
  • Signal indicator provides real-time status of GPS information reception.

Out of stock

Description

The NEO-7M GPS module offers robust satellite positioning capabilities, outputting data via the NMEA standard protocol. Its internal FLASH memory retains configuration settings post-power-off, eliminating the need for an external EEPROM. This design ensures consistent performance and simplifies deployment in embedded systems.

For enhanced flexibility, the module includes an onboard ceramic antenna for immediate satellite lock in open areas, complemented by a pre-soldered SMA head for connecting a more powerful external antenna. Debugging and data access are straightforward through its micro USB interface or the dedicated serial port, supporting integration with various microcontrollers like Arduino, STM32, and 51 series for diverse application development.

Key Features

  • On-board ceramic antenna facilitates rapid satellite acquisition without needing external components in clear sky conditions.
  • Pre-soldered SMA head allows for easy connection of an external antenna, significantly boosting signal reception and positioning accuracy.
  • Micro USB interface provides direct debugging access and data output via a standard data cable.
  • Dedicated serial port interface enables seamless communication with external MCUs (e.g., Arduino, STM32) or USB-to-serial converters for GPS data processing.
  • Integrated signal indicator light offers visual confirmation of active GPS data reception and satellite lock status.
  • Supports NMEA standard protocol output for broad compatibility with various mapping and navigation software.
  • Built-in FLASH memory stores configuration settings, ensuring persistence across power cycles without an external EEPROM.
  • Wide input voltage range (3.3-5V) ensures compatibility with common development board power supplies.

Applications

  • Integration into custom drone flight controllers for basic GPS positioning.
  • Development of autonomous UAV navigation systems using Arduino/STM32 platforms.
  • Geotagging for aerial photography and mapping projects.
  • Telemetry data acquisition for drone performance monitoring.
  • Fixed-wing aircraft navigation and data logging.

Technical Specifications

Item TypeSatellite GPS Module
Model/NameGPS NEO-7M
Recommended Power Supply3.3-5V
Output ProtocolNMEA Standard
InterfaceMicro USB, Serial Port (TTL)
AntennaOn-board Ceramic, SMA Connector
MemoryBuilt-in FLASH (for settings)

Frequently Asked Questions

What microcontrollers are compatible with the NEO-7M GPS module?

This NEO-7M GPS module is designed for broad compatibility, particularly with Arduino, STM32, and 51 series microcontrollers. Its flexible serial port and micro USB interfaces allow for straightforward integration into various embedded systems, making it suitable for a wide range of development projects requiring satellite positioning data.

How does the NEO-7M module handle satellite signal reception?

The module features an onboard ceramic antenna for quick initial satellite acquisition in open environments. For enhanced performance or challenging signal conditions, it also includes a pre-soldered SMA connector, enabling the attachment of a more powerful external antenna to boost reception strength and positioning accuracy significantly.

What data protocol does the NEO-7M GPS module use and how can I access its output?

The NEO-7M module outputs satellite positioning data using the standard NMEA protocol, ensuring wide compatibility with navigation software and systems. You can access this data either through its micro USB interface for direct debugging, or via the reserved serial port for integration with microcontrollers or USB-to-serial converters.

Can the NEO-7M module retain its settings after power loss?

Yes, a key feature of the NEO-7M module is its built-in FLASH memory. This internal storage capability allows the module to save its configured settings and preferences even after power is removed. This eliminates the need for an external EEPROM, simplifying system design and ensuring persistent operation without re-configuration.

Package Includes

  • 1x NEO-7M GPS Satellite Positioning Module Development Board

Additional Information

Dimensions 6 × 4 × 3 cm
