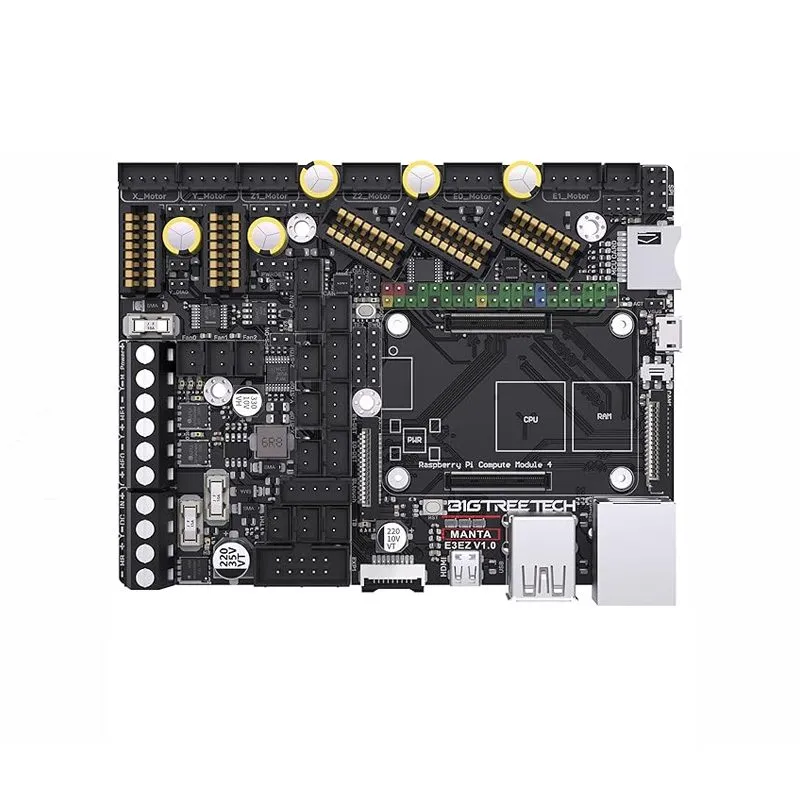

BTT Manta E3EZ V1.0 Mainboard for Ender 3 3D Printer

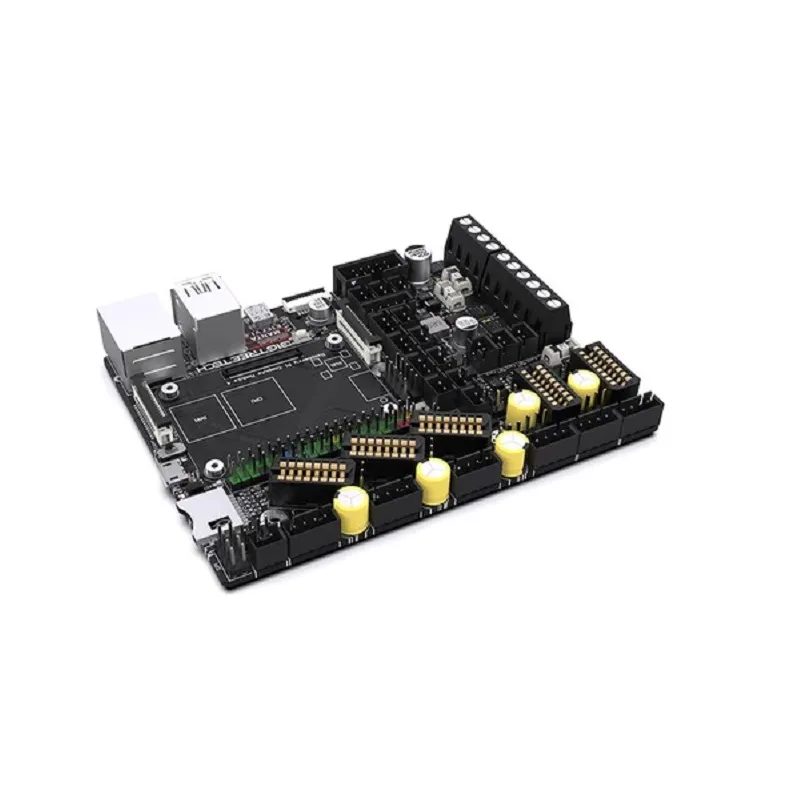

BTT Manta E3EZ V1.0 Mainboard for Ender 3 3D Printer - Image 2

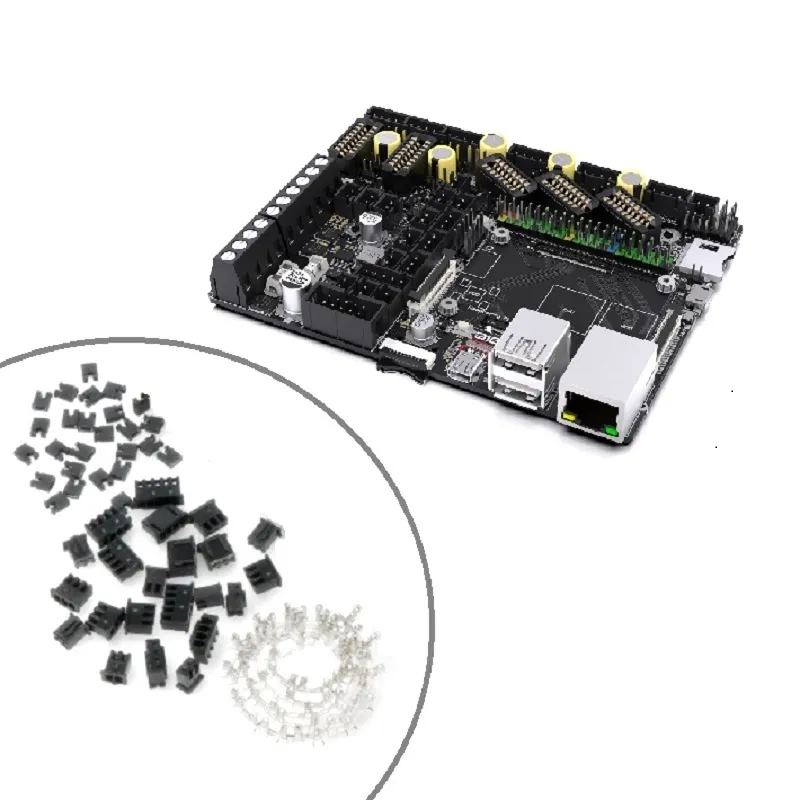

BTT Manta E3EZ V1.0 Mainboard for Ender 3 3D Printer - Image 3
SKU: 3DDF-1781
📋 GST Invoice Available

BTT Manta E3EZ V1.0 Mainboard for Ender 3 3D Printer

₹5,209.00 (Inclusive of all taxes)
Out of Stock

The BIGTREETECH BTT Manta E3EZ V1.0 is an advanced mainboard designed specifically to upgrade your Ender 3 3D printer. Featuring “Manta” technology for CB1/CM4 modules and “EZ” driver compatibility, it enables seamless transition to Klipper or enhanced Marlin, offering faster, safer, and more precise printing performance.

Features

  • Upgrade Ender 3 to Klipper or advanced Marlin with “Manta” and “EZ” technologies.
  • Enhanced safety with BTT EZ anti-misplug design for stepper drivers.
  • Integrates SPI interface for Klipper’s input shaping functionality.
  • Broad display compatibility, including original Ender 3 screen and BTT TFT series.
  • High-efficiency MOSFETs and replaceable fuse ensure reliable, long-term operation.

Out of stock

Description

The BIGTREETECH MANTA E3EZ V1.0 is a cutting-edge motherboard developed by BIGTREETECH to significantly upgrade your Ender 3 3D printer. This board integrates advanced “Manta” technology, allowing direct connection of CB1 or CM4 modules, and “EZ” technology, supporting the latest EZ drivers. This combination enables a seamless upgrade path to Klipper firmware, unlocking enhanced speed, precision, and advanced features, or provides a robust platform for Marlin with all modern capabilities.

Designed with safety and performance in mind, the Manta E3EZ V1.0 mainboard features BTT EZ safe anti-misplug design. When paired with BTT EZ drivers, this design prevents common wiring errors that can lead to damage or fire, ensuring a safer and more reliable printing experience. It also boasts broad display compatibility, supporting the original Ender 3 display, various BTT TFT series (TFT35 SPI, HDMI 5/7), and TFT35 E3 V3.0.1/TFT35 3.0.1, alongside compatibility with EZ2209 drivers.

Key Features

  • High-efficiency MOSFET for reduced heat generation and improved longevity.
  • Replaceable fuse design simplifies maintenance and enhances board protection.
  • Onboard SPI interface allows direct connection of acceleration sensors for Klipper's input shaping, boosting print quality.
  • High-precision pull-up resistor utilized in the temperature sensor interface for accurate readings.
  • Individual jumper caps for each motor driver module to select corresponding motor voltage.
  • Motor power supply supports up to 56V, incorporating an isolation chip to protect the main control during use with higher voltage EZ5160 drivers.

Technical Specifications

Item TypeController Board
CompatibilityEnder 3
Input Voltage (VDC)12–24V
MicrocontrollerARM Cortex M0 + STM32G0B1RE
MCU TypeARM Cortex M0 + STM32G0B1RE 64MHz
Power Supply Voltage (V)DC12V–DC24V (Motherboard)
Logic Voltage (V)DC 3.3V
Length (mm)120
Width (mm)90
Weight (g)117

Frequently Asked Questions

What is the primary advantage of upgrading to the BTT Manta E3EZ V1.0 on an Ender 3?

The main advantage is unlocking Klipper firmware capabilities or enhancing Marlin, allowing for significantly faster print speeds, advanced input shaping, and precise motion control. It integrates modern "Manta" and "EZ" technologies for superior performance and expandability compared to the stock Ender 3 board.

Which display types are compatible with the BTT Manta E3EZ V1.0?

The Manta E3EZ V1.0 offers broad compatibility, supporting the original Ender 3 display, various BIGTREETECH TFT displays like TFT35 SPI, HDMI 5, HDMI 7, TFT35 E3 V3.0.1, and TFT35 3.0.1. This flexibility ensures users can retain their preferred interface or upgrade to a more advanced touchscreen.

How does the "EZ" technology enhance safety with this mainboard?

The "EZ" technology, coupled with the BTT EZ safe anti-misplug design, prevents incorrect driver installation. This crucial safety feature protects the motherboard and drivers from damage due to reverse polarity or improper insertion, minimizing the risk of component failure or electrical hazards during setup and operation.

Can this mainboard support high-voltage stepper drivers like the EZ5160?

Yes, the BTT Manta E3EZ V1.0 supports motor power supplies up to 56V. For larger voltages, especially when utilizing drivers like the EZ5160, the board incorporates a dedicated isolation chip. This design protects the main control circuit from potential damage, ensuring reliable operation with powerful stepper motors.

Package Includes

  • 1 x BIGTREETECH Manta E3EZ V1.0 for Ender 3
  • 1 x Accessories set (as shown in the image)

Additional Information

Weight 0.117 kg
Dimensions 12 × 9 cm
