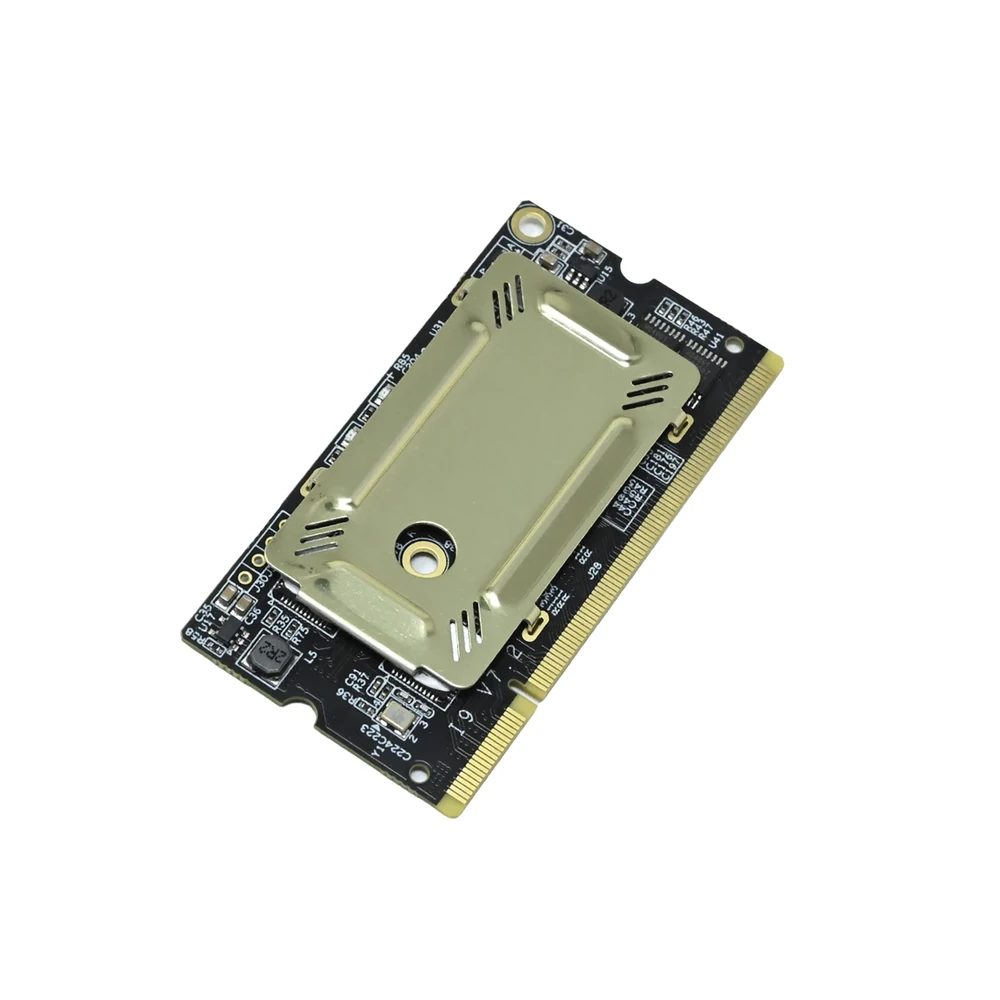

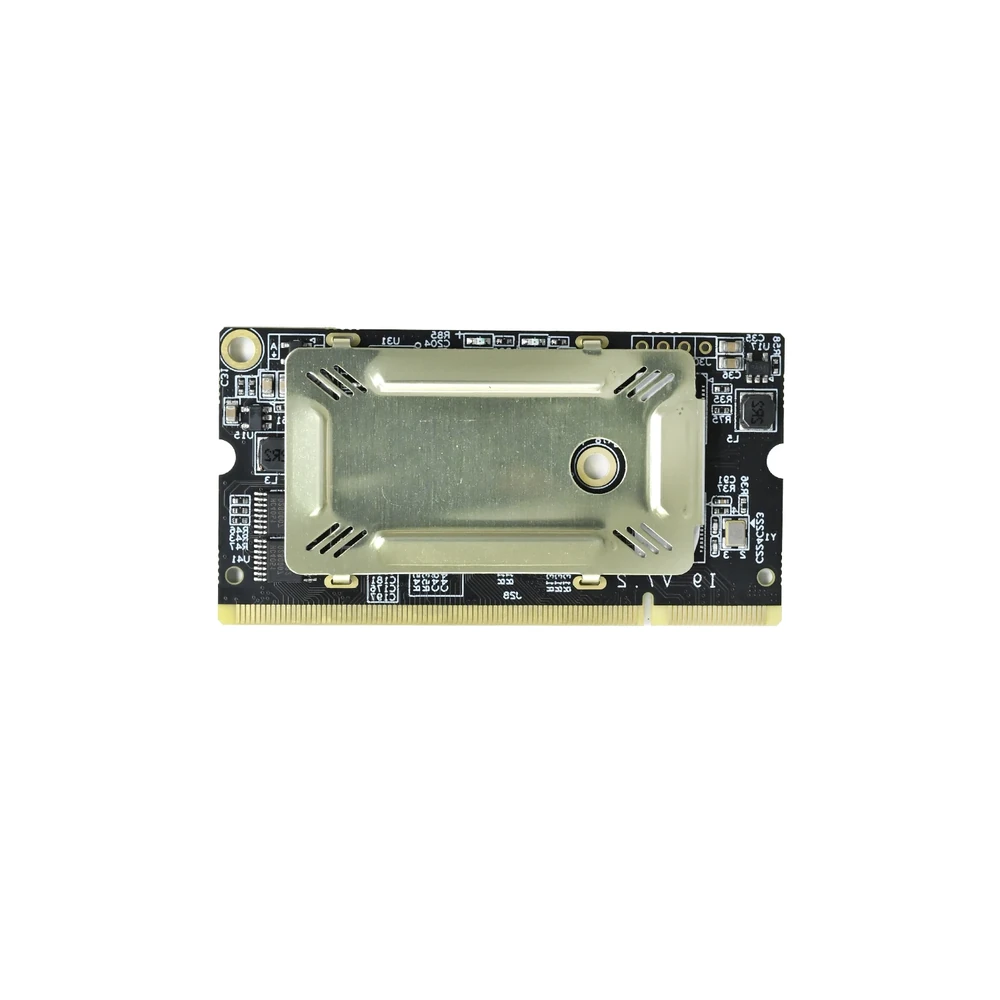

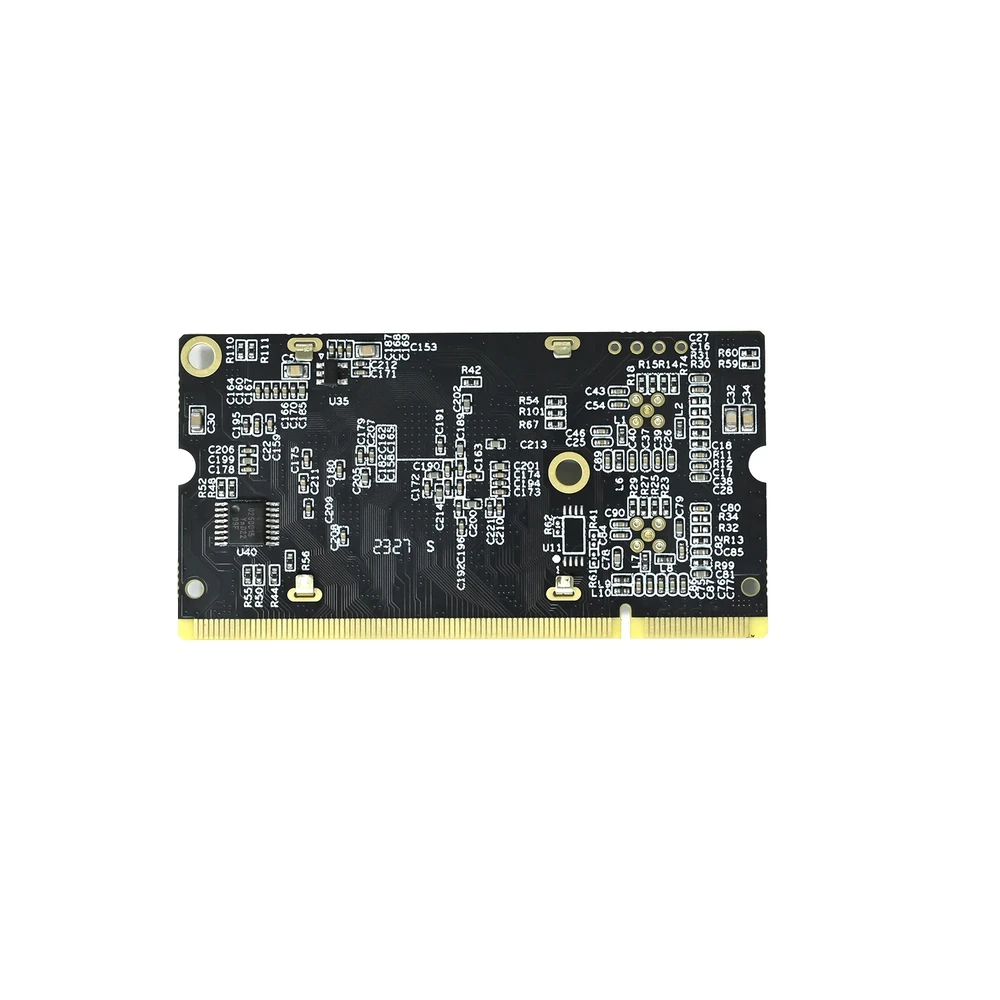

MuseLAB Lattice ECP5 FPGA RISC-V Dev Board Colorlight i9
The MuseLAB Colorlight i9 is a compact FPGA development board built around the Lattice ECP5 (LFE5U-45F) with 44K LUTs. It provides 8MB SDRAM, 8MB SPI Flash, dual Ethernet, and extensive I/O via 6 dual-PMOD interfaces, supporting open-source toolchains and RISC-V based embedded projects.
Features
- Features Lattice ECP5 LFE5U-45F FPGA with 44K LUTs.
- Supports open-source FPGA and RISC-V development toolchains.
- Integrated DAPLink debugger for JTAG and USB CDC programming.
- Provides 8MB SDRAM and 8MB SPI Flash for robust data handling.
- Offers over 100 usable I/Os through 6 dual PMOD expansion ports.
Out of stock
The MuseLAB Colorlight i9 FPGA Development Board offers a compact yet powerful platform centered on the Lattice ECP5 LFE5U-45F FPGA, equipped with 44K Look-Up Tables (LUTs). This board is engineered to facilitate advanced embedded development, supporting both open-source FPGA toolchains and RISC-V processor architectures. It comes with 8MB of SDRAM for efficient data processing and 8MB of SPI Flash for reliable program and data storage, ensuring ample resources for complex projects.
Connectivity is robust with dual Broadcom B50612D Ethernet PHYs and a versatile USB Type-C interface. The integrated DAPLink debugger simplifies the development workflow by providing seamless JTAG and USB CDC (Composite Device Class) functionality for programming and debugging. Furthermore, the board extends its utility through 6 dual PMOD interfaces, delivering over 100 accessible I/Os, making it highly adaptable for prototyping, educational, and diverse embedded system applications.
Additional Information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 9 × 6 × 1 cm |
