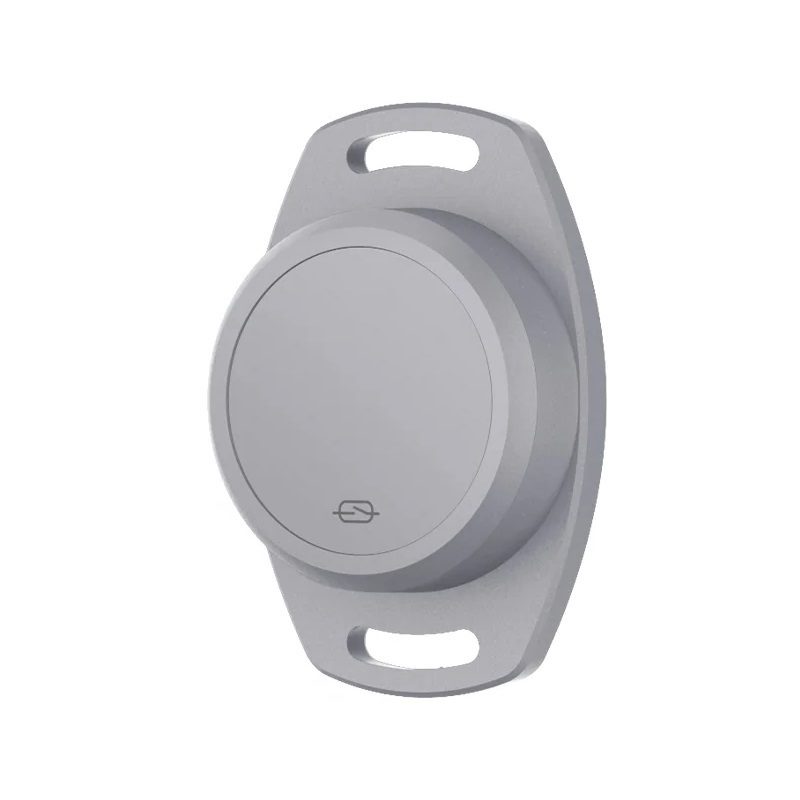

MOKO Smart Smart L02 BLE 5.0 Asset Tracking Anchor, 150m Range, IP67 Waterproof, w/ Environmental Sensors & Replaceable Battery
MOKO Smart Smart L02 BLE 5.0 Asset Tracking Anchor, 150m Range, IP67 Waterproof, w/ Environmental Sensors & Replaceable Battery - Image 2
SKU: SENS-3310
📋 GST Invoice Available

MOKO Smart Smart L02 BLE 5.0 Asset Tracking Anchor, 150m Range, IP67 Waterproof, w/ Environmental Sensors & Replaceable Battery

₹1,869.00 (Inclusive of all taxes)
Out of Stock

The MOKO Smart Smart L02 is a BLE 5.0 asset tracking anchor with a 150m range, designed for integration with IoT gateways and mobile apps. It features integrated temperature, humidity, and barometric pressure sensors, an accelerometer, and a hall-effect sensor for comprehensive environmental and motion monitoring in industrial and outdoor applications.

Features

  • BLE 5.0 with up to 150-meter reliable communication range for asset tracking.
  • IP67-rated waterproof and dustproof polycarbonate housing for harsh environments.
  • Integrated environmental sensors: temperature, humidity, and barometric pressure.
  • Up to 4-year lifespan from a user-replaceable 1000mAh CR2477 coin cell battery.
  • Includes accelerometer and hall-effect sensor for motion, orientation, and proximity detection.

Out of stock

Description

The MOKO Smart Smart L02 utilizes Bluetooth Low Energy 5.0 technology to provide reliable, long-range asset tracking and data transmission to compatible gateways or mobile devices. Its integrated sensor suite, including MEMS-based accelerometer and environmental sensors, enables real-time monitoring of location, movement, temperature, humidity, and atmospheric pressure.

Engineered for durability, the device features a rugged polycarbonate enclosure with an IP67 ingress protection rating, ensuring operation in demanding industrial and outdoor conditions. The unique rotating housing design facilitates tool-free battery replacement, supporting long-term deployments with minimal maintenance.

Key Features

  • Bluetooth 5.0 Long-Range Mode for stable connectivity up to 150 meters in open areas.
  • Industrial-grade IP67 protection against dust ingress and temporary water immersion.
  • Multi-sensor data fusion from accelerometer, temperature, humidity, and barometric sensors.
  • User-replaceable CR2477 lithium coin cell battery with an estimated 4-year operational life.

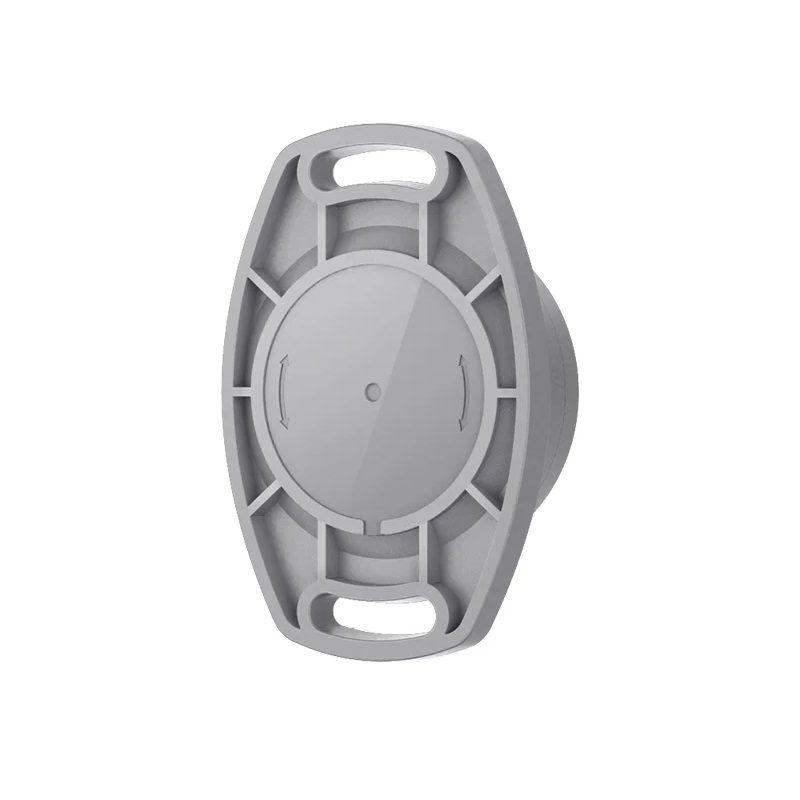

  • Tool-free battery compartment with a secure rotating latch mechanism.
  • Compact and robust polycarbonate construction measuring 70mm x 45mm x 18mm.
  • Integrated 3-axis accelerometer for motion detection and orientation tracking.
  • Hall-effect sensor for detecting magnetic fields, useful for door/window status or tamper detection.

Applications

  • Real-time asset tracking and inventory management in warehouses and logistics centers.
  • Environmental condition monitoring (temperature, humidity) for sensitive goods in transit.
  • Equipment utilization and movement tracking in manufacturing and industrial facilities.
  • Outdoor asset monitoring for construction sites, agriculture, and utility infrastructure.
  • Tamper and door status detection using the integrated hall-effect sensor.

Technical Specifications

Item TypeBLE Asset Tracking Anchor / Tag
Wireless ProtocolBluetooth Low Energy (BLE) 5.0
Maximum Communication Range150 meters (open area)
Integrated SensorsAccelerometer, Temperature, Humidity, Barometric Pressure, Hall-Effect
Battery TypeReplaceable CR2477 Coin Cell (1000mAh)
Estimated Battery LifeUp to 4 years (configuration dependent)
Operating Temperature-20°C to +60°C
Ingress Protection (IP) RatingIP67
Housing MaterialPolycarbonate (PC)
Dimensions (L x W x H)70 mm x 45 mm x 18 mm
Weight38 grams

Frequently Asked Questions

What is the communication protocol and maximum range of the MOKO Smart Smart L02?

The device uses Bluetooth Low Energy (BLE) 5.0 technology, which supports long-range mode. In optimal open-area conditions, it can achieve a reliable communication range of up to 150 meters with a compatible BLE gateway or receiver.

How do you replace the battery and what is its expected lifespan?

The battery is user-replaceable via a tool-free rotating housing design. It uses a standard CR2477 3V lithium coin cell (1000mAh). With default configuration and transmission intervals, the battery can last up to 4 years before requiring replacement.

What environmental conditions can the Smart L02 withstand?

The tracker is housed in a polycarbonate case with an IP67 rating, making it dust-tight and capable of withstanding temporary immersion in water up to 1 meter for 30 minutes. Its operational temperature range is -20°C to +60°C.

What data does the integrated sensor suite provide?

Beyond BLE positioning, the L02 provides accelerometer data for motion/orientation, precise temperature and humidity readings, barometric pressure measurements, and a hall-effect sensor output for detecting magnetic fields or proximity.

How is the device configured and what mounting options are available?

Configuration is performed via dedicated Android and iOS mobile applications that allow you to set advertising intervals, sensor sampling rates, and other parameters. The package includes a screw gripper set, and the device case supports attachment via adhesive stickers, screws, or zip ties.

Package Includes

  • 1 x MOKO Smart Smart L02 Tracking Anchor
  • 1 x Screw Gripper Set (for mounting)

Additional Information

Weight 0.038 kg
Dimensions 7 × 4.5 × 1.8 cm
