Microchip Technology AC164165 Wi-Fi Smart Device Development Kit
Microchip Technology AC164165 Wi-Fi Smart Device Development Kit - Image 2
Microchip Technology AC164165 Wi-Fi Smart Device Development Kit - Image 3
SKU: SBCD-0531
📋 GST Invoice Available

Microchip Technology AC164165 Wi-Fi Smart Device Development Kit

₹5,389.00 (Inclusive of all taxes)
Out of Stock

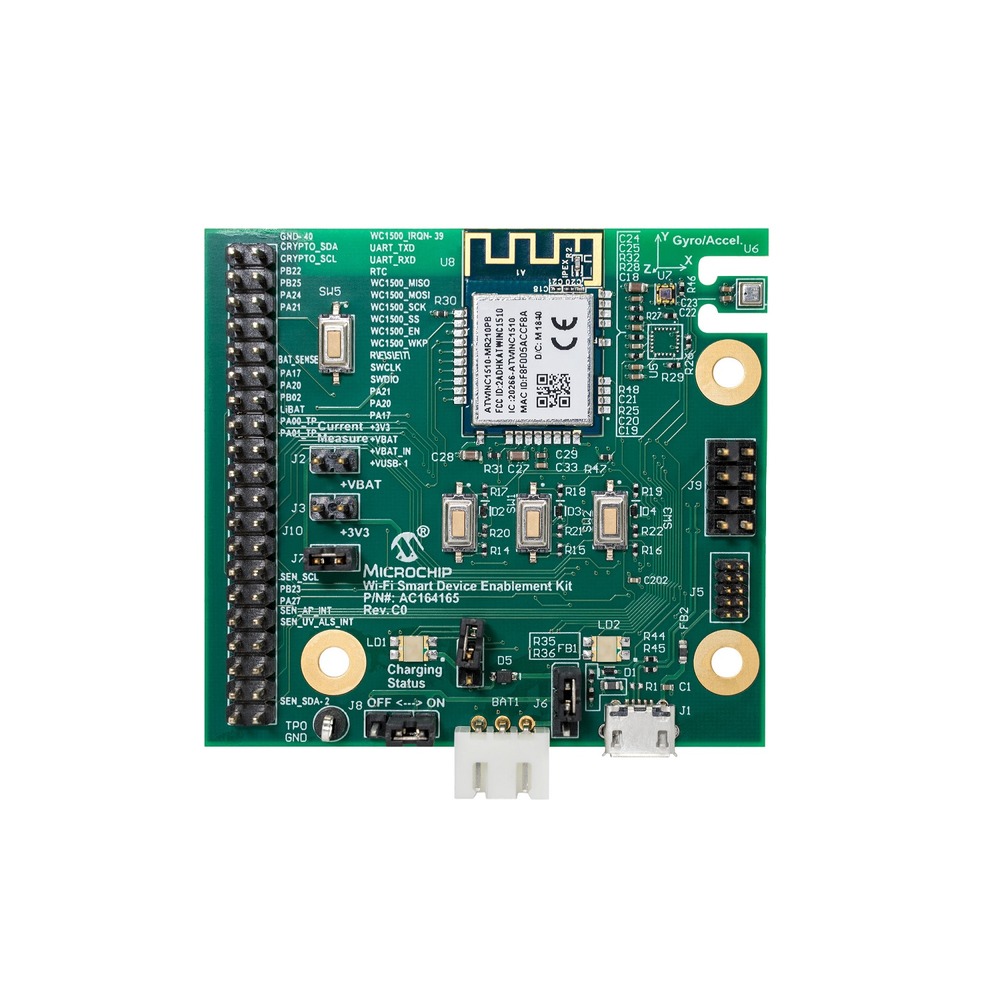

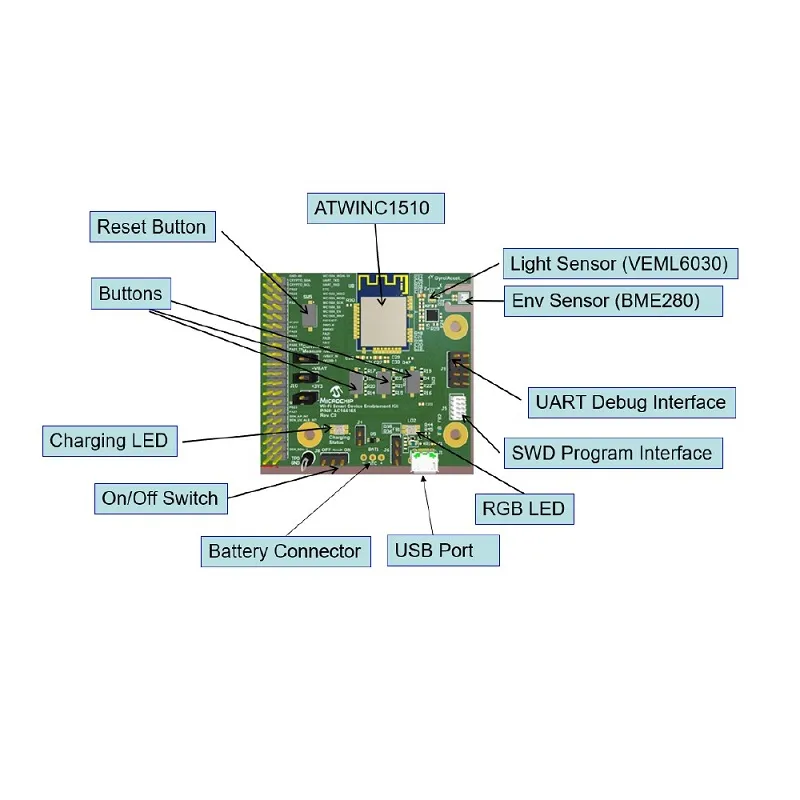

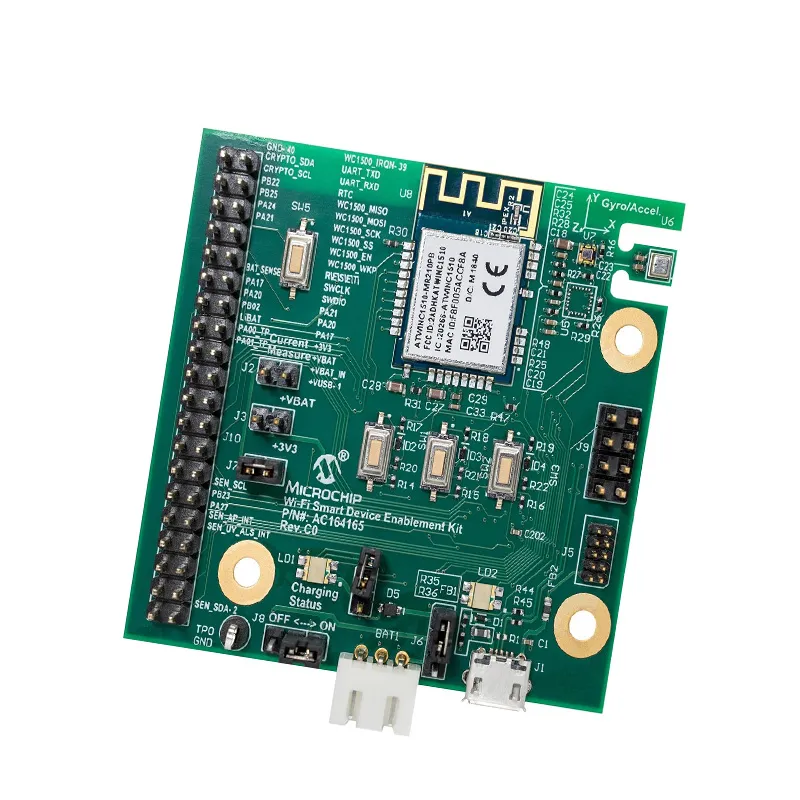

The Microchip Technology AC164165 Wi-Fi Smart Device Enablement Kit provides a comprehensive platform for rapidly developing Alexa voice-controlled IoT applications. Featuring a SAML21G18B microcontroller and TWINC15x0 Wi-Fi module, it enables seamless integration with AWS IoT for smart device prototyping.

Features

  • Features SAML21G18B ARM Cortex-M0+ Microcontroller for efficient processing.
  • Integrates TWINC15x0 Wi-Fi 802.11 b/g/n Connectivity for robust wireless communication.
  • Designed for Alexa Voice Control and Amazon Web Services (AWS) IoT Cloud integration.
  • Enhanced security with an ECC608 Crypto Device for TLS1.2 mutual authentication.
  • Powered by a rechargeable 2000 mAh Lithium Battery or standard USB interface.

Out of stock

Description

This Wi-Fi smart device enablement kit is engineered to accelerate the development of applications featuring Alexa Voice Control, facilitating rapid prototyping and integration with smart home ecosystems. It allows users to command the board’s GPIO, gather sensor data, and adjust LED colors directly via an Alexa Smart Speaker or the Alexa App. The kit leverages Amazon Web Services (AWS) IoT for robust cloud connectivity, ensuring secure data exchange and remote management capabilities.

Designed for developers and makers, the kit provides a complete hardware and software foundation for creating innovative IoT solutions. Its comprehensive feature set, including an integrated crypto device and versatile power options, makes it an ideal platform for secure, connected, and intelligent embedded projects.

Key Features

  • Wi-Fi 802.11 b/g/n Connectivity for robust wireless communication.
  • Amazon Web Service (AWS) IoT Cloud Connection for secure data and device management.
  • Sensor Data Update to AWS IoT Shadow for real-time state synchronization.
  • Compatible with Amazon Alexa for intuitive voice command integration.
  • Mobile Application support for simplified board registration and control.
  • TLS1.2 Mutual Authentication based on ECC608 Crypto Device for enhanced security.
  • Powered by rechargeable 2000 mAh Lithium Battery or standard USB Interface.
  • Program/Debug via SWD Interface for efficient development workflow.
  • Supports Bootloader for simplified firmware updates.

Applications

  • Smart home device prototyping with voice control
  • IoT sensor nodes with cloud connectivity
  • Remote monitoring and control systems
  • Secure embedded applications utilizing hardware cryptography
  • Battery-powered wireless sensing solutions

Technical Specifications

Item TypeKit
MicrocontrollerSAML21G18B (ARM Cortex-M0+)
RAM40KB
Program Memory Size256KB
Network ControllerTWINC15x0 IEEE® 802.11 b/g/n
Color and Light SensorVEML6030
Environmental SensorBME280

Frequently Asked Questions

What microcontroller powers the AC164165 kit?

The kit is driven by the Microchip Technology SAML21G18B, an ARM Cortex-M0+ based microcontroller. This MCU provides efficient processing with 256KB of flash program memory and 40KB of RAM, making it suitable for low-power IoT applications requiring robust control and data handling.

How does the kit provide Wi-Fi connectivity and security?

Wi-Fi connectivity is managed by the TWINC15x0 IEEE 802.11 b/g/n module, enabling reliable wireless communication. For security, it integrates an ECC608 Crypto Device, supporting TLS1.2 mutual authentication based on ECDSA, crucial for secure AWS IoT cloud connections.

What development tools and environments are supported for programming this kit?

The AC164165 kit can be programmed and debugged using the standard SWD (Serial Wire Debug) interface. Developers can leverage Microchip Technology's MPLAB X IDE, along with associated compilers and debuggers, to create and deploy firmware for the SAML21G18B microcontroller and its peripherals.

Can the kit be integrated with cloud platforms beyond AWS IoT?

While the kit is specifically designed to accelerate AWS IoT integration and Alexa Voice Control, its underlying Wi-Fi module and microcontroller capabilities allow for custom cloud platform integration. Developers can adapt the firmware to connect to other MQTT-based or HTTP-based cloud services by implementing the necessary communication protocols.

Package Includes

  • 1 x Microchip Technology AC164165 Wi-Fi Smart Device Enablement Kit

Additional Information

Weight 0.104 kg
Dimensions 20 × 14 × 4 cm
