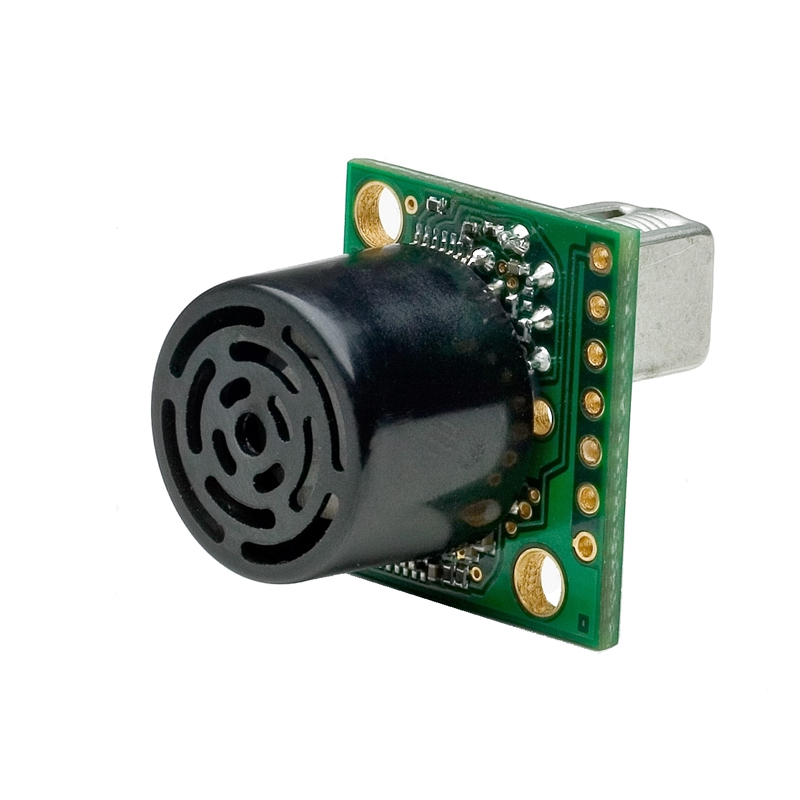

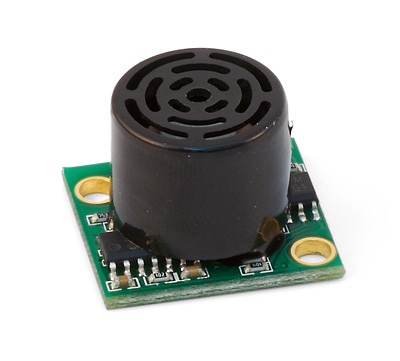

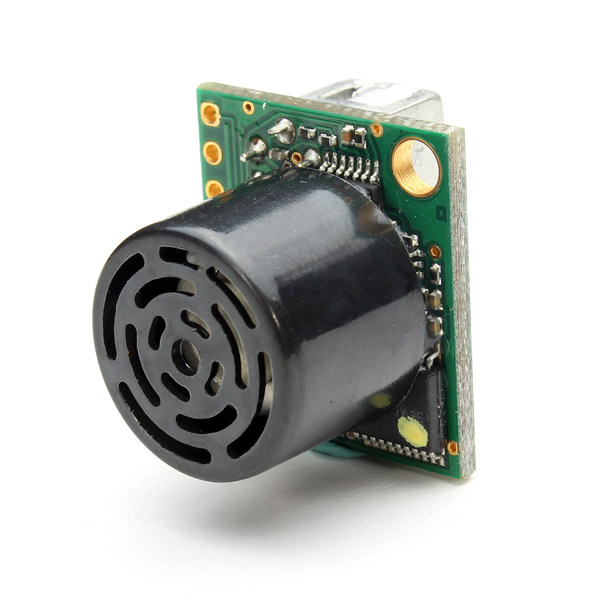

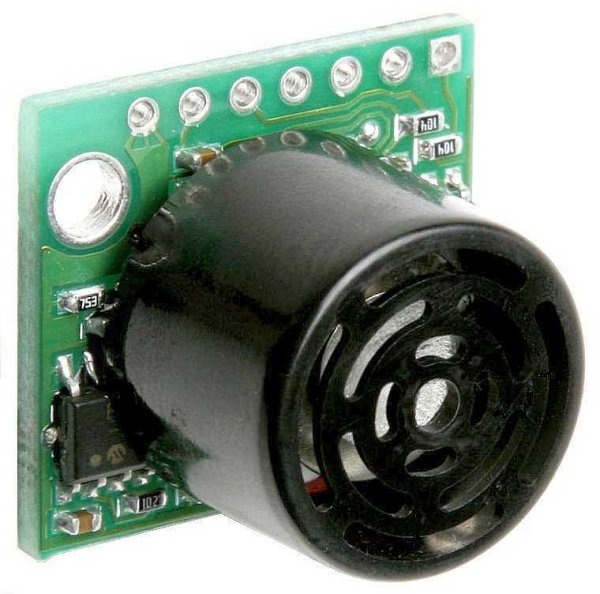

MaxBotix MB1242 I2CXL-MaxSonar-EZ4 Ultrasonic Sensor Module
The MaxBotix MB1242 I2CXL-MaxSonar-EZ4 is a high-performance ultrasonic distance sensor module designed for indoor applications. It provides precise, noise-resistant ranging from 20 cm to 765 cm via a simple I2C interface, making it compatible with microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32.
Features
- High-accuracy ultrasonic ranging from 20 cm to 765 cm with 1 cm resolution.
- Simple I2C bus interface allows control of up to 127 sensors on a single bus.
- Real-time automatic calibration for voltage, humidity, and ambient noise ensures stable readings.
- Virtually no dead zone; objects closer than 20 cm are reported as 20 cm.
- Robust firmware filtering provides high noise tolerance and clutter rejection.
Out of stock
The MB1242 sensor utilizes a 42 kHz ultrasonic transducer to accurately measure distance to objects. Its advanced signal processing incorporates real-time waveform signature analysis and continuously variable gain to deliver virtually noise-free readings, even in environments with acoustic or electrical interference. This makes it suitable for reliable object detection and ranging in controlled indoor settings.
Designed for easy integration, the module features mounting holes on its compact PCB and operates from a 3V to 5.5V supply. The I2C communication protocol simplifies wiring and software integration, enabling scalable multi-sensor systems for robotics, automation, and level monitoring applications where precise, non-contact distance measurement is required.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 2.25 × 2 cm |
