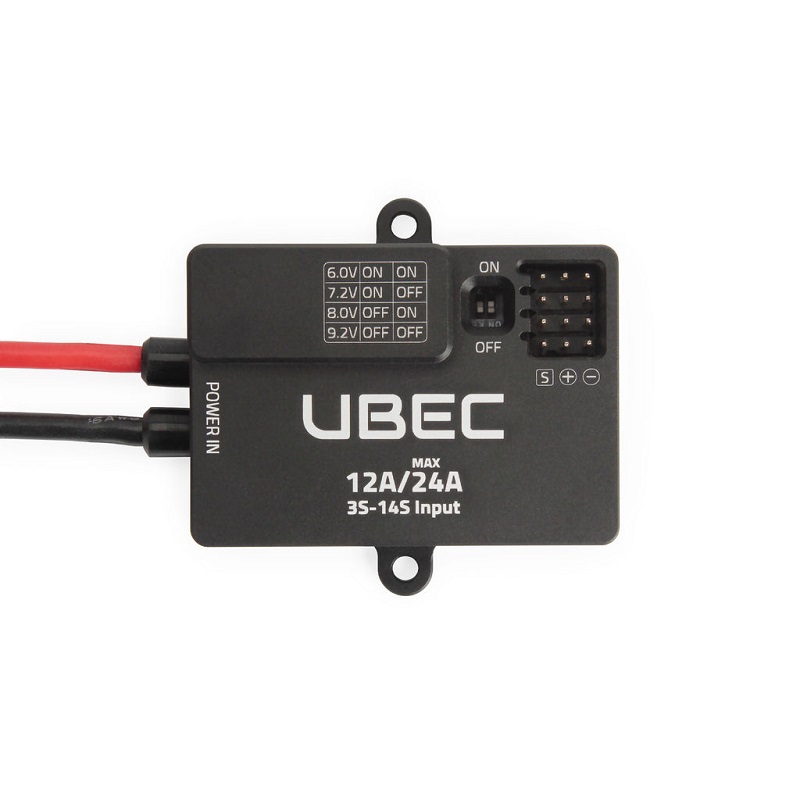

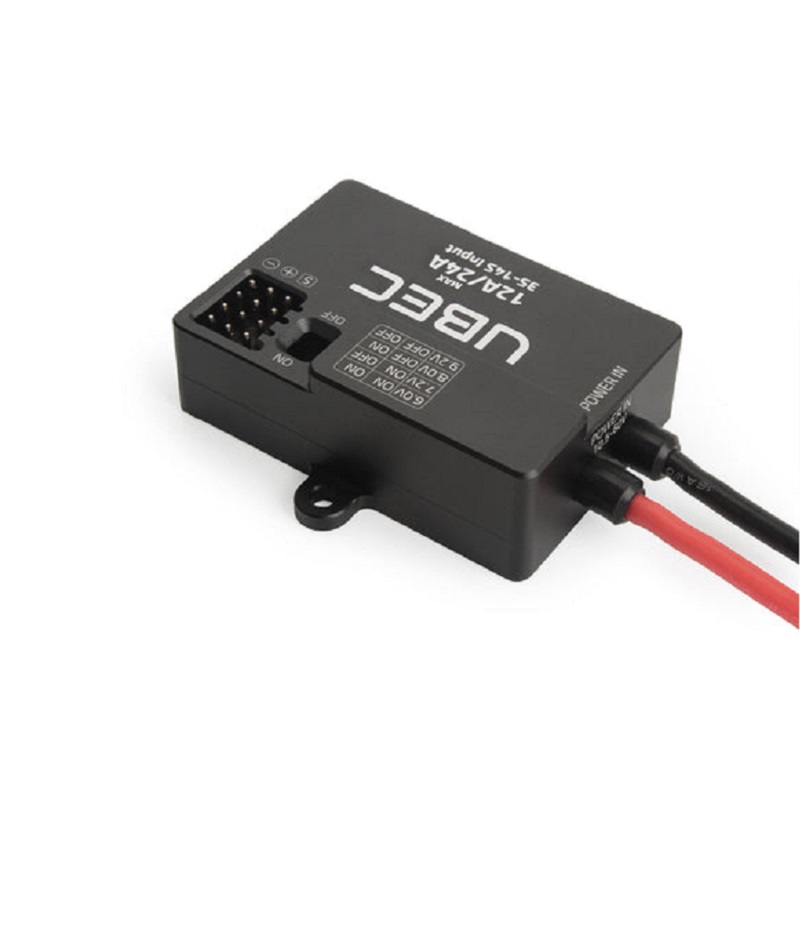

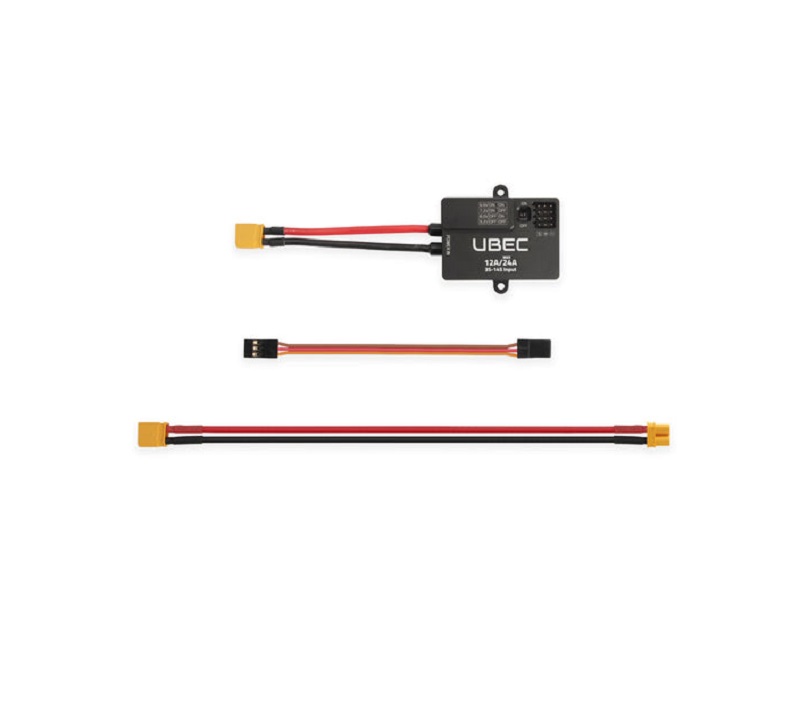

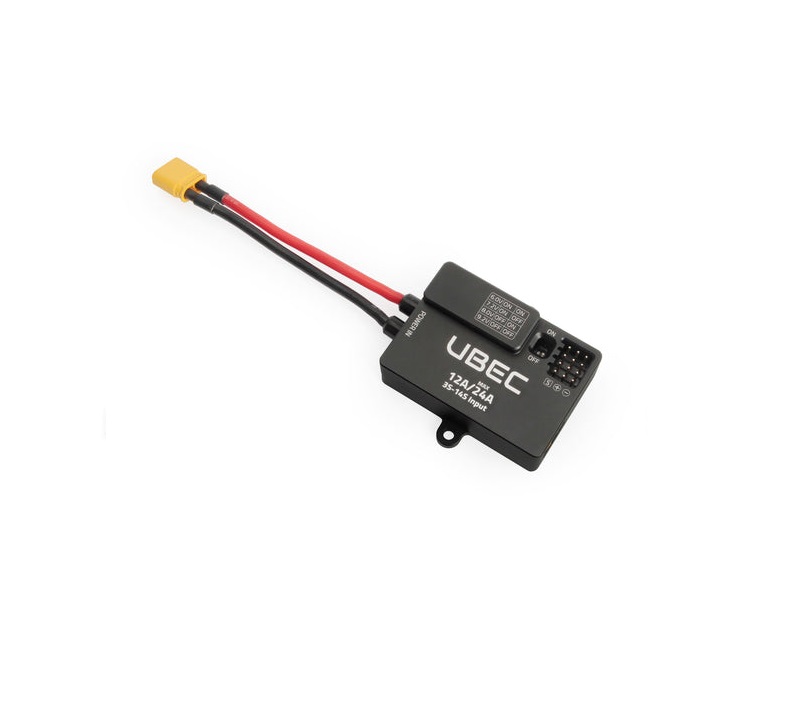

Holybro UBEC 12A 3-14S Adjustable Voltage Regulator
The Holybro UBEC 12A (3-14S) is a robust synchronous step-down voltage regulator designed for high-power drone systems. It efficiently converts 3-14S LiPo battery voltage to a stable, adjustable output (6.0V, 7.2V, 8.0V, 9.2V) to power receivers, servos, and other critical electronics with a continuous 12A current output.
Features
- Wide 3-14S LiPo input voltage compatibility for diverse setups.
- Adjustable output voltage settings: 6.0V, 7.2V, 8.0V, 9.2V via DIP switches.
- Delivers a continuous 12A current with 24A burst capability for demanding loads.
- Robust metal housing enhances heat dissipation and reduces EMI.
- Integrated over-current, short circuit, overheat, and low-voltage cutoff protections.
Out of stock
The Holybro UBEC 12A is engineered as a highly efficient synchronous step-down regulator, expertly managing wide input voltage ranges from 3-14S LiPo batteries. This module is critical for reliably dropping the high DC voltage from the main flight battery to a safe, stable level required by sensitive avionics, such as radio receivers, servos, and dedicated FPV systems, ensuring consistent power delivery even under heavy loads. With a continuous output of 12 Amps and burst capabilities up to 24 Amps, it provides ample current for advanced drone configurations.
Output voltage selection is straightforward through onboard DIP switches, allowing configuration for 6.0V, 7.2V, 8.0V, or 9.2V, adapting to various electronic component requirements. Its metal housing not only provides superior heat dissipation, crucial for high-current applications, but also significantly minimizes electromagnetic interference, contributing to cleaner signal integrity across the aircraft’s electronic systems. Multiple integrated protection circuits safeguard both the UBEC and connected devices against common electrical faults, enhancing overall system reliability.
Additional Information
| Dimensions | 14 × 9 × 3 cm |
|---|
