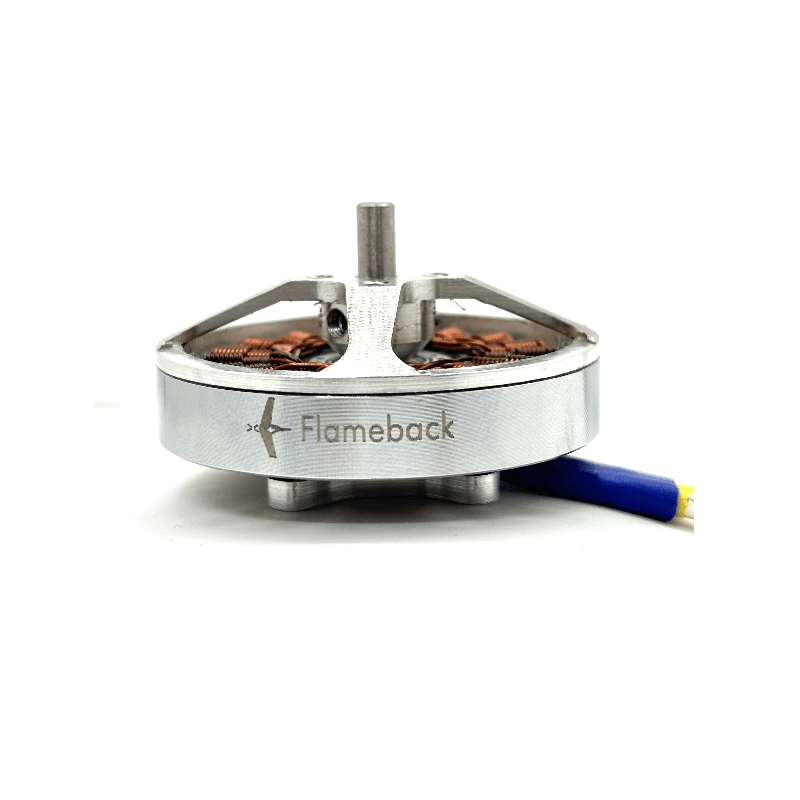

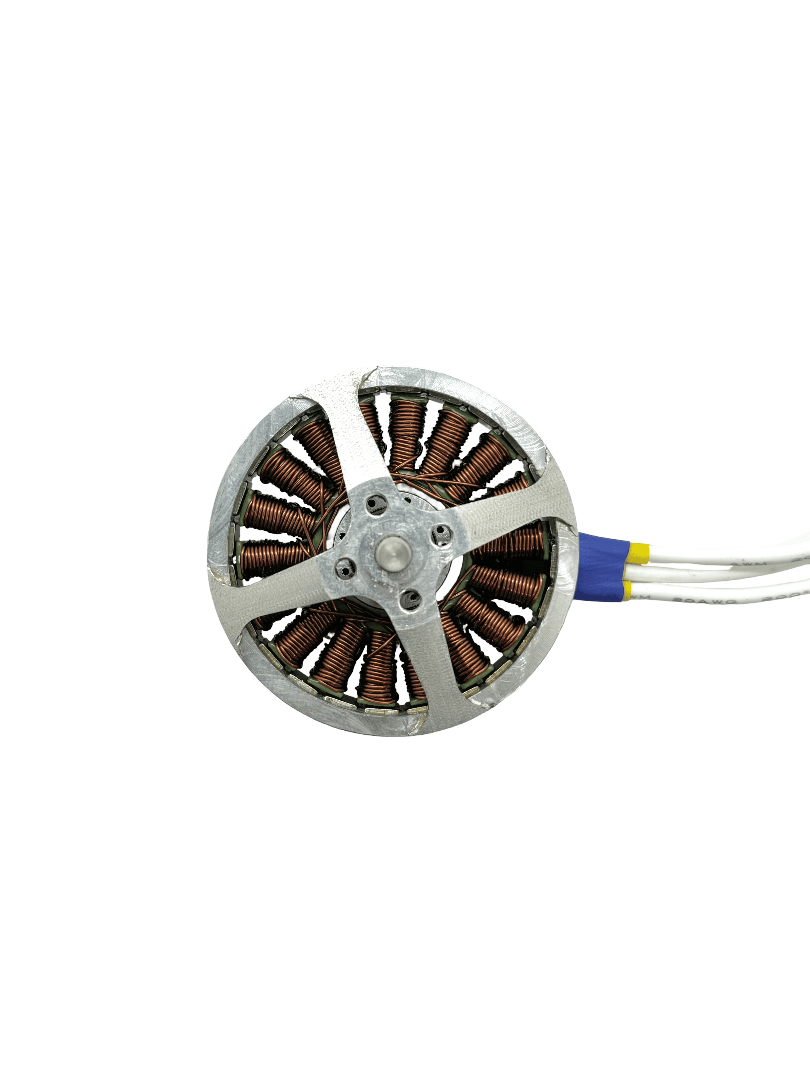

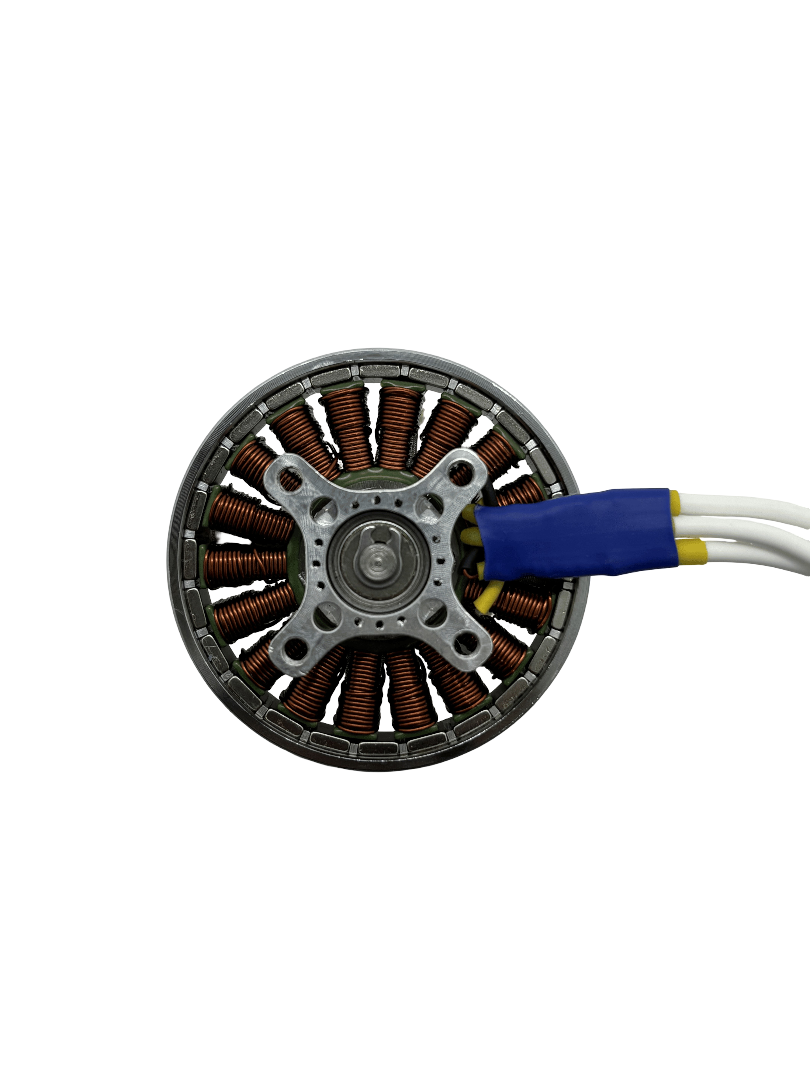

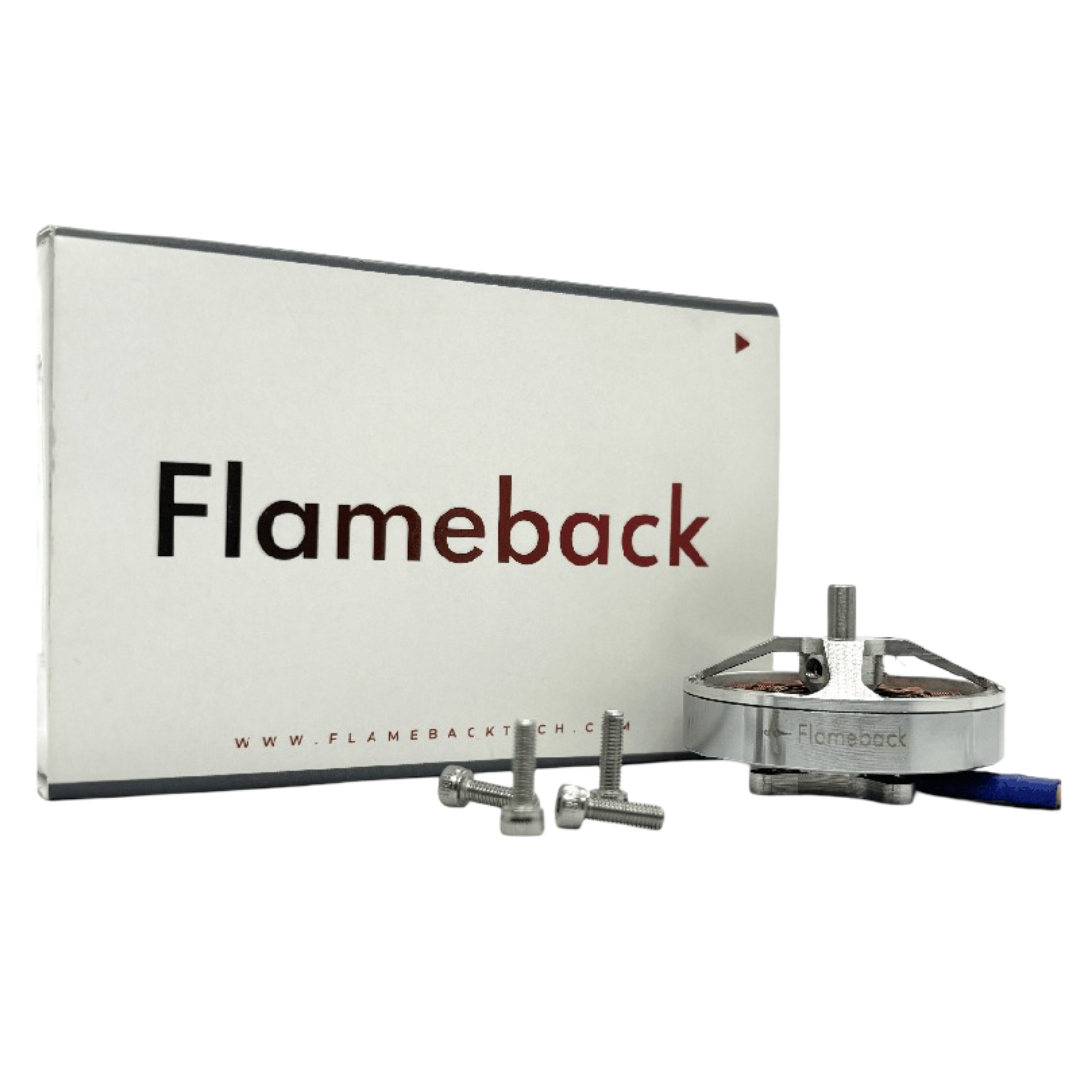

Flameback 4006 380KV BLDC Motor
The Flameback 4006 is a 380KV brushless motor engineered for medium-lift UAV applications, delivering over 2 kg of thrust from a 70g frame. Optimized for 4-6S LiPo batteries, it integrates a finned thermal design for sustained performance in delivery, mapping, and aerial photography platforms.
Features
- Delivers over 2 kg of thrust with a 70g weight for a superior power-to-weight ratio.
- 380KV rating and 18N24P configuration ensure efficient, responsive throttle control on 4-6S LiPo.
- Integrated finned housing provides advanced thermal management for extended flight durations.
- Precision flux rings and balanced rotor design minimize vibration for stable flight control.
- Compact 45.5mm diameter x 32mm length design minimizes payload impact on UAV frames.
Out of stock
The Flameback 4006 380KV BLDC Motor is engineered for demanding medium-lift UAV operations where efficiency and reliability are paramount. Its core design leverages an 18N24P magnetic configuration and a 380KV winding to provide a robust torque curve ideal for larger propellers like 14×4.8″ or 15×5.5″, translating electrical energy into consistent, powerful thrust.
Structural integrity is prioritized through a lightweight yet durable housing, while the integrated finned design acts as a passive heatsink, effectively dissipating heat generated during continuous 350W power draws. This thermal resilience ensures motor longevity and stable performance across the full -20°C to 125°C operating range, making it suitable for varied environmental conditions.
Additional Information
| Weight | 0.072 kg |
|---|---|
| Dimensions | 3.2 × 4.55 cm |
