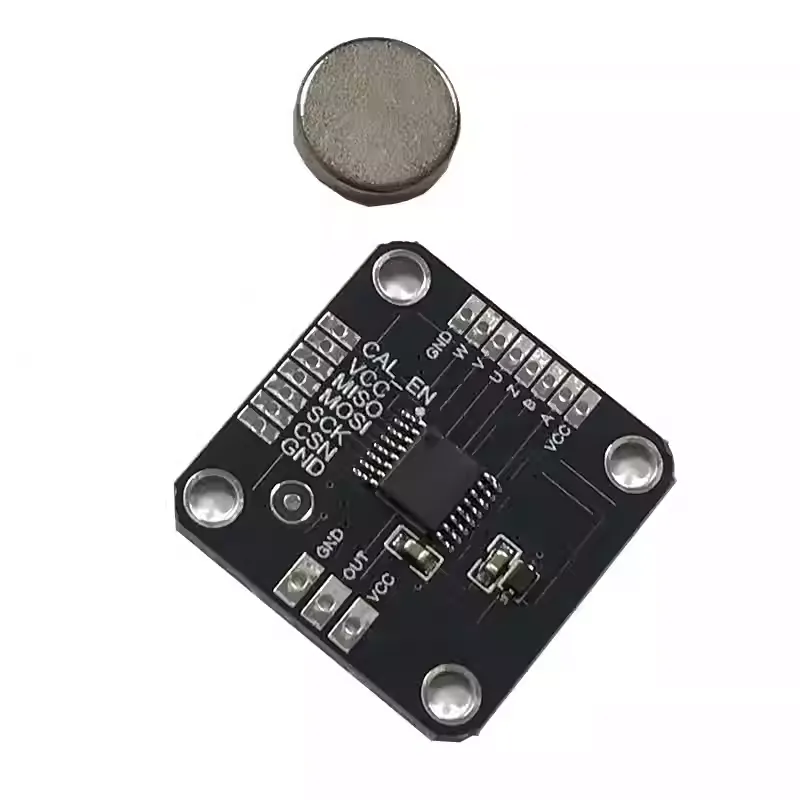

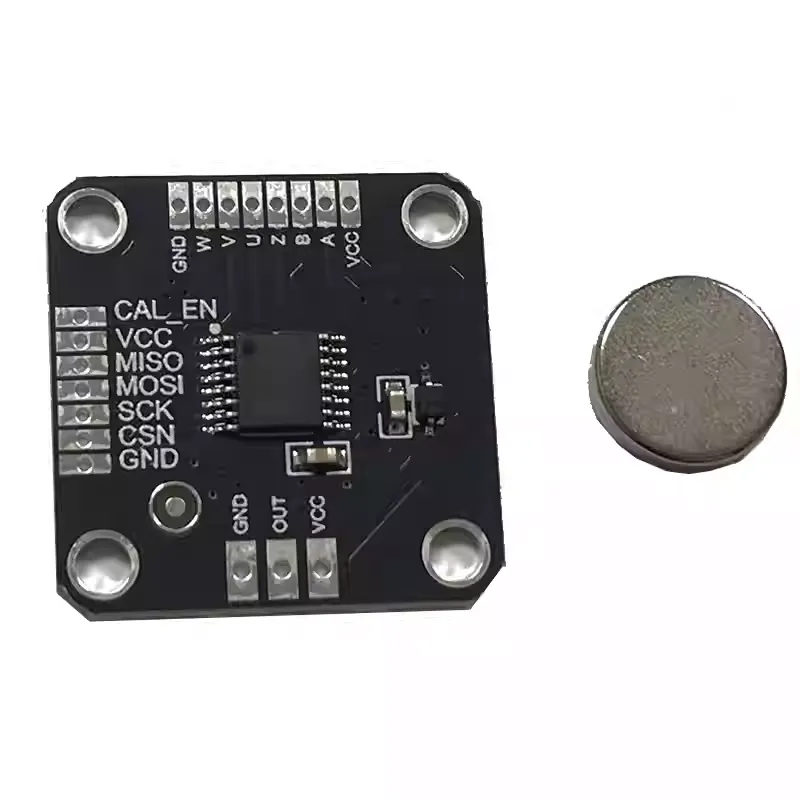

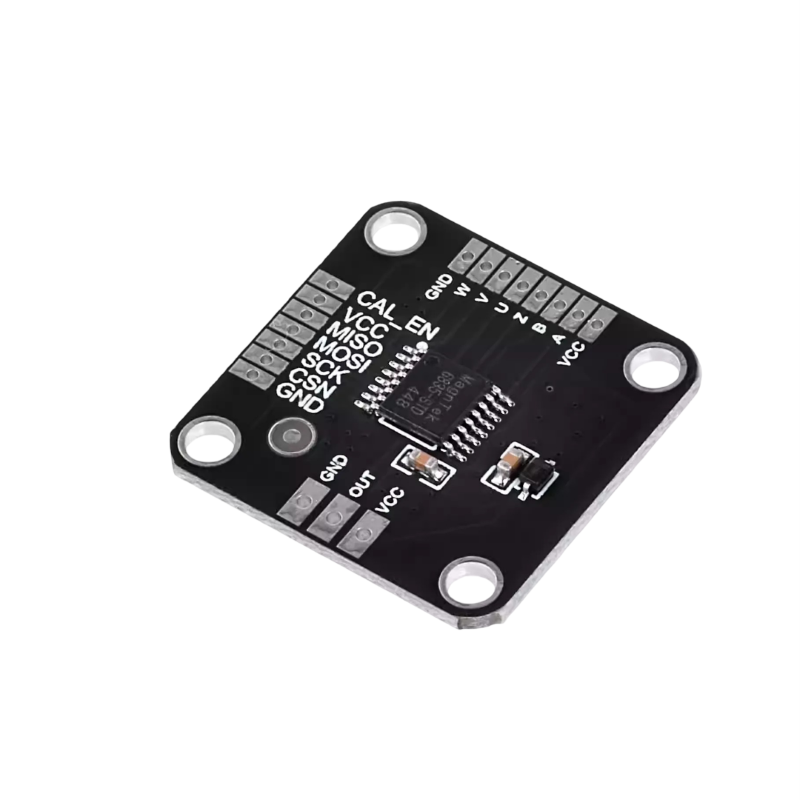

MagnTek MT6835 Magnetic Encoder Module PWM/SPI 21BIT Absolute Angle Sensor with Magnet - ABZ/UVW Output
The MagnTek MT6835 is a high-speed 21-bit absolute magnetic encoder module designed for brushless motor control and robotics. It provides SPI, PWM, ABZ, and UVW outputs, supporting speeds up to 120,000 RPM, and is compatible with 3.3V and 5V logic systems like Arduino, Raspberry Pi, and industrial PLCs.
Features
- 21-bit absolute angle encoder using advanced AMR (Anisotropic Magnetoresistive) technology.
- Supports SPI, PWM, incremental ABZ (1-8192 PPR), and UVW (1-16 pole pairs) outputs.
- High-speed operation up to 120,000 RPM with ultra-low system latency.
- Wide operating voltage range of 3.3V to 5.0V DC for versatile system integration.
- Industrial-grade operating temperature range from -40°C to +125°C.
Out of stock
The MT6835 magnetic encoder module utilizes AMR sensing technology to deliver precise, non-contact 360° absolute angle measurement. Its core provides 18-bit resolution, with a 21-bit output via SPI and a 12-bit output via PWM, ensuring smooth and accurate position feedback for demanding motion control applications.
Engineered for high-performance environments, the module features configurable ABZ and UVW outputs, allowing it to directly replace common encoders like the AS5048 and AB 8192 series. Its compact TSSOP-16 package and robust design make it suitable for integration into servo drives, CNC machinery, and automated robotics systems where reliability and precision are critical.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 2.7 × 2.7 cm |
