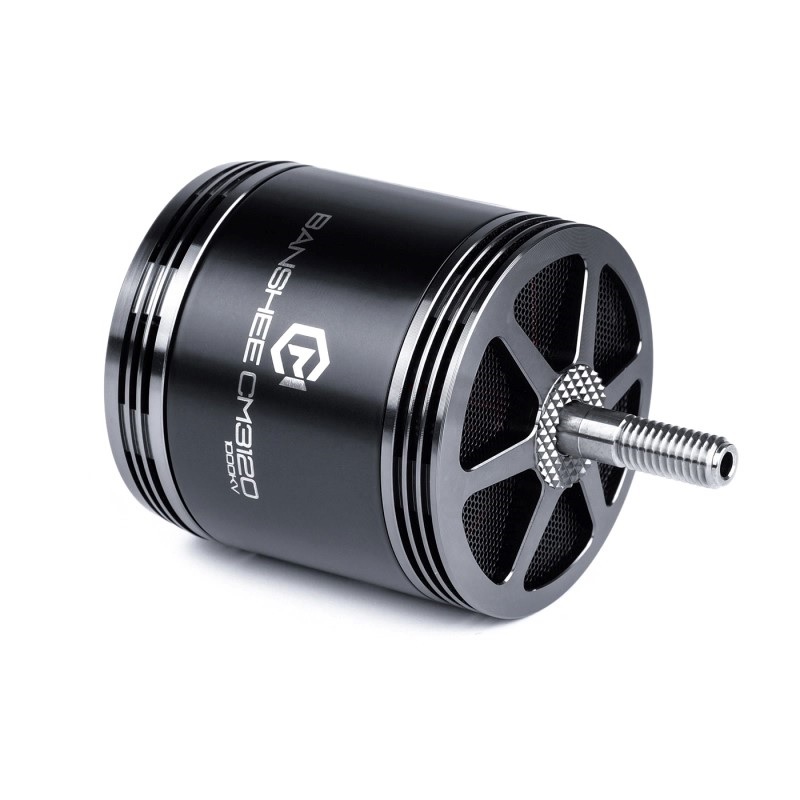

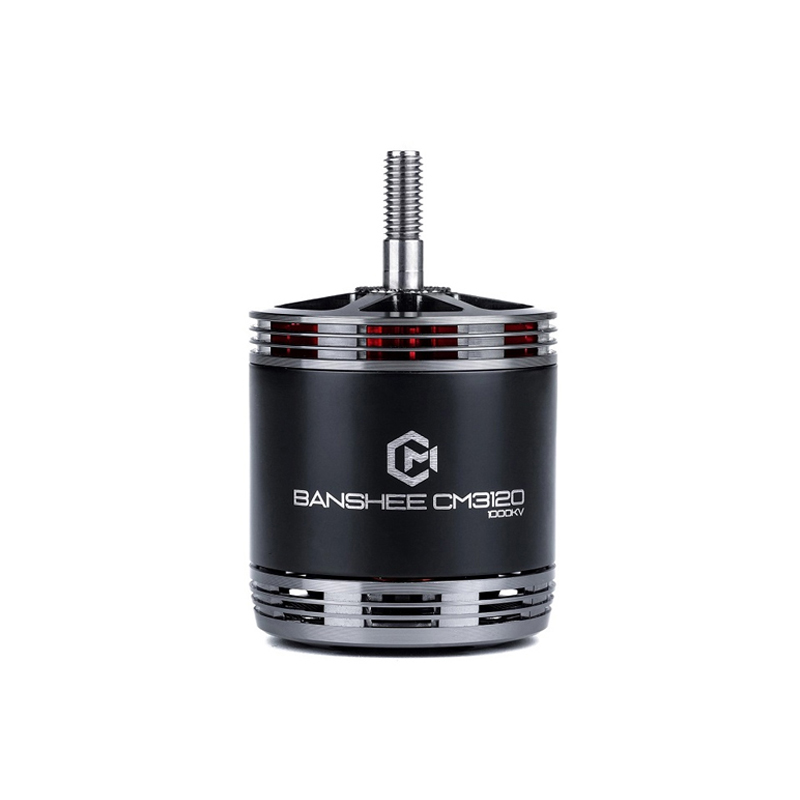

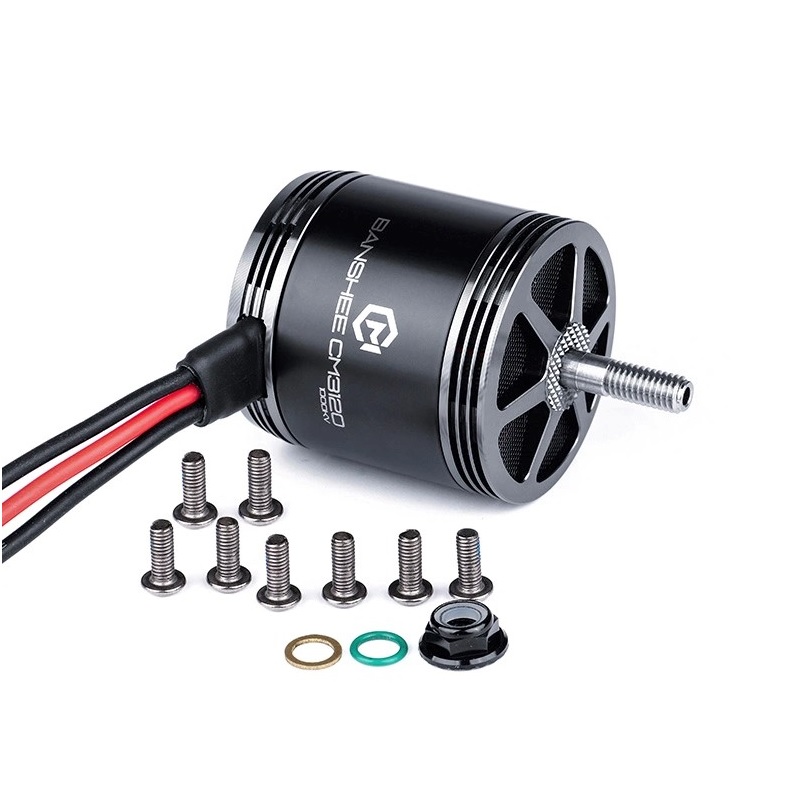

MAD Components Components CM 3120 BANSHEE FPV Drone Motor 700KV-8S
The MAD Components Components CM 3120 BANSHEE is a high-power 700KV brushless motor engineered for 8S LiPo operation, delivering up to 2025W of power and 5kg of thrust. Its advanced cooling and dust filtration design make it suitable for demanding heavy-lift and professional cinematography drone applications.
Features
- High-torque 700KV motor optimized for 8S LiPo battery systems.
- Delivers a maximum thrust of 5kg and a peak power rating of 2025W.
- Features internal stainless steel dust filters and a split exhaust rotor for superior cooling.
- Designed for professional-grade heavy-lift drones and cinematography platforms.
- Robust construction with a low internal resistance of 81mΩ for efficient power delivery.
Out of stock
The CM 3120 BANSHEE motor from MAD Components Components is engineered for the extreme demands of professional FPV and heavy-lift drone operations. Its 700KV rating is specifically tuned for high-voltage 8S LiPo setups, providing the necessary torque and RPM for lifting substantial payloads while maintaining efficient flight characteristics.
Beyond raw power, the motor incorporates a sophisticated thermal management system. The internal split exhaust blade within the rotor actively expels heat, while dual ultra-thin stainless steel filters protect the stator from dust ingress—a critical feature for prolonged motor life in harsh filming environments. This combination of high power output, durability, and protective design establishes the CM 3120 as a core component for enterprise UAV builds.
Additional Information
| Weight | 0.755 kg |
|---|---|
| Dimensions | 10 × 10 × 8 cm |
