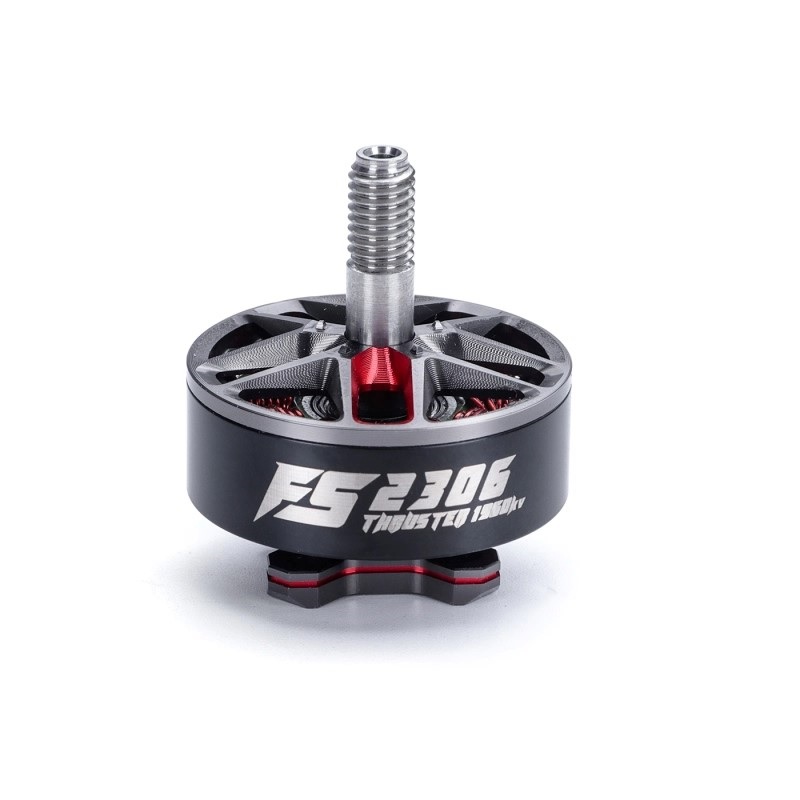

MAD Components Components FS 2306 Thruster FPV Drone Motor 1960KV-6S - Red
The MAD Components Components FS 2306 Thruster is a 1960KV brushless motor engineered for high-performance 6S FPV drone builds, delivering strong thrust and responsive handling ideal for aggressive freestyle and racing applications.
Features
- 1960KV rating optimized for high-performance 6S LiPo power systems.
- 2306 stator size (23mm diameter, 6mm height) for an excellent thrust-to-weight ratio.
- 12N14P (12-slot, 14-pole) configuration for smooth, efficient power delivery.
- Precision rotor balancing (≤5 mg) ensures stable, vibration-free flight.
- Features an M5 threaded prop mount and a standard 4mm motor shaft.
Out of stock
The MAD Components Components FS 2306 Thruster motor is designed for pilots demanding reliable power and agility. Its 1960KV wind is specifically tuned for 6S voltage, providing the high RPM and torque necessary for explosive maneuvers and sustained speed in freestyle and racing scenarios.

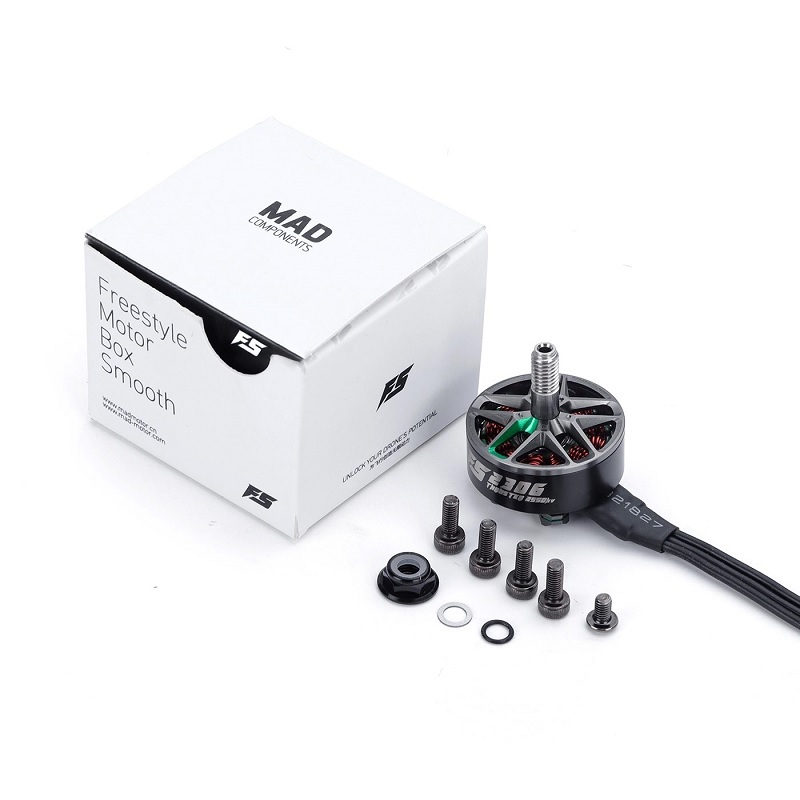

Constructed with high-grade materials, the motor features a robust stator and rotor assembly to withstand the thermal and mechanical stresses of aggressive flying. The included 150mm 20AWG silicone wires offer flexibility and durability for clean integration into tight FPV frame builds.
Additional Information
| Weight | 0.055 kg |
|---|---|
| Dimensions | 5 × 5 × 4 cm |
