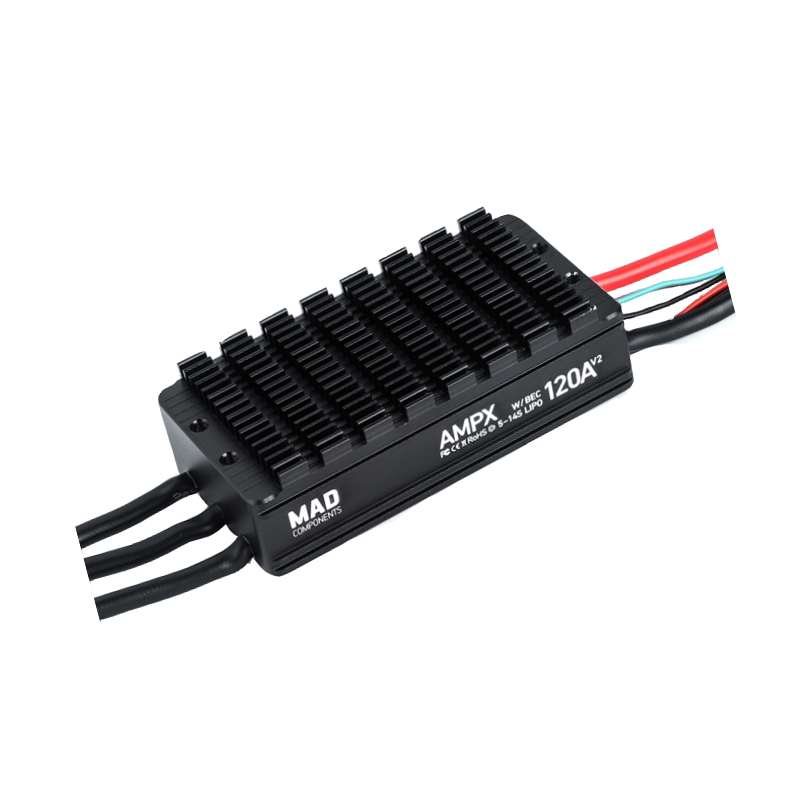

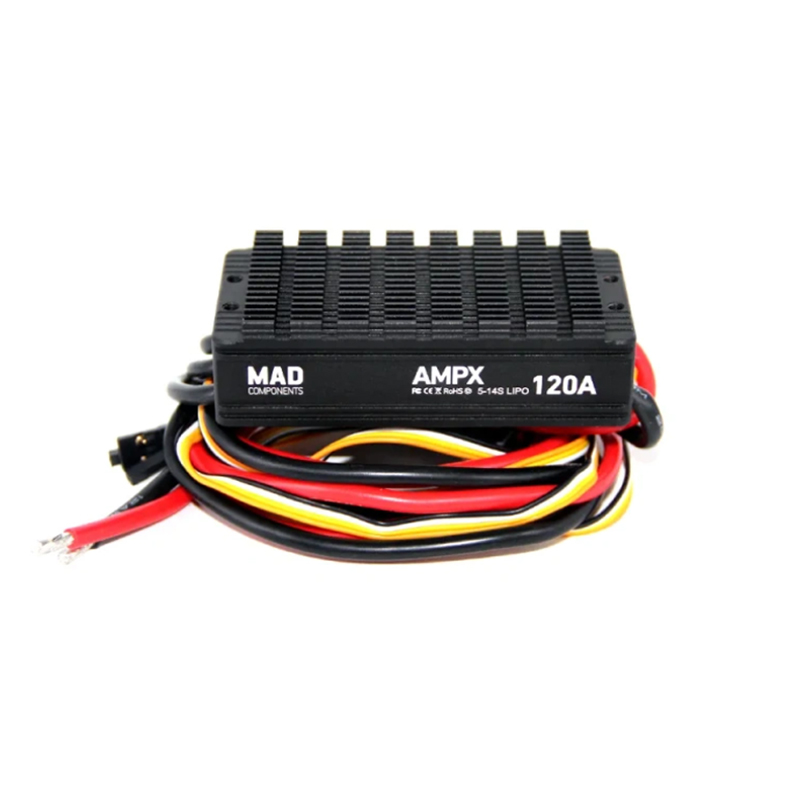

MAD Components Components AMPX 120A 5-14S Drone ESC V2.0
The MAD Components Components AMPX 120A V2.0 ESC is a high-voltage electronic speed controller designed for heavy-lift industrial and agricultural drones. Supporting 5-14S LiPo power, it offers robust and efficient motor control with advanced CAN telemetry and dual throttle modes for precision flight.
Features
- Wide voltage support (5-14S LiPo) for heavy-lift and industrial UAVs.
- Advanced CAN/RPM dual throttle modes for precise motor command.
- Real-time CAN telemetry (voltage, current, temperature) for enhanced monitoring.
- Integrated 5V/200mA BEC and unlimited overload protection for reliability.
- Firmware upgradeable architecture ensures future compatibility and features.
Out of stock
Engineered for the rigorous demands of industrial delivery, mapping, and agricultural UAVs, the MAD Components Components AMPX 120A V2.0 ESC provides stable and efficient power management. Its robust design is optimized for high-power multirotor applications, ensuring reliable performance across a wide 5-14S LiPo input voltage range (16V–64V). The V2.0 iteration introduces significant enhancements, including versatile dual throttle control via RPM signal and CAN bus communication.
This advanced electronic speed controller integrates DroneCAN/CyphalCAN for comprehensive real-time telemetry, providing critical flight data such as voltage, current, and temperature directly to your flight controller. This level of communication accuracy is vital for maintaining optimal flight parameters and system health on large, professional UAVs. An integrated 5V/200mA BEC simplifies external device powering, while unlimited overload restart protection significantly boosts long-term operational reliability. The AMPX 120A is a strategic choice for commercial operators seeking precision, power, and protection within a single, high-performance package.
Additional Information
| Dimensions | 13 × 8.7 cm |
|---|
