MAD Components Components FS 2407 SPARK FPV Drone Motor 1900KV - 6S - Green
MAD Components Components FS 2407 SPARK FPV Drone Motor 1900KV - 6S - Green - Image 2
MAD Components Components FS 2407 SPARK FPV Drone Motor 1900KV - 6S - Green - Image 3
SKU: DRFC-2649
📋 GST Invoice Available

MAD Components Components FS 2407 SPARK FPV Drone Motor 1900KV - 6S - Green

₹2,309.00 (Inclusive of all taxes)
Out of Stock

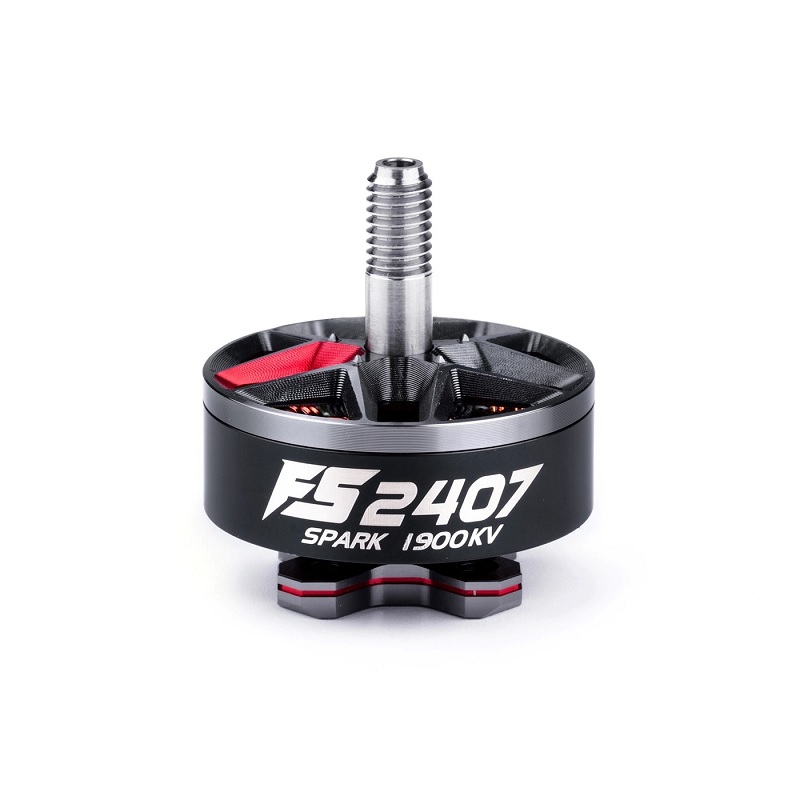

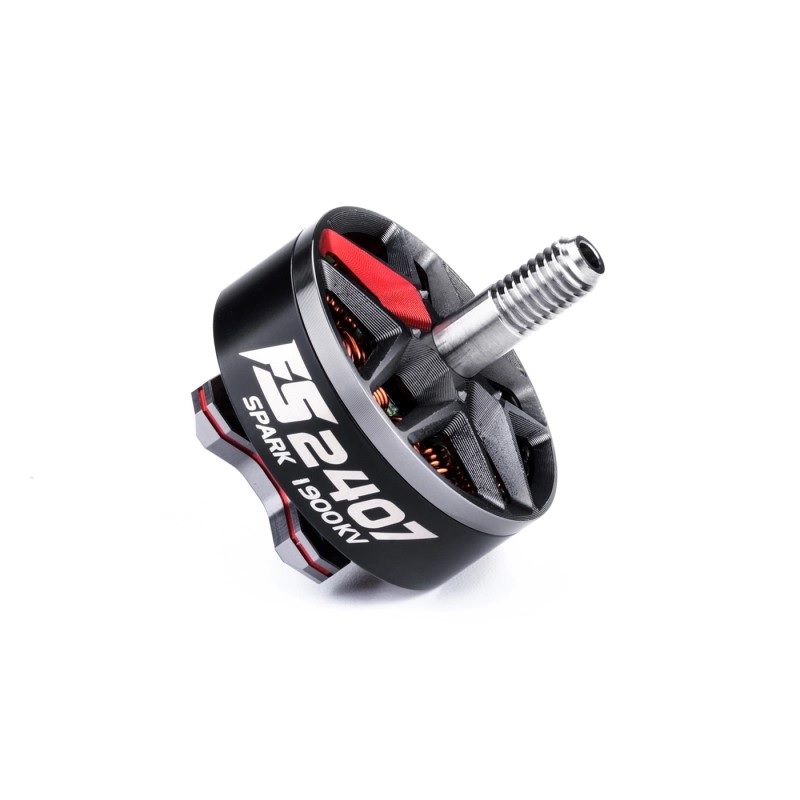

The MAD Components Components FS 2407 SPARK is a 1900KV brushless motor engineered for 6S-powered FPV freestyle drones, featuring a titanium shaft and high-temperature magnets for durable, high-performance flight.

Features

  • 2407 stator size with 1900KV rating optimized for 6S LiPo power.
  • Titanium shaft for superior strength-to-weight ratio and impact resistance.
  • 0.15mm silicon steel stator laminations for reduced eddy current losses and improved efficiency.
  • High-temperature N52SH magnets ensure consistent performance under thermal stress.
  • Secondary anodized finish for enhanced corrosion resistance and durability.

Out of stock

Description

The FS 2407 SPARK motor from MAD Components Components is designed for pilots demanding robust performance in aggressive freestyle and racing scenarios. Its 2407 stator dimensions provide an optimal balance of torque and RPM, making it highly responsive on 6S power systems.

Engineering priorities focus on thermal management and structural integrity. The high-temperature magnet grade and efficient stator design minimize power loss, while the titanium shaft and reinforced bell housing withstand the forces of high-G maneuvers and crashes.

Key Features

  • 2407 Stator & 1900KV Wind: Delivers high torque and top-end speed ideal for 5-inch and 6-inch freestyle quadcopters on 6S batteries.
  • Titanium Motor Shaft (M5): Offers exceptional strength and reduced rotational mass compared to steel, improving durability and throttle response.
  • 0.15mm Silicon Steel Laminations: Ultra-thin steel sheets significantly reduce core eddy current losses, boosting overall electrical efficiency and power output.
  • High-Temperature N52SH Magnets: Maintain magnetic field strength at elevated temperatures, preventing performance drop-off during prolonged, high-power flight sessions.
  • Secondary Anodized Aluminum: Provides a hard, wear-resistant surface that protects the motor bell and base from scratches and corrosion.
  • Precision Balanced Bell: Manufactured to tight tolerances for smooth operation and reduced vibration, leading to cleaner video footage.

Applications

  • 5-inch and 6-inch FPV freestyle quadcopters requiring high torque and top speed on 6S power.
  • Aggressive racing drones where instantaneous throttle response and durability are critical.
  • Heavy-lift cinematic builds using larger propellers (e.g., 6x3x3) that benefit from high-torque 2407 motors.
  • Long-range cruisers where motor efficiency contributes to extended flight times.

Technical Specifications

Stator Size2407 (24mm diameter x 7mm height)
Motor KV1900 KV
Voltage Range6S LiPo (22.2V Nominal)
Shaft Diameter4.4 mm (M5 Thread)
Max Power678W
Maximum Thrust1.47 kg
No-Load Current2.5A @ 10V
No. of Poles12N14P (Typical for 2407)
Operating Temperature-20°C to 80°C
Motor WeightApprox. 65g
Mounting Pattern16x19mm / M3 screws

Frequently Asked Questions

What is the recommended propeller size for the FS 2407 1900KV motor on 6S?

For optimal performance on 6S, pair this motor with 5-inch to 6-inch bi-blade or tri-blade propellers, such as 5.1x3.1x3 or 6x3x3. The high torque of the 2407 stator efficiently handles larger props, providing strong thrust for freestyle and racing maneuvers. Always monitor motor temperatures during initial flights.

Is the motor shaft compatible with standard M5 prop nuts?

Yes, the FS 2407 SPARK motor features a 4.4mm diameter shaft with standard M5 threading. It is fully compatible with common M5 aluminum or steel prop nuts and standard 5mm prop washer kits available in the FPV market.

What is the mounting hole pattern for this motor?

This motor uses the standard 16x19mm mounting hole pattern with M3 screw threads. It is designed to fit the vast majority of 5-inch and 6-inch FPV drone frames that support 2407-sized motors. Ensure you use thread-locking compound on the screws.

How does the titanium shaft benefit performance compared to steel?

The titanium shaft offers a significantly higher strength-to-weight ratio than steel, reducing rotational mass for quicker throttle response. It is also more resistant to bending and shearing during crashes, enhancing the motor's overall durability and lifespan in demanding freestyle use.

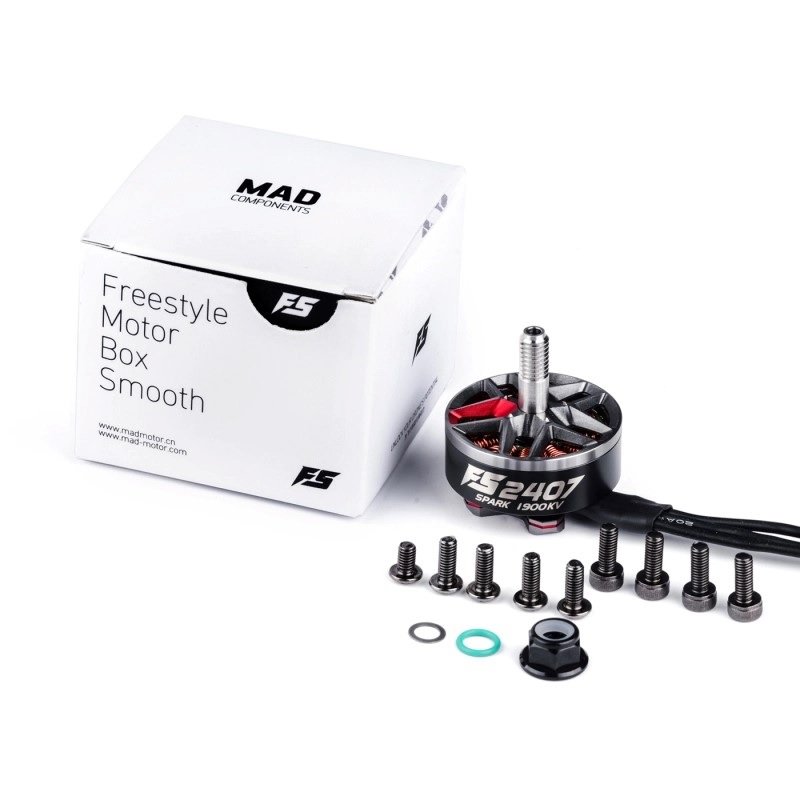

Package Includes

  • 1 x MAD Components Components FS 2407 SPARK FPV Drone Motor (Green) 1900KV - 6S

Additional Information

Weight 0.065 kg
Dimensions 5 × 5 × 4 cm
