MAD Components 3506 EEE Brushless Drone Motor 460KV (Pack Of 2)
The MAD Components 3506 EEE is a 460KV brushless motor engineered for professional UAV applications, offering a high thrust-to-weight ratio for 4S–6S LiPo systems and compatibility with 11–14″ carbon fiber propellers.
Features
- 460KV rating optimized for balanced speed and torque on 4S–6S LiPo batteries.
- Delivers up to 1.2kg of thrust per motor for payloads between 300–700g.
- Ultra-lightweight design at 72.3g per motor for extended flight endurance.
- Engineered for high efficiency (>83%) and low thermal loss during sustained operation.

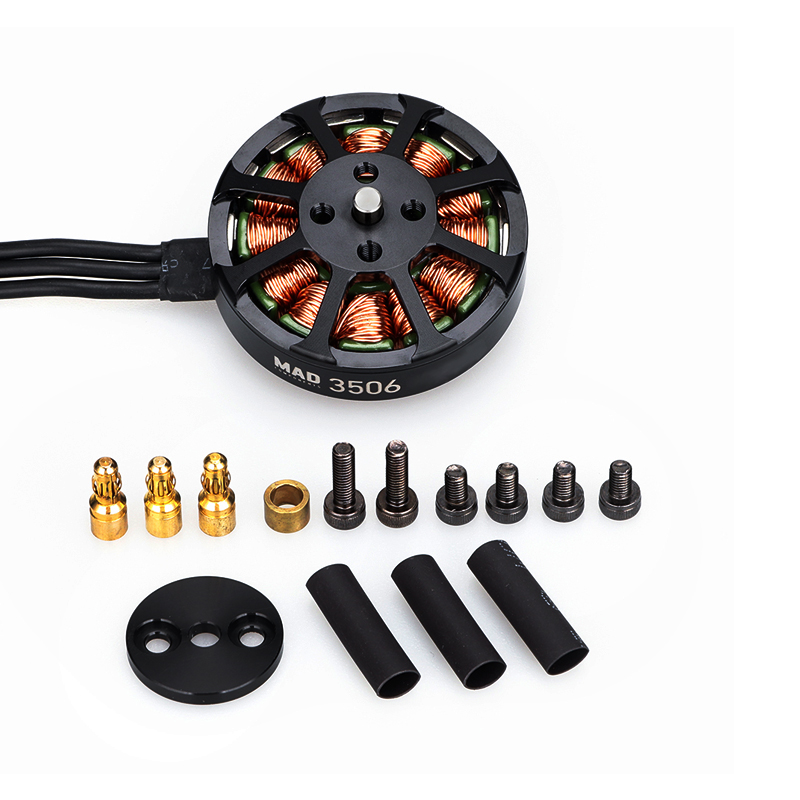

- Includes comprehensive mounting hardware and adapters for 11–14″ propellers.
Out of stock
The MAD Components 3506 EEE brushless motor is designed as a core propulsion component for mid-lift UAV platforms requiring precise payload management. Its 24-pole design and 460KV rating provide a smooth, responsive torque curve ideal for aerial photography, mapping, and industrial inspection drones where stability under load is critical.
Constructed with dual 694ZZ bearings and a 4mm hardened steel shaft, the motor ensures reliable, low-vibration operation even with large 11–14″ carbon fiber propellers. The thermal-optimized stator and windings maintain high electrical efficiency, reducing power loss and heat buildup during extended missions paired with compatible ESCs like the MAD Components AMPX PRO 40A.
Additional Information
| Weight | 0.36 kg |
|---|---|
| Dimensions | 11 × 11 × 7 cm |
