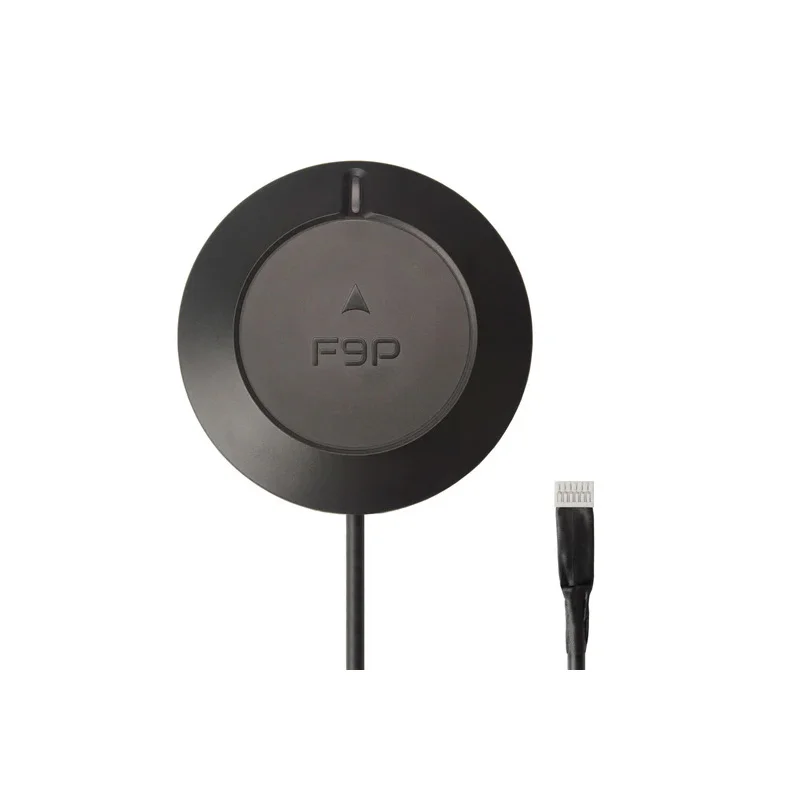

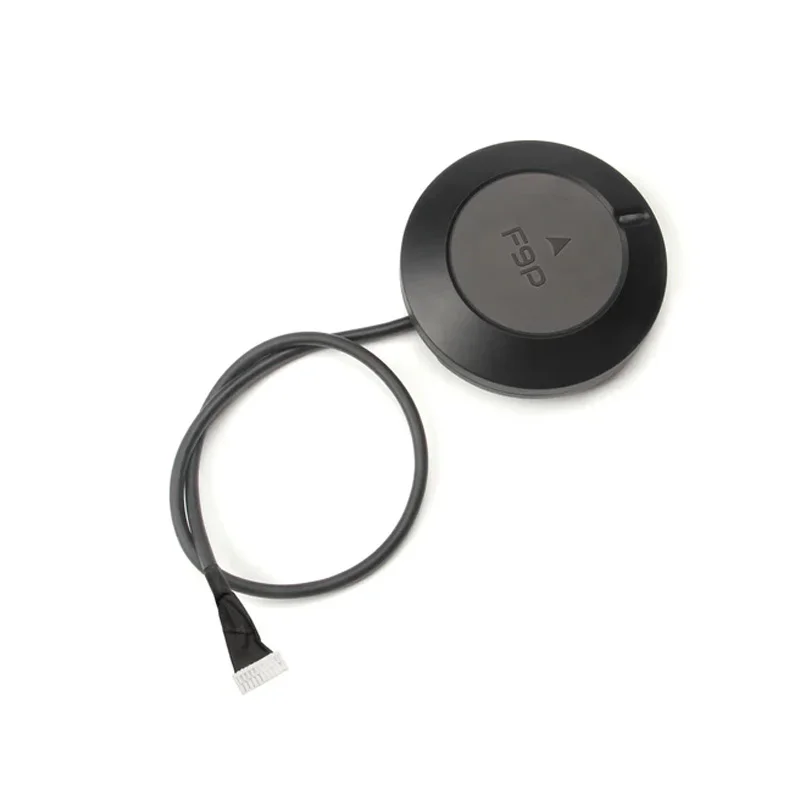

Holybro H-RTK ZED-F9P Rover - UART GNSS RTK Module
The Holybro H-RTK ZED-F9P Rover is a high-precision multi-GNSS RTK GPS module with an integrated RM3100 compass, delivering centimeter-level accuracy for UAVs, robotics, and surveying via UART interface.
Features
- Centimeter-level RTK accuracy powered by the u-blox ZED-F9P GNSS receiver.
- Multi-GNSS support for GPS, GLONASS, Galileo, BeiDou, and QZSS constellations.
- Integrated RM3100 compass provides precise heading and orientation data.
- IP66-rated enclosure ensures dust and water resistance for harsh environments.
- High update rates: 20Hz for raw data and 8Hz for RTK positioning.
Out of stock
The Holybro H-RTK ZED-F9P Rover is engineered for applications demanding sub-meter to centimeter-level positioning accuracy. It integrates the u-blox ZED-F9P, a high-performance GNSS module capable of concurrent reception from all major satellite systems. This enables robust positioning in challenging urban or foliage-covered environments where signal availability is critical.
Beyond positioning, the module incorporates an RM3100 magnetometer for true heading calculation, essential for autonomous vehicle navigation and attitude determination. Its IP66-rated housing and wide operating temperature range make it suitable for deployment in outdoor, industrial, and mobile platforms. Power is supplied via a 5V UART interface, simplifying integration with flight controllers, autopilots, and data loggers.
Additional Information
| Weight | 0.123 kg |
|---|---|
| Dimensions | 8 × 2 cm |
