M5Stack Unit CamS3 Wi-Fi Camera (OV2640)
The M5Stack Unit CamS3 is a compact ESP32-based Wi-Fi camera module featuring an OV2640 2MP sensor, designed for zero-development image capture and transmission via UART or Wi-Fi, compatible with Arduino, ESP-IDF, and UIFlow.
Features
- ESP32-WROOM-32E core provides robust Wi-Fi connectivity and processing power for embedded vision tasks.
- 2MP OV2640 image sensor delivers 12fps video streaming with support for YUV, RGB, and RAW data output formats.
- Pre-loaded firmware enables out-of-the-box image acquisition and parameter adjustment via UART (115200bps) or Wi-Fi.
- UIFlow, Arduino, and ESP-IDF programming support allows for rapid prototyping and integration without deep firmware development.
- Ultra-compact 45x20x12mm form factor is ideal for space-constrained wireless monitoring and smart device applications.
Out of stock

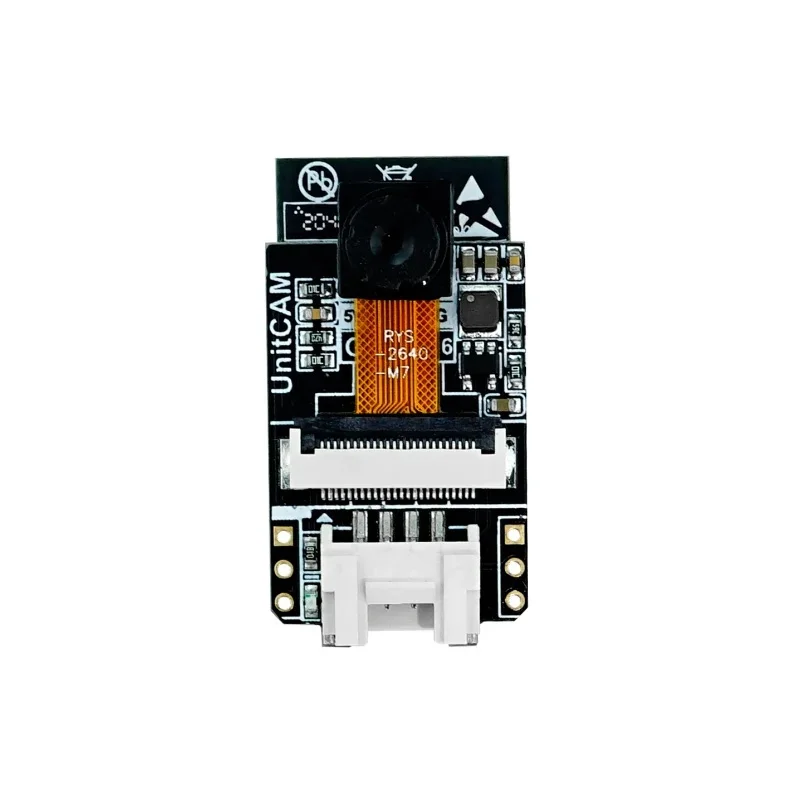

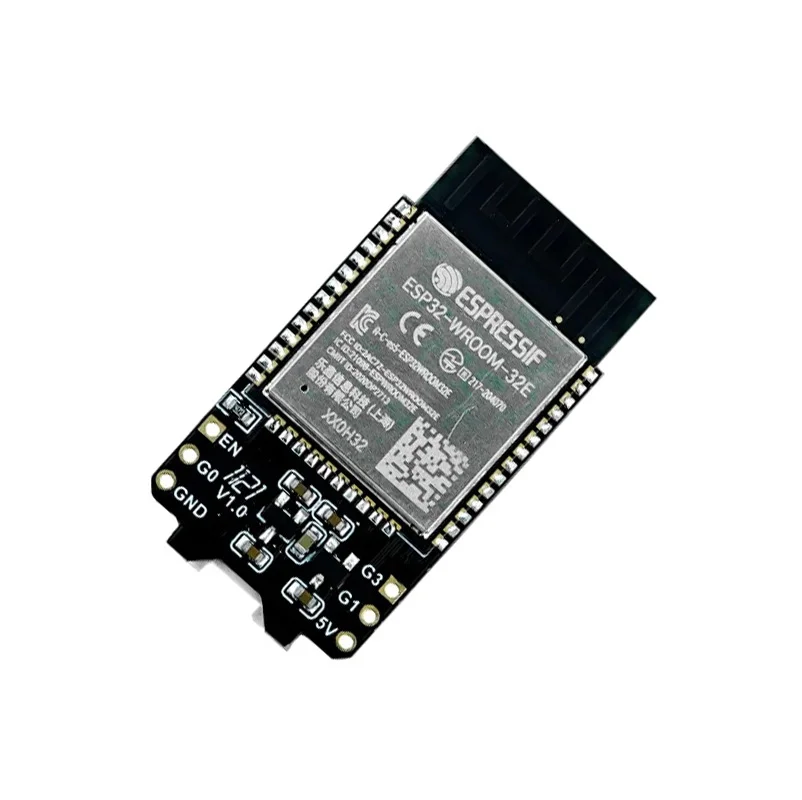

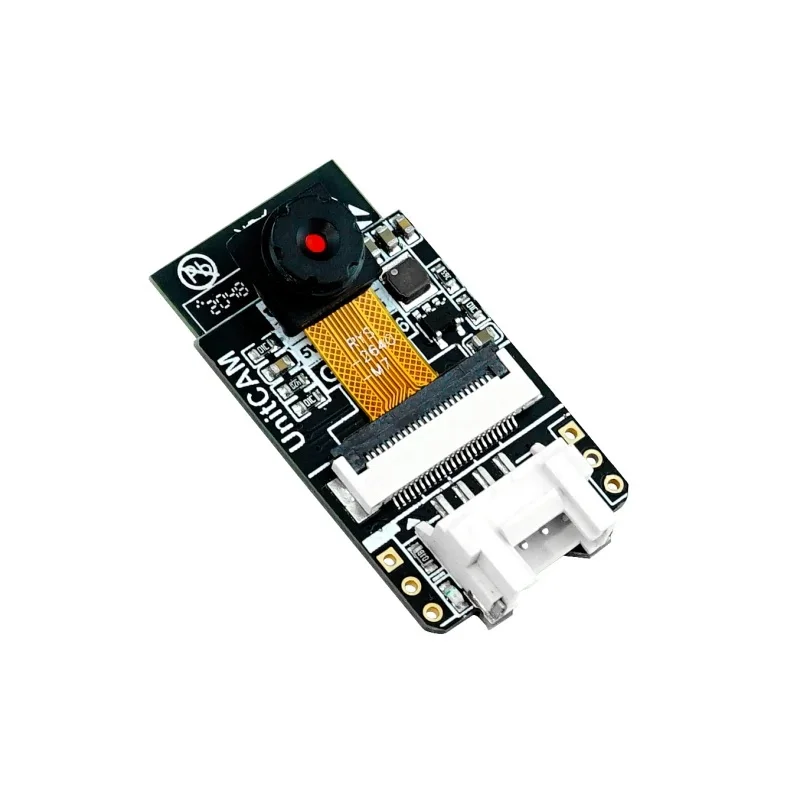

The M5Stack Unit CamS3 integrates an ESP32-WROOM-32E microcontroller with a 2-megapixel OV2640 CMOS sensor to create a streamlined, cost-effective wireless camera solution. Its simplified hardware design focuses on core functionality, providing a direct interface for image data capture and transmission over Wi-Fi or serial UART. The module comes pre-flashed with image transmission firmware, offering immediate access to live video feeds and camera controls like white balance, exposure, and gain adjustment.
With a default frame rate of 12fps and a 66.5° diagonal field of view, the Unit CamS3 is engineered for low-latency remote monitoring and vision-based IoT applications. Its compatibility with popular development frameworks including ESP-IDF, Arduino IDE, and the graphical UIFlow platform enables rapid deployment in smart home automation, security systems, and educational projects without requiring extensive embedded programming expertise.
Additional Information
| Weight | 0.0047 kg |
|---|---|
| Dimensions | 2 × 4.5 × 1.2 cm |
