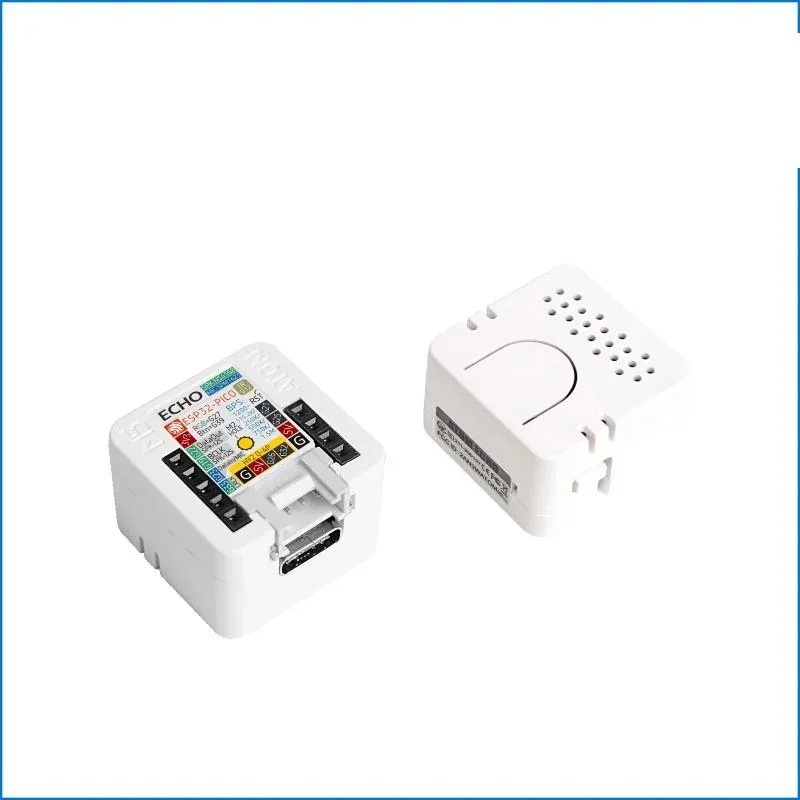

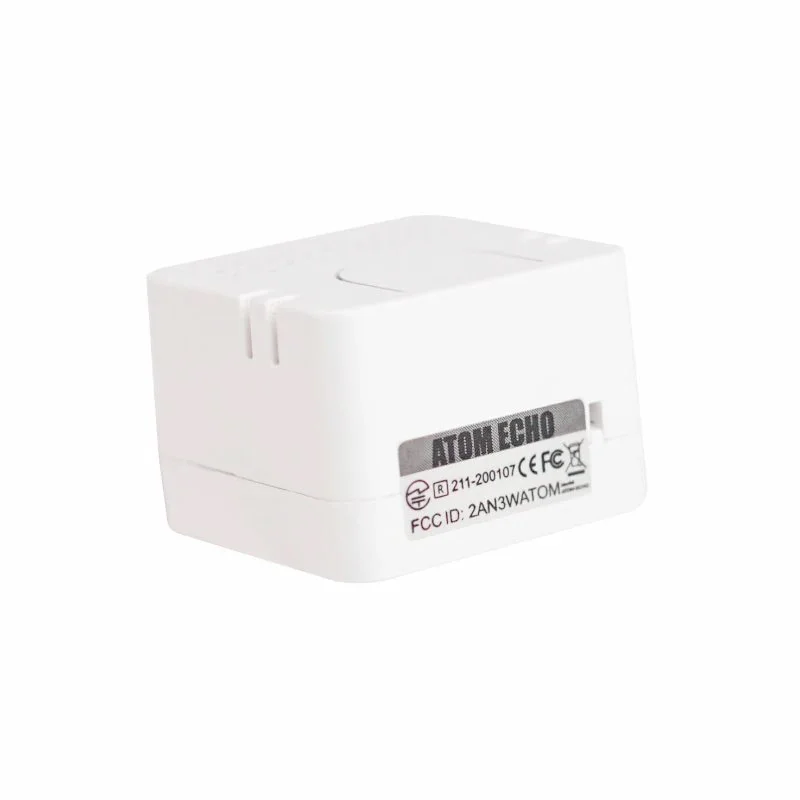

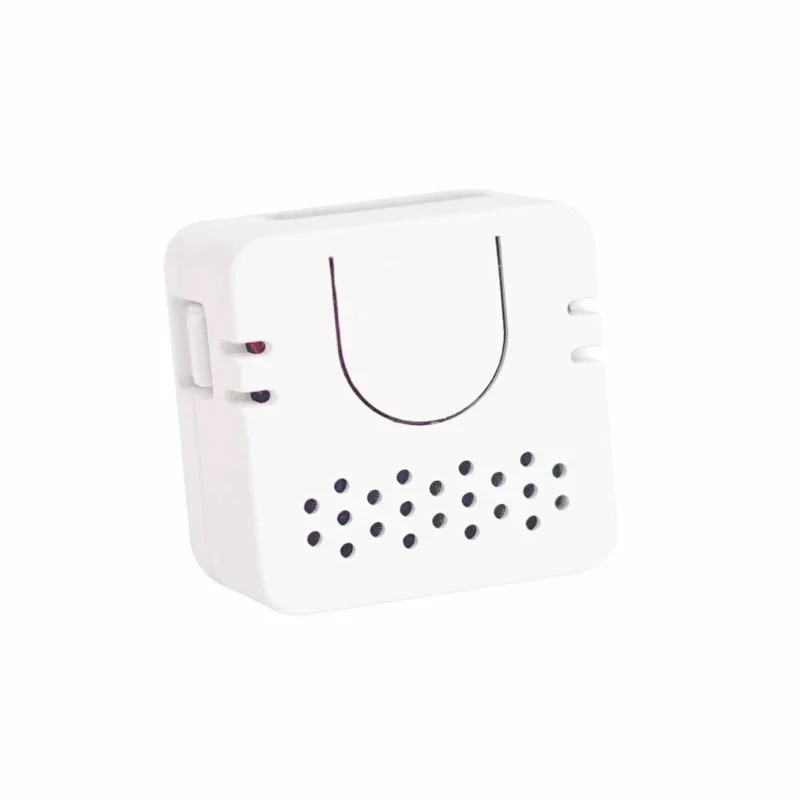

M5Stack ATOM Echo Smart Speaker Development Kit

You can program the ATOM Echo using the Arduino IDE with the ESP32 board package installed or directly with Espressif's ESP-IDF and Audio Development Framework (ADF). After connecting via USB-C, select the 'M5Stack-ATOM' or 'ESP32 PICO-D4' board in your IDE. The kit includes libraries for audio playback, microphone recording, Wi-Fi, and Bluetooth A2DP, enabling rapid development of voice-controlled applications and IoT audio projects.

Yes, the ATOM Echo can function as a standalone Bluetooth speaker using its ESP32's A2DP profile. You can stream audio directly from a smartphone or tablet without requiring Wi-Fi connectivity. Develop firmware that initializes the Bluetooth stack, pairs with your device, and routes the decoded audio stream to the integrated I2S speaker amplifier. The onboard button and RGB LED can be programmed for playback control and connection status indication.

The ATOM Echo is typically powered via its USB-C port at 5V. For permanent installations, you can use a regulated 5V power supply connected to the USB port or solder wires to the appropriate 5V and GND pins on the board's expansion header. The ESP-PICO-D4 supports various sleep modes to minimize power consumption when the speaker and microphone are idle, which is crucial for battery-powered or always-on voice-activated devices.

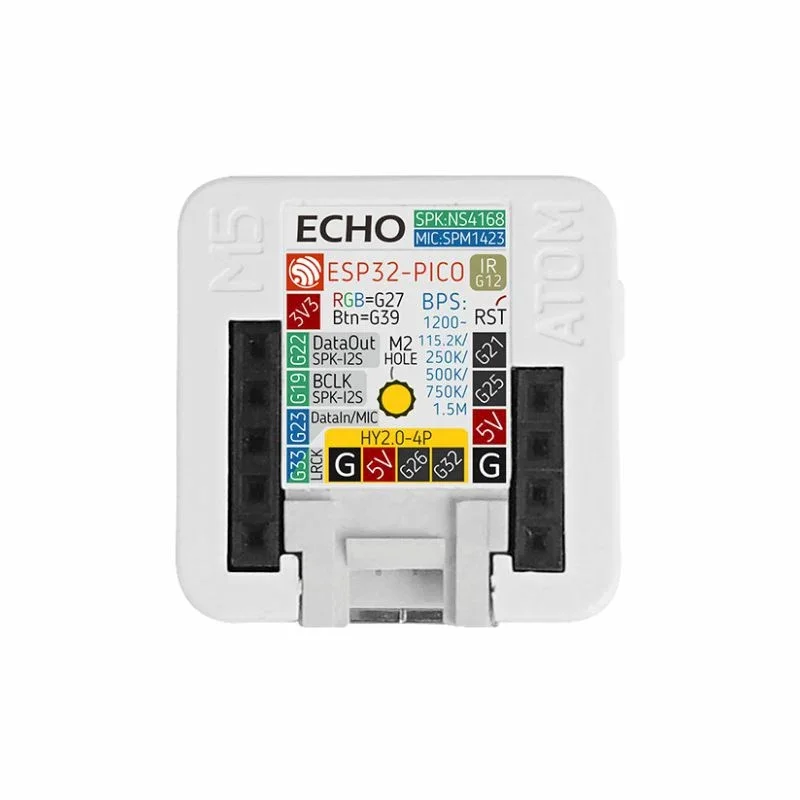

Access the integrated PDM microphone (SPM1423) and I2S speaker (NS4168) using the ESP-ADF or dedicated Arduino libraries. The ADF provides pipelines for audio capture, processing, and playback. For voice recognition, you can stream captured audio to cloud AI services like AWS Transcribe or Baidu AI via Wi-Fi. For offline processing, consider implementing a lightweight wake-word detection model on the ESP32, utilizing its dual-core processor to handle audio tasks concurrently with network operations.
