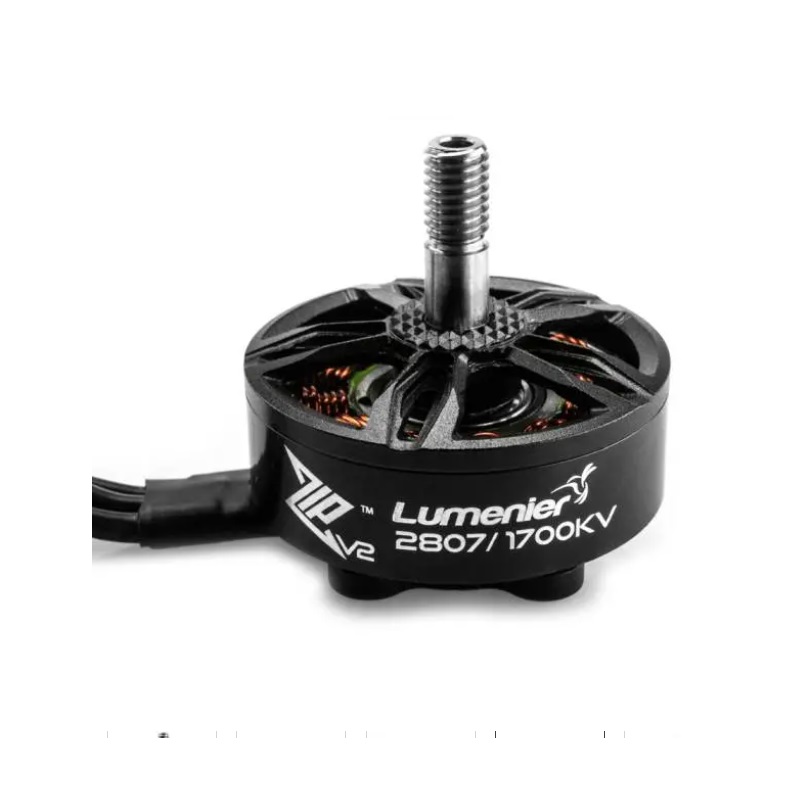

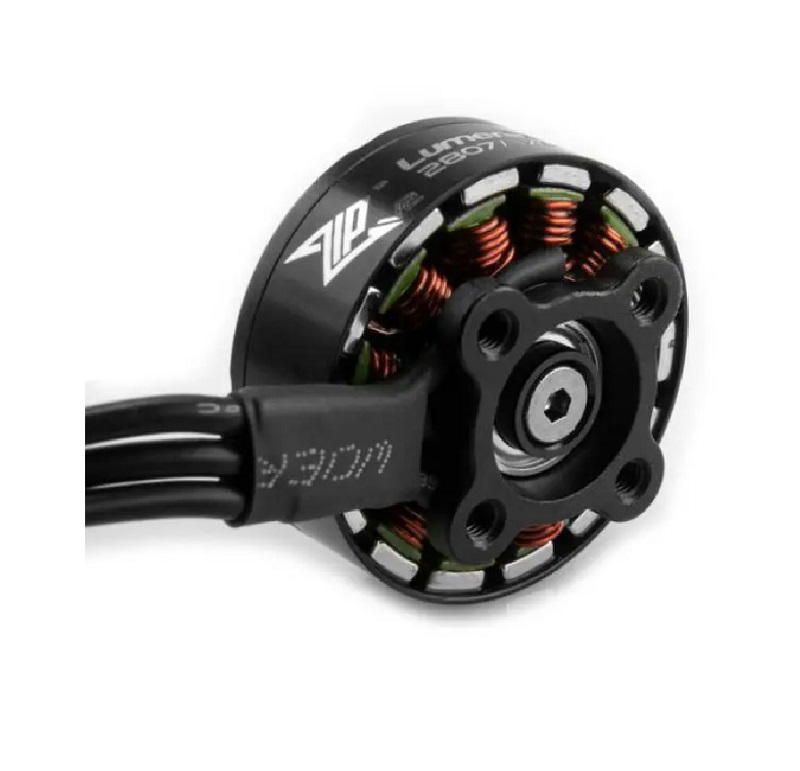

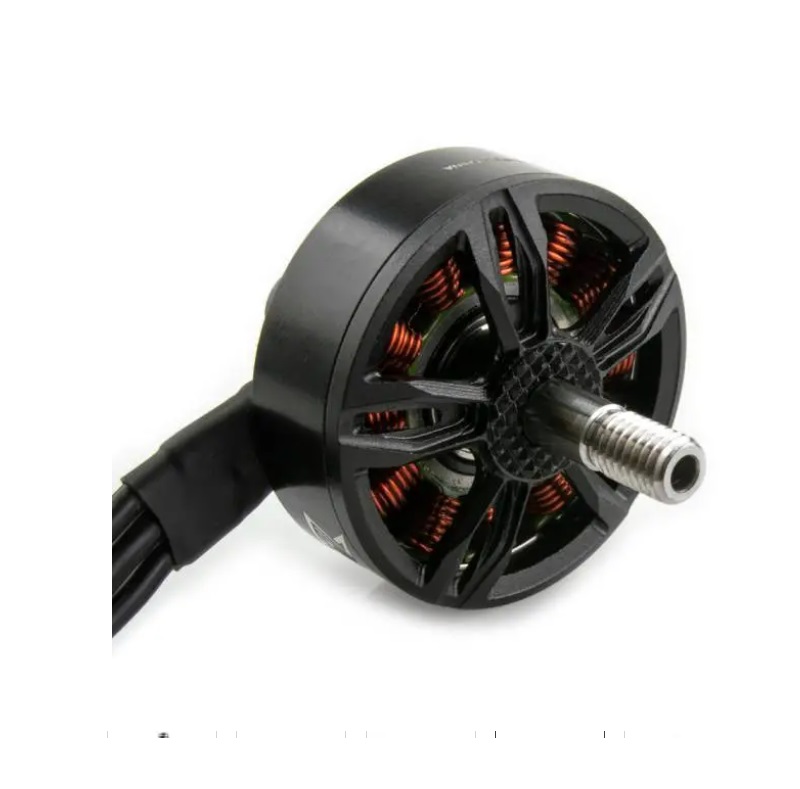

Lumenier ZIP V2 2807 Cinematic Motor 1700KV
The Lumenier ZIP V2 2807 1700KV motor is engineered for cinematic FPV and long-range drone applications, offering high torque and smooth operation on 3S to 8S LiPo batteries.
Features
- 2807 stator size with 1700KV rating optimized for 5-7 inch cinematic drones
- N52H curved magnets and 12N14P winding for high torque and efficiency
- Titanium alloy hollow shaft (5mm) with dual locking prop nuts for secure mounting
- 7075 anodized aluminum bell and base with 19x19mm M3 mounting pattern
- Factory dynamically balanced with Japanese NMB bearings for vibration-free footage
Out of stock
The ZIP V2 2807 motor represents Lumenier’s refined approach to cinematic drone propulsion. Its 28mm stator diameter paired with a 7mm height and 0.2mm Kawasaki silicon steel laminations delivers a high-torque, efficient powerband ideal for carrying heavier camera payloads while maintaining smooth throttle response. The 12N14P (12-turn, 14-pole) winding configuration is optimized for the 1700KV rating, providing excellent thermal performance across a wide 3S to 8S voltage range.
Structural integrity is ensured by the 7075 anodized aluminum alloy used in both the bell and motor base, offering high strength-to-weight ratio. The core innovation is the lightweight, high-durability titanium alloy hollow shaft, which resists stripping and bending under load. Each unit undergoes dynamic balancing and testing at the factory, utilizing precision Japanese NMB 12x6x4mm bearings to eliminate high-frequency vibrations that cause jello in aerial footage.
Additional Information
| Weight | 0.066 kg |
|---|---|
| Dimensions | 4 × 5 × 4 cm |
