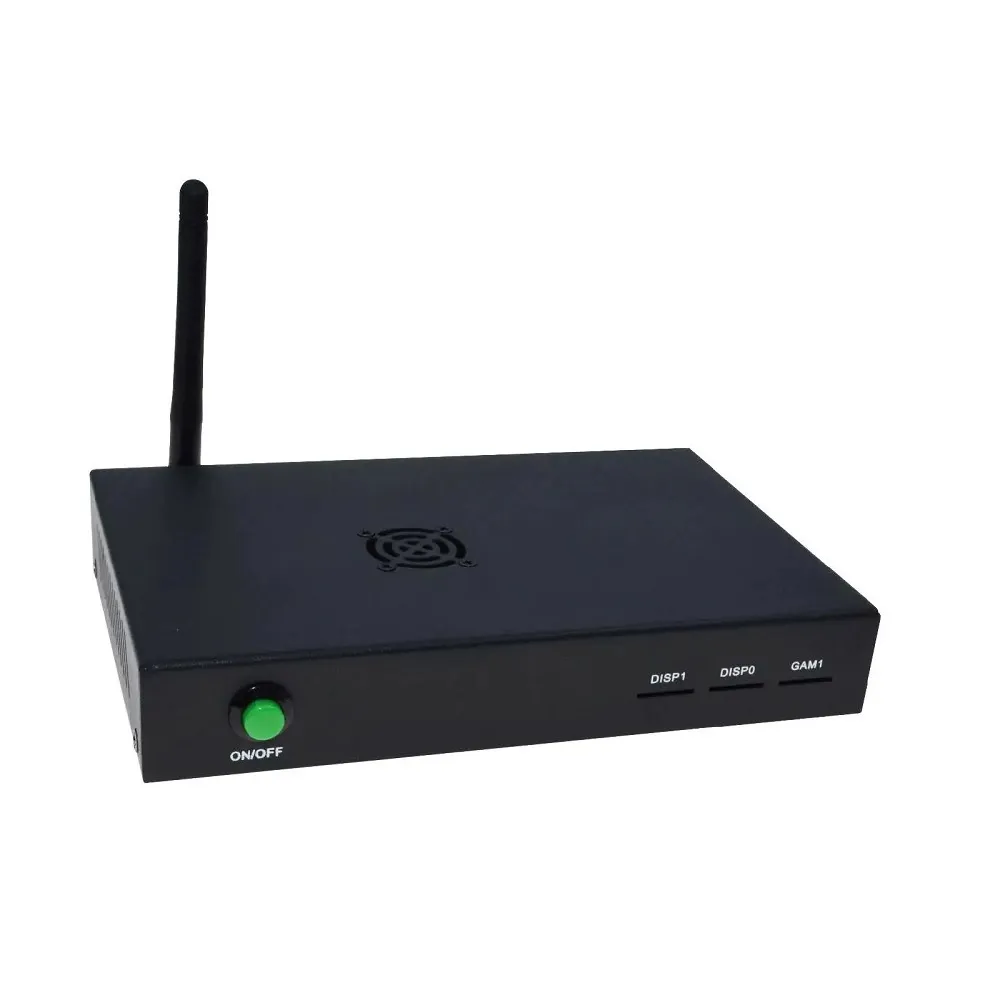

EDATEC CM4 IO Computer w/ 4GB RAM, 8GB eMMC & Case

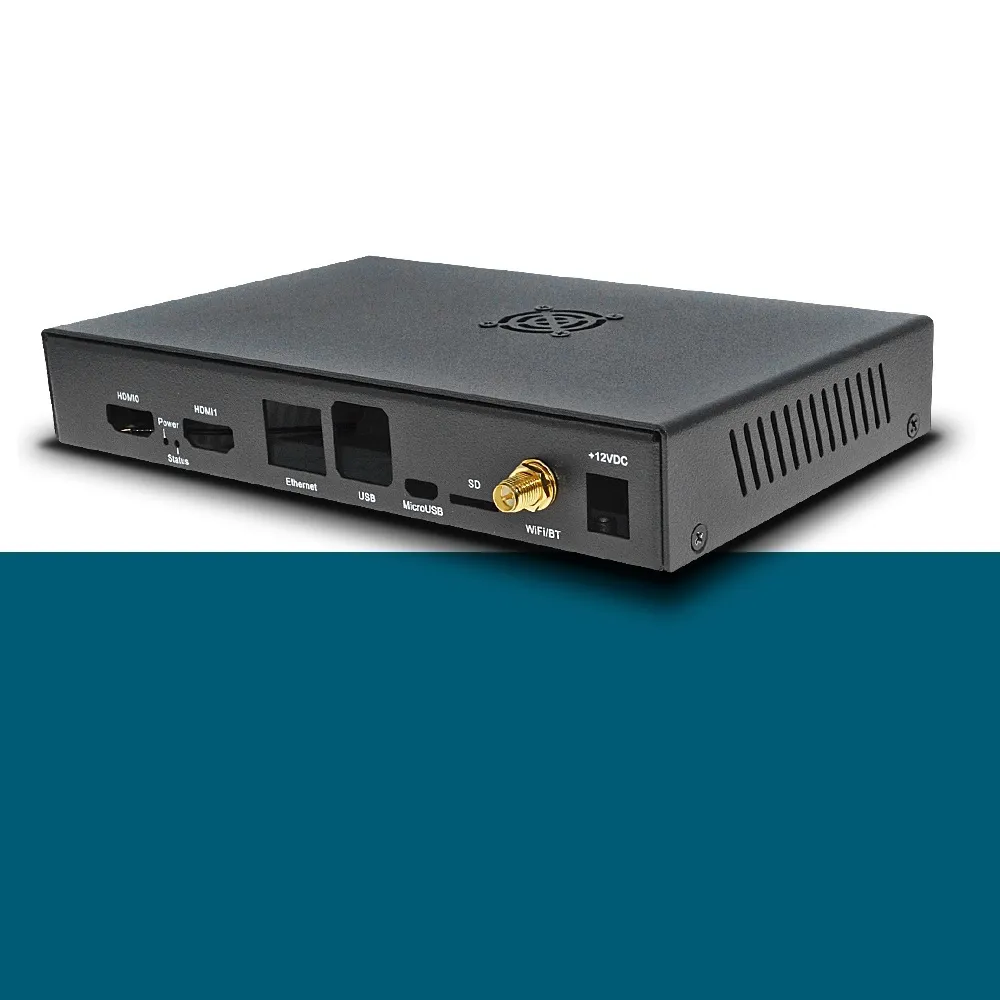

EDATEC CM4 IO Computer w/ 4GB RAM, 8GB eMMC & Case - Image 2

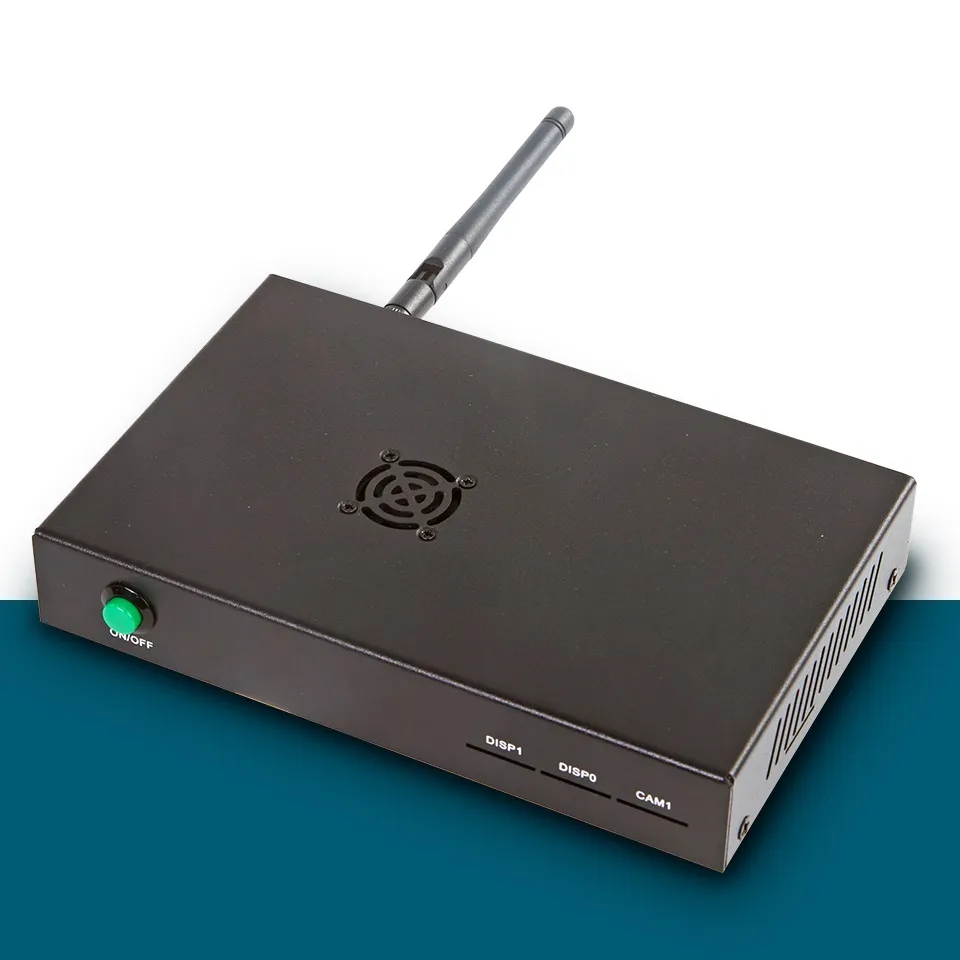

EDATEC CM4 IO Computer w/ 4GB RAM, 8GB eMMC & Case - Image 3

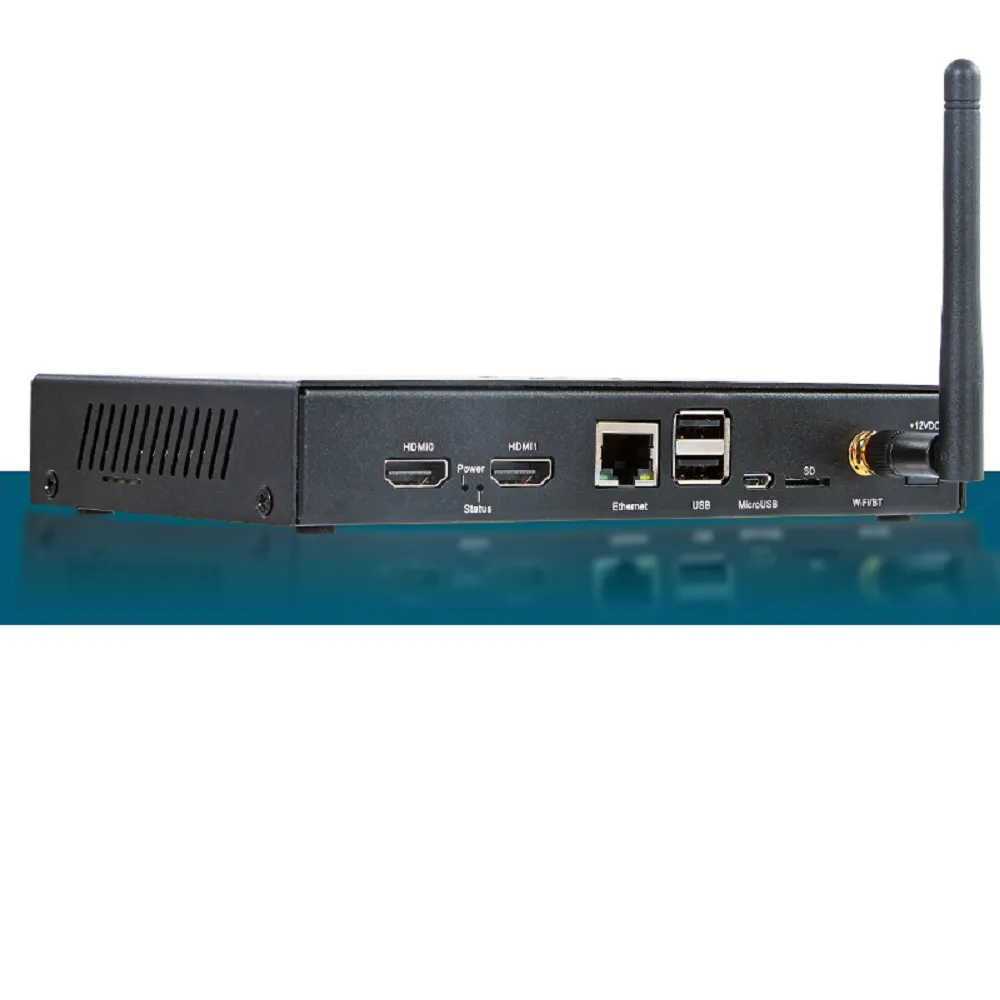

EDATEC CM4 IO Computer w/ 4GB RAM, 8GB eMMC & Case - Image 4
EDATEC CM4 IO Computer w/ 4GB RAM, 8GB eMMC & Case - Image 5
SKU: SBCD-0086
📋 GST Invoice Available

EDATEC CM4 IO Computer w/ 4GB RAM, 8GB eMMC & Case

₹15,749.00 (Inclusive of all taxes)
Out of Stock

The EDATEC CM4 IO Computer ED-CM4IO-1408-C integrates a Raspberry Pi Compute Module 4 with 4GB RAM and 8GB eMMC into a robust metal case, offering dual HDMI, USB 2.0, Gigabit Ethernet with PoE, and PCIe Gen 2 expansion for industrial and embedded applications.

Features

  • Robust industrial computer based on Raspberry Pi CM4 (4GB RAM, 8GB eMMC).
  • Features dual HDMI 2.0, Gigabit Ethernet with PoE, and 2x USB 2.0 ports.
  • Integrated PCIe Gen 2 x1 socket for versatile expansion capabilities.
  • Includes a PWM-controlled fan for efficient thermal management within a durable metal case.
  • Equipped with a battery-backed RTC and certified dual-band Wi-Fi/Bluetooth antenna.

Out of stock

Description

The EDATEC CM4 IO Computer series transforms the Raspberry Pi Compute Module 4 into a robust industrial-grade platform, featuring an integrated IO board within a durable metal enclosure. This specific model, the ED-CM4IO-1408-C, is equipped with 4GB of RAM and 8GB of eMMC storage, suitable for demanding embedded applications. It provides comprehensive connectivity, including dual full-size HDMI 2.0 outputs, two USB 2.0 ports, and a Gigabit Ethernet port with Power over Ethernet (PoE) support, simplifying power and data deployment in industrial settings.

Beyond its core processing and I/O capabilities, the EDATEC CM4 IO Computer supports 2.4G/5.8G dual-band Wi-Fi and Bluetooth 5.0, utilizing a Raspberry Pi-certified antenna for reliable wireless communication. A key design element is its advanced thermal management, incorporating a PWM-controlled fan that intelligently adjusts speed to maintain optimal CPU temperatures, along with a user-accessible power button for safe system on/off operations.

The system further enhances its utility with a PCIe Gen 2 x1 socket, allowing for significant expansion with additional peripherals. An onboard, battery-backed Real-Time Clock (RTC) ensures accurate timekeeping and supports scheduled wake-up functions, making this unit ideal for applications requiring autonomous operation and robust performance in diverse environments.

Key Features

  • One-Click Switch: Safely controls system power via GPIO3, preventing file system corruption unlike traditional power switches.
  • Hardware Protection: Precisely fitted metal case provides excellent EMI shielding and robust physical protection for the CM4 and IO Board.
  • Fix Compute Module 4: Securely mounts the CM4 to the IO board with four nuts, ensuring a stable connection even in vibrating environments.
  • PCB Support: Four 1.5mm height black nylon washers support the CM4 PCB, preventing deformation and circuit damage when screwed down.
  • Cooling Compute Module 4: A 12V/60mA silent PWM fan reduces CPU temperature by up to 20°C, isolated by silicone washers to minimize noise.
  • External Antenna: Pre-installed Raspberry Pi official certified 2.4G/5.8GHz WiFi/Bluetooth antenna for reliable wireless connectivity.
  • Battery: Includes a Philips CR2032 Eco-friendly battery to enable the Real-Time Clock (RTC) function.

Applications

  • Industrial automation and control systems
  • Edge computing and AI inference nodes
  • IoT gateways and data aggregation
  • Digital signage and media centers
  • Embedded systems requiring robust connectivity and expansion

Technical Specifications

ModelED-CM4IO-1408-C
Base ModuleRaspberry Pi Compute Module 4
RAM4GB
eMMC Storage8GB
EthernetGigabit Ethernet RJ45 with PoE support
USB2x USB 2.0, 1x Micro USB Slave (for programming)
Wireless2.4G/5.8G Wi-Fi (802.11 b/g/n/ac), Bluetooth 5.0 BLE with external antenna
Display Outputs2x Full-size HDMI 2.0, 2x DSI (via CM4)
Camera Inputs2x CSI (via CM4)
Expansion1x PCIe Gen 2 x1 socket, 1x Raspberry Pi Standard 40-pin GPIO, 1x 4-pin DIP header for PoE HAT
Storage Slot1x MicroSD card slot (for CM4 Lite variants)
RTCYes, with backup battery socket
CoolingPWM-controlled 12V/60mA fan
Power Input12V DC @ 2A
Operating Temperature0°C to 50°C
Dimensions171.5 x 109.5 x 28.5 mm

Frequently Asked Questions

What Raspberry Pi Compute Module 4 variants are compatible with this EDATEC IO Computer?

This system is designed around the Raspberry Pi CM4, and this specific model (ED-CM4IO-1408-C) comes pre-configured with a CM4 featuring 4GB RAM and 8GB eMMC. It also supports CM4 Lite variants via the microSD card slot for storage flexibility when eMMC is not present.

How does the "One-Click Switch" function work and what are its benefits?

The "One-Click Switch" uses GPIO3 on the 40-pin connector and software on the CM4 to safely manage power on/off. Unlike simply cutting power, this prevents file system corruption and ensures system stability, which is crucial for reliable operation in embedded applications.

What expansion options are available on the EDATEC CM4 IO Computer?

The EDATEC CM4 IO Computer offers a PCIe Gen 2 x1 socket for high-speed peripheral expansion. Additionally, it features a standard Raspberry Pi 40-pin GPIO header and a 4-pin DIP header specifically for a PoE HAT, enhancing its versatility for various industrial setups.

What are the power requirements for the EDATEC CM4 IO Computer?

The system primarily requires a 12V DC power supply at 2A for operation. It also supports Power over Ethernet (PoE) via the Gigabit Ethernet port, which can provide both power and data connectivity when used with a compatible PoE injector or switch.

Does the system support external displays and cameras?

Yes, the EDATEC CM4 IO Computer is well-equipped for multimedia applications. It features two full-size HDMI 2.0 connectors for dual display output. For camera integration, it supports two CSI interfaces and two DSI interfaces, compatible with official Raspberry Pi camera and display modules.

Package Includes

  • 1x EDATEC CM4 IO Computer (ED-CM4IO-1408-C) with metal case
  • 1x Raspberry Pi certified Wi-Fi/Bluetooth antenna
  • 1x Philips CR2032 Eco-friendly battery (for RTC)

Additional Information

Weight 0.45 kg
Dimensions 17.15 × 10.95 × 2.85 cm
