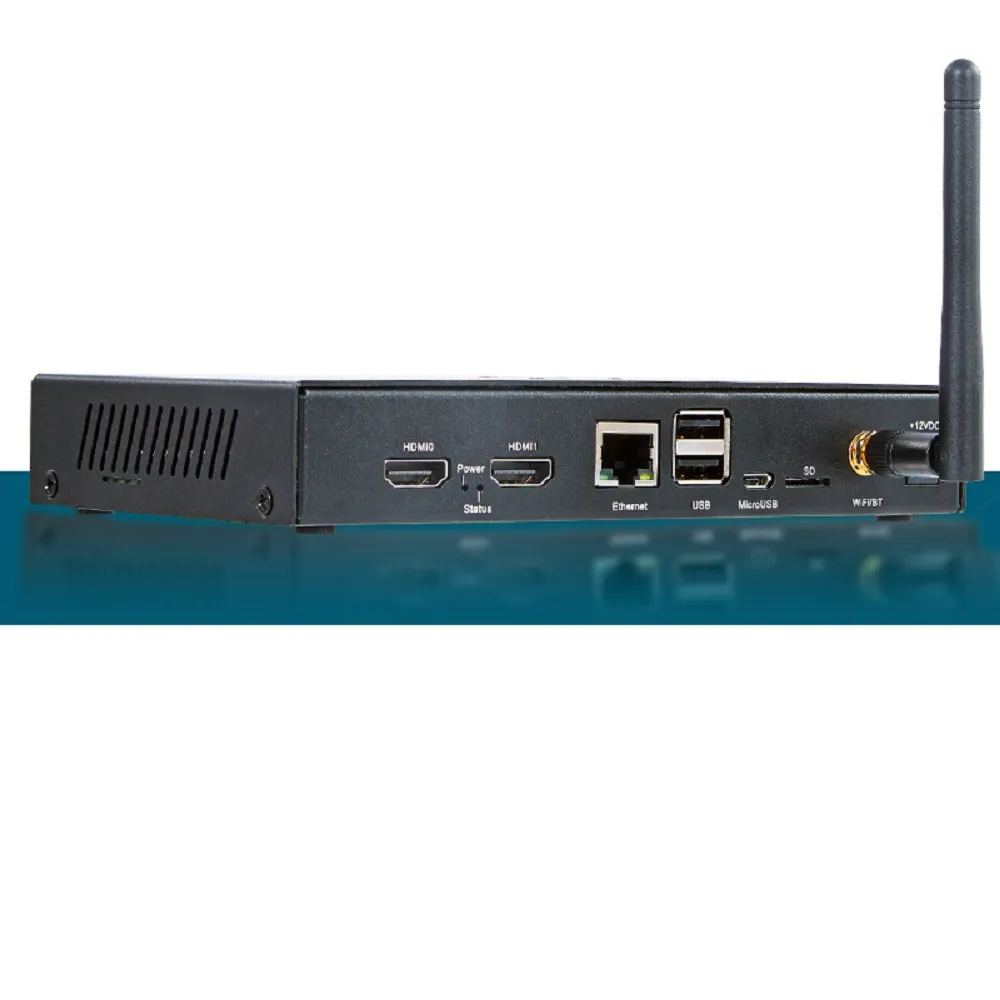

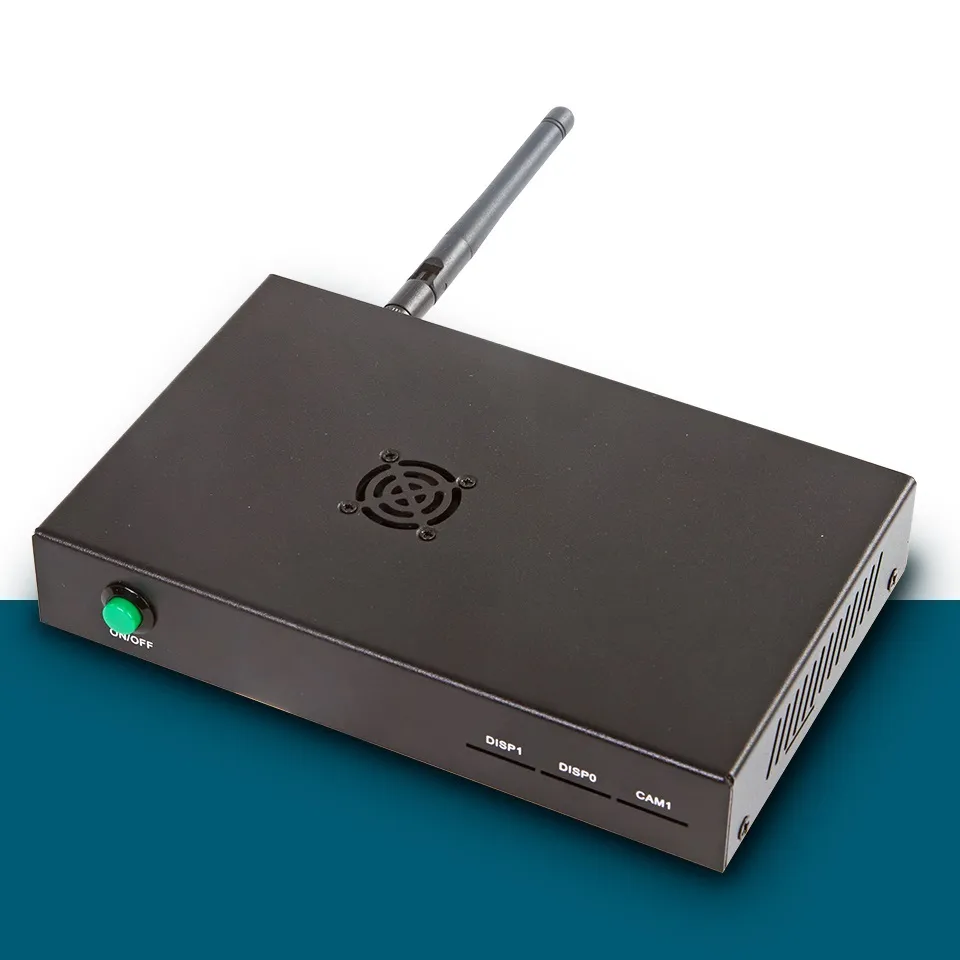

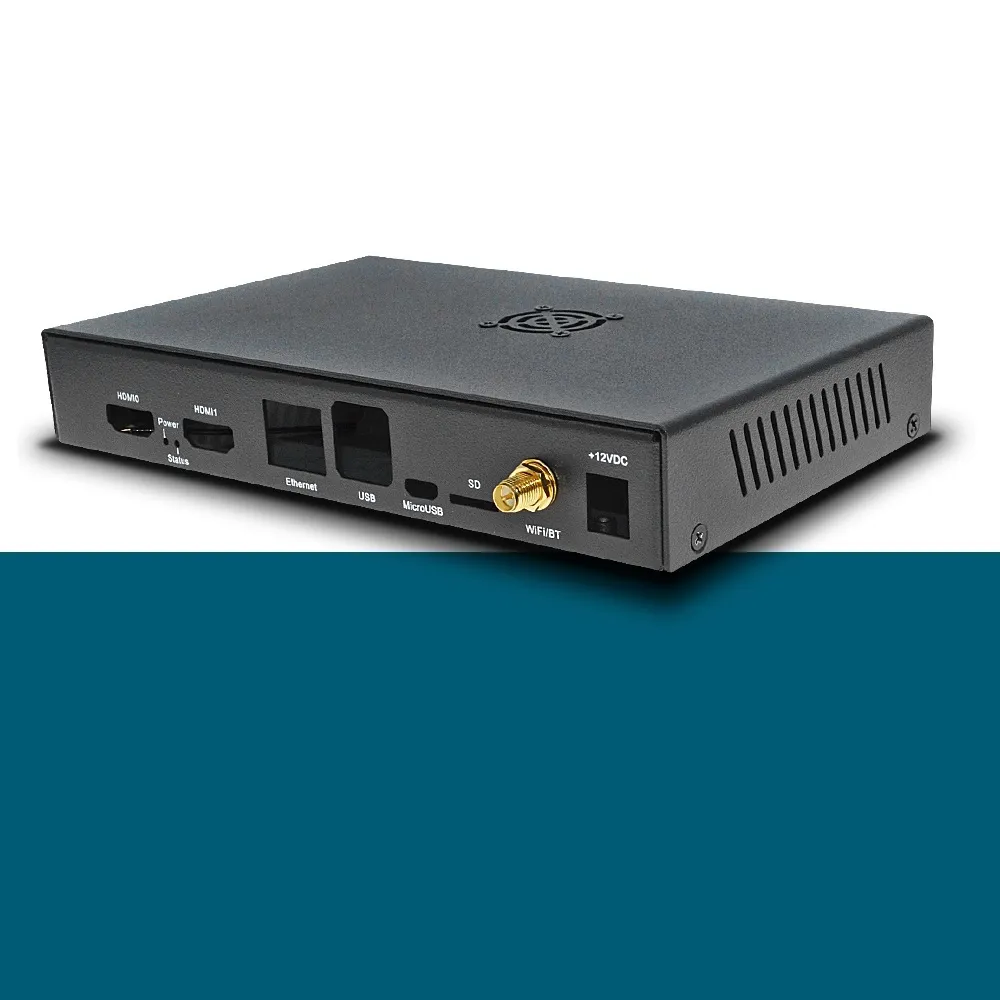

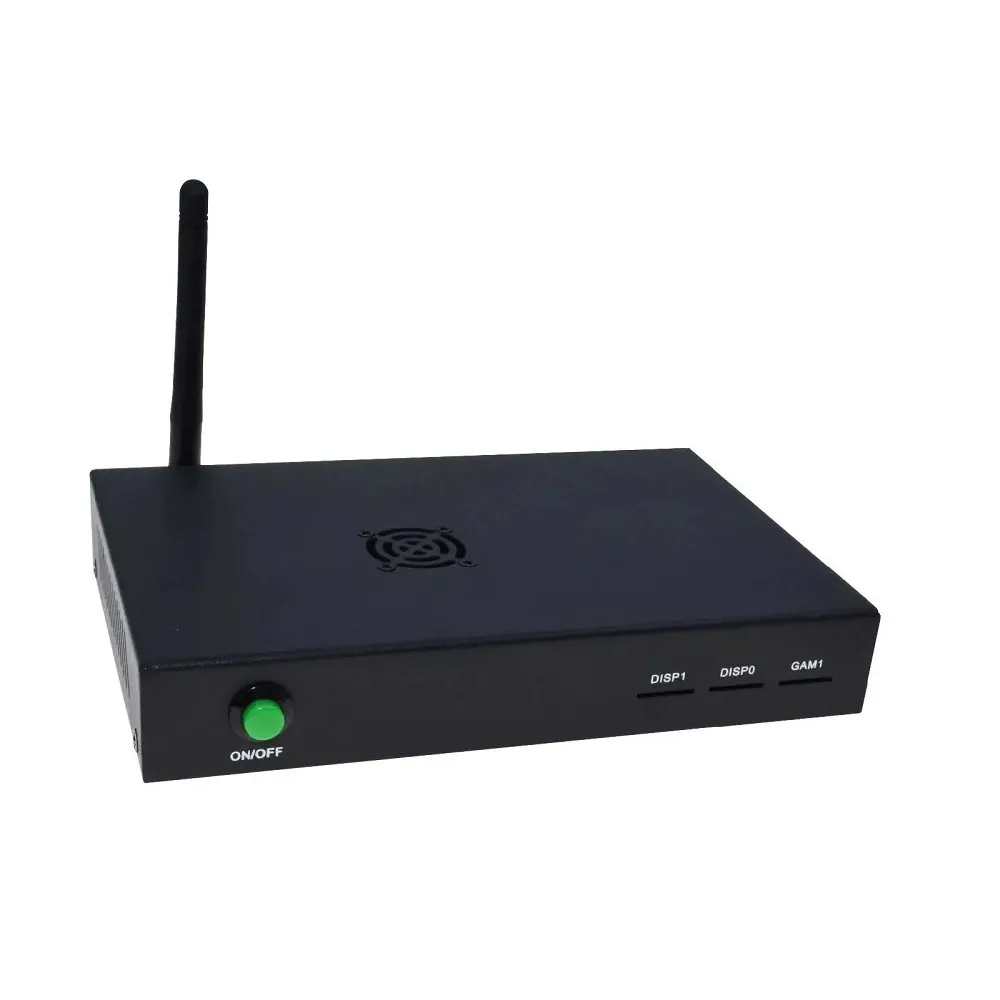

EDATEC CM4 IO Computer 2GB RAM 8GB eMMC w/ WiFi & Case
EDATEC CM4 IO Computer 2GB RAM 8GB eMMC w/ WiFi & Case - Image 2
EDATEC CM4 IO Computer 2GB RAM 8GB eMMC w/ WiFi & Case - Image 3
EDATEC CM4 IO Computer 2GB RAM 8GB eMMC w/ WiFi & Case - Image 4
EDATEC CM4 IO Computer 2GB RAM 8GB eMMC w/ WiFi & Case - Image 5
SKU: SBCD-0087
📋 GST Invoice Available

EDATEC CM4 IO Computer 2GB RAM 8GB eMMC w/ WiFi & Case

₹15,389.00 (Inclusive of all taxes)
Out of Stock

The EDATEC CM4 IO Computer is an industrial-grade solution built around the Raspberry Pi Compute Module 4, featuring 2GB RAM, 8GB eMMC, and integrated dual-band Wi-Fi. Housed in a durable metal case, it offers robust connectivity and efficient cooling for demanding embedded applications.

Features

  • Industrial-grade CM4 integration with robust metal enclosure for enhanced durability.
  • Equipped with 2GB RAM and 8GB eMMC storage, supporting microSD for CM4 Lite variants.
  • Features dual HDMI 2.0, dual USB 2.0, Gigabit Ethernet with PoE, and PCIe Gen 2 x1 socket.
  • Integrated 2.4G/5.8G dual-band WiFi and Bluetooth 5.0 with a certified external antenna.
  • PWM-controlled fan for efficient thermal management and an onboard Real-time Clock (RTC) with battery backup.

Out of stock

Description

The EDATEC CM4 IO Computer series transforms the Raspberry Pi Compute Module 4 into a versatile, industrial-ready system, designed for a wide range of embedded applications. This specific configuration includes 2GB of RAM and 8GB of eMMC storage, with support for additional storage via a microSD card for CM4 Lite modules. Its robust design is complemented by an integrated metal case that not only provides excellent physical protection and EMI shielding but also facilitates superior thermal dissipation for the CPU, PMU, and wireless module.

Connectivity is comprehensive, offering dual full-size HDMI 2.0 outputs, two USB 2.0 ports, and a Gigabit Ethernet interface with Power over Ethernet (PoE) support, making it suitable for networked deployments. Wireless capabilities include 2.4G/5.8G dual-band WiFi and Bluetooth 5.0, enhanced by a Raspberry Pi-certified external antenna for reliable communication. Expansion is readily available through a PCIe Gen 2 x1 socket and a standard 40-pin GPIO header, allowing for custom peripheral integration. System management features include a user-friendly one-click power switch and a battery-backed RTC for precise timekeeping and scheduled wake-ups, crucial for autonomous operation in remote or industrial environments.

Key Features

  • One-Click Switch: Controls system power on/off via GPIO3 and CM4 software, preventing file system corruption from abrupt power cuts.
  • Hardware Protection: Precision-fitted metal case shields the Compute Module 4 and IO Board, leading out all interfaces for secure deployment.
  • Reliable CM4 Mounting: Four bottom nuts and nylon washers ensure secure fixing of the Compute Module 4 to the IO board and case, preventing connection issues in vibrating conditions.
  • Efficient Cooling: A 12V/60mA silent PWM-controlled fan, isolated by silicone washers, actively cools the Compute Module 4, reducing CPU temperature by up to 20°C.
  • External Antenna: Includes a Raspberry Pi official certified 2.4G/5.8GHz WiFi/Bluetooth antenna for enhanced wireless signal integrity.
  • RTC Battery Included: Comes with a Philips CR2032 Eco-friendly battery to enable the Real-Time Clock function.

Applications

  • Industrial IoT (IIoT) Gateways and Edge Computing
  • Embedded Control Systems and Automation
  • Digital Signage and Kiosks
  • Remote Monitoring and Data Acquisition
  • Smart Factory and Robotics Control

Technical Specifications

Item TypeCase (Industrial Computer)
Model SeriesEDATEC CM4
RAM2GB
Model No. / NameED-CM4IO-1208-C
Connectivity1x 10/100/1000M Ethernet (PoE support), 2x USB 2.0, 1x Micro USB Slave (for programming)
Wireless1x 2.4G/5.8G WiFi (IEEE 802.11 b/g/n/ac), 1x Bluetooth 5.0 BLE (external antenna included)
Storage Capacity8GB eMMC (internal), 1x microSD card slot (for CM4 Lite variants)
Control1x System on/off button, 1x 12V/50mA PWM controlled fan, 1x RTC with backup battery, 1x Red power LED, 1x Green system status LED
Expansion Interface1x PCIe 1x Gen2 Mini-PCIe socket, 1x Raspberry Pi Standard 40-pin connector, 1x 4-pin DIP header for PoE HAT
Camera and Display2x CSI (supports official Raspberry Pi 5M & 8M HQ camera), 2x DSI (supports official Raspberry Pi display), 2x HDMI 2.0
Operating Supply Voltage12V DC @ 2A
Operating Temperature0～50℃
Overall Dimension171.5(L) x 109.5(W) x 28.5(H) mm

Frequently Asked Questions

What Compute Module 4 variants are compatible with the EDATEC CM4 IO Computer?

The EDATEC CM4 IO Computer is designed to be compatible with all Raspberry Pi Compute Module 4 variants. While this specific model includes 8GB eMMC, the integrated microSD card slot allows for booting and storage with CM4 Lite (eMMC-less) modules, offering flexible deployment options for various applications.

How does the 'One-Click Switch' function work on this industrial computer?

The 'One-Click Switch' is a software-controlled power management feature. Unlike simply cutting power, it triggers a clean shutdown via GPIO3, preventing file system corruption or system crashes common with abrupt power disconnections. This ensures data integrity and system stability in industrial settings.

What expansion options does the EDATEC CM4 IO Computer offer for additional peripherals?

The computer offers significant expansion capabilities. It includes a PCIe Gen 2 x1 socket for high-speed add-on cards, a standard Raspberry Pi 40-pin GPIO connector for various HATs and breakouts, and dedicated interfaces for dual CSI cameras and DSI displays, enabling rich peripheral integration.

Does the Gigabit Ethernet port support Power over Ethernet (PoE) functionality?

Yes, the Gigabit Ethernet RJ45 port on the EDATEC CM4 IO Computer fully supports Power over Ethernet (PoE). This feature allows the device to receive both power and data over a single Ethernet cable when connected to a PoE-enabled switch, simplifying deployment in remote locations.

Package Includes

  • 1 x EDATEC CM4 IO Computer ED-CM4IO-1208-C with WIFI Antenna Metal case 2GB RAM and 8GB EMMc

Additional Information

Weight 0.45 kg
Dimensions 17.15 × 10.95 × 2.85 cm

Related Products

Out of Stock

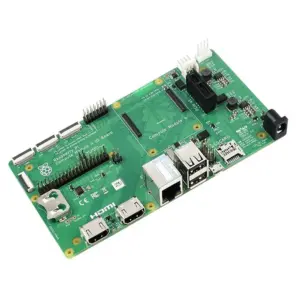

Raspberry Pi Compute Module 4 I/O Board

3,669.00
Learn More
Out of Stock

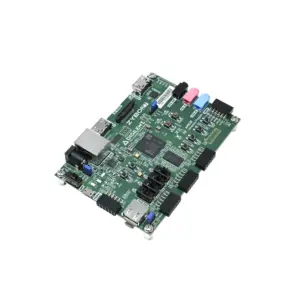

Digilent Zybo Z7-10 Zynq-7000 ARM/FPGA Board

41,979.00
Learn More
Out of Stock

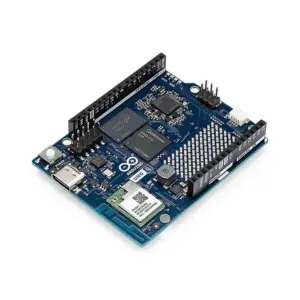

Arduino UNO Q 2GB AI Vision Kit

9,709.00
Learn More
Out of Stock

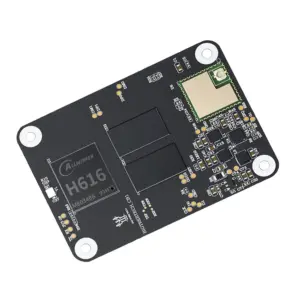

BigTreeTech CB1 Development Board

2,899.00
Learn More
Out of Stock

Digilent Arty Z7-20 Zynq-7000 SoC Dev Board

42,839.00
Learn More
Out of Stock

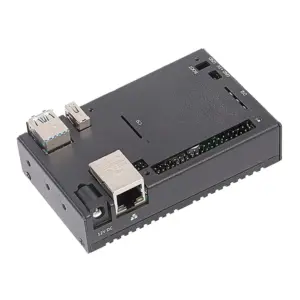

EDATEC ED-CM4NANO SBC for Raspberry Pi CM4

13,879.00
Learn More
Out of Stock

EDATEC ED-IPC2410-1208 Industrial PC, CM4102008, 2GB/8GB, WiFi/BT

15,879.00
Learn More
Out of Stock

Raspberry Pi CM5 - 2GB RAM, 16GB eMMC, Wi-Fi/BT 5.0

11,499.00
Learn More
Out of Stock

Alinx AC7Z010 Zynq 7000 SoM XC7Z010

19,119.00
Learn More
Out of Stock

EDATEC ED-CM4NANO Raspberry Pi CM4 ARM Cortex-A72 SBC

11,189.00
Learn More
Out of Stock

EDATEC ED-IPC2210-1208-S CM4 Industrial PC 2G/8G Wi-Fi BT

22,589.00
Learn More
Out of Stock

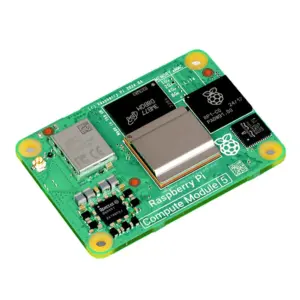

Raspberry Pi Compute Module 5 - 4GB RAM, 32GB eMMC
