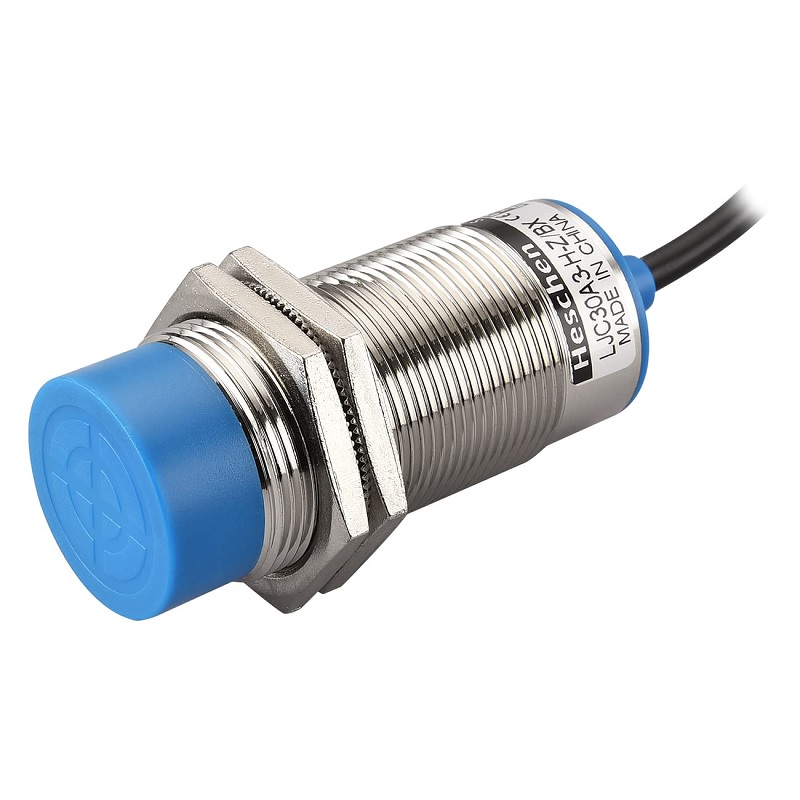

LJC30A3-H-Z/BX Capacitive Proximity Sensor NPN NO, DC 6–36V, 300mA, Detection Range 1–15 mm
The LJC30A3-H-Z/BX is a capacitive proximity sensor with NPN normally open (NO) output, designed for non-contact detection of dielectric materials (non-metallic objects) within a 1–15 mm range. It operates on a wide 6–36V DC supply, making it compatible with industrial PLCs, 24V control systems, and automation setups.
Features
- Capacitive sensing principle for detecting non-metallic dielectric materials.
- NPN normally open (NO) transistor output, sinking up to 300mA load current.
- Wide operating voltage range of 6–36V DC for flexible system integration.

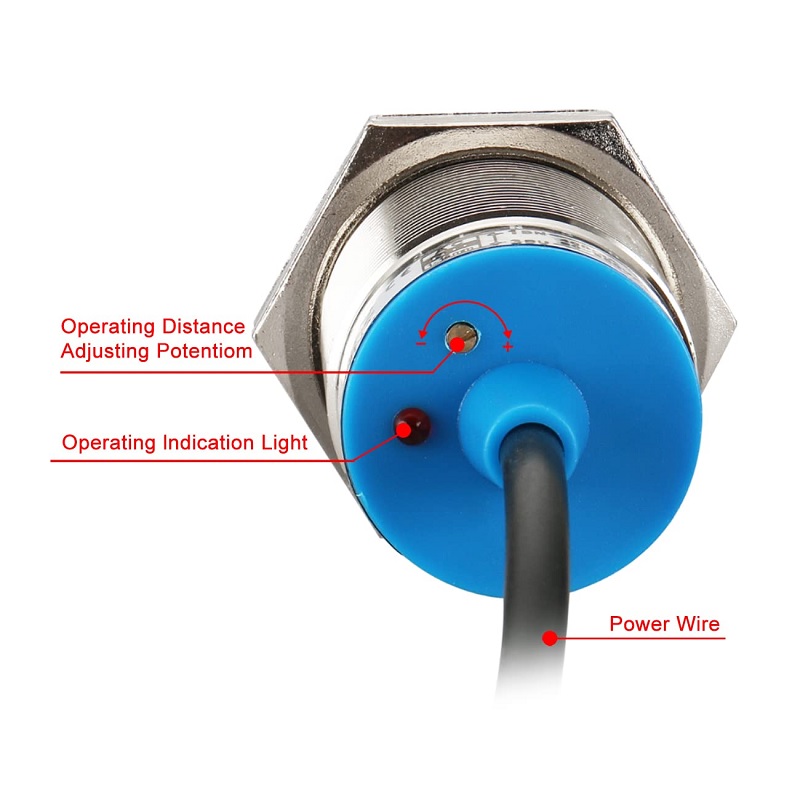

- Adjustable detection distance from 1 mm to 15 mm via potentiometer.

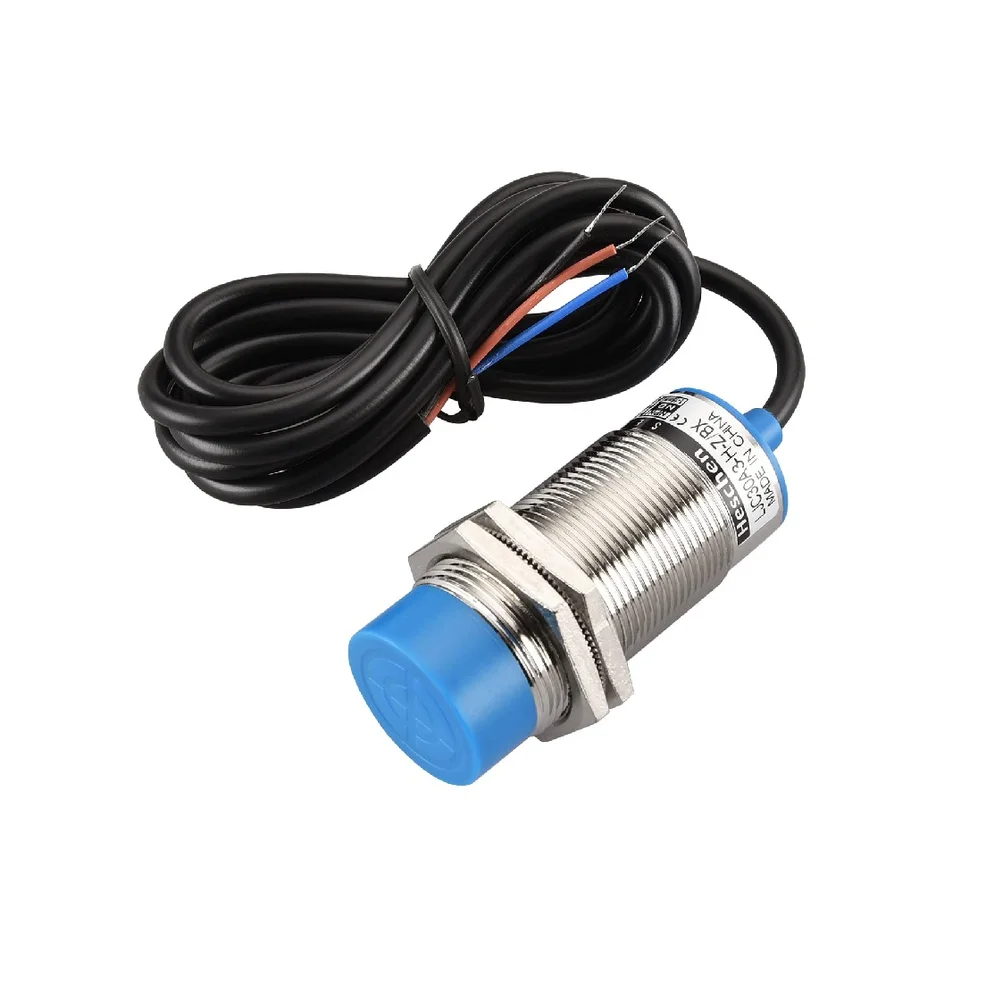

- Includes a 120 cm (approx. 49″) integrated cable for simplified installation.
Out of stock
The LJC30A3-H-Z/BX utilizes a capacitive sensing field to detect the presence of dielectric materials such as plastics, glass, wood, liquids, and powders, distinguishing it from inductive sensors which only detect metals. Its NPN open-collector output switches to ground when a target is detected, providing a clean digital signal for machine control.

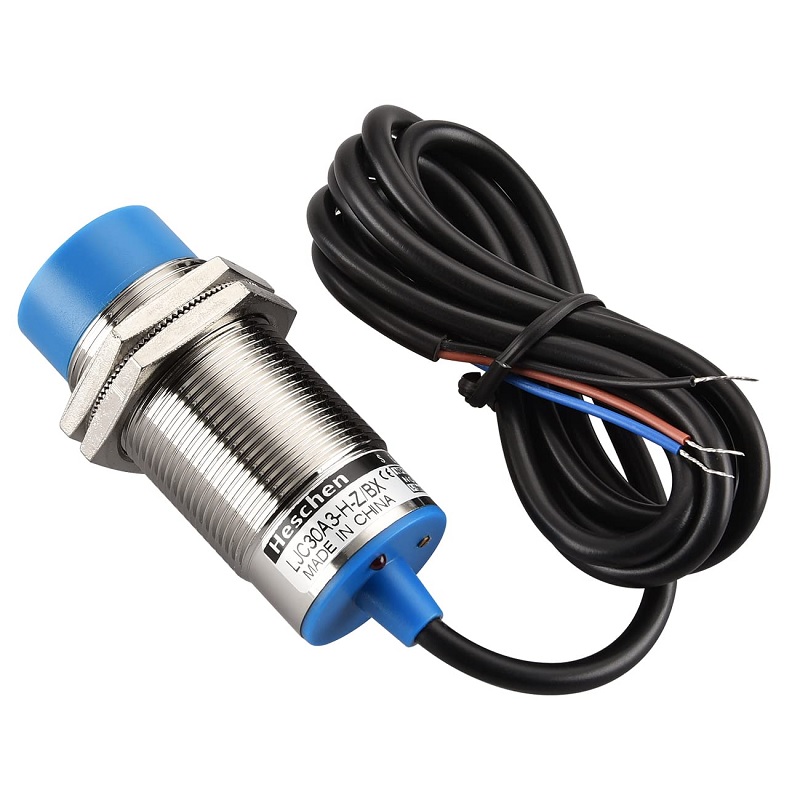

Built for industrial environments, the sensor features a robust housing designed for reliable operation. The integrated 120 cm cable facilitates direct wiring to control cabinets, while the adjustable sensing distance allows for precise setup to accommodate various material types and application geometries.
Additional Information
| Weight | 0.145 kg |
|---|---|
| Dimensions | 13 × 9 × 2 cm |
