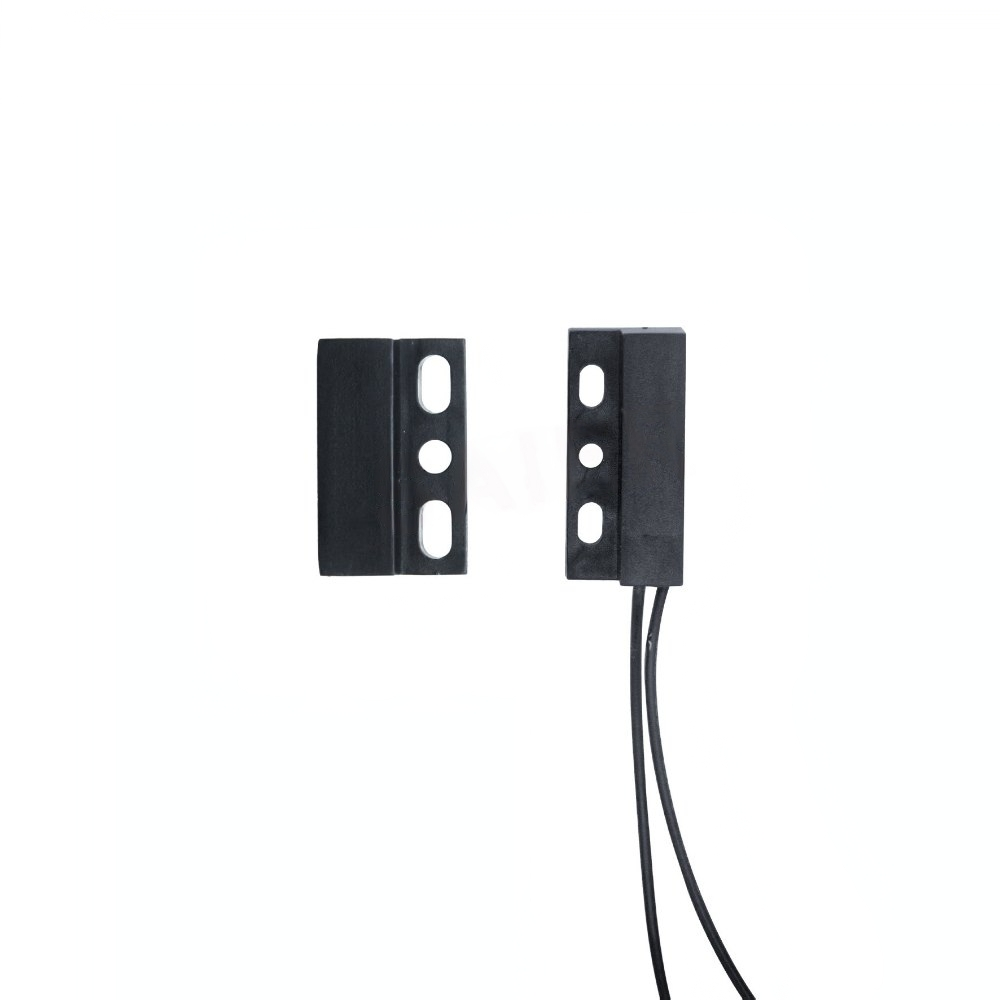

Saier SEN-K011010 Proximity Switch with Magnet - 200V DC, 0.5A Max

Name: Saier SEN-K011010 Proximity Switch with Magnet - 200V DC, 0.5A Max
Brand: Saier
SKU: SENS-1636
Price: 319.00 INR
Availability: OutOfStock

₹319.00 (Inclusive of all taxes)

Out of Stock

The Saier SEN-K011010 is a magnetically actuated proximity switch designed for industrial automation and control systems. It operates on DC voltages up to 200V, making it suitable for interfacing with PLCs, relays, and other industrial logic controllers for precise position detection and limit switching.

Features

Magnetically actuated proximity switch for reliable position sensing.
Rated for DC operation up to 200V with a maximum current of 0.5A.
Robust contact design with low 0.1Ω resistance for reliable switching.
Wide operating temperature range from -40°C to +60°C for harsh environments.
Compact form factor for easy integration into machinery and automation assemblies.

Out of stock

Get Notified When Available

Description

The Saier SEN-K011010 proximity switch functions as a reed switch, closing its electrical contacts when a magnetic field of sufficient strength is applied. This simple, non-contact sensing principle provides a highly reliable and maintenance-free solution for detecting the presence or position of a moving part equipped with a magnet.

Engineered for industrial durability, the switch features a robust housing capable of withstanding vibration and environmental contaminants. Its wide operating temperature range ensures consistent performance in both cold storage facilities and hot factory floors. The low contact resistance minimizes voltage drop and power loss across the switch, ensuring signal integrity in control circuits.

Key Features

Magnetic reed switch actuation for non-contact, wear-free operation.
High-voltage DC rating (200V) for direct compatibility with industrial control voltages.
Low contact resistance (0.1Ω) ensures minimal signal loss and power dissipation.
Extended temperature tolerance from -40°C to +60°C for harsh environment reliability.
Compact and durable mechanical construction for long service life in automated systems.
Simple two-wire installation for easy integration into existing control panels.

Applications

Door and gate position sensing in industrial automation and security systems.
Limit and end-stop detection in CNC machines, 3D printers, and linear actuators.
Position feedback for pneumatic and hydraulic cylinders in manufacturing lines.
Reed switch replacement in elevator control, vending machines, and appliance safety interlocks.
Level detection in tanks and hoppers using a float-mounted magnet.

Technical Specifications

Model Number	SEN-K011010
Type	Magnetic Proximity Switch (Reed Switch)
Operating Voltage (DC)	Up to 200V
Maximum Current	0.5 A
Maximum Power	10 W
Contact Resistance	0.1 Ω
Operating Temperature	-40°C to +60°C
Actuation	External Magnetic Field

Frequently Asked Questions

What type of sensor is the SEN-K011010 and how does it work?

The SEN-K011010 is a magnetically actuated proximity switch, specifically a reed switch. It contains two ferromagnetic contacts sealed within a glass tube. When an external magnet is brought near, the contacts are pulled together, closing the electrical circuit. When the magnet is removed, the contacts spring apart, opening the circuit.

What is the maximum voltage and current I can switch with this sensor?

This proximity switch is rated for a maximum switching voltage of 200V DC and a maximum current of 0.5 Amps. It is designed for low-power signal switching and control applications. Do not exceed these ratings, as it may damage the contacts or pose a safety hazard.

How do I wire and install the SEN-K011010 proximity switch?

The switch is a simple two-terminal device. Connect your control circuit's power and load in series with the switch terminals. Mount the switch body securely, and position the included magnet on the moving part you wish to detect. Ensure the magnet's orientation and distance (typically a few millimeters) are correct for reliable actuation.

What is the operating temperature range and environmental protection?

The switch operates reliably from -40°C to +60°C, making it suitable for a wide range of industrial environments. While the internal reed switch is sealed, the external housing provides basic mechanical protection. It is best suited for dry or controlled environments unless specified otherwise by the manufacturer.
