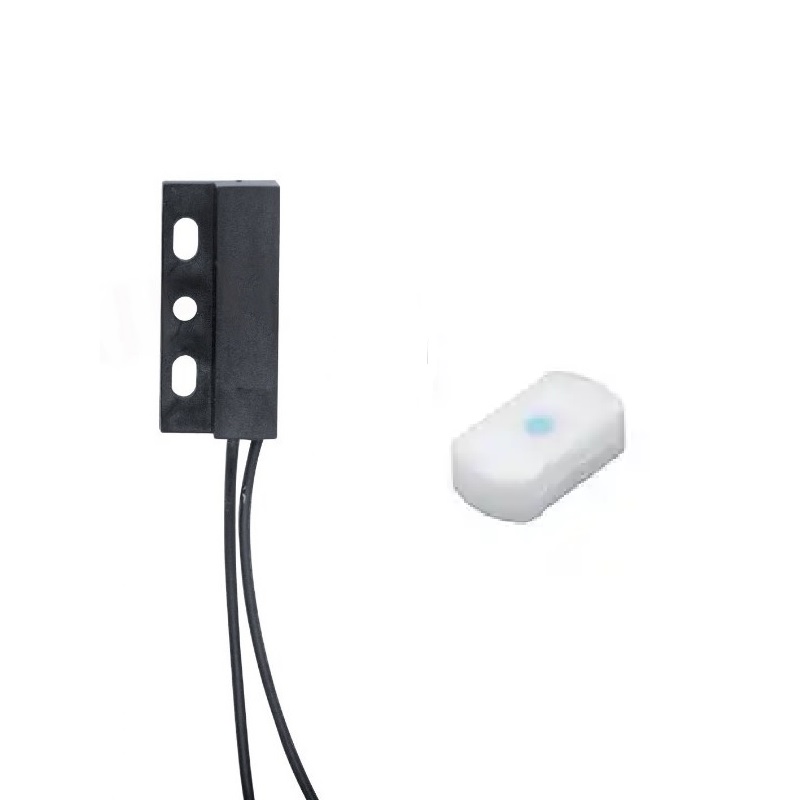

Saier SEN-K011007 Proximity Switch with S025008 Float Magnet - DC200V
SKU: SENS-1638
📋 GST Invoice Available

Saier SEN-K011007 Proximity Switch with S025008 Float Magnet - DC200V

₹175.00 (Inclusive of all taxes)
Out of Stock

The Saier SEN-K011007 is a robust proximity switch paired with an S025008 float magnet, designed for reliable object position detection and level control in industrial environments. It operates on a wide DC voltage range up to 200V and is compatible with PLCs and industrial control systems.

Features

  • Industrial-grade proximity switch with integrated S025008 float magnet.
  • Wide operating voltage range up to 200V DC for versatile integration.
  • Low contact resistance of 0.1Ω ensures minimal signal loss.
  • Extended operating temperature range from -40°C to +60°C.
  • Compact and durable construction for harsh industrial applications.

Out of stock

Description

The Saier SEN-K011007 proximity switch utilizes a magnetic reed mechanism activated by the included S025008 float magnet. This contact-based sensing solution provides a simple, reliable on/off signal for detecting the presence or position of a magnetic target, commonly used for liquid level indication and machinery limit switching.

Built for industrial durability, the switch handles high DC voltages and is rated for operation across a wide temperature range. Its low contact resistance guarantees a strong, clean electrical signal for integration into control panels, PLC digital inputs, or alarm circuits.

Key Features

  • High-voltage reed switch rated for DC200V operation.
  • Includes a dedicated S025008 float magnet for precise actuation.
  • Robust construction ensures reliability in demanding industrial settings.
  • Low power consumption with a maximum current draw of 0.5A.
  • Wide operating temperature range from -40°C to +60°C.
  • Simple two-wire installation for easy integration into existing systems.
  • Optimized performance-to-cost ratio for industrial sensing applications.

Applications

  • Liquid level detection and control in tanks, reservoirs, and sumps.
  • Position sensing and limit switching in industrial machinery and conveyors.
  • Door and hatch open/closed status monitoring in control panels.
  • Material presence detection in automated packaging and sorting lines.
  • Safety interlock and guard position monitoring.

Technical Specifications

Model / Part NumberSEN-K011007 with S025008 Float Magnet
TypeProximity Switch (Magnetic Reed)
Operating VoltageUp to 200 VDC
Maximum Power10 W
Maximum Current0.5 A
Contact Resistance0.1 Ω
Operating Temperature-40°C to +60°C
Shipping Weight0.025 kg
Shipping Dimensions12 x 8 x 2 cm

Frequently Asked Questions

What is the operating voltage range for this Saier proximity switch?

The Saier SEN-K011007 proximity switch is rated for a maximum operating voltage of 200V DC. It is designed for direct integration into standard industrial DC control circuits. Always ensure your supply voltage does not exceed this limit to prevent damage to the switch contacts.

How does the included S025008 float magnet work with the switch?

The S025008 is a float-mounted permanent magnet. As the float rises or falls with liquid level, the magnet moves relative to the fixed SEN-K011007 reed switch. When the magnet comes within close proximity, it actuates the sealed reed contacts inside the switch, opening or closing the electrical circuit to provide a level signal.

What is the maximum current this switch can handle?

The switch contacts are rated for a maximum continuous current of 0.5 Amps. This is suitable for driving small relays, PLC digital inputs, or indicator lamps directly. For higher current loads, it is recommended to use the switch to control an intermediate relay or solid-state device.

Can this switch be used in outdoor or harsh environments?

While the switch has a wide operating temperature range (-40°C to +60°C), its specific IP (Ingress Protection) rating is not provided in the datasheet. For outdoor or wet environments, it is crucial to provide additional external sealing or an enclosure to protect the electrical connections from moisture and contaminants.

Package Includes

  • 1 x Saier SEN-K011007 Proximity Switch
  • 1 x S025008 Float Magnet

Additional Information

Weight 0.025 kg
Dimensions 12 × 8 × 2 cm
