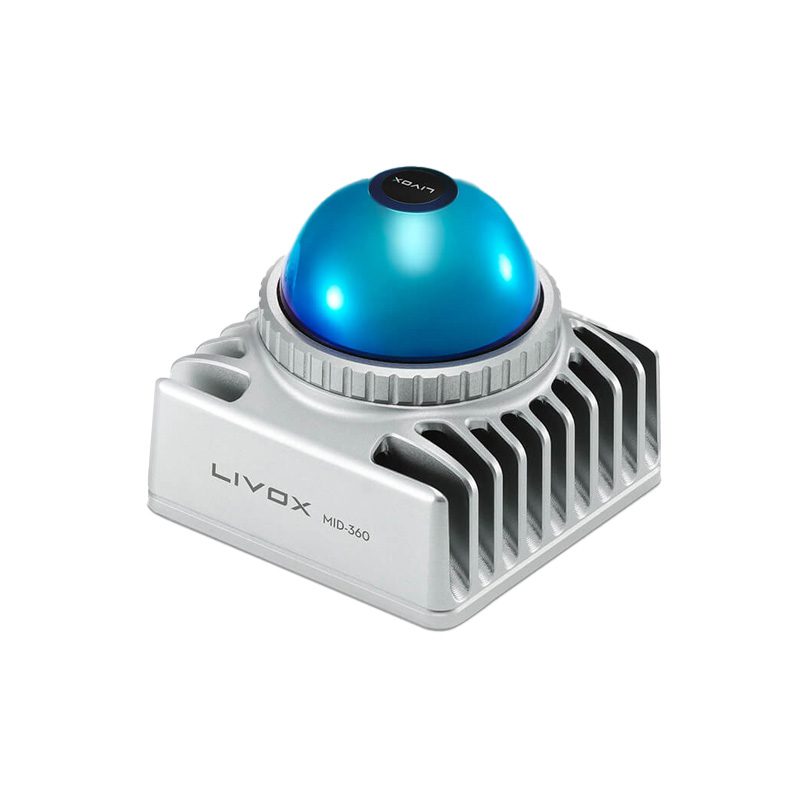

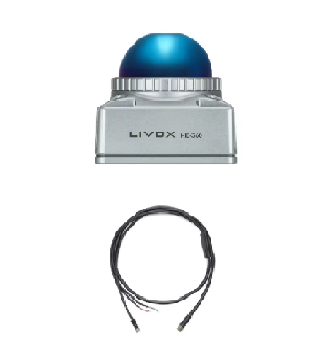

Livox Mid-360 (Line-16) Laser Detection Rangefinder with 1.5m Cable
The Livox Mid-360 (Line-16) is a high-performance 360° scanning LiDAR sensor with a 905 nm laser, designed for robotics, mapping, and autonomous navigation applications. It interfaces via standard communication protocols and operates from a 9-27V DC supply.
Features
- 360° horizontal field of view with -7° to 52° vertical coverage for comprehensive 3D scanning.
- High precision detection with ≤2 cm range accuracy at 10 m and <0.15° angular precision.
- High-speed data acquisition with a 200,000 points/s rate and 10 Hz frame rate.
- Robust 9-27V DC wide voltage input with built-in ICM40609 IMU for integrated orientation data.
- Compact and durable aluminum housing (65x65x60 mm) weighing only 265 grams.
Out of stock
The Livox Mid-360 (Line-16) is a solid-state LiDAR sensor utilizing a 905 nm laser for precise time-of-flight (ToF) distance measurement. Its 360° horizontal and -7° to 52° vertical field of view generates dense point clouds for real-time environmental modeling. The sensor features advanced signal processing to maintain high data integrity across varying surface reflectivities, achieving a detection range of up to 70 meters.
Engineered for system integration, the Mid-360 includes a built-in 6-axis IMU (ICM40609) to provide orientation data synchronized with point cloud frames. Its aluminum alloy construction ensures thermal stability and durability for demanding applications in mobile robotics and outdoor mapping. The unit operates on a wide 9-27V DC input, making it compatible with common mobile power systems and industrial controllers.
Additional Information
| Weight | 0.265 kg |
|---|---|
| Dimensions | 6.5 × 6.5 × 6 cm |
