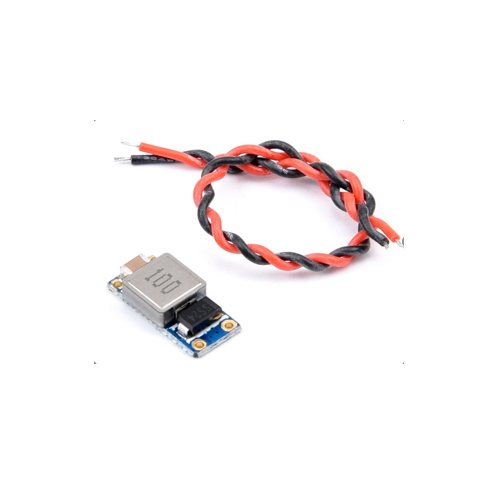

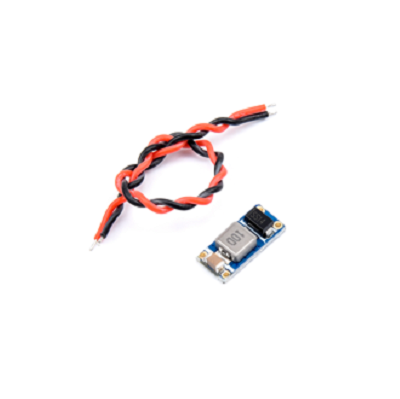

L-C Power Filter 3A 1-6S LiPo for FPV Transmitter
The L-C Power Filter 3A provides clean, regulated power for FPV video transmitters and cameras, eliminating motor-induced noise from 1S to 6S LiPo battery setups. Its compact design integrates seamlessly into micro and standard FPV drone builds.
Features
- 3A continuous current rating for stable FPV system power.
- Supports 1S to 6S LiPo input voltages (up to 26V max).
- Ultra-compact footprint measuring 19mm x 7.5mm.
- Built-in reverse polarity protection for safe installation.
- Minimal voltage drop ensures consistent video transmitter performance.
Out of stock
This micro LC filter is engineered to suppress electrical noise generated by brushless motor ESCs, which manifests as rolling lines or static in the FPV video feed. By employing a high-quality inductor and capacitor network, it smooths voltage fluctuations from a shared LiPo battery, delivering a clean power rail to sensitive FPV components.
Its vanishingly small size and lightweight construction (approximately 1g) make it an ideal solution for weight-critical micro and nano drone builds where space is at a premium. The filter is rated for a maximum continuous current of 3A, sufficient for most analog and digital HD VTX systems, and features built-in reverse polarity protection to prevent damage during wiring.
Additional Information
| Weight | 0.001 kg |
|---|---|
| Dimensions | 1.9 × 0.75 cm |
