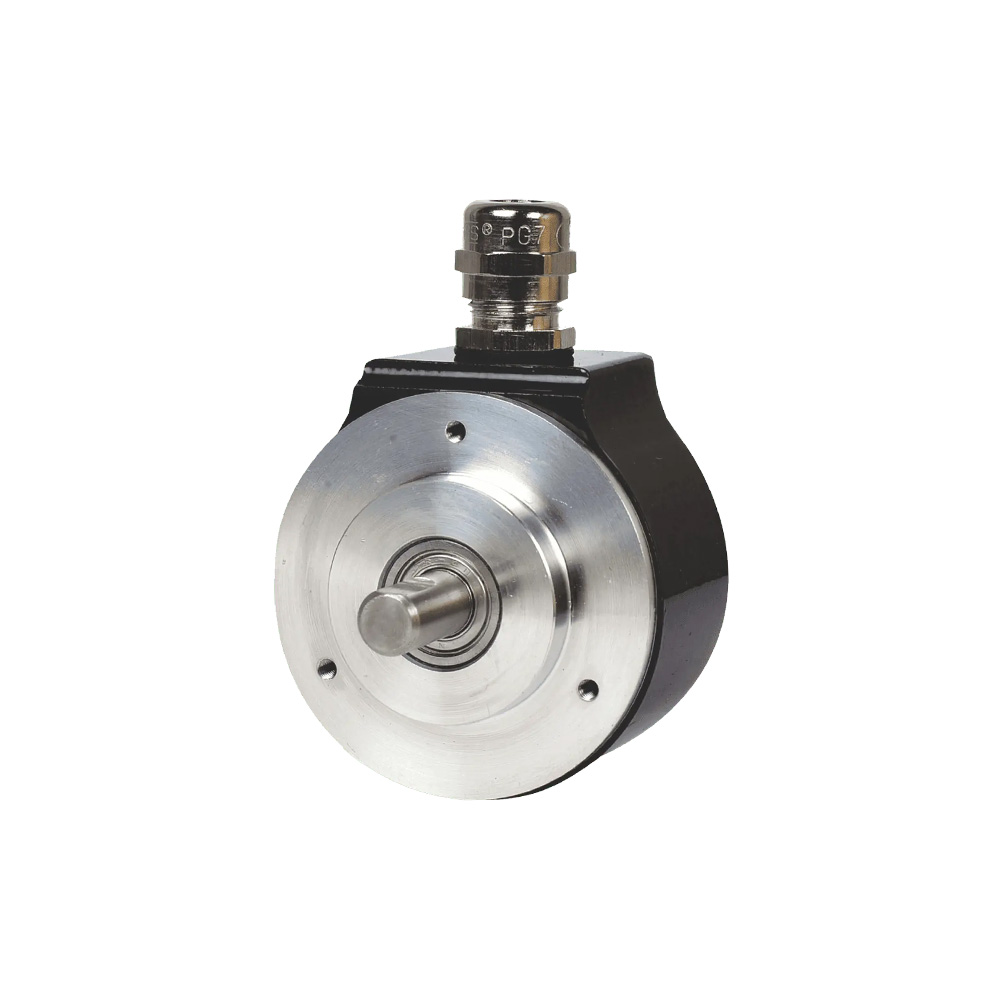

Jayashree Encoders J-50S Shaft Encoder (SG) - IP50/IP54, 4500 RPM, 4kg Radial Load
The Jayashree Encoders J-50S is a robust, ASIC-based shaft encoder designed for demanding induction motor feedback applications, offering high radial and axial load capacity with a maximum speed of 4500 RPM. It features a compact, die-cast housing with IP50/IP54 protection for reliable operation in industrial environments.
Features
- High radial (4kg) and axial (2kg) shaft load capacity for demanding mechanical setups.
- Maximum operating speed of 4500 RPM for high-speed motor feedback applications.
- Robust IP50/IP54 protection rating against dust and water ingress.
- ASIC-based design with LED power compensation for stable performance across aging and temperature variations.
- Shatter-proof polycarbonate disk ensures long-term durability and reliability.
Out of stock
The J-50S shaft encoder utilizes a robust optical sensing principle with a shatter-proof polycarbonate disk, providing precise rotary position feedback. Its ASIC-based design incorporates LED power compensation to maintain signal integrity and accuracy despite component aging and operating temperature fluctuations from -20°C to +70°C (up to +100°C for IP50 variant).
Engineered for industrial environments, the encoder’s die-cast housing and gland seals provide IEC60529 IP50/IP54 protection. It is built to withstand significant mechanical stress, including vibration resistance of 10G (10-2000Hz) and shock resistance of 100G for 6ms, making it suitable for integration with induction motors and other high-inertia rotating machinery.
Additional Information
| Weight | 0.24 kg |
|---|
