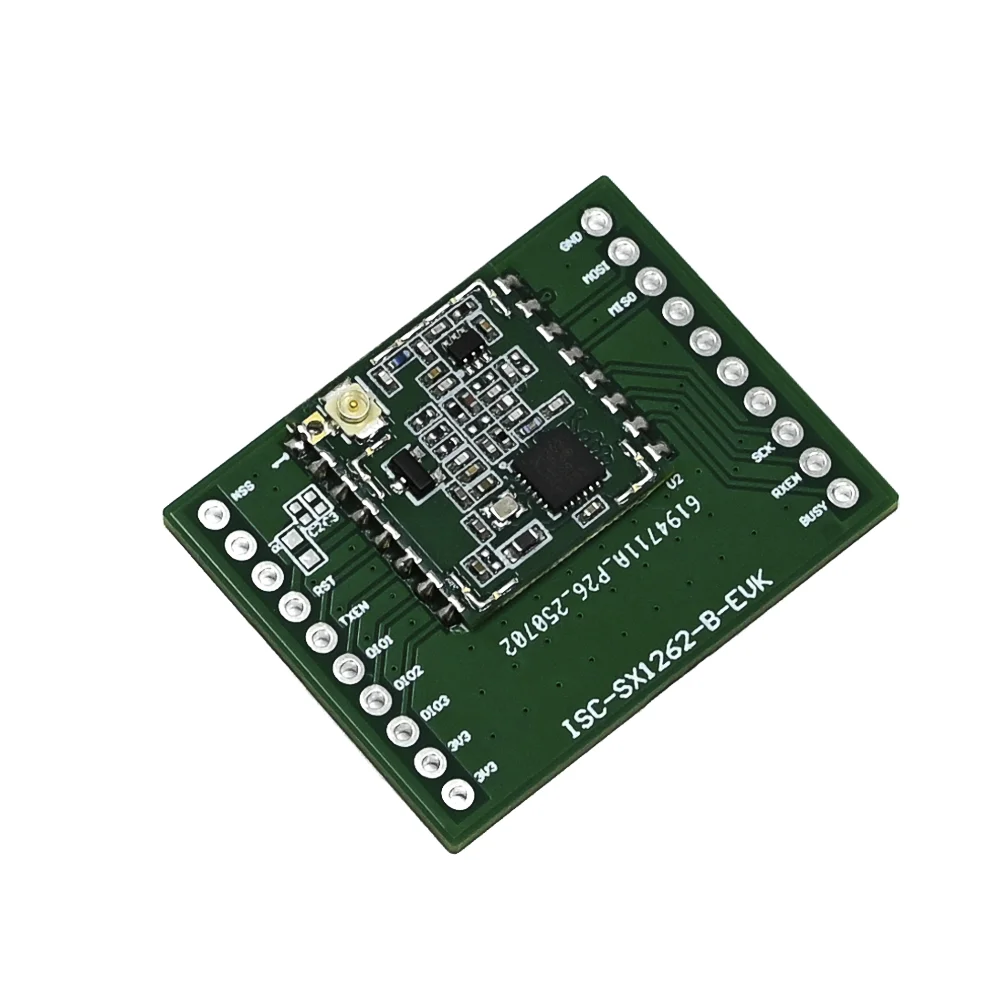

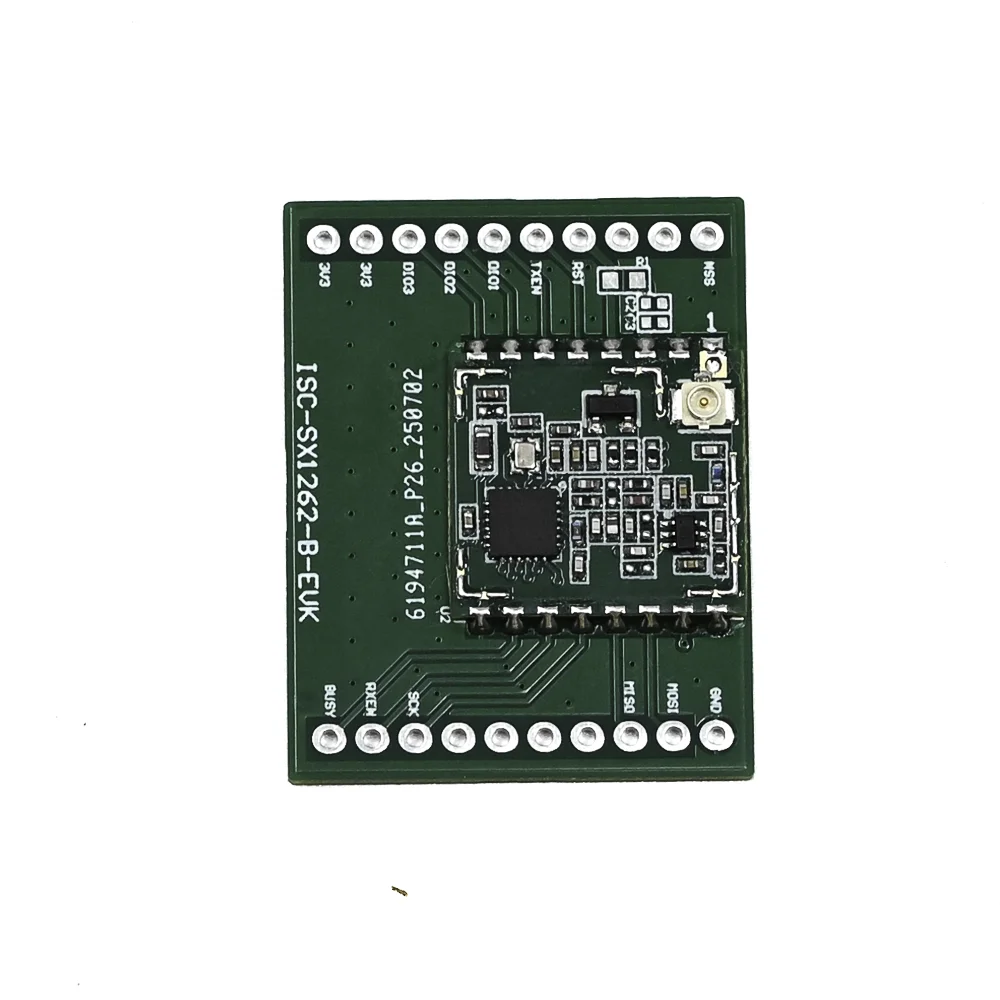

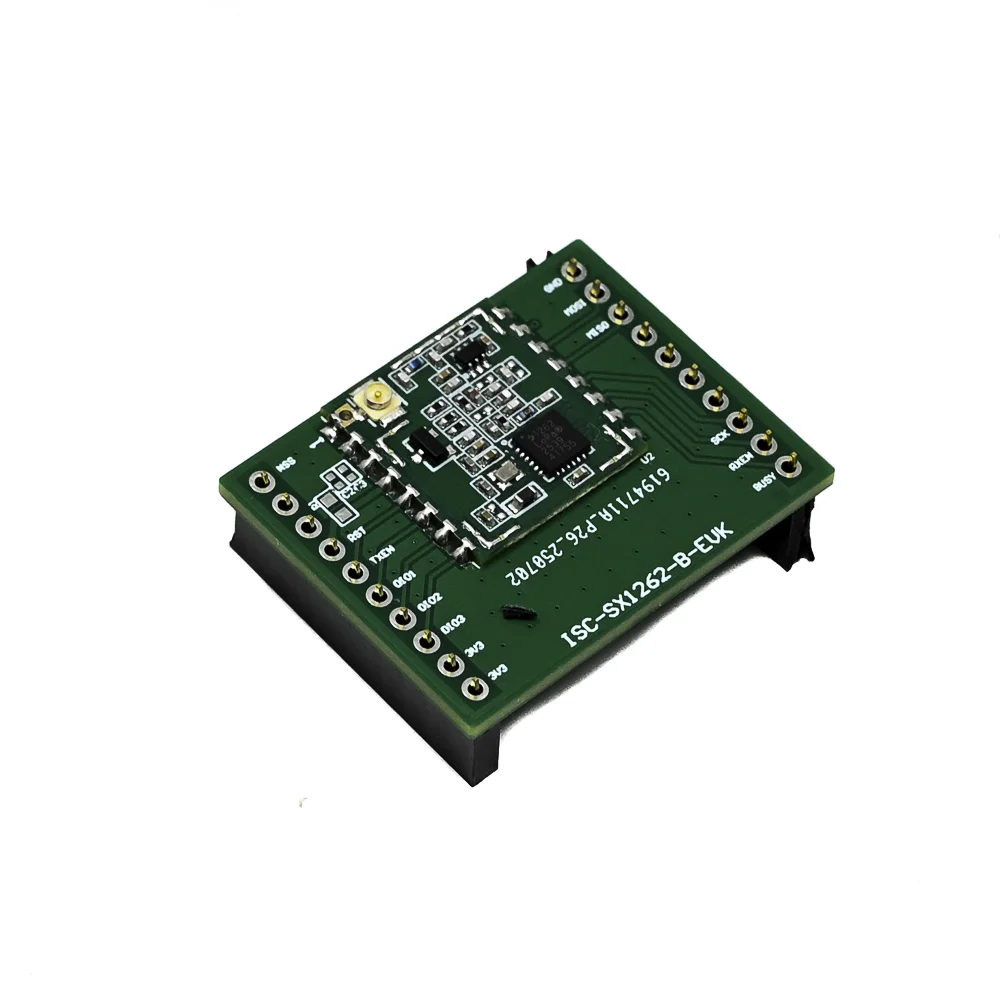

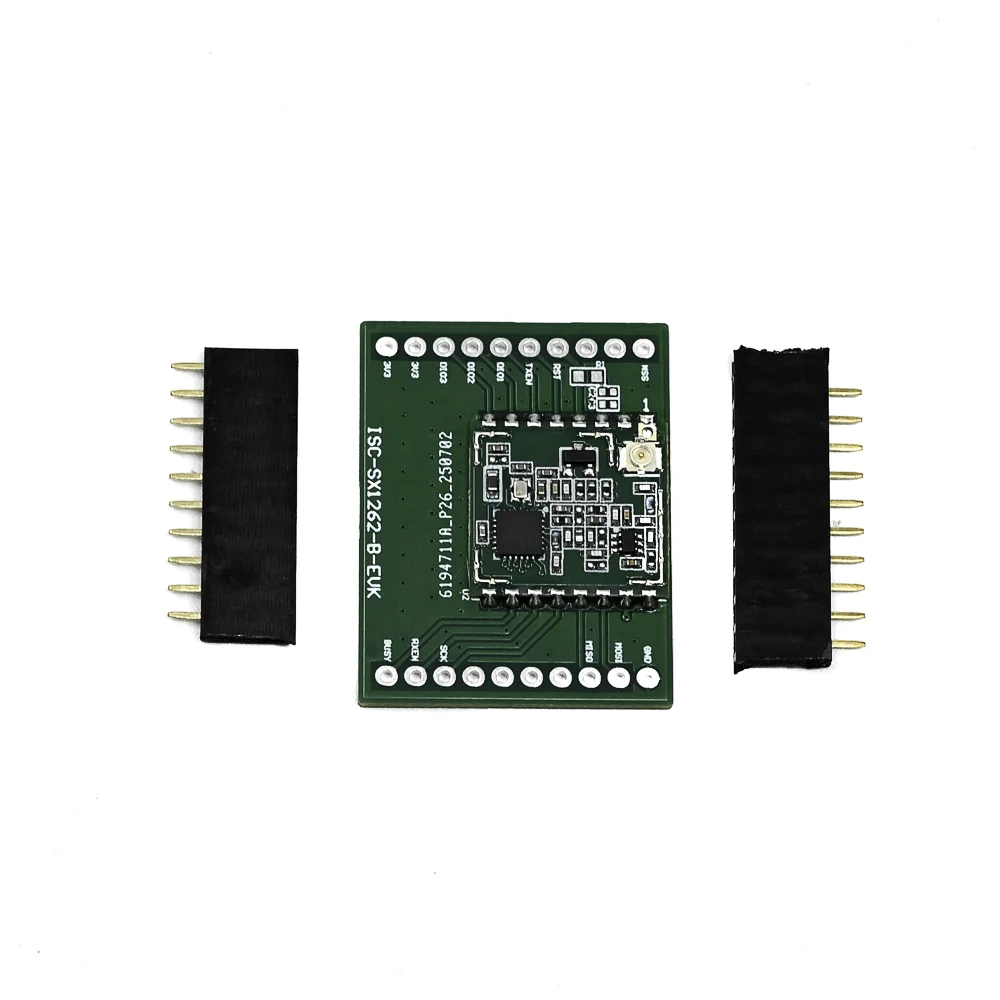

IndieSemiC EVK-ISC-SX1262-B Evaluation Kit - SX1262 LoRa Module
The IndieSemiC EVK-ISC-SX1262-B is an evaluation kit for the ISC-SX1262-B LoRa module, built around the Semtech SX1262 transceiver. It enables long-range, low-power wireless communication for IoT applications using LoRa, FSK, and GFSK modulation.
Features
- Core Semtech SX1262 LoRa transceiver for ultra-long-range communication up to +22dBm output power.
- Wide 803MHz to 930MHz frequency range supporting regional ISM bands for global deployments.
- Exceptional RF sensitivity down to -148dBm for robust links in noisy or deep-fade environments.
- Ultra-low power operation with 4.2mA RX current and 1.6µA standby current for battery-powered nodes.
- Compact 17.0 x 16.0 x 2.0 mm SMD package with SPI interface and flexible antenna pad/IPEX options.
Out of stock
The IndieSemiC EVK-ISC-SX1262-B Evaluation Kit provides a complete development platform for the ISC-SX1262-B module, a compact LoRa solution leveraging the proven Semtech SX1262 chipset. This module is engineered for applications demanding extended range, high interference immunity, and minimal power draw, utilizing patented LoRa modulation to overcome traditional trade-offs between distance, reliability, and energy consumption.
Its architecture supports multiple modulation schemes—LoRa, FSK, and GFSK—providing flexibility for different data rate and protocol requirements. The evaluation board simplifies prototyping, allowing developers to quickly interface the module via SPI, test antenna configurations (half-hole pad, through-hole, or IPEX), and validate performance across the 803-930MHz spectrum. This kit is ideal for integrating long-range connectivity into telemetry, sensor networks, and industrial IoT systems where operational reliability from -40°C to 85°C is critical.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 7 × 8 × 3 cm |
