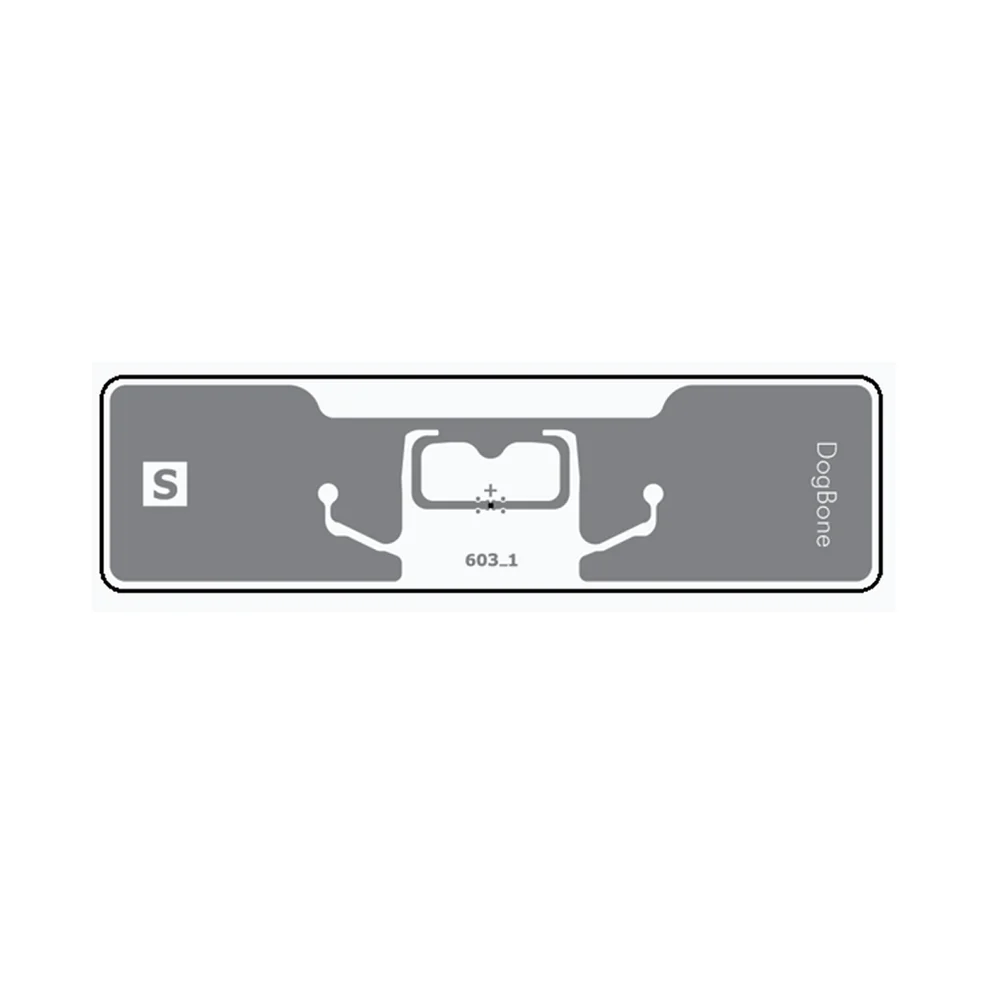

Huahao UHF RFID Sticker 97x27mm, Clear PET Sticker, Strong Adhesive - 860-960 MHz

Name: Huahao UHF RFID Sticker 97x27mm, Clear PET Sticker, Strong Adhesive - 860-960 MHz
Brand: Huahao
SKU: SENS-2513
Price: 183.00 INR
Availability: OutOfStock

₹183.00 (Inclusive of all taxes)

Out of Stock

This Huahao UHF RFID sticker operates on the global 860-960 MHz frequency band, featuring a 94×24 mm antenna and Impinj m730 chip for reliable, long-range identification up to 20 meters. Its strong adhesive and clear PET construction make it ideal for secure attachment to vehicle windshields and other non-metallic surfaces.

Features

Global UHF frequency range (860-960 MHz) for worldwide compatibility.
Extended read distance up to 20 meters on vehicle windshields.
Powered by Impinj m730 chip with AD Dogbone® inlay for reliable performance.
Strong adhesive backing designed for secure, permanent attachment.
Clear PET material with a die-cut size of 97×27 mm and wide operating temperature range (-40°C to +85°C).

Out of stock

Get Notified When Available

Description

This UHF RFID sticker is engineered for high-performance asset and vehicle identification. Utilizing the Impinj m730 chip paired with an AD Dogbone® inlay, it delivers stable signal integrity and a robust read range. The 94×24 mm antenna is optimized for the 860-960 MHz UHF band, ensuring reliable operation across different regional frequency allocations.

The tag is constructed from durable, clear PET material and features a strong adhesive backing specifically formulated for windshield and glass applications. With a memory configuration offering a 96-bit TID and an EPC memory expandable from 96 to 128 bits, it provides sufficient data capacity for unique item identification. Its extended operating temperature range from -40°C to +85°C ensures reliable performance in harsh outdoor and vehicular environments.

Key Features

Impinj m730 chipset ensures high-performance, reliable UHF RFID communication.
AD Dogbone® inlay design optimizes antenna efficiency and read consistency.
Global UHF frequency band (860-960 MHz) supports worldwide deployment.
Strong, permanent adhesive is specifically formulated for glass and windshield attachment.
Clear PET face material offers durability and UV resistance for outdoor use.
Wide operating temperature range (-40°C to +85°C) for extreme environmental conditions.
96-bit TID and expandable EPC memory (96-128 bit) for flexible data encoding.

Applications

Vehicle identification and electronic toll collection (ETC) systems.
Asset tracking for logistics, warehouse management, and industrial tool control.
Parking access control and automated vehicle identification.
Inventory management for retail and supply chain visibility.
Outdoor equipment and container tracking in harsh environments.

Technical Specifications

Model / Name	UHF RFID Sticker
Chip	Impinj m730 / AD Dogbone® Inlay
Operating Frequency	860 - 960 MHz
Antenna Size	94 mm x 24 mm
Die-Cut Size	97 mm x 27 mm
EPC Memory	96-bit (expandable to 128-bit)
TID Memory	96-bit
User Memory	0
Max Read Distance	Up to 20 meters (on windshields)
Material	Clear PET
Adhesive	Strong, Permanent
Operating Temperature	-40°C to +85°C

Frequently Asked Questions

What is the maximum read distance for this RFID sticker?

Under optimal conditions with a compatible UHF RFID reader, this sticker can achieve a read distance of up to 20 meters, particularly when attached to a vehicle windshield. The actual range can vary based on reader power, antenna configuration, and the local RF environment.

Can this tag be programmed with custom data?

Yes. The tag features a 96-bit EPC memory bank that is expandable to 128 bits, allowing you to encode unique identification numbers or custom data using a standard UHF RFID reader/writer. It also has a fixed 96-bit TID (Tag Identifier) assigned by the chip manufacturer.

Is the adhesive suitable for outdoor and automotive use?

Yes, the sticker features a strong, permanent adhesive specifically designed for secure attachment to non-porous surfaces like vehicle windshields and glass. Combined with the clear PET material and a wide operating temperature range of -40°C to +85°C, it is well-suited for demanding outdoor and automotive applications.

Does this RFID tag support global frequency standards?

Yes. It operates across the global UHF frequency band of 860-960 MHz, making it compatible for use in different regions, including North America (FCC 902-928 MHz) and Europe (ETSI 865-868 MHz). Always ensure local radio regulations are followed.
