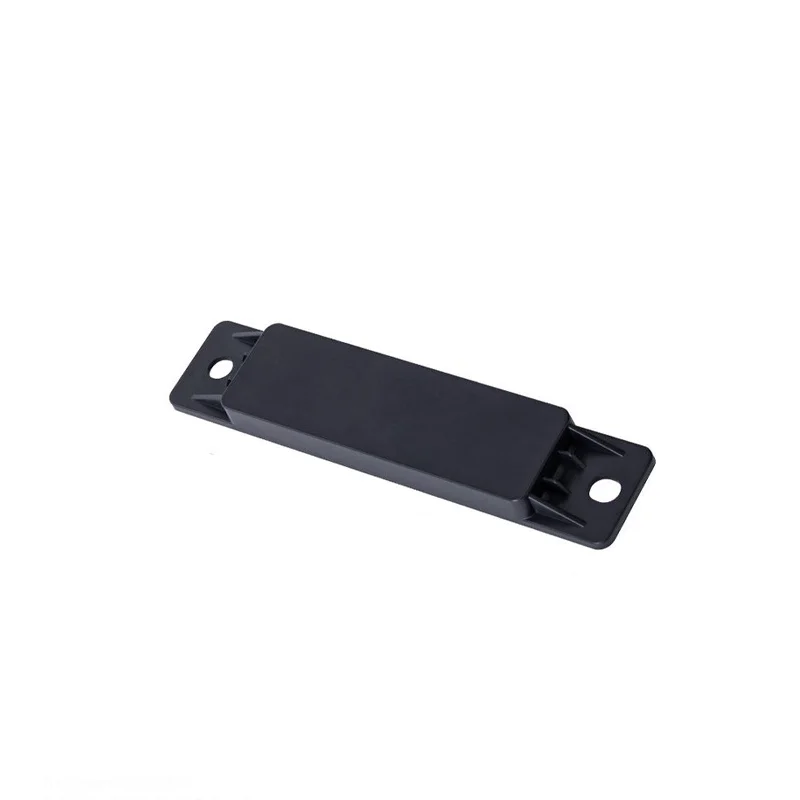

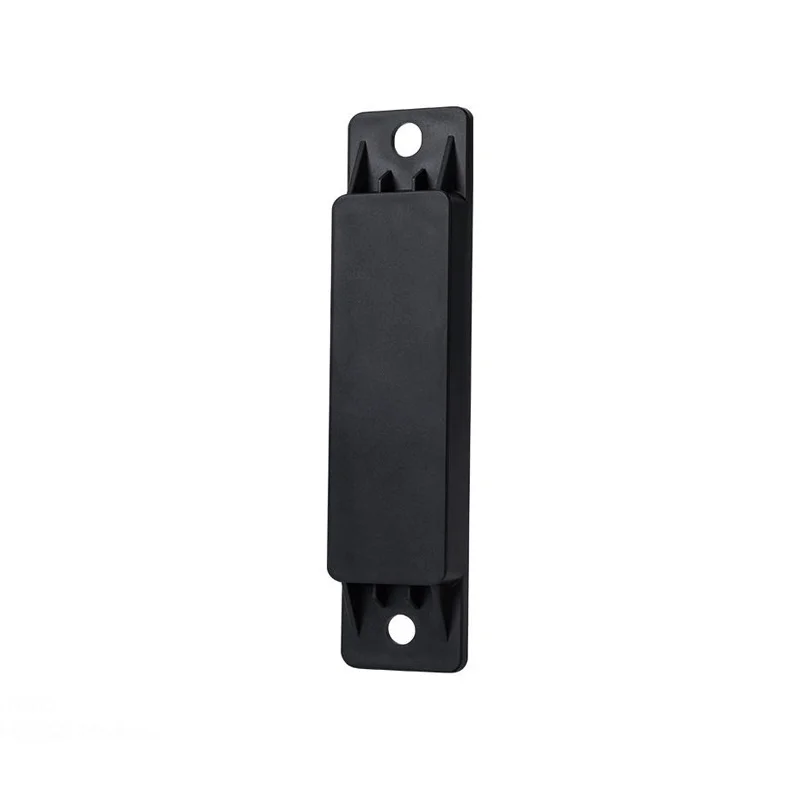

HoneyComm H8 Pallet-Tracking iBeacon IoT Beacon
HoneyComm H8 Pallet-Tracking iBeacon IoT Beacon - Image 2
SKU: IOWC-0076
📋 GST Invoice Available

HoneyComm H8 Pallet-Tracking iBeacon IoT Beacon

₹719.00 (Inclusive of all taxes)
Out of Stock

The HoneyComm H8 is an industrial-grade Bluetooth LE 5.4 iBeacon designed for rugged pallet and asset tracking, featuring an ultra-low-power CH592 chip, IP65/IK08-rated enclosure, and configurable broadcast parameters via a dedicated Android app.

Features

  • Bluetooth LE 5.4 with iBeacon & Eddystone support for reliable proximity broadcasting.
  • Ultra-low-power CH592 chip extends battery life for long-term industrial deployments.
  • Rugged IP65 waterproof and IK08 shockproof ABS casing withstands harsh environments.
  • Configurable broadcast range up to 100 meters in open space for flexible asset tracking.
  • Easy mounting via 3M adhesive, screws, or bands for quick pallet and asset installation.

Out of stock

Description

The HoneyComm H8 Pallet-Tracking iBeacon is engineered for demanding industrial IoT applications, leveraging Bluetooth 5.4 Low Energy technology for efficient, long-range wireless beaconing. Its core is the energy-optimized CH592 system-on-chip, which minimizes power draw to maximize operational lifespan in continuous tracking scenarios.

Encased in a slim, durable ABS shell with IP65 ingress protection and IK08 impact resistance, the H8 is built to survive moisture, dust, and physical shocks common in warehouses and logistics hubs. The device offers flexible configuration of UUID, transmit power, and advertising intervals through the HC Connect Android application, enabling precise control over its tracking behavior and battery usage.

Key Features

  • Bluetooth 5.4 Low Energy with dual iBeacon and Eddystone protocol support for universal compatibility.
  • Ultra-efficient CH592 RF SoC architecture for minimal power consumption and extended battery life.
  • Industrial-grade IP65 waterproof and IK08 shockproof enclosure for reliability in harsh conditions.
  • Configurable RF transmit power from -19.5 dBm to +2.5 dBm for optimized range vs. battery trade-offs.
  • Multiple physical mounting options including 3M adhesive pad, screw holes, and band attachments.
  • User-configurable broadcast parameters (UUID, Major, Minor, Tx Power, Interval) via HC Connect App.
  • Operates on the global 2.4 GHz ISM band (2400-2483.5 MHz) for worldwide deployment.
  • Compact and lightweight form factor (21g) for discrete attachment to pallets, containers, and assets.

Applications

  • Industrial pallet tracking and logistics management in warehouses and distribution centers.
  • Indoor positioning systems (IPS) for asset localization and wayfinding.
  • Asset monitoring and management for high-value equipment and mobile containers.
  • Proximity marketing and location-based notifications in retail and commercial spaces.
  • Smart inventory management and automated stock-taking systems.

Technical Specifications

Item TypeBLE iBeacon
ModelHoneyComm H8 BLE iBeacon
Bluetooth VersionBLE 5.4
Operating Frequency2400 - 2483.5 MHz
RF Transmit Power-19.5 dBm to +2.5 dBm (Configurable)
Maximum RangeUp to 100 m (Open Space)
Enclosure RatingIP65 Waterproof, IK08 Shockproof
Weight21 g
Mounting3M Adhesive, Screws, Band
ConfigurationHC Connect Android App

Frequently Asked Questions

How do I configure the HoneyComm H8 iBeacon's broadcast parameters?

Download the HoneyComm HC Connect app on an Android device, enable Bluetooth, and power on the H8 beacon. The app will detect the device, allowing you to set the UUID, Major/Minor values, transmit power level, and advertising interval. Changes are saved directly to the beacon's non-volatile memory for persistent operation. Ensure the beacon is within range and not in sleep mode during configuration for a reliable connection.

What is the typical battery life for the H8 beacon in a tracking application?

Battery life depends heavily on the configured transmit power and advertising interval. Using a moderate advertising interval (e.g., 500ms) and lower transmit power can extend operation to several months or years on a standard coin cell. The ultra-low-power CH592 chip and BLE 5.4's efficiency are key. For precise estimates, refer to the datasheet's current consumption graphs for different RF and sleep mode settings based on your specific use case parameters.

Can the H8 beacon be used for indoor positioning (IPS) and how accurate is it?

Yes, the H8 is suitable for Bluetooth-based Indoor Positioning Systems (IPS). Accuracy, typically within 1-5 meters, depends on beacon density, placement, transmit power settings, and the positioning algorithm (trilateration/RSSI) used by your central server or gateway. For best results, deploy multiple beacons with known fixed locations, calibrate the RSSI-to-distance model for your environment, and use a stable BLE scanning gateway to collect data for processing.

Package Includes

  • 1 x HoneyComm H8 Pallet-Tracking iBeacon
  • 2 x Mounting Screws

Additional Information

Weight 0.035 kg
Dimensions 8 × 10 × 2 cm
