Holyiot 23068 nRF52805 Bluetooth Beacon Indoor Positioning Module

Name: Holyiot 23068 nRF52805 Bluetooth Beacon Indoor Positioning Module
Brand: Holyiot
SKU: IOWC-0084
Price: 699.00 INR
Availability: OutOfStock

₹699.00 (Inclusive of all taxes)

Out of Stock

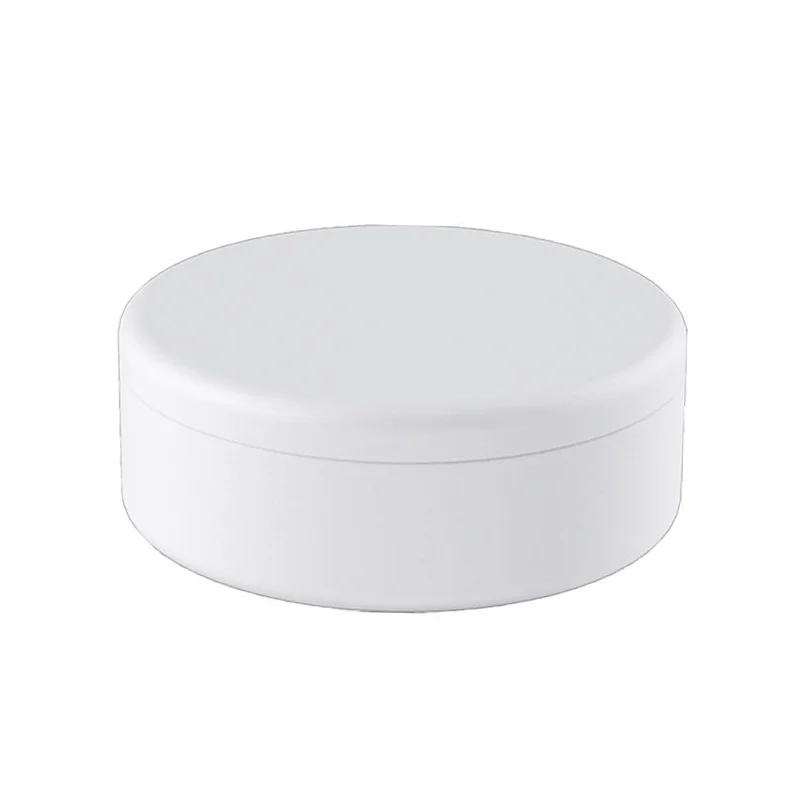

The Holyiot 23068 is a compact, IP68-rated Bluetooth 4.2 beacon module built on the Nordic Semiconductor nRF52805 SoC, designed for ultra-low-power indoor positioning, asset tracking, and proximity sensing applications.

Features

Nordic Semiconductor nRF52805 SoC delivers stable BLE 4.2 connectivity with a range up to 150m.
Ultra-low power consumption enables up to 2-year battery life from a single ER14250 cell.
IP68 waterproof housing ensures reliable operation in harsh industrial or outdoor environments.
Supports iBeacon, Eddystone, and proprietary protocols for flexible asset tracking and navigation.
Easy configuration and OTA firmware updates via dedicated iOS/Android mobile application.

Out of stock

Get Notified When Available

Description

The Holyiot 23068 Bluetooth Beacon is an industrial-grade, compact wireless node engineered for precision indoor positioning and asset tracking systems. Based on the proven Nordic Semiconductor nRF52805 system-on-chip (SoC), it provides robust Bluetooth 4.2 Low Energy (BLE) communication with an RF sensitivity of -96 dBm, enabling reliable data links over distances up to 150 meters in open spaces. Its architecture is optimized for minimal power draw, supporting deep sleep modes to achieve multi-year operation from a standard 3.3V ER14250 non-rechargeable lithium battery, making it ideal for permanent, maintenance-free deployments.

Housed in a sealed IP68 enclosure, the module is protected against dust and water ingress, suitable for challenging environments in logistics warehouses, healthcare facilities, and smart retail spaces. It broadcasts standardized beacon protocols like iBeacon and Eddystone, allowing seamless integration with most location-based services (LBS) platforms and mobile applications. The module can be fully configured—including advertising intervals, transmit power, and UUIDs—via a smartphone app, with support for over-the-air (OTA) updates to refine functionality post-deployment without physical retrieval.

Key Features

Nordic Semiconductor nRF52805 BLE SoC provides reliable, long-range wireless connectivity with GFSK modulation.
Ultra-low-power design optimized for multi-year battery life in continuous beaconing applications.
IP68-rated waterproof and dustproof enclosure for durability in industrial and outdoor settings.
Full support for iBeacon, Eddystone, and Holyiot protocols for versatile asset tracking solutions.
Configurable via dedicated mobile app (iOS/Android) for easy setup and field management.
Over-the-Air (OTA) firmware update capability for remote feature upgrades and bug fixes.
Compact form factor (37mm x 37mm) for discreet placement on equipment, pallets, or inventory.
High-precision RSSI-based positioning enables accurate indoor location tracking and navigation.

Applications

Indoor asset tracking and inventory management in warehouses and logistics centers.
Proximity marketing and customer navigation in retail stores and shopping malls.
Equipment and personnel tracking in healthcare facilities and hospitals.
Smart building automation for room occupancy detection and environmental control.
Museum and exhibition guides for interactive visitor experiences.

Technical Specifications

Bluetooth SoC	Nordic Semiconductor nRF52805
Wireless Protocol	Bluetooth 4.2 Low Energy (BLE)
Frequency Range	2.4 GHz ISM Band
RF Transmit Power	Configurable (Typ. up to +4 dBm)
RF Sensitivity	-96 dBm
Supply Voltage	3.3V (ER14250 Battery)
Operating Current	Ultra-Low Power (Typ. μA range in sleep)
Battery Life	Up to 2 years (configurable advertising)
Interfaces	Wireless BLE only
Antenna	Integrated PCB Antenna
Enclosure Rating	IP68 (Waterproof & Dustproof)
Operating Temperature	-20°C to +60°C
Dimensions (L x W x H)	37 mm x 37 mm x ~15 mm (est.)

Frequently Asked Questions

How do I configure the Holyiot 23068 beacon for my application?

Download the official Holyiot mobile app for iOS or Android. Power on the beacon, ensure Bluetooth is enabled on your phone, and select the device from the app's scan list. You can then set the advertising protocol (iBeacon/Eddystone), modify the UUID, Major/Minor values, adjust the transmit power, and configure the advertising interval to balance range and battery life. All changes are saved directly to the beacon's non-volatile memory.

What is the expected battery life and how can I maximize it?

Using the included ER14250 3.3V lithium battery, the beacon can last up to two years under typical use. To maximize battery life, configure a longer advertising interval (e.g., 1 second or more) and reduce the transmit power to the minimum level required for your coverage area via the configuration app. The Nordic Semiconductor nRF52805 chipset features deep sleep modes that draw minimal current between broadcast events, which is key to achieving multi-year operation.

Can this beacon be used outdoors or in wet environments?

Yes, the Holyiot 23068 features an IP68-rated waterproof and dustproof enclosure, making it suitable for outdoor use or damp indoor environments like warehouses, parking garages, or industrial sites. The seal protects the internal electronics from rain, splashing water, and dust ingress. For permanent outdoor mounting, ensure the mounting surface is stable and consider using the provided adhesive or a protective casing if exposed to direct, prolonged UV sunlight.

Which positioning protocols and mobile platforms are supported?

The module natively broadcasts both Apple iBeacon and Google Eddystone (UID, URL, TLM) packet formats, making it compatible with a wide range of indoor positioning software and mobile apps on iOS and Android. Most asset tracking platforms and SDKs (e.g., Estimote, Kontakt.io, Radius Networks) can detect these standards. The beacon itself is configured via Holyiot's proprietary app, but its broadcasts are standard-compliant for integration into third-party systems.
