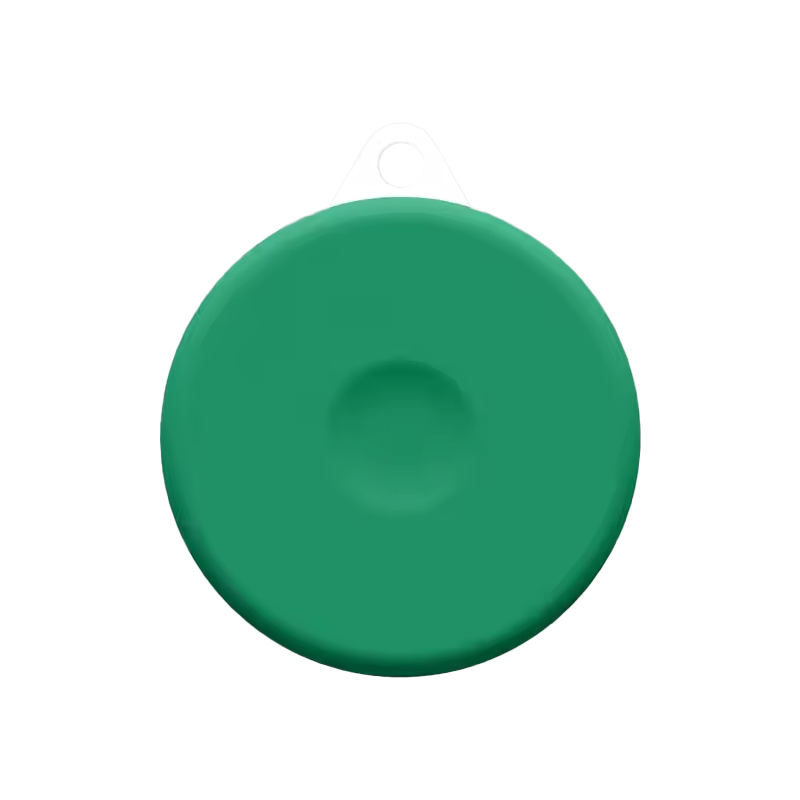

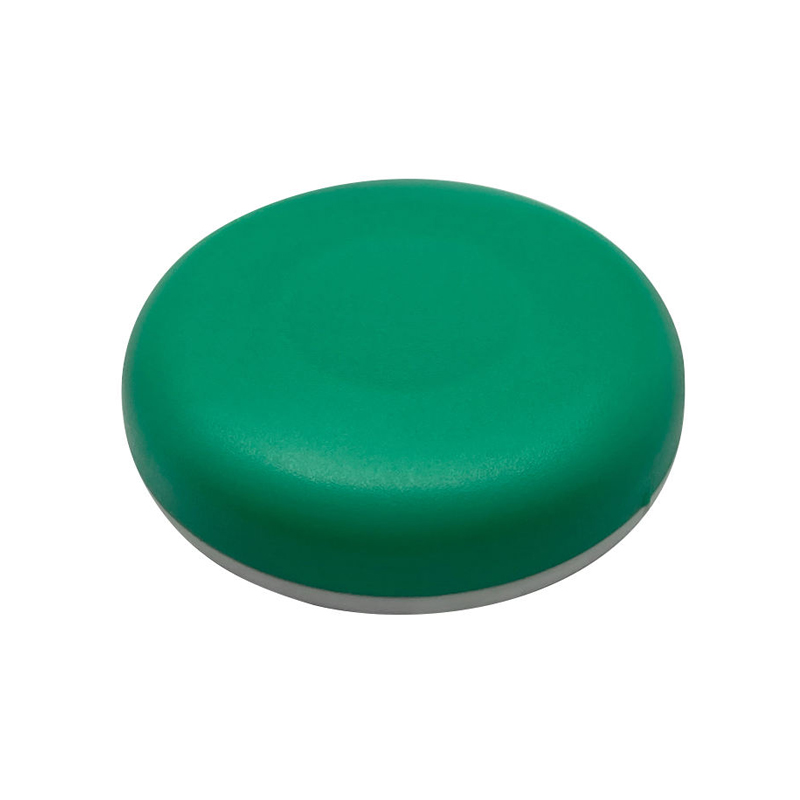

Holyiot 21014 nRF52810 BLE 5.0 Beacon with Accelerometer Sensor for Asset Tracking (IP67 Waterproof)
Holyiot 21014 nRF52810 BLE 5.0 Beacon with Accelerometer Sensor for Asset Tracking (IP67 Waterproof) - Image 2
SKU: SENS-1119
📋 GST Invoice Available

Holyiot 21014 nRF52810 BLE 5.0 Beacon with Accelerometer Sensor for Asset Tracking (IP67 Waterproof)

₹1,459.00 (Inclusive of all taxes)
Out of Stock

The Holyiot 21014 is a compact, ultra-low-power BLE 5.0 beacon module built around the Nordic Semiconductor nRF52810 SoC, featuring an integrated accelerometer for motion-based asset tracking. It is designed for seamless integration with IoT platforms, smartphones via the Holyiot-beacon app, and industrial monitoring systems, powered by a standard CR2032 coin cell.

Features

  • Nordic Semiconductor nRF52810 SoC with Bluetooth 5.0 Low Energy (BLE) for efficient wireless communication up to 50m.
  • Integrated 3-axis accelerometer enables motion detection and activity-based tracking triggers.
  • Ultra-low power operation with configurable advertising intervals (80ms to 1000ms) for extended battery life up to 180 days.
  • IP67 waterproof and dustproof casing ensures reliable performance in harsh industrial and outdoor environments.
  • Easy configuration via dedicated Holyiot-beacon mobile app (iOS & Android) for setting parameters and firmware updates.

Out of stock

Description

The Holyiot 21014 beacon combines a proven Nordic Semiconductor Semiconductor nRF52810 microcontroller with a MEMS-based accelerometer in a single, ruggedized package. This integration allows the device to not only broadcast its presence via Bluetooth advertising packets but also to detect motion, orientation changes, and vibration events, enabling smart, context-aware asset tracking. The system operates on a wide supply voltage of 2.2V to 3.6V, directly compatible with a single CR2032 lithium coin cell.

Engineered for industrial IoT and logistics applications, its IP67-rated housing protects the internal electronics from dust ingress and temporary immersion in water. The beacon’s firmware supports highly customizable advertising intervals and transmission power levels, allowing system designers to optimize the trade-off between wireless range, data update rate, and overall battery longevity for specific deployment scenarios.

Key Features

  • Nordic Semiconductor nRF52810 Core: Features a 64MHz ARM Cortex-M4 with 192KB Flash and 24KB RAM for flexible firmware development and BLE 5.0 stack.
  • Motion-Activated Intelligence: Built-in accelerometer allows for motion-triggered advertising to conserve power when assets are stationary.
  • Extended Operational Life: Ultra-low quiescent current (~3 µA) and peak transmit current of 6.5 mA enable multi-month battery life from a standard 220mAh CR2032 cell.
  • Robust Environmental Protection: IP67 waterproof and dustproof rating ensures reliable operation in warehouses, vehicles, and outdoor conditions.
  • Wireless Configuration: All operational parameters (advertising interval, Tx power, accelerometer sensitivity) are wirelessly configurable via smartphone app, eliminating physical access needs post-deployment.
  • Compact Form Factor: Minimal footprint (30mm diameter, 8.4mm thick) and light weight (6.5g) facilitate easy attachment to assets, tools, and equipment.
  • Wide Temperature Range: Operates reliably from -25°C to +60°C, suitable for cold chain logistics and hot industrial environments.
  • High-Value Build: Optimized performance-to-cost ratio for scalable asset tracking and condition monitoring solutions.

Applications

  • Real-time asset tracking and inventory management in warehouses and logistics hubs.
  • Tool and equipment monitoring on construction sites and manufacturing floors, with motion-based usage detection.
  • Condition monitoring for sensitive goods during cold chain transportation, tracking both location and shock/vibration events.
  • Smart building management for monitoring the movement and status of mobile equipment like medical carts or cleaning trolleys.
  • IoT sensor node for environmental data logging when paired with external sensors, using motion to trigger data transmission.

Technical Specifications

Item TypeBLE Beacon with Accelerometer
Model NumberHolyiot 21014 (nRF52810)
Wireless ProtocolBluetooth 5.0 Low Energy (BLE)
Wireless RangeUp to 50 meters (open space)
Integrated Sensor3-Axis Accelerometer
Supply Voltage2.2 V - 3.6 V DC
Battery TypeCR2032 Coin Cell (included)
Battery Capacity220 mAh
Quiescent Current~3 µA
Peak Transmit Current6.5 mA
Advertising IntervalConfigurable from 80 ms to 1000 ms
Operating Temperature-25°C to +60°C
Ingress ProtectionIP67 (Waterproof & Dustproof)
Dimensions (Diameter x Thickness)30 mm x 8.4 mm
Weight6.5 grams

Frequently Asked Questions

What is the primary function of the accelerometer in this Holyiot beacon?

The integrated 3-axis accelerometer enables motion detection and activity-based triggering. It allows the beacon to switch between different advertising modes—for example, entering a low-power sleep state when stationary and waking up to broadcast more frequently when movement is detected. This significantly extends battery life and provides valuable contextual data for asset tracking.

How do I configure the advertising interval and other parameters?

The Holyiot 21014 beacon is configured wirelessly using the dedicated 'Holyiot-beacon' smartphone app, available for both iOS and Android. Through the app, you can connect to the beacon via BLE and adjust settings such as advertising interval (80ms to 1000ms), transmission power, accelerometer sensitivity thresholds, and broadcast packet content without any physical disassembly or wired connection.

What is the expected battery life with the included CR2032 cell?

Battery life depends heavily on the configured advertising interval and transmission power. Under typical settings (e.g., 500ms interval), the ultra-low average current (22–246 µA) can provide up to 180 days of continuous operation from the standard 220mAh CR2032 battery. Using motion-activated advertising can further extend this lifespan by reducing activity during stationary periods.

Is this beacon suitable for outdoor or wet environment use?

Yes, the Holyiot 21014 features an IP67-rated casing, making it both waterproof and dustproof. It can withstand temporary immersion in water up to 1 meter for 30 minutes and is protected against dust ingress. This makes it ideal for outdoor asset tracking, logistics containers, and industrial environments where exposure to moisture or dust is a concern.

Package Includes

  • 1 x Holyiot 21014 nRF52810 Beacon with Accelerometer Sensor
  • 1 x CR2032 Coin Cell Battery (pre-installed)

Additional Information

Weight 0.0065 kg
Dimensions 3.5 × 3 × 0.84 cm
