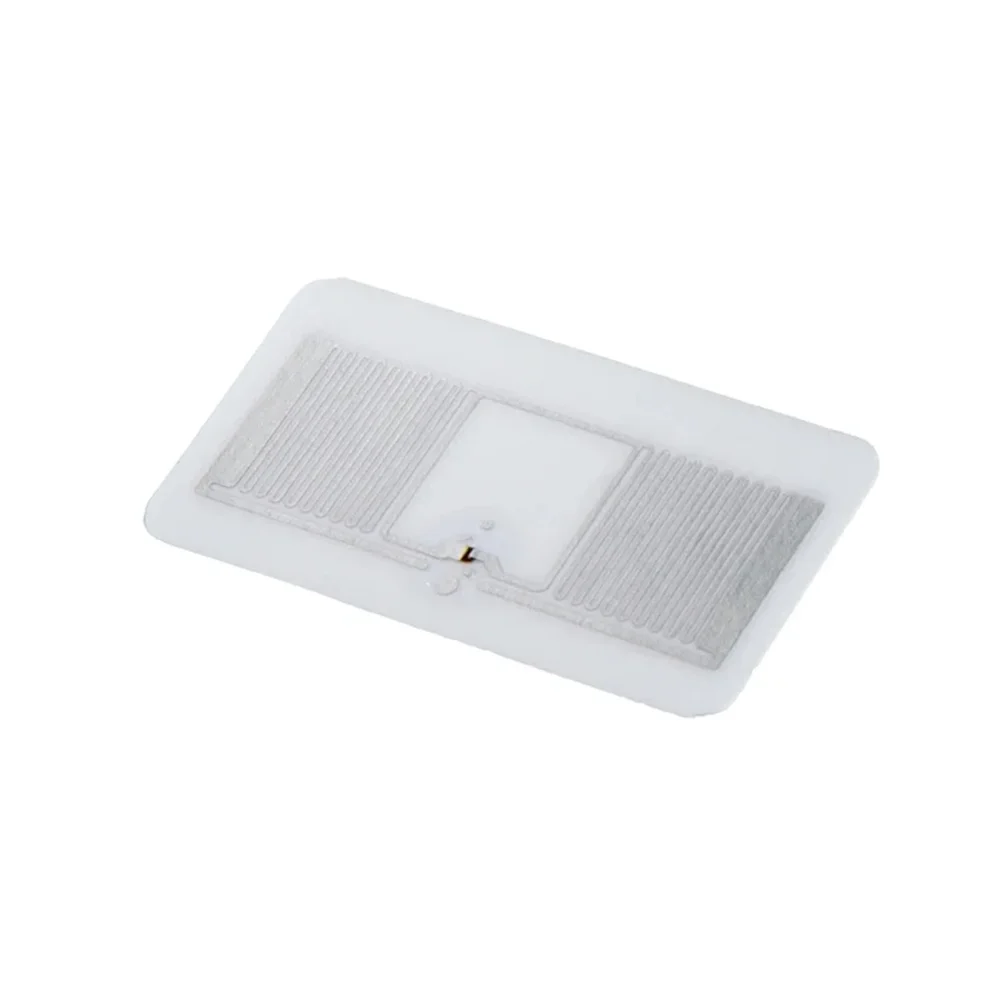

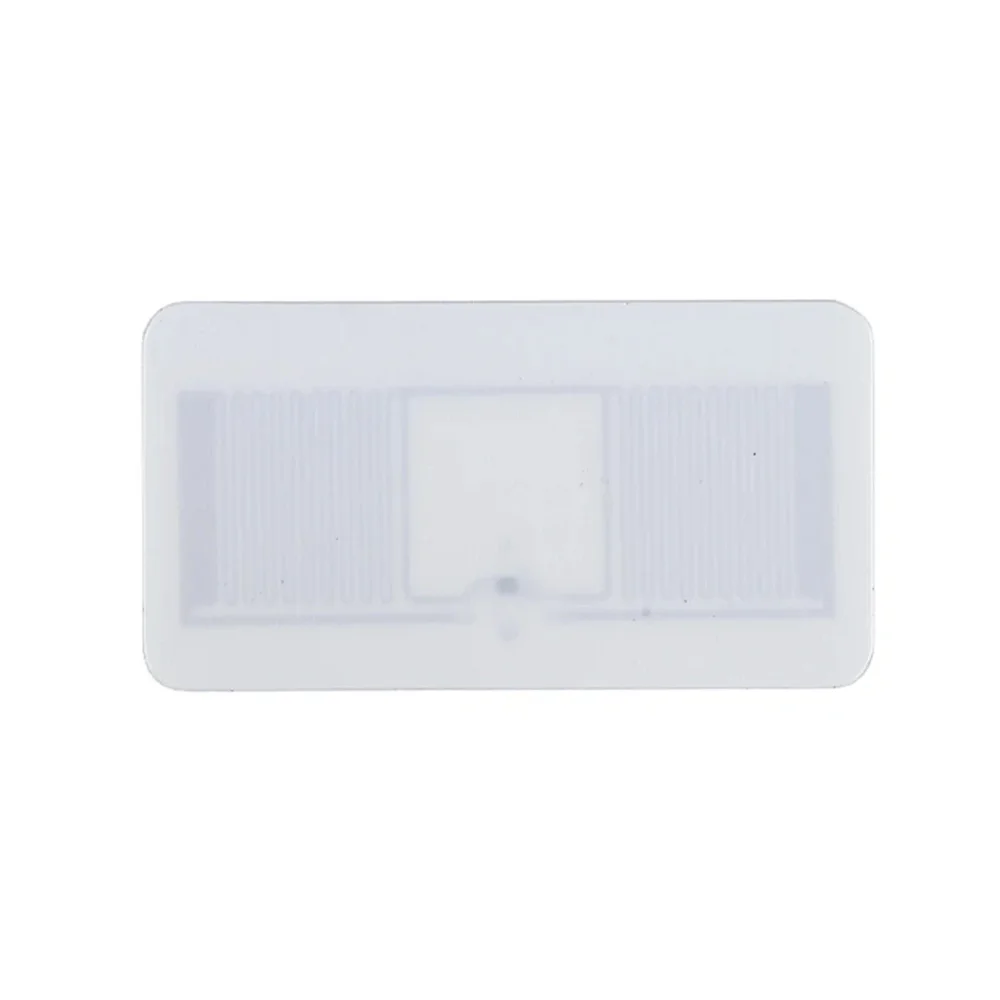

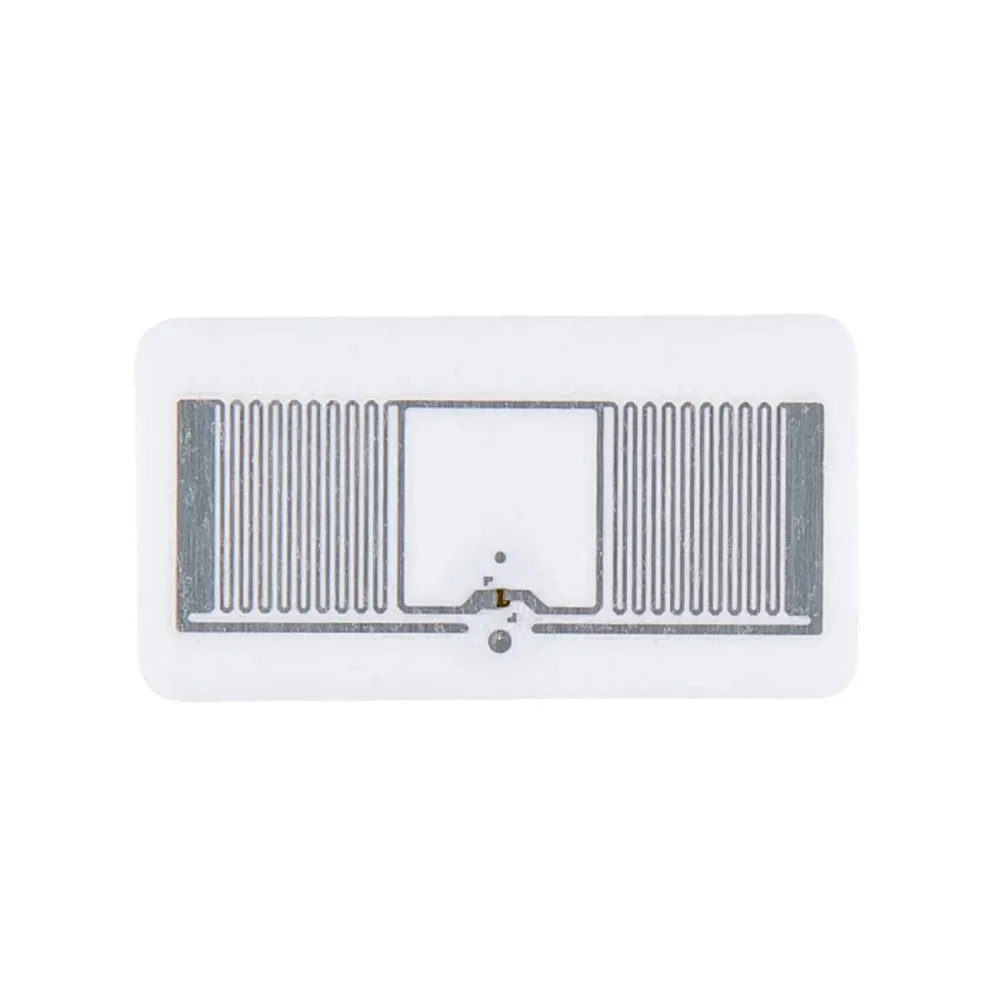

Generic H9 UHF RFID Tag - 30x16mm Adhesive Label, ISO/IEC 18000-6C

Name: Generic H9 UHF RFID Tag - 30x16mm Adhesive Label, ISO/IEC 18000-6C
Brand: Generic
SKU: SENS-2506
Price: 189.00 INR
Availability: OutOfStock

₹189.00 (Inclusive of all taxes)

Out of Stock

The Generic H9 UHF RFID Tag is a compact, adhesive-backed label designed for wireless asset identification and inventory management. Operating on the global 840–960MHz frequency band and compliant with the ISO/IEC 18000-6C (RAIN) protocol, it offers enhanced sensitivity and memory for reliable integration with standard UHF RFID reader systems.

Features

Features the H9 UHF RFID chip with improved 21dBm sensitivity for extended read range.
Compact adhesive label form factor measuring 30 x 16mm for low-profile asset tagging.
Compliant with the global ISO/IEC 18000-6C (RAIN) standard for interoperability.
Offers 688-bit user memory and adjustable 96–496-bit EPC memory for flexible data storage.
Supports high-speed data transfer rates up to 1,280kbps and enhanced anti-collision for dense tag environments.

Out of stock

Get Notified When Available

Description

The H9 UHF RFID Tag utilizes a passive backscatter communication principle, activated by the RF energy from a compatible reader within the 840–960MHz UHF band. Its H9 chip architecture provides a significant sensitivity improvement over previous generations, enabling more reliable reads at greater distances or in challenging RF environments. The tag’s integrated circuit manages memory access, anti-collision protocols, and secure password functions.

Constructed as a thin, flexible adhesive label, this tag is designed for easy application onto a wide variety of surfaces, including product packaging, documents, and non-metallic assets. Its dynamic power adjustment and support for the ISO 18000-6C protocol ensure reliable performance alongside other RAIN RFID tags in inventory management, logistics tracking, and access control systems.

Key Features

H9 Chip Performance: Delivers 21dBm receive sensitivity for robust read performance and extended operational range.
Global Frequency Compliance: Operates across the 840–960MHz UHF spectrum, suitable for use in all major regulatory regions (FCC, ETSI, etc.).
Expanded Memory Configuration: Provides 688 bits of user-accessible memory, adjustable EPC memory, and dedicated TID & password memory for complex data logging.
High-Speed Data Link: Supports data transfer rates up to 1,280kbps, enabling rapid inventory scans and efficient system throughput.
Enhanced Anti-Collision Algorithm: Built-in protocol support for reliably reading multiple tags simultaneously in dense deployment scenarios.
Practical Adhesive Design: Thin, flexible label with adhesive backing allows for quick, permanent application without tools or hardware.

Applications

Retail Inventory & Logistics: High-speed scanning of items on shelves, in cartons, or on conveyor belts for stock-taking and supply chain visibility.
Asset Tracking & Management: Tagging of IT equipment, tools, library books, or medical devices for lifecycle tracking and loss prevention.
Document & File Tracking: Securely attaching tags to important files, folders, or archival boxes for automated location and retrieval systems.
Event & Attendance Management: Use in badges or wristbands for contactless access control and attendee flow monitoring at conferences or venues.

Technical Specifications

Chip Model	H9
Form Factor	Adhesive Label
Dimensions (L x W)	30 mm x 16 mm
Operating Frequency	840–960 MHz
Protocol Standard	ISO/IEC 18000-6C (RAIN UHF)
Sensitivity	21 dBm
Max Data Transfer Rate	Up to 1,280 kbps
EPC Memory	96–496 bit (adjustable)
User Memory	688 bit
TID Memory	48 bit
Reserved Memory	64 bit (Access/Kill Passwords)
Anti-Collision	Supported
Power Adjustment	Dynamic
Backing	Adhesive

Frequently Asked Questions

What is the read range of this H9 RFID tag?

The read range is not a fixed specification for passive UHF tags like this one, as it depends heavily on the reader's output power, antenna gain, and the local RF environment. The tag's 21dBm sensitivity indicates good performance, and typical ranges can vary from 1 to 5+ meters with a commercial UHF RFID reader system. For maximum range, ensure proper reader alignment and minimal RF interference.

Can I write data to this tag's memory, and how much can I store?

Yes, this is a read/write tag. It features 688 bits of user-accessible memory for custom data storage. Additionally, the Electronic Product Code (EPC) memory is adjustable from 96 to 496 bits for standard identification codes. The tag also has a fixed 48-bit Tag Identifier (TID) and 64-bit reserved memory for access and kill passwords, providing a comprehensive memory map for various application needs.

Is this tag compatible with my existing UHF RFID reader?

This tag is compliant with the global ISO/IEC 18000-6C standard, also known as RAIN RFID, which is the most common protocol for UHF systems. It should be fully compatible with any commercial UHF reader that supports the EPCglobal UHF Class 1 Gen 2 (EPC C1G2) or ISO 18000-6C protocol. Ensure your reader operates within the 840–960MHz frequency band.

What surfaces can I attach this adhesive tag to?

The adhesive backing is designed for permanent attachment to clean, dry, and non-metallic surfaces such as cardboard, plastic, paper, wood, and glass. For optimal RF performance and adhesion, avoid applying the tag to curved surfaces, oily/dirty areas, or directly onto metal, as metal can detune the antenna and severely reduce read range. For metal assets, consider a tag specifically designed with a spacer or ferrite layer.
