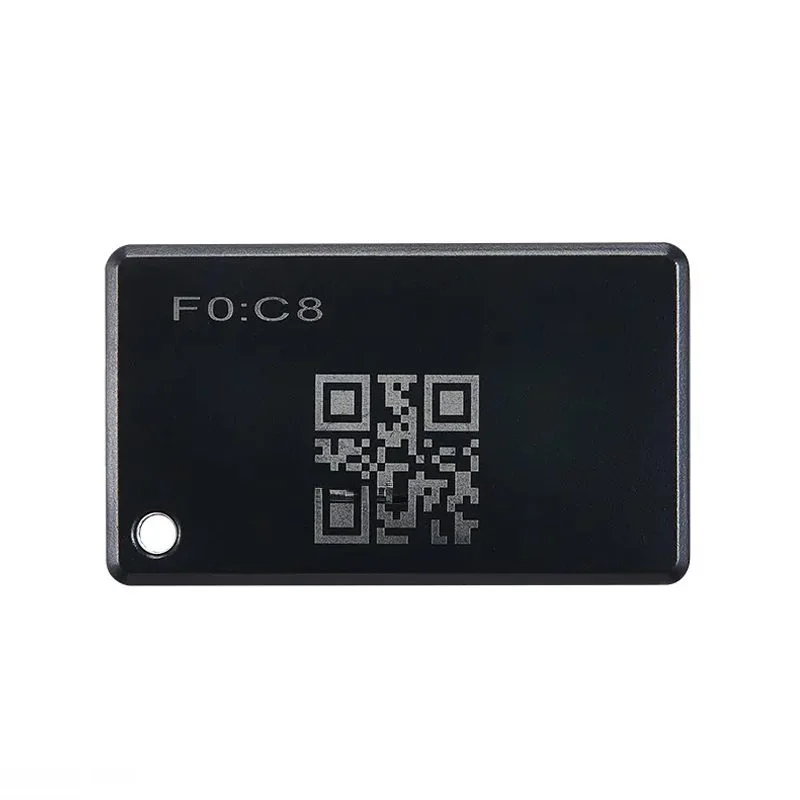

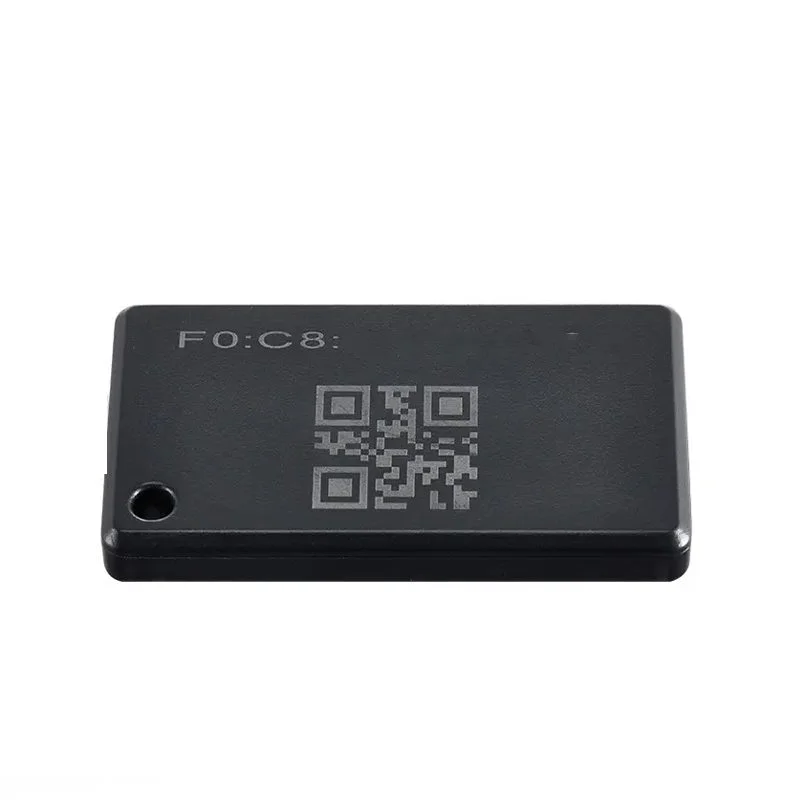

HoneyComm HCBB07 IoT Beacon Standard iBeacon

Name: HoneyComm HCBB07 IoT Beacon Standard iBeacon
Brand: HoneyComm
SKU: IOWC-0104
Price: 1099.00 INR
Availability: OutOfStock

₹1,099.00 (Inclusive of all taxes)

Out of Stock

The HoneyComm HCBB07 is a BLE 4.2 iBeacon tag designed for asset tracking and proximity marketing, featuring configurable broadcast parameters via mobile app and a compact, IP65-rated housing.

Features

BLE 4.2 iBeacon with configurable UUID, Major, and Minor values via mobile app for flexible deployment.
Extended 80-meter broadcast range enables reliable asset tracking and indoor positioning in large areas.
Ultra-low power design with replaceable CR2032 battery supports up to 5 years of operation.
Robust IP65 waterproof rating and wide -40°C to 85°C operating temperature for harsh environments.
Easy installation with included 3M double-sided adhesive or screw mounts for versatile placement.

Out of stock

Get Notified When Available

Description

The HoneyComm HCBB07 is a professional-grade Bluetooth Low Energy (BLE) beacon built on the BLE 4.2 protocol stack. It operates as a standard iBeacon, broadcasting a unique identifier for precise proximity detection and location-based services. The device is engineered for ultra-low power consumption, leveraging optimized broadcast intervals and transmit power settings to maximize the lifespan of its user-replaceable battery.

Housed in a compact, IP65-rated enclosure, the HCBB07 is designed for resilience in industrial and commercial environments, withstanding temperatures from -40°C to 85°C. Its installation flexibility, via adhesive or screws, allows for seamless integration into asset tracking systems, retail proximity marketing platforms, and indoor navigation networks when paired with compatible Bluetooth gateways.

Key Features

Standard iBeacon compliant for seamless integration with major proximity and indoor positioning platforms.
Mobile app configuration allows for on-the-fly updates to UUID, Major, Minor, broadcast power, and interval.
Ultra-long battery life enabled by power-efficient BLE 4.2 radio and configurable broadcast parameters.
IP65 waterproof and dustproof enclosure ensures reliable operation in demanding indoor/outdoor conditions.
Dual mounting options provide installation versatility for assets, walls, or equipment.
Compact and lightweight form factor (44.5mm x 25mm) for discrete placement without obstructing workflows.

Applications

Asset Tracking & Management: Monitor the location and status of high-value equipment, tools, and inventory.
Proximity Marketing & Retail: Trigger personalized content, offers, or information on customer smartphones in stores.
Indoor Positioning Systems (IPS): Provide reference points for real-time location services (RTLS) in buildings.
Smart Building & Workforce Management: Use as Bluetooth badges for personnel presence detection and zone access logging.
IoT Sensor Networking: Serve as a low-power node in sensor networks when integrated with data-collecting gateways.

Technical Specifications

Wireless Protocol	Bluetooth Low Energy (BLE) 4.2, iBeacon
Frequency Range	2400MHz – 2483.5MHz
Broadcast Range	Up to 80 meters (dependent on environment and power)
Supply Voltage	3.0 VDC (CR2032 Battery)
Average Current Consumption	7.0 µA (typical)
Battery Life	Up to 5 years (with ER14250 batteries, configurable)
Operating Temperature	-40°C to 85°C
Ingress Protection	IP65 (Water and Dust Resistant)
Dimensions (L x W)	44.5 mm x 25 mm
Weight	8.0 g

Frequently Asked Questions

How do I configure the broadcast parameters of the HCBB07 iBeacon?

You configure the HCBB07 using the dedicated HoneyComm mobile app. After powering on the beacon, connect to it via Bluetooth through the app. Within the app interface, you can set the iBeacon UUID, Major and Minor values, adjust the broadcast transmit power (e.g., 0dBm), and modify the advertising interval. These settings allow you to customize the beacon's signal strength, battery life, and unique identifier for your specific asset tracking or location-based application.

What is the expected battery life and what factors affect it?

The HCBB07 can achieve up to 5 years of battery life using two ER14250 cells, or several years with a standard CR2032, depending on configuration. The primary factors affecting battery life are the broadcast transmit power setting and the advertising interval. A lower transmit power (e.g., -20dBm) and a longer broadcast interval (e.g., 10 seconds) significantly reduce average current draw, extending operational life. For maximum longevity, configure the lowest necessary power and longest acceptable interval for your use case via the mobile app.

How do I install the HCBB07 beacon and what are the mounting options?

The HCBB07 offers two primary mounting methods for flexible installation. The package includes a strong 3M double-sided adhesive pad on the back of the device for permanent, clean attachment to flat, dry surfaces like walls, equipment, or assets. Alternatively, the beacon housing has integrated screw mounting holes, allowing for a more secure mechanical fastening using your own screws. Ensure the mounting surface is clean and the chosen method suits the environment, whether for indoor retail displays or industrial asset tracking.
