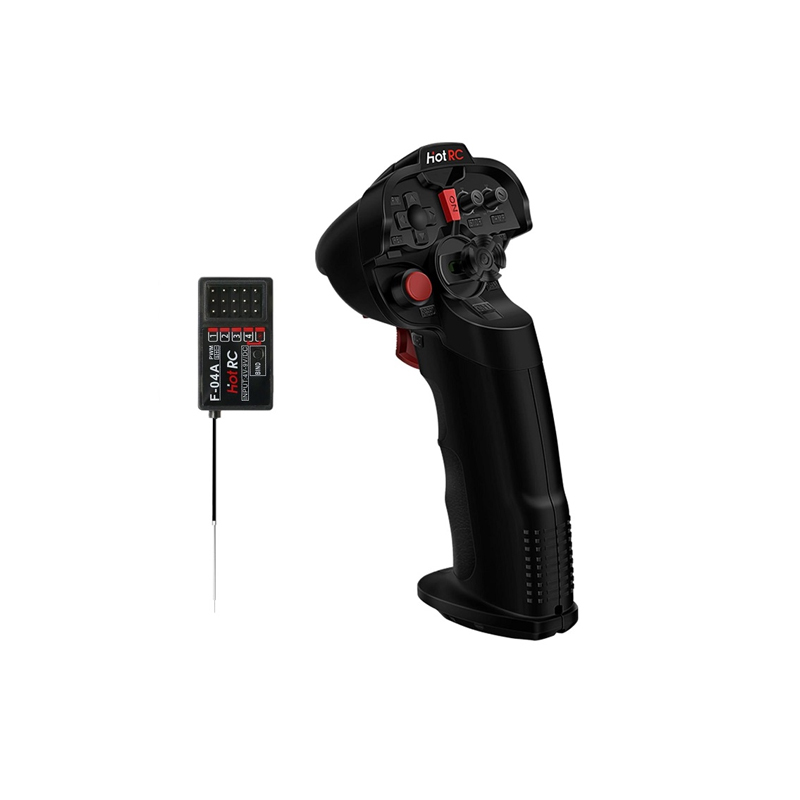

HOTRC DS-4A Transmitter + F-04A Receiver (PWM) - 4-Channel 2.4GHz

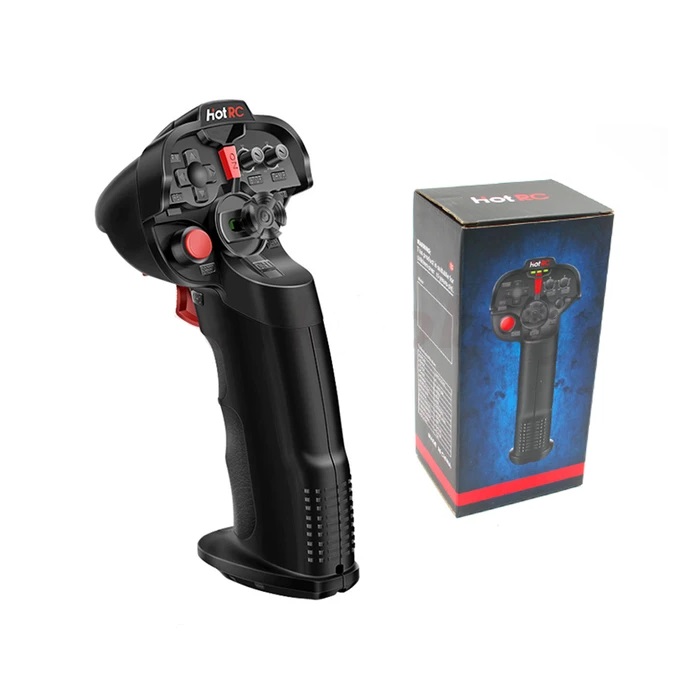

HOTRC DS-4A Transmitter + F-04A Receiver (PWM) - 4-Channel 2.4GHz - Image 2
SKU: DRFC-3343
📋 GST Invoice Available

HOTRC DS-4A Transmitter + F-04A Receiver (PWM) - 4-Channel 2.4GHz

₹2,259.00 (Inclusive of all taxes)
Out of Stock

The HOTRC DS-4A Transmitter and F-04A Receiver (PWM) form a 4-channel 2.4GHz FHSS radio control system, providing reliable wireless communication for RC vehicles, robotics, and automation projects requiring precise PWM servo and motor control.

Features

  • 4-channel 2.4GHz FHSS radio system for stable, interference-resistant control.
  • Transmitter operates on 4-9V DC with an ergonomic design for user comfort.
  • Receiver delivers precise PWM output with high sensitivity (-97dBm) for servo and actuator control.
  • Ground range of approximately 300 meters for reliable operation at distance.
  • Robust construction suitable for demanding applications in RC and automation.

Out of stock

Description

The HOTRC DS-4A Transmitter and F-04A Receiver system is engineered for dependable wireless control in a variety of applications. Utilizing 2.4GHz Frequency-Hopping Spread Spectrum (FHSS) modulation, the system provides stable communication with resistance to interference, making it suitable for environments with multiple radio signals.

The DS-4A transmitter features an intuitive layout and adjustable settings, allowing users to fine-tune control parameters. Its companion, the F-04A receiver, is built for durability and precise signal decoding, outputting clean PWM signals essential for controlling servos, brushed motors, and other actuators in RC models and automated systems.

Key Features

  • 2.4GHz FHSS (Frequency-Hopping Spread Spectrum) for stable, interference-free operation.
  • 4 independent control channels for managing multiple functions simultaneously.
  • High-sensitivity F-04A receiver (-97dBm) ensures reliable signal reception in varied conditions.
  • Transmitter ergonomics designed for comfortable, extended operation periods.
  • Wide operating voltage range (4-9V DC) for flexible power source compatibility.
  • Durable receiver construction built to withstand vibrations and harsh operational environments.
  • Precise PWM output signals for accurate control of servos and speed controllers.

Applications

  • 4-channel control for RC cars, trucks, and tracked vehicles.
  • Basic robotics projects requiring multi-function wireless command.
  • Industrial automation for simple remote actuator or valve control.
  • DIY drone projects utilizing PWM-based flight controllers or gimbal control.
  • Educational and hobbyist platforms for learning wireless control systems.

Technical Specifications

Item TypeTransmitter, Receiver
Channels4
Frequency2.4 GHz
Modulation/Spread SpectrumGFSK, FHSS
RF Power~70 mA
Operating Voltage (Transmitter/Receiver)4V - 9V DC
Receiver Sensitivity-97 dBm
RF Ground Range (Approx.)300 m
Output SignalPWM

Frequently Asked Questions

What is the operating voltage range for the HOTRC DS-4A transmitter and F-04A receiver?

Both the DS-4A transmitter and the F-04A receiver operate on a wide voltage range of 4 to 9 volts DC. This allows for flexible power source options, including standard AA battery packs or 2S LiPo batteries with appropriate voltage regulation.

What type of output signal does the F-04A receiver provide?

The F-04A receiver provides standard Pulse Width Modulation (PWM) output signals on its four channels. This signal type is directly compatible with most servos, brushed electronic speed controllers (ESCs), and other actuators commonly used in RC models and automation.

What is the effective control range of this HOTRC radio system?

The system offers an approximate ground-level control range of 300 meters (about 1000 feet) under ideal conditions. Actual range can be affected by environmental factors such as obstacles, interference from other 2.4GHz devices, and antenna orientation.

Is this system compatible with drone flight controllers?

The F-04A receiver outputs standard PWM signals, which are compatible with flight controllers that have PWM input ports, such as some older or simpler flight control boards. For modern Betaflight or ArduPilot setups, a PWM-to-SBUS or PWM-to-PPM encoder/converter may be required for direct integration.

Package Includes

  • 1 x HOTRC DS-4A Transmitter
  • 1 x HOTRC F-04A Receiver (PWM)

Additional Information

Weight 0.228 kg
Dimensions 10 × 21 × 9 cm
