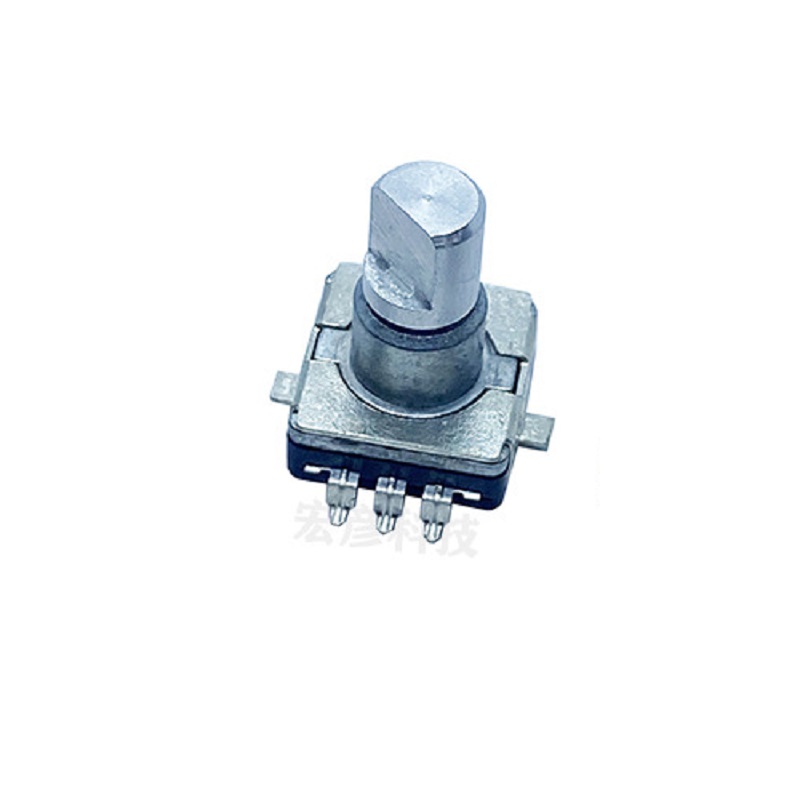

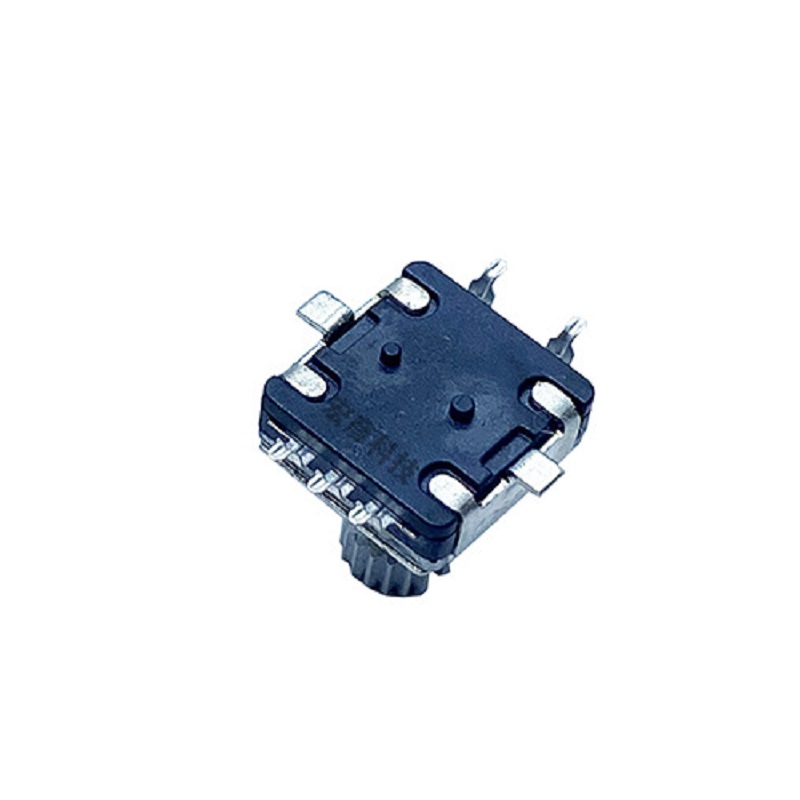

Hongyan Technology EC11B5AI Semicircle Rotary Encoder 14.5mm
The Hongyan Technology EC11B5AI is a compact, incremental rotary encoder with a 14.5mm total height, designed for direct PCB mounting. It provides reliable contact-based position and rotation detection for user interface controls in audio equipment, instrumentation, and various electronic systems.
Features
- Incremental rotary encoder with contact readout mechanism for precise rotation detection.
- Compact semicircle design with a total height of 14.5mm for space-constrained PCB applications.
- Model EC11B-5AI, a standard component for user interface controls and parameter adjustment.
- Ideal for integration into audio mixers, electronic instruments, and control panels.
Out of stock
The Hongyan Technology EC11B5AI is an incremental rotary encoder utilizing a mechanical contact-based readout system. It translates shaft rotation into a series of digital pulses, enabling precise detection of direction and relative position. This design is fundamental for creating intuitive user interfaces for adjustment knobs and selector switches.
Built with a compact, semicircular form factor, it is engineered for direct PCB mounting where vertical space is limited. The encoder’s robust construction ensures reliable performance in applications requiring frequent manual input, from consumer audio devices to industrial control panels.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 2.8 × 0.5 × 0.3 cm |
