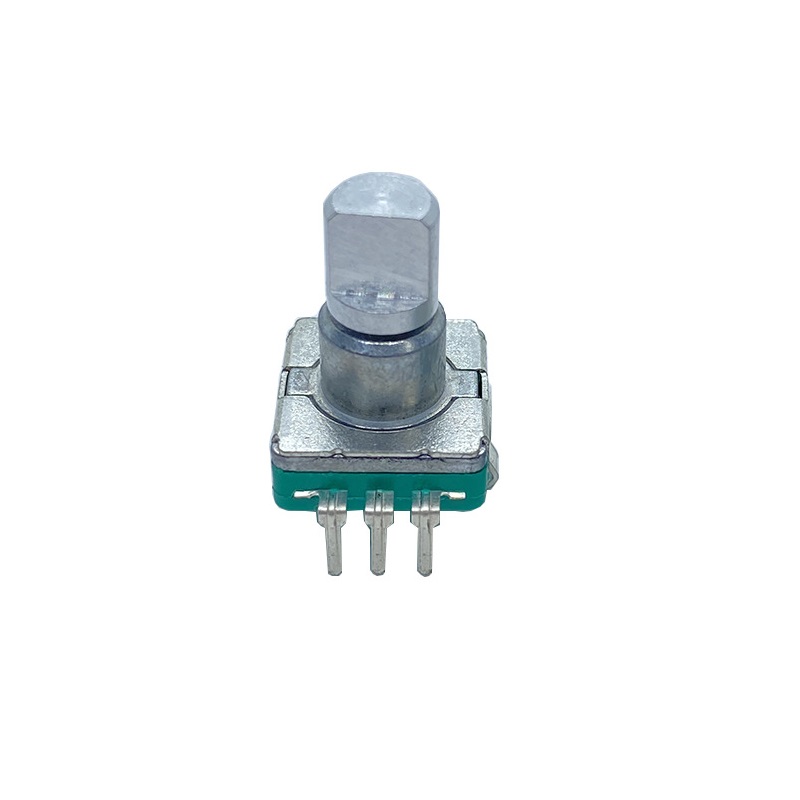

Hongyan Technology EC11A 5AA20P1ZD12F5 5-Pin Vertical Rotary Encoder 360°
The Hongyan Technology EC11A 5AA20P1ZD12F5 is a 5-pin vertical plug-in incremental rotary encoder offering 360° continuous rotation with tactile detents. It provides precise quadrature output signals for motion control, menu navigation, and parameter adjustment in audio equipment, instrumentation, and industrial control panels.
Features
- 5-pin vertical PCB mount design for secure, space-efficient integration.
- Incremental encoder with 360° continuous rotation and tactile feedback.
- Generates quadrature (A/B) and push-button switch signals for comprehensive control.
- Compact and durable construction suitable for professional and DIY electronics.
- RoHS compliant, meeting international environmental and safety standards.
Out of stock
The Hongyan Technology EC11A series encoder is an electromechanical component that converts angular position into a series of digital pulses. This incremental model, identified by part number 5AA20P1ZD12F5, features a vertical shaft and a 5-pin configuration for direct PCB mounting. Its internal mechanism provides distinct tactile detents during rotation, offering user feedback while generating precise quadrature output signals.
Designed for reliability, the encoder’s construction ensures stable performance across a range of environmental conditions. The integrated push-button switch adds a secondary control function, making it a versatile input device for human-machine interfaces (HMIs), microcontroller projects (Arduino, Raspberry Pi, ESP32), and commercial electronic equipment requiring durable, repeatable rotary input.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 5 × 5 × 3 cm |
