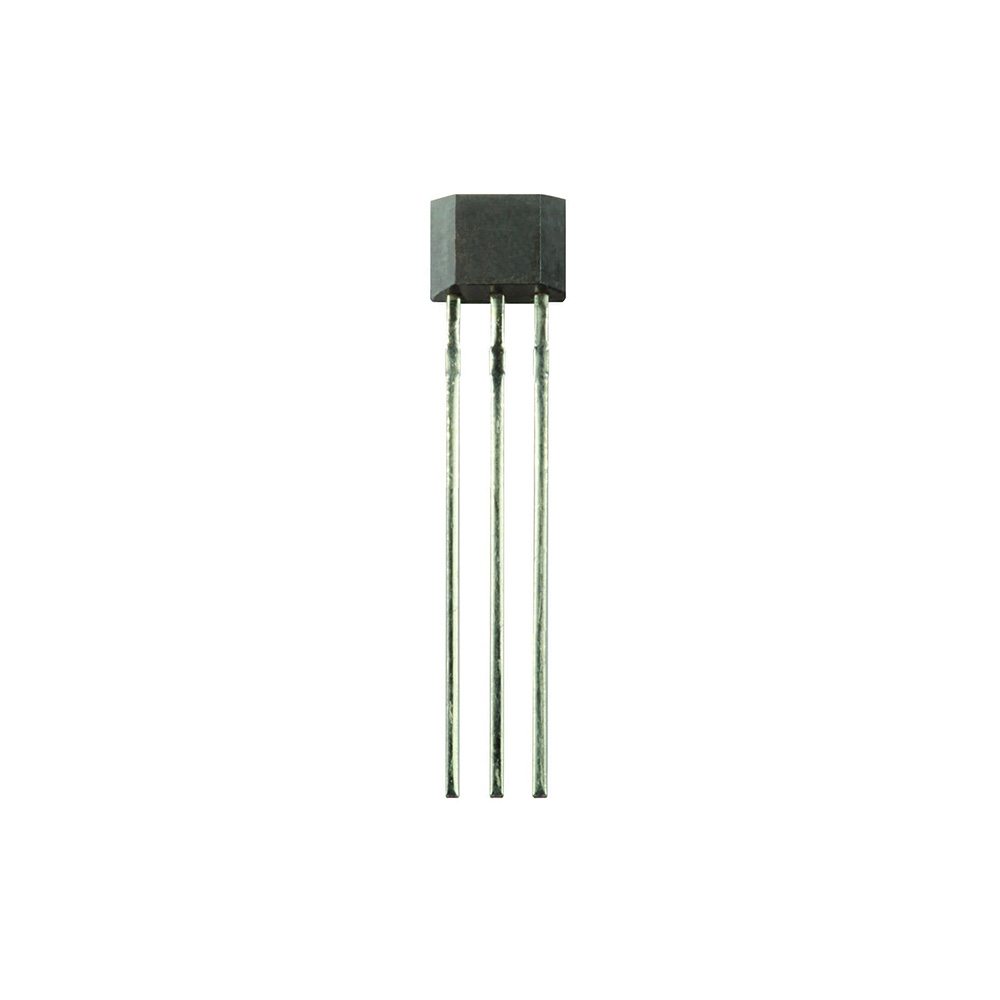

Honeywell SS460S TO-92 Bipolar Latch Hall Effect Sensor - South Pole Activated, 3-24V
The Honeywell SS460S is a high-sensitivity, bipolar latching Hall effect sensor in a TO-92 package, designed for precise magnetic position detection. It operates from 3V to 24V DC, making it compatible with a wide range of industrial controls, motor commutation circuits, and embedded systems like Arduino or PLCs.
Features
- High magnetic sensitivity with 30 G typical, 55 G maximum operating point
- Bipolar latching design activated specifically by a South magnetic pole
- Wide operating voltage range from 3 Vdc to 24 Vdc for versatile system integration
- No chopper stabilization ensures clean, stable digital output signals
- Robust operating temperature range from -40°C to +150°C
Out of stock
The Honeywell SS460S utilizes a Hall-effect integrated circuit to provide a digital output that latches in the presence of a specific magnetic field polarity. Its bipolar latching functionality ensures a reliable switch state is maintained until an opposite pole is presented, making it ideal for precise rotational speed and position sensing.
Engineered without chopper stabilization, the sensor delivers a clean, jitter-free output signal, critical for noise-sensitive applications. The device features built-in reverse voltage protection and is housed in a durable, RoHS-compliant TO-92 package suitable for through-hole mounting on PCBs in demanding industrial, automotive, and medical environments.
Additional Information
| Weight | 0.11 kg |
|---|---|
| Dimensions | 6 × 8 × 3 cm |
