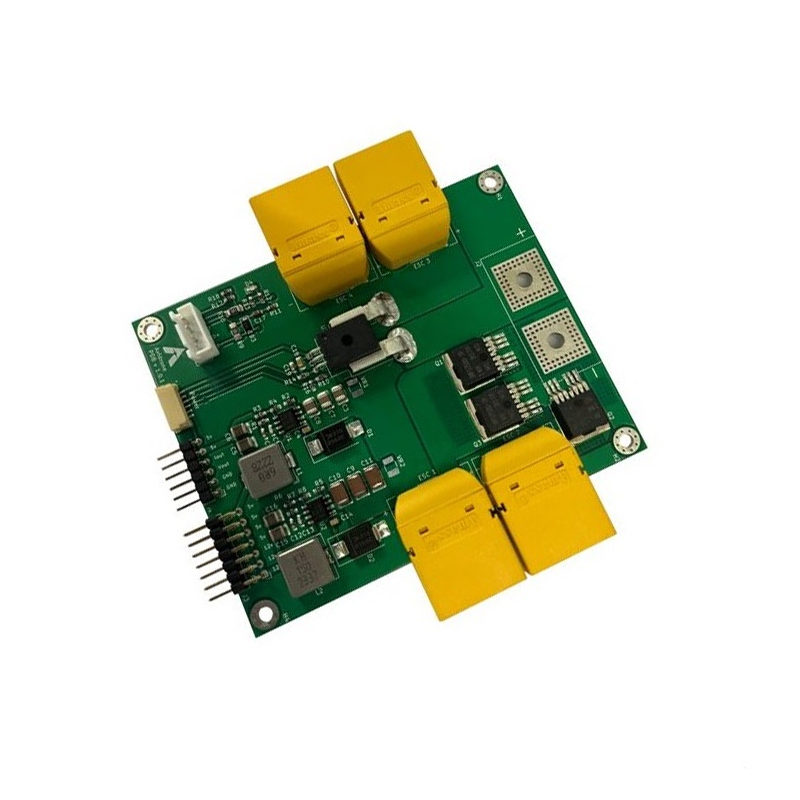

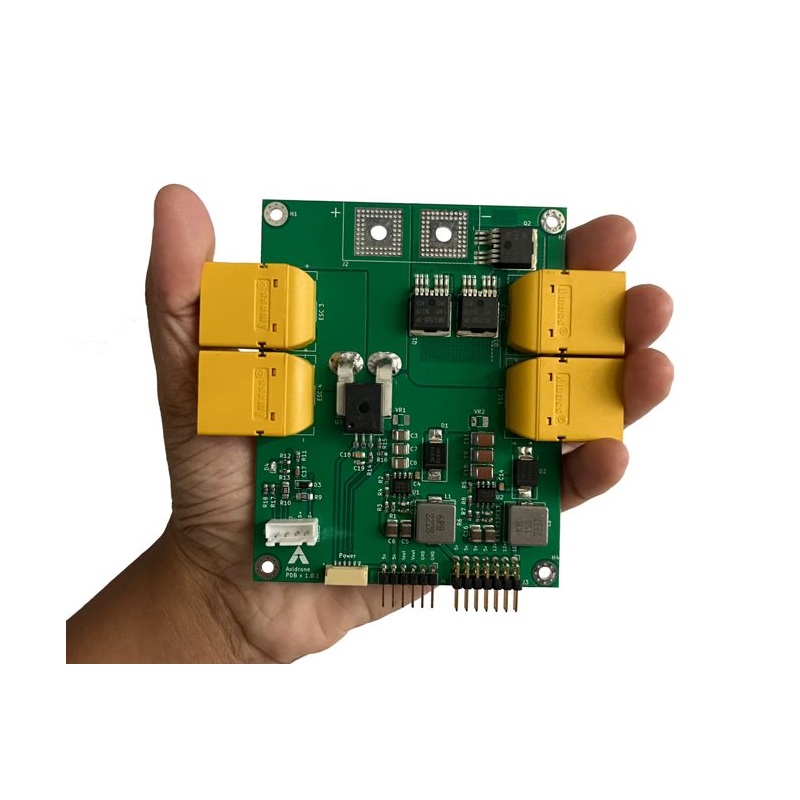

Axldrone Power Distribution Board 200A
The Axldrone Power Distribution Board 200A is a high-current PDB designed for heavy-lift and industrial UAVs, supporting input voltages up to 60V (14S LiPo). It integrates regulated 12V and 5V BEC outputs and a 200A current sensor for precise power monitoring compatible with flight controllers like Pixhawk and ArduPilot.
Features
- High-Current 200A Power Distribution with four XT90 connectors rated for 50A each.
- Wide Input Voltage Range from 15V to 60V, supporting up to 14S LiPo battery configurations.
- Integrated 200A Current Sensor and voltage monitoring with analog outputs for flight controllers.
- Dual DC-DC BEC Outputs providing stable 12V/5A and 5V/5A for onboard electronics.
- MOSFET-based Anti-Spark Soft Switching for safe connection of high-voltage inductive loads.
Out of stock
The Axldrone 200A PDB is engineered for demanding multirotor and robotic applications requiring robust power management. Its core function is to distribute high-current battery power to multiple ESCs via four XT90 connectors while providing clean, regulated low-voltage rails for flight controllers, telemetry radios, and payloads.
The board incorporates a high-precision current sensor (ACS770) capable of measuring up to 200A, with analog outputs for direct integration with flight controller ADC pins. The onboard DC-DC converters are designed for high efficiency across the full 15-60V input range, ensuring stable 12V and 5V outputs even under fluctuating battery voltage during aggressive flight maneuvers.
Additional Information
| Weight | 0.105 kg |
|---|---|
| Dimensions | 10.5 × 10.5 cm |
