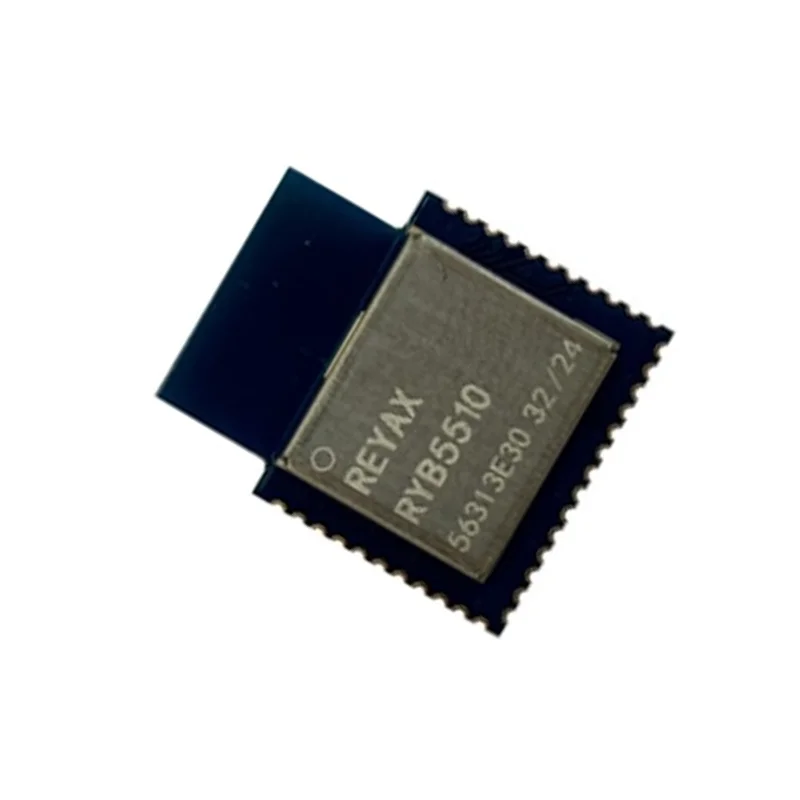

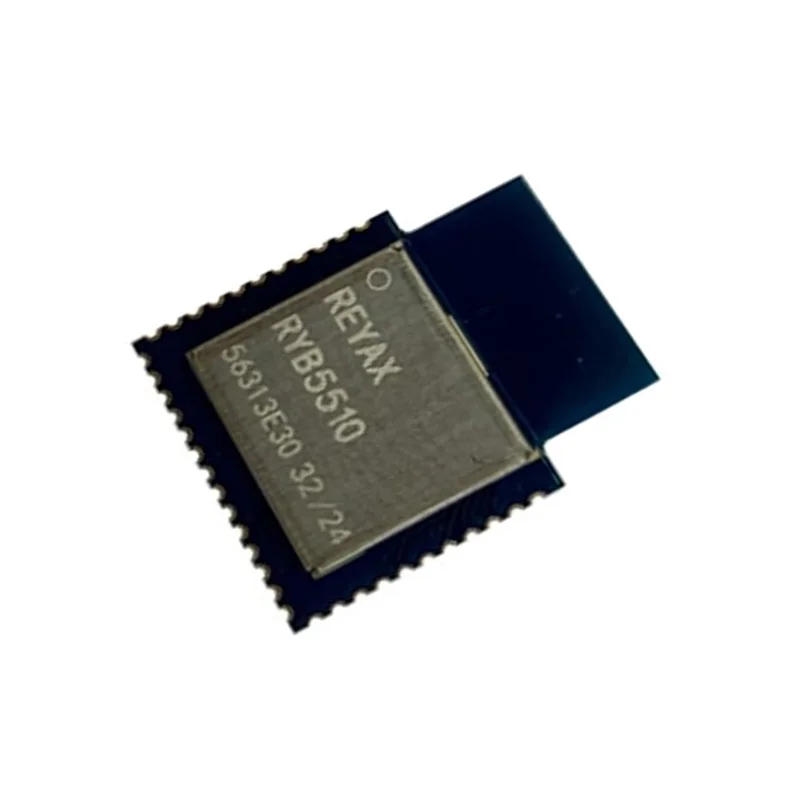

Reyax RYB5510 2.4GHz Bluetooth 5.4 Thread, Matter, Zigbee Module w/ Antenna
The Reyax RYB5510 is a multi-protocol wireless module integrating an ARM Cortex-M33 CPU and supporting Bluetooth 5.4, Thread, Matter, and Zigbee over IEEE 802.15.4, designed for low-power IoT applications with an integrated PCB antenna.
Features
- Multi-Protocol SoC supports Bluetooth 5.4, Thread, Matter, and Zigbee on a single 2.4GHz IEEE 802.15.4 radio.
- Powered by an ARM Cortex-M33 CPU with 1MB Flash, running at 100 MHz with TrustZone security.

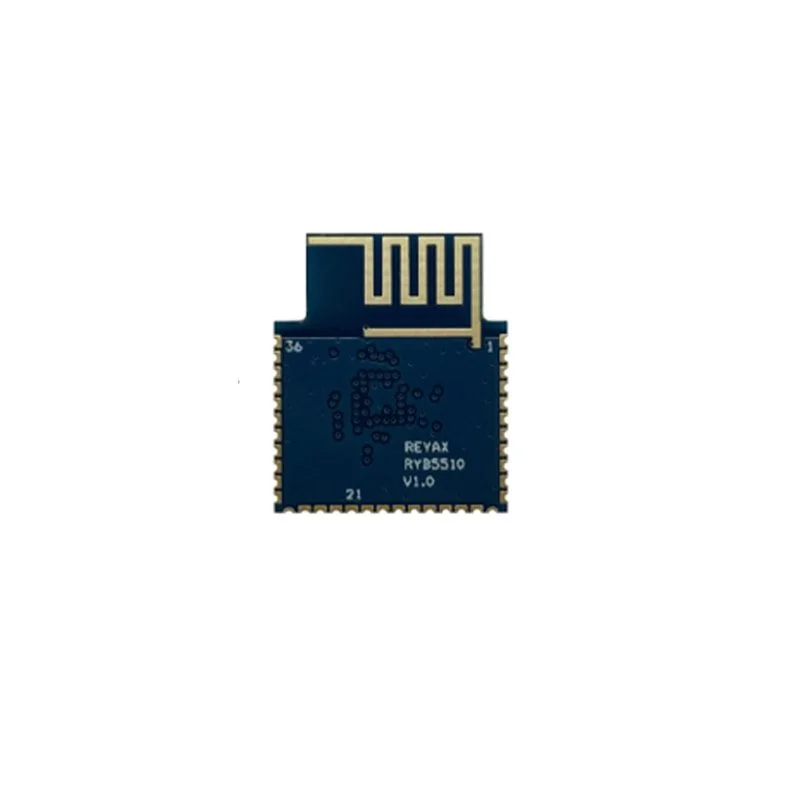

- Integrated PCB antenna and metal EMI shield ensure stable RF performance in compact designs.
- Wide 1.71V to 3.6V supply voltage range enables flexible, battery-powered IoT deployments.
- Certified for industrial environments with an operating temperature range of -40°C to +85°C.
Out of stock
The Reyax RYB5510 module is a comprehensive wireless connectivity solution built around the STM32WBA55UGI6 SoC. Its ARM Cortex-M33 core delivers 100 MHz of processing power alongside 1MB of Flash memory, providing ample resources for running concurrent protocol stacks like Bluetooth LE 5.4, Thread, Matter, and Zigbee. This integration simplifies development for heterogeneous smart home and industrial IoT networks.
Engineered for reliability, the module features a metal cover providing essential EMI shielding to maintain signal integrity in electrically noisy environments. The onboard PCB antenna eliminates the need for external RF components, reducing BOM cost and board space. With an RF output power of up to 10 dBm and a wide operating voltage, the RYB5510 is optimized for energy-efficient, long-lasting battery-operated sensor nodes and automation controllers.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 3 × 5 × 2 cm |
