Description

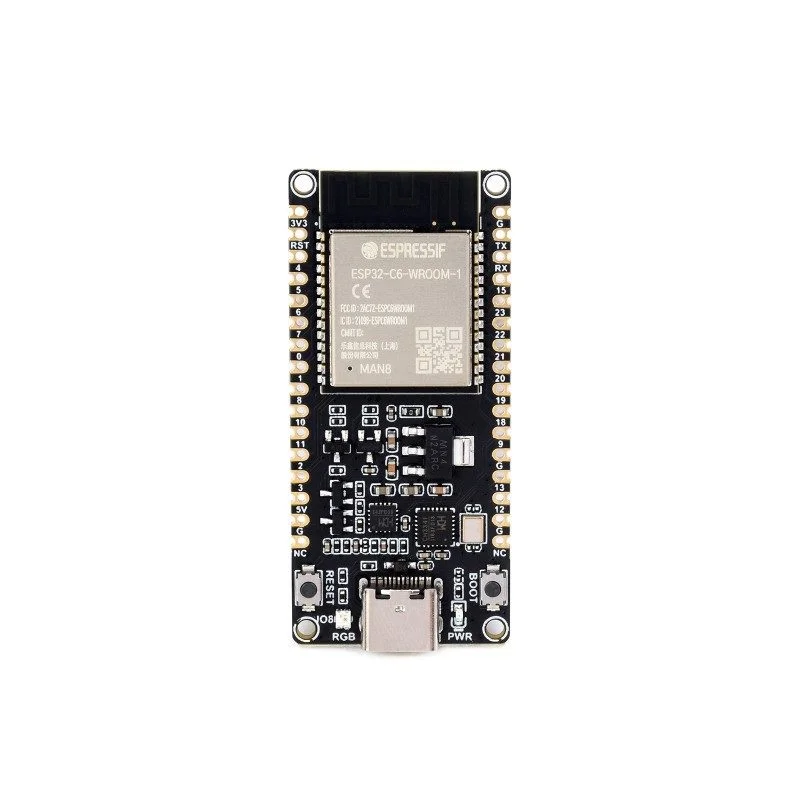

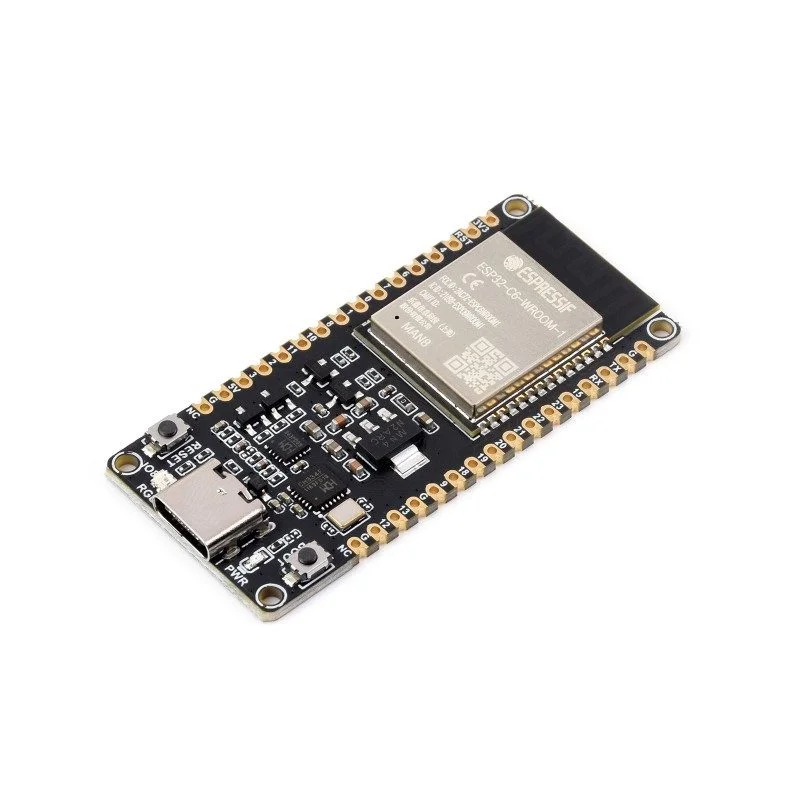

The Waveshare ESP32-C6 development board is a compact yet powerful platform built around Espressif’s latest ESP32-C6-WROOM-1-N16 wireless module. It combines a high-performance 160MHz RISC-V processor with robust multi-protocol RF capabilities, including WiFi 6 for efficient, high-throughput local networking, Bluetooth 5 for short-range device communication, and IEEE 802.15.4 radios for low-power mesh networks using Zigbee 3.0 and Thread standards.
Engineered for developer convenience, the board incorporates a dedicated USB hub circuit using CH343 and CH334 chips. This design allows a single USB-C connection to provide both a programming/debugging UART channel and a general-purpose USB host/device interface. The board exposes a comprehensive set of peripherals including SPI, I2C, UART, I2S, LED PWM, and SDIO, matching the pinout of the official Espressif devkit for maximum ecosystem compatibility. Its castellated module form factor provides the flexibility for both prototyping and direct integration into end-product PCB designs.
