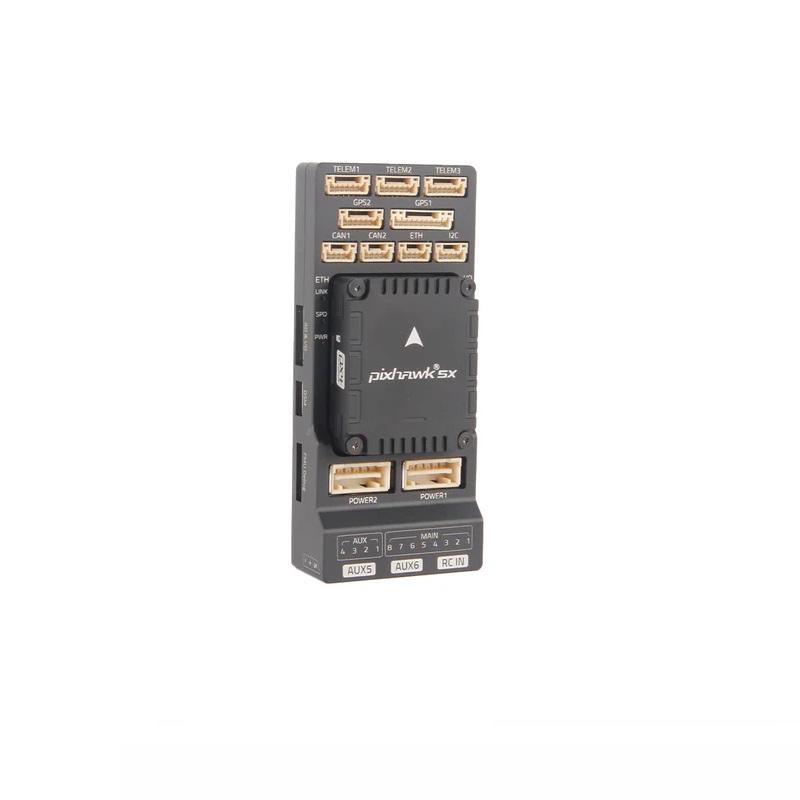

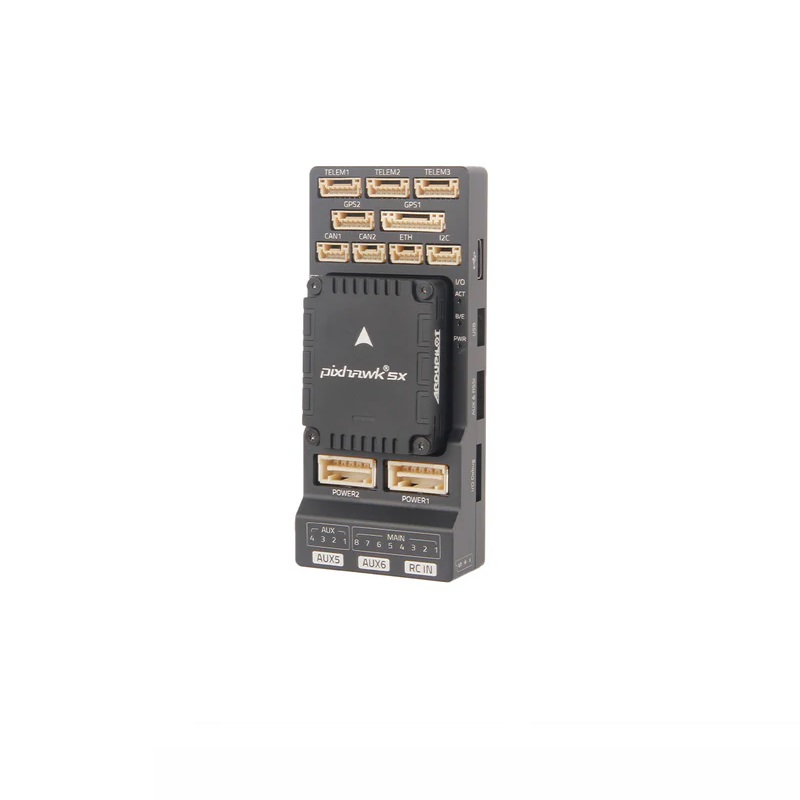

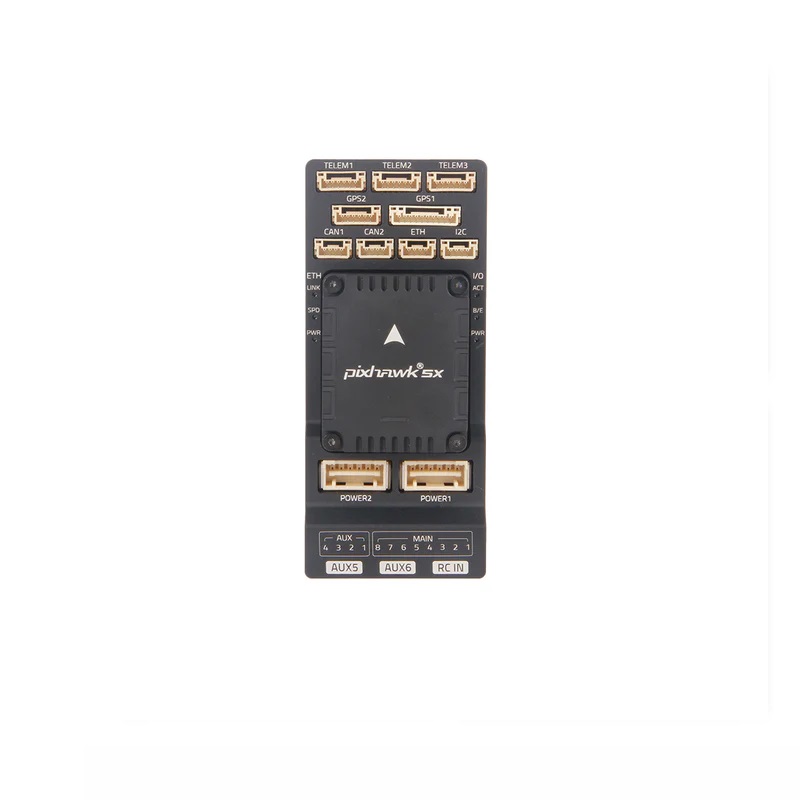

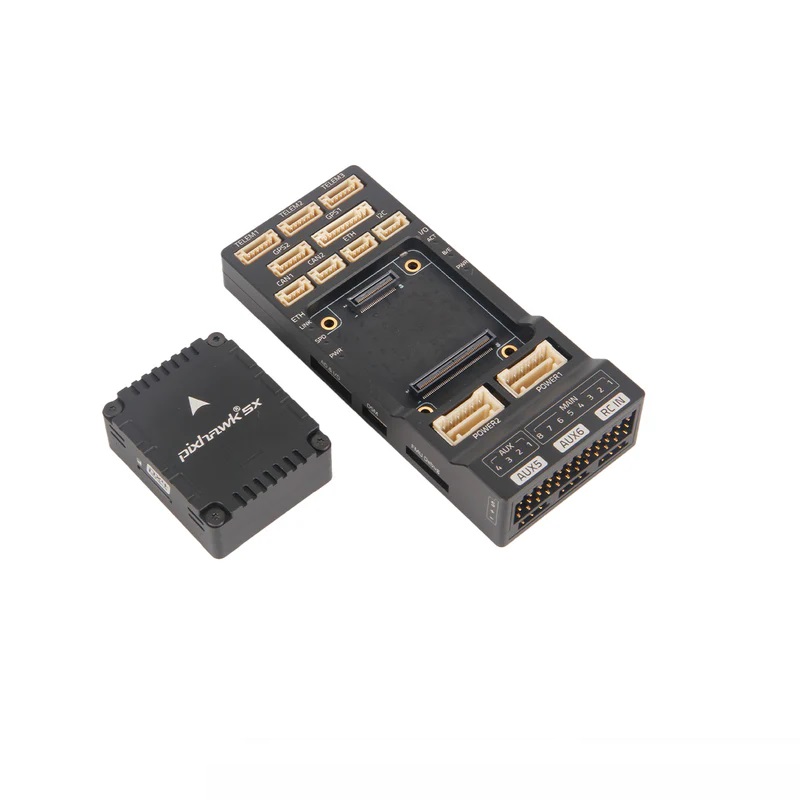

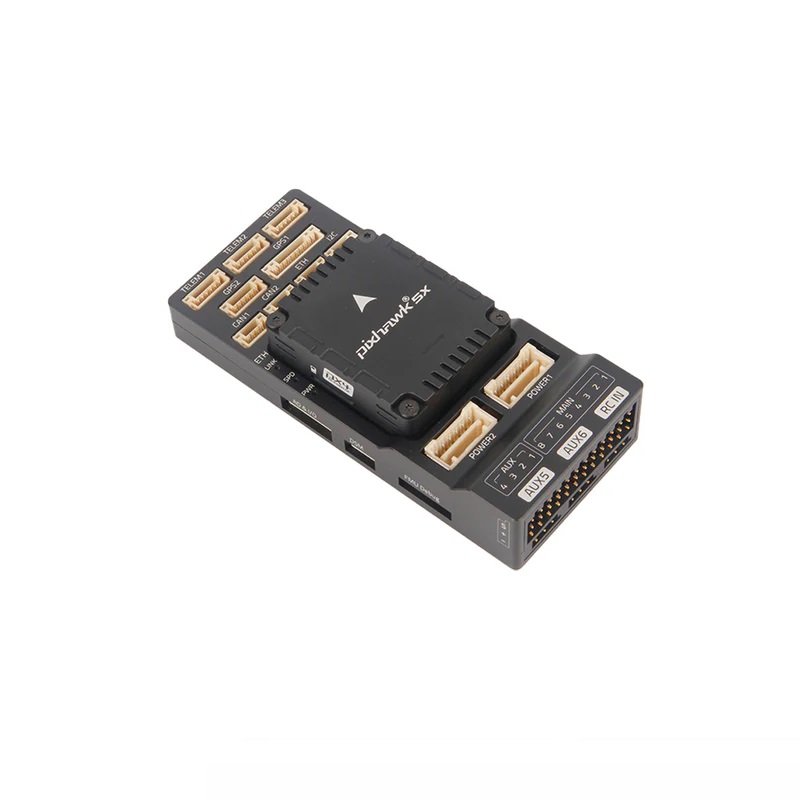

Holybro Pixhawk 5X Standard Set v2A+M10 GPS
The Holybro Pixhawk 5X Standard Set v2A+M10 GPS is a professional-grade flight controller system based on the Pixhawk FMUv5X open standard, featuring triple-redundant IMUs, dual barometers, and an STM32F7 processor. It is fully compatible with PX4 and ArduPilot firmware for advanced autonomous vehicle control in academic and commercial applications.
Features
- Triple-redundant, low-noise IMUs (ICM-20649, ICM-42688P, ICM-20602/BMI088) with advanced vibration isolation.
- Dual BMP388 barometers and independent power control for enhanced sensor reliability and failover.
- STM32F765 FMU processor with 2MB flash and 512KB RAM for complex algorithm execution.
- Integrated Ethernet PHY (LAN8742AI-CZ-TR) for high-speed mission computer communication.

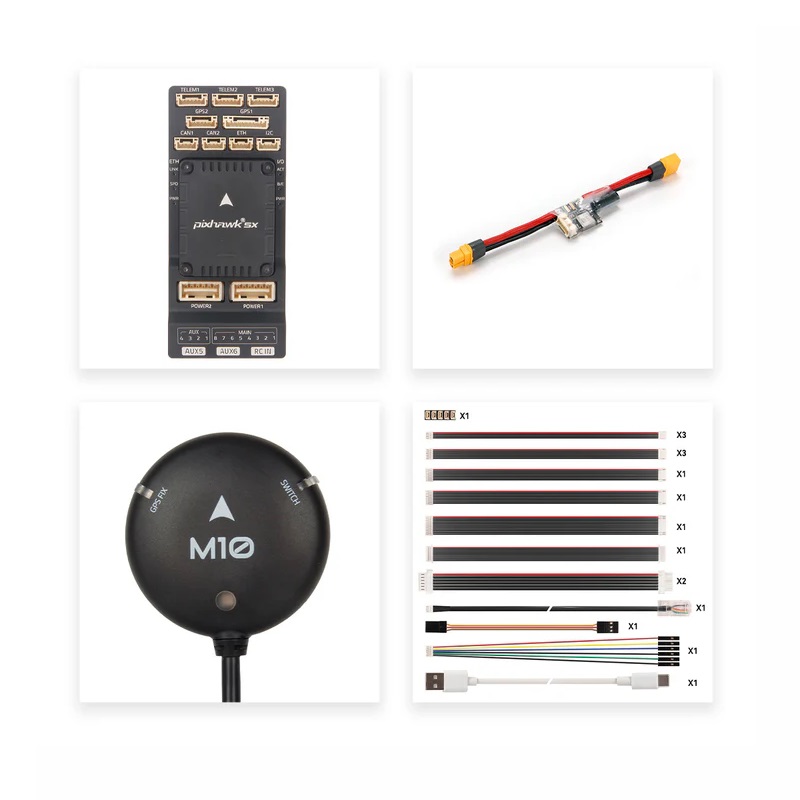

- Standard Set includes Pixhawk 5X module, v2A baseboard, PM02D HV Power Module, cable set, and M10 GPS module.
Out of stock
The Pixhawk 5X represents the latest evolution in the Pixhawk flight controller family, engineered for demanding autonomous vehicle applications. Its core is an STM32F7 microcontroller paired with Bosch and InvenSense sensor technology, delivering high computational power within a robust, temperature-controlled, and isolated sensor domain. This architecture ensures reliable operation in varied environmental conditions.
The system provides extensive connectivity options, including an SPI5 external sensor bus with dual chip select, two SMBus smart battery ports with INA226 support, and a dedicated Ethernet interface. The included Standard Baseboard v2A offers flexible power management with a servo rail input capable of handling 0-36V, making it suitable for a wide range of multirotor, fixed-wing, and robotic platforms.
Additional Information
| Weight | 0.285 kg |
|---|---|
| Dimensions | 10 × 16 × 9 cm |
