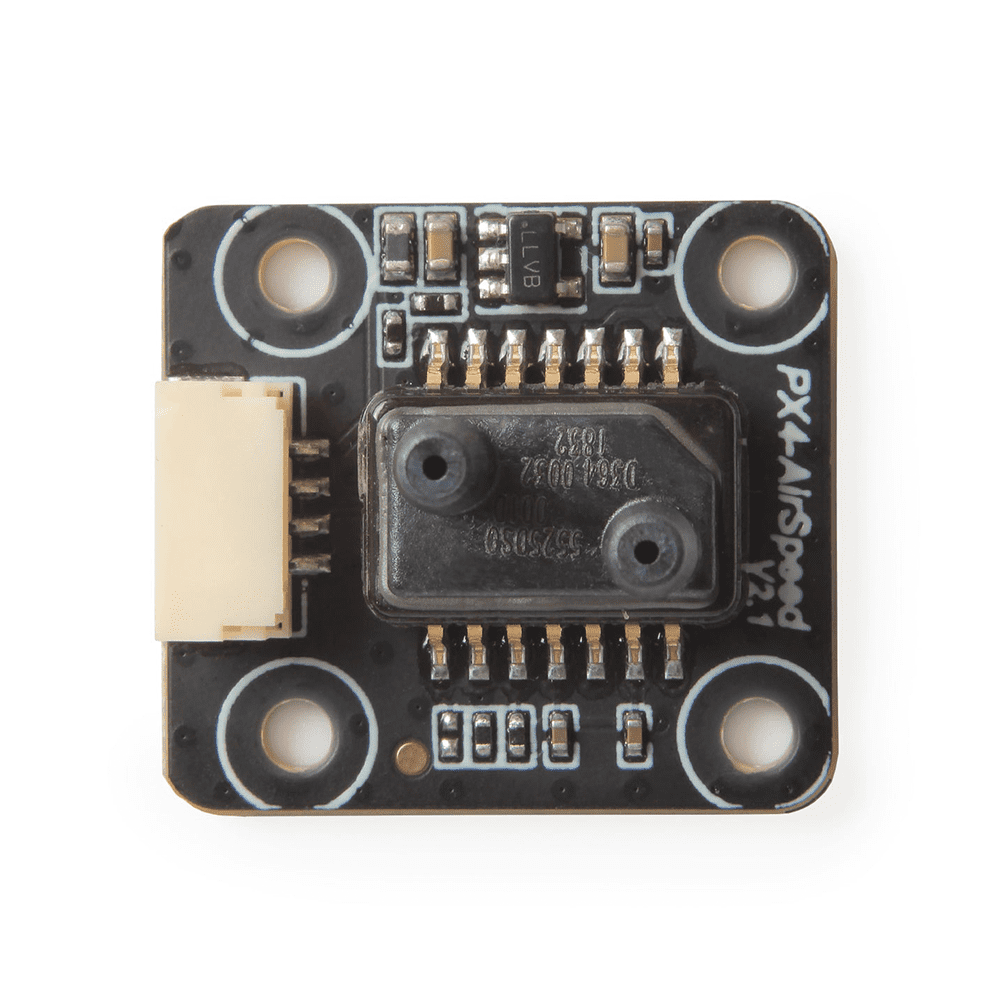

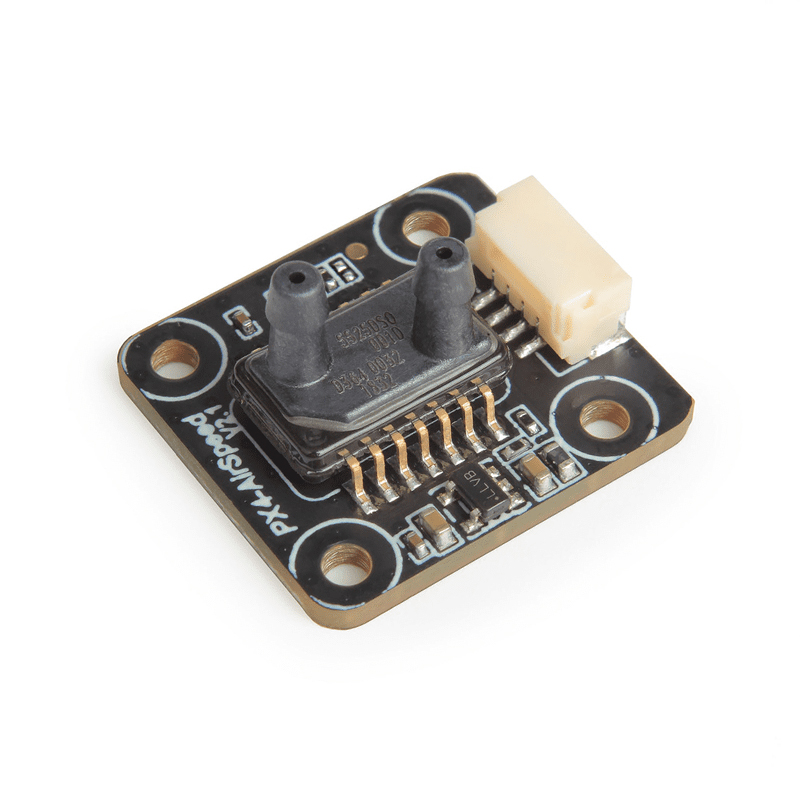

Holybro Digital Air Speed Sensor (MS5525DSO) with PT60 Pitot Tube
The Holybro Digital Airspeed Sensor (MS5525DSO) is a high-precision, low-noise sensor with a PT60 pitot tube, designed for integration with ArduPilot and PX4 autopilot systems to provide accurate airspeed data for fixed-wing and VTOL UAVs.
Features
- Integrated MS5525DSO digital pressure sensor with 24-bit ΔΣ ADC for high-resolution measurement.
- Ultra-low power consumption, drawing only 1 µA during operation and less than 0.15 µA in standby mode.
- Wide operating voltage range from 1.8V to 3.6V, compatible with standard 3.3V flight controller logic.
- Dual I2C and SPI digital interfaces for flexible integration with most autopilot microcontrollers.

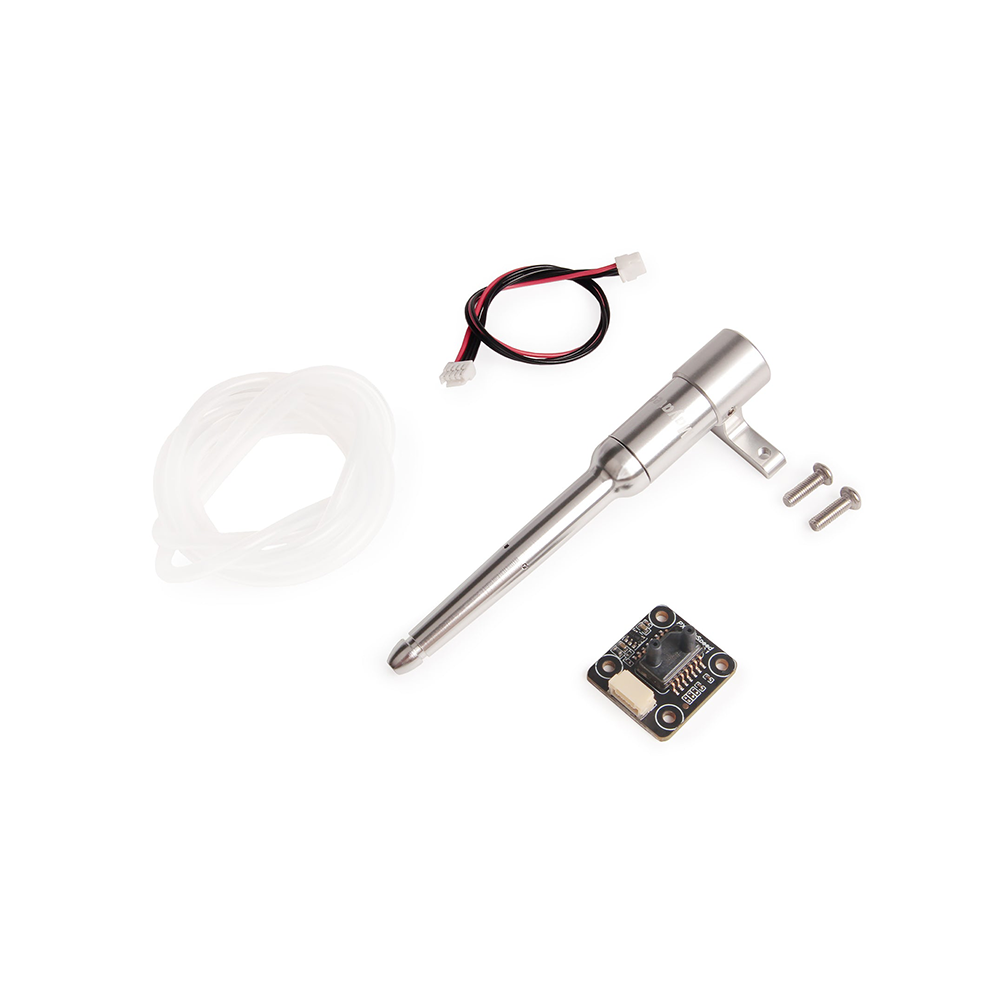

- Includes PT60 pitot tube and 100cm rubber tubing for accurate dynamic pressure sampling.
Out of stock
The Holybro Digital Airspeed Sensor utilizes the MS5525DSO, a next-generation digital pressure sensor designed for high-volume OEM applications. Its integrated 24-bit delta-sigma ADC and factory-calibrated coefficients deliver precise pressure and temperature readings with minimal offset and noise, eliminating the signal degradation common with analog sensors over long cable runs. This makes it ideal for reliable airspeed data in demanding UAV environments.
Engineered for low power and high performance, the sensor supports multiple operation modes, allowing users to optimize for conversion speed or current consumption, with conversion times as fast as 1 ms. Its barbed pressure ports ensure a secure connection to the supplied PT60 pitot tube, providing a complete solution for accurate airspeed measurement in fixed-wing and VTOL aircraft.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 17 × 15 × 3 cm |
