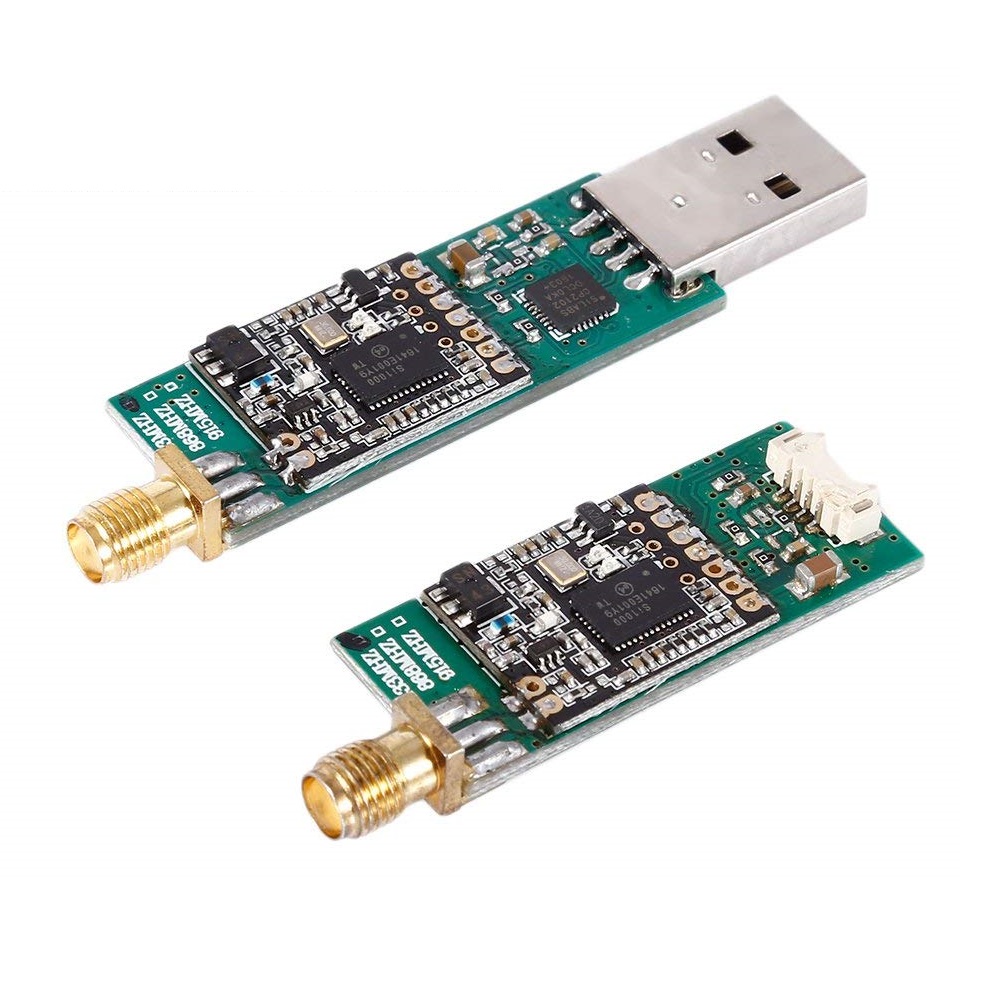

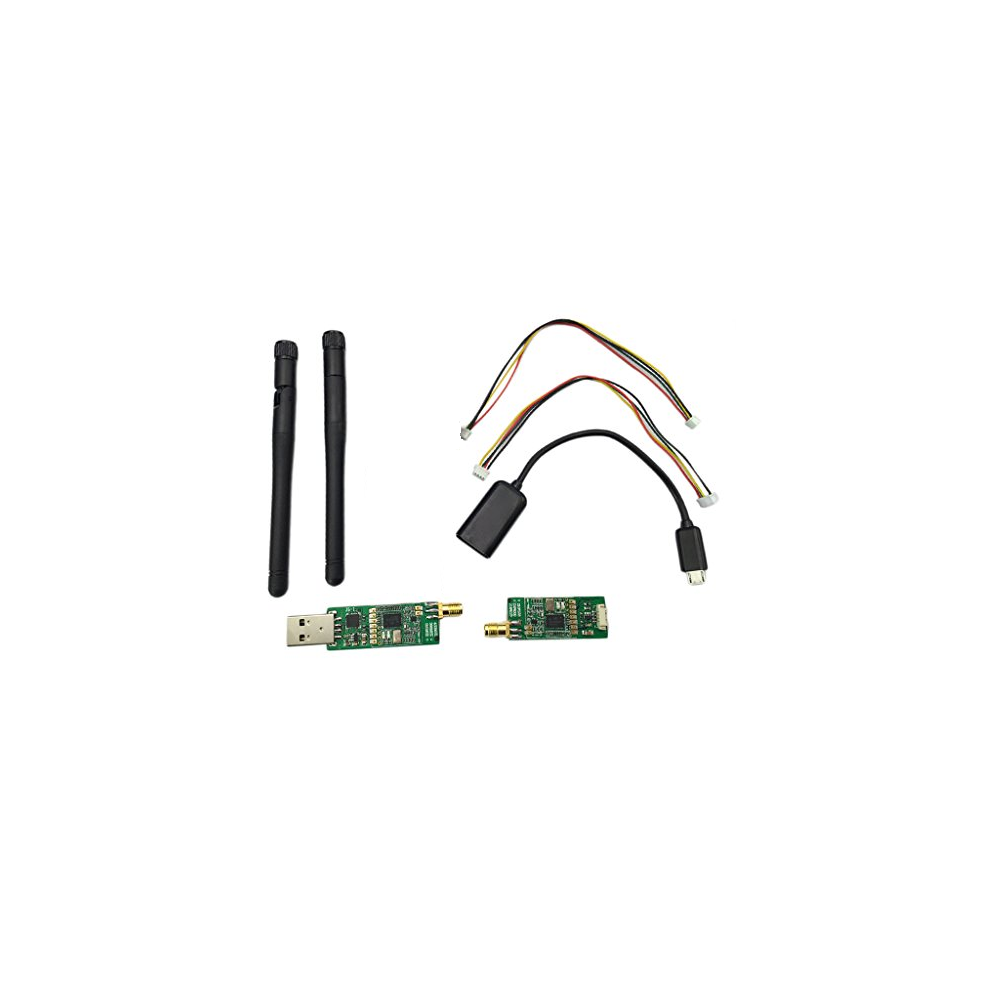

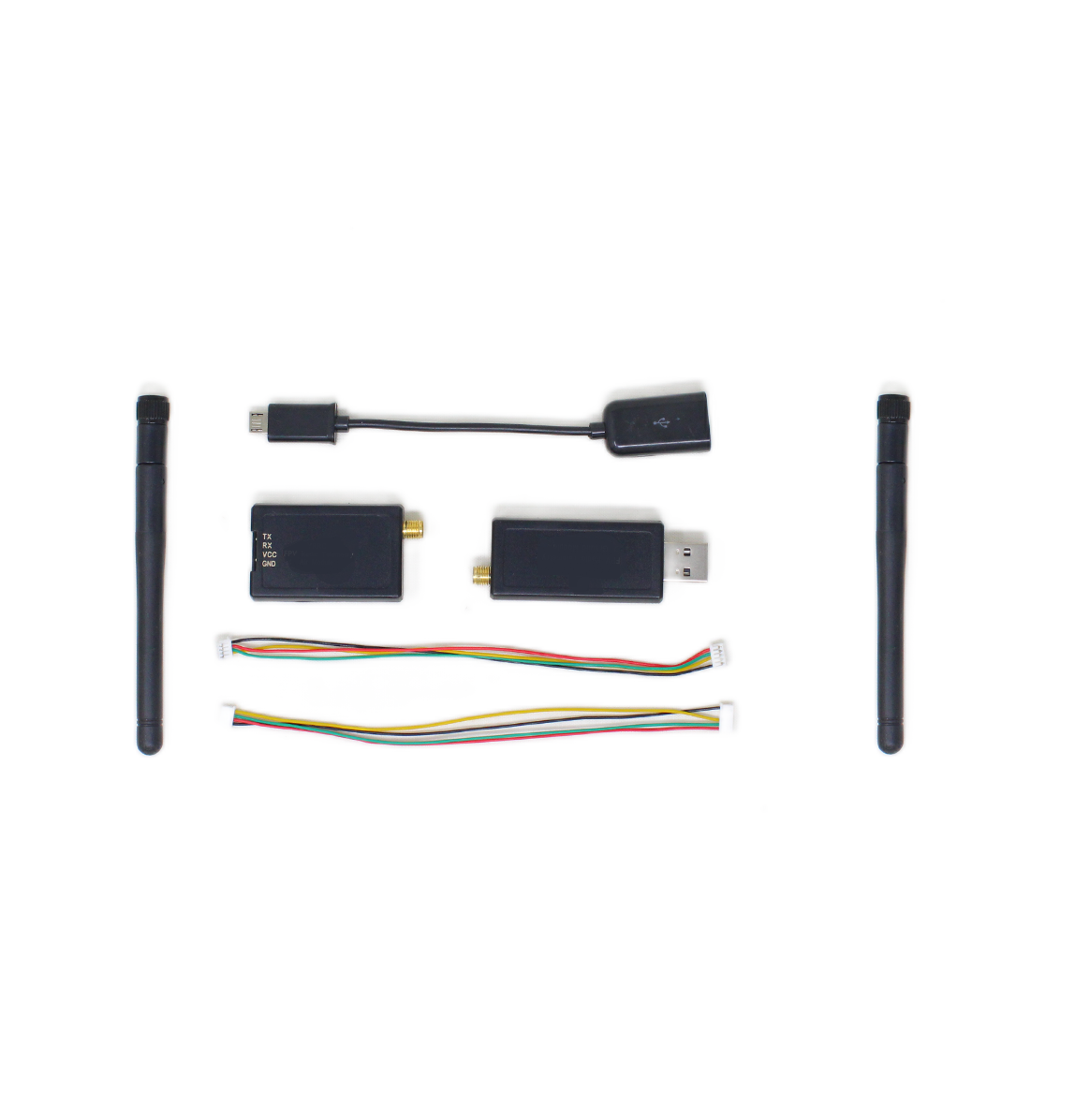

433MHz 100mW Radio Telemetry Kit
The 433MHz 100mW Radio Telemetry Kit provides a long-range, bi-directional MAVLink telemetry link for APM and Pixhawk-based flight controllers. Featuring FHSS and adaptive TDM, it offers robust communication up to 1.6 km and is configurable via Mission Planner or APM Planner.
Features
- 433MHz frequency with 100mW adjustable output power for extended range.
- MAVLink protocol framing with Frequency Hopping Spread Spectrum (FHSS) for interference resistance.
- Interchangeable air and ground modules, each with Micro-USB and DF13 connectors.
- Configurable via AT/RT commands through Mission Planner or APM Planner ground control software.
- Based on the HopeRF HM-TRP module with a SiLabs Si1000 RF microcontroller.
Out of stock
This telemetry kit establishes a transparent serial link between an airborne autopilot and a ground station, enabling real-time telemetry data transmission and mission parameter updates. It employs adaptive time division multiplexing (TDM) and supports Listen Before Talk (LBT) and Adaptive Frequency Agility (AFA) to maintain a stable connection in crowded RF environments. The built-in error-correcting code can correct up to 25% of data bit errors, ensuring data integrity over long distances.
Designed for integration with APM and Pixhawk flight controllers, the modules feature a 3.3V UART interface and operate on a wide voltage range of 3.6V to 7V. The compact and lightweight design, coupled with RP-SMA antenna connectors, makes it suitable for a wide range of UAV platforms requiring reliable long-range telemetry.
Additional Information
| Weight | 0.039 kg |
|---|---|
| Dimensions | 7 × 10 × 5 cm |
