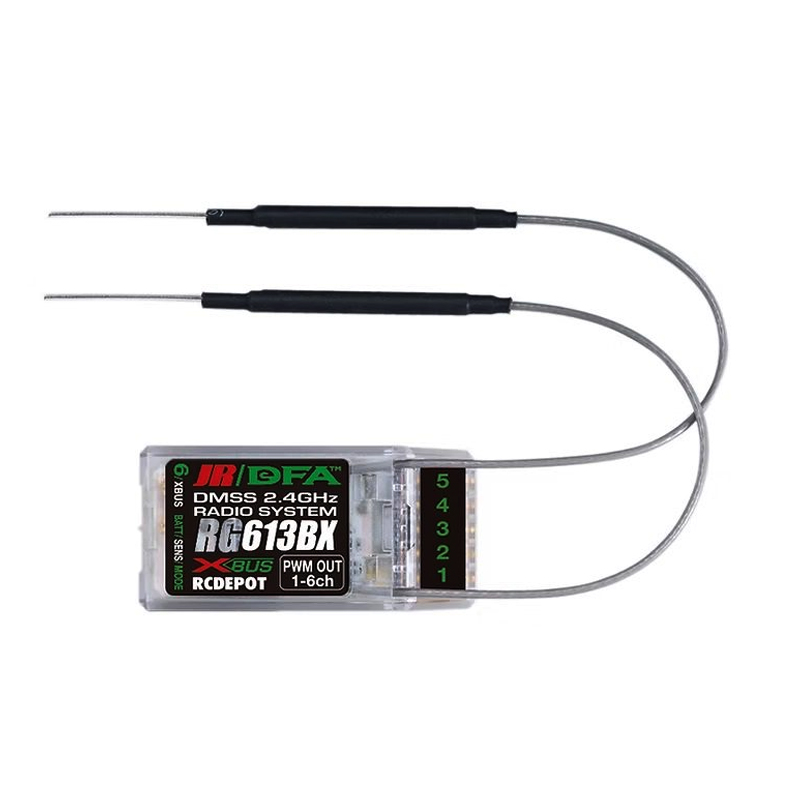

JR Propo RG613BX 6-Channel DMSS Receiver with XBus - Glassy White

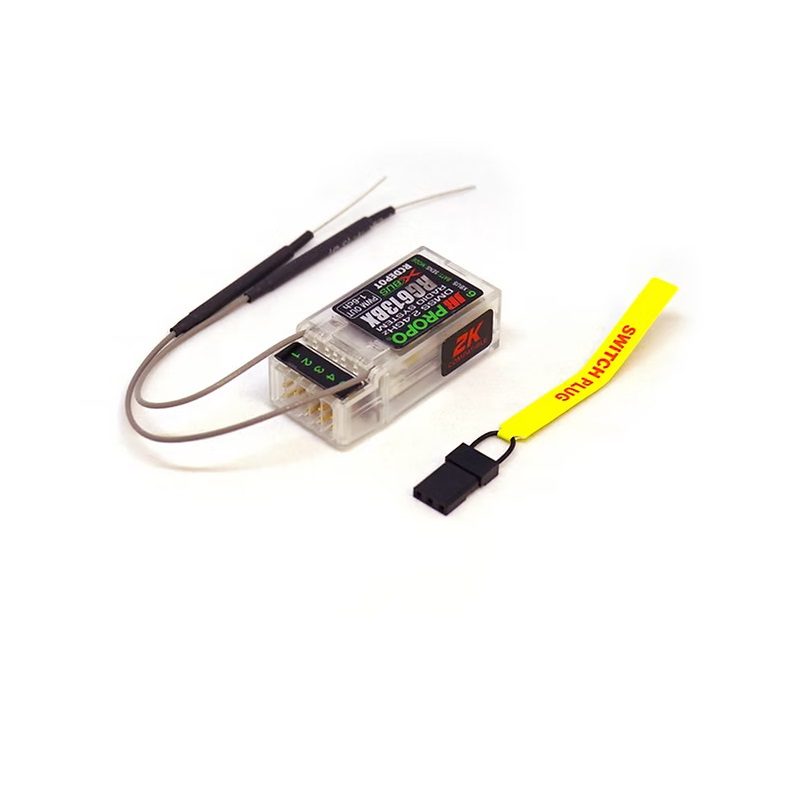

JR Propo RG613BX 6-Channel DMSS Receiver with XBus - Glassy White - Image 2

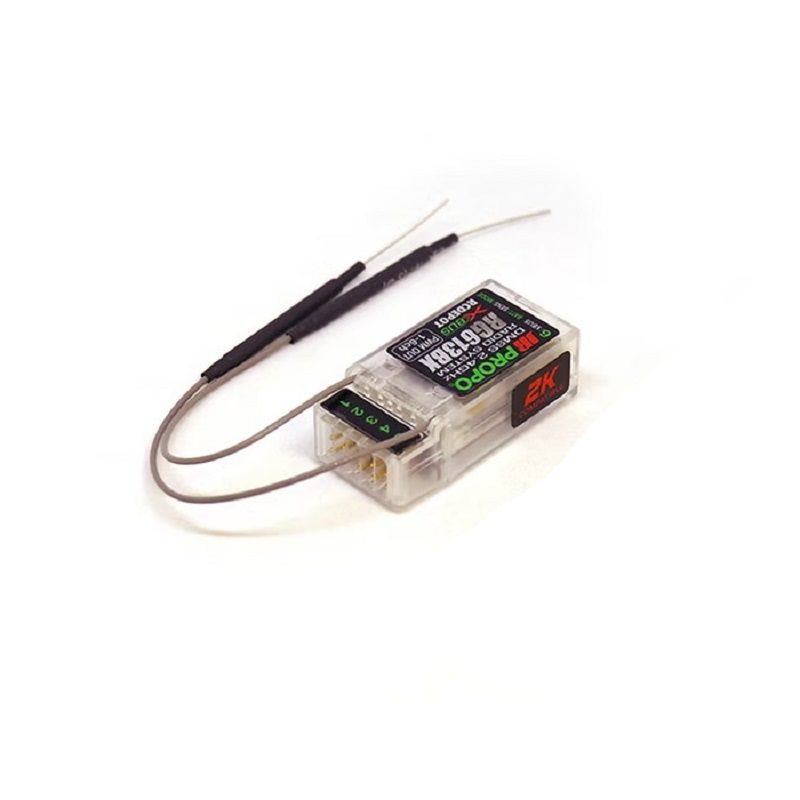

JR Propo RG613BX 6-Channel DMSS Receiver with XBus - Glassy White - Image 3
SKU: DRFC-3271
📋 GST Invoice Available

JR Propo RG613BX 6-Channel DMSS Receiver with XBus - Glassy White

₹10,269.00 (Inclusive of all taxes)
Out of Stock

The JR Propo RG613BX is a 6-channel DMSS 2.4GHz receiver featuring XBus protocol support and full-range telemetry, designed for reliable control of RC aircraft and multirotors within a 4.5-8.5V operating range.

Features

  • 6-channel DMSS 2.4GHz system with XBus serial protocol support.
  • Wide operating voltage range from 4.5V to 8.5V DC.
  • Integrated full-range telemetry module for real-time data feedback.
  • Antenna diversity system with 105mm coaxial and 25mm antenna portions for improved signal reception.
  • Easy BIND system for simplified and quick radio binding setup.

Out of stock

Description

The RG613BX receiver provides a robust 6-channel control link using JR Propo’s DMSS (Digital Modulation Spread Spectrum) technology, ensuring stable communication for fixed-wing, helicopter, and multirotor applications. Its XBus capability allows for advanced channel expansion and integration with compatible flight controllers and peripherals.

Engineered for reliability, the unit incorporates antenna diversity to mitigate signal nulls and dropouts, critical for maintaining link integrity during complex maneuvers. The integrated telemetry module delivers real-time feedback on receiver voltage and signal strength, enhancing operational awareness.

Key Features

  • DMSS 2.4GHz Technology: Utilizes advanced spread-spectrum modulation for interference-resistant, low-latency control.
  • XBus Protocol Support: Enables serial communication for expanded channel control and integration with sophisticated avionics.
  • Full-Range Telemetry: Built-in module provides continuous feedback on critical link parameters.
  • Antenna Diversity: Dual-antenna design (coaxial and whip) significantly improves signal reception and link robustness.
  • Wide Voltage Compatibility: Operates from 4.5V to 8.5V, compatible with standard BEC outputs and 2S LiPo direct connections.
  • Compact Form Factor: Small footprint (20.5mm x 41.5mm x 14.5mm) allows for flexible installation in tight airframes.

Applications

  • 6-channel control for fixed-wing aerobatic and scale RC aircraft.
  • Primary receiver for helicopter and multirotor builds requiring stable DMSS link.
  • Integration into FPV drone setups where XBus protocol is used for peripheral control.
  • General-purpose receiver for surface vehicles and robotics within the voltage range.

Technical Specifications

Model NumberRG613BX
ProtocolDMSS
Frequency2.4 GHz
Channels6
Output TypePWM (1-6), XBus
Operating Voltage4.5 - 8.5 VDC
TelemetryFull-Range Module Included
Antenna ConfigurationDiversity (105mm Coaxial + 25mm Whip)
Dimensions (L x W x H)41.5 x 20.5 x 14.5 mm
ColorGlassy White

Frequently Asked Questions

What is the operating voltage range for the JR Propo RG613BX receiver?

The JR Propo RG613BX receiver operates within a wide voltage range of 4.5V to 8.5V DC. This makes it compatible with standard 5V or 6V BEC outputs from most ESCs, as well as direct power from a 2S LiPo battery (7.4V nominal). Always ensure your power source is within this specified range for reliable operation.

Does the RG613BX support telemetry, and what data does it provide?

Yes, the RG613BX includes a full-range telemetry module. It provides real-time feedback on critical parameters such as receiver battery voltage and signal strength (RSSI). This data is transmitted back to a compatible DMSS transmitter, allowing the pilot to monitor the health of the radio link and onboard power during flight.

Can I use this receiver to get more than 6 channels of control?

Yes, through its XBus serial protocol support. The RG613BX can be paired with an RG613BX-B (R6B) receiver. When used together in a master/slave configuration, this combination can provide control for up to 12 channels, offering expanded control for complex models with multiple servos, flight modes, or payload functions.

Package Includes

  • 1 x JR Propo RG613BX DMSS Receiver

Additional Information

Weight 0.026 kg
Dimensions 4.15 × 2.05 × 1.45 cm
