Generic 3DR Radio Telemetry 500mW Kit - 915MHz
This 915MHz 500mW telemetry kit provides a full-duplex MAVLink serial link for connecting flight controllers to ground station software like Mission Planner, enabling real-time telemetry, mission planning, and live flight data monitoring for UAVs.
Features
- 500mW adjustable output power on the 915MHz ISM band for extended telemetry range.
- Full-duplex communication using adaptive Time-Division Multiplexing (TDM) for reliable bidirectional data flow.

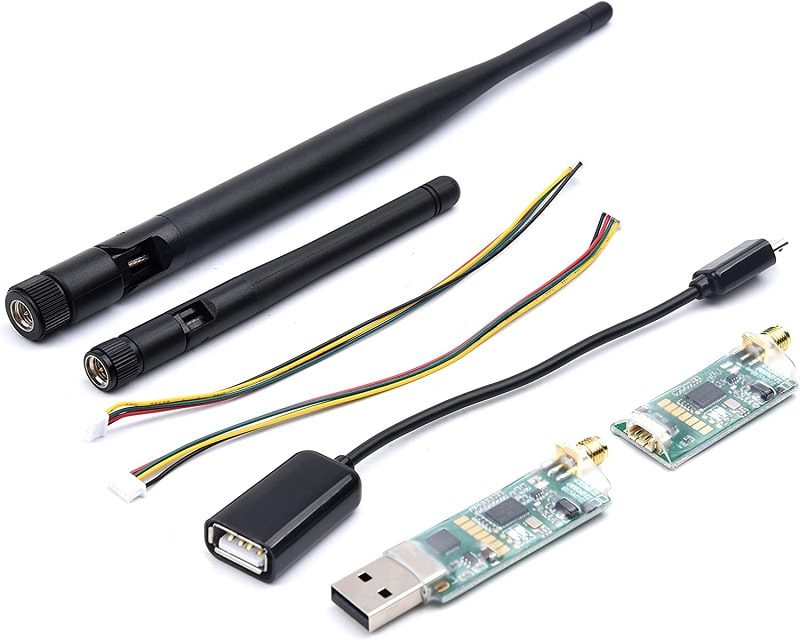

- Based on the HM-TRP module with Si1000 microcontroller and Si4432 RF IC, running open-source SIK firmware.
- Features both Micro-USB and UART interfaces, allowing connection to computers via OTG or direct serial links to flight controllers.
- Configurable via AT commands and fully compatible with MAVLink-based ground control stations like Mission Planner and APM Planner.
Out of stock

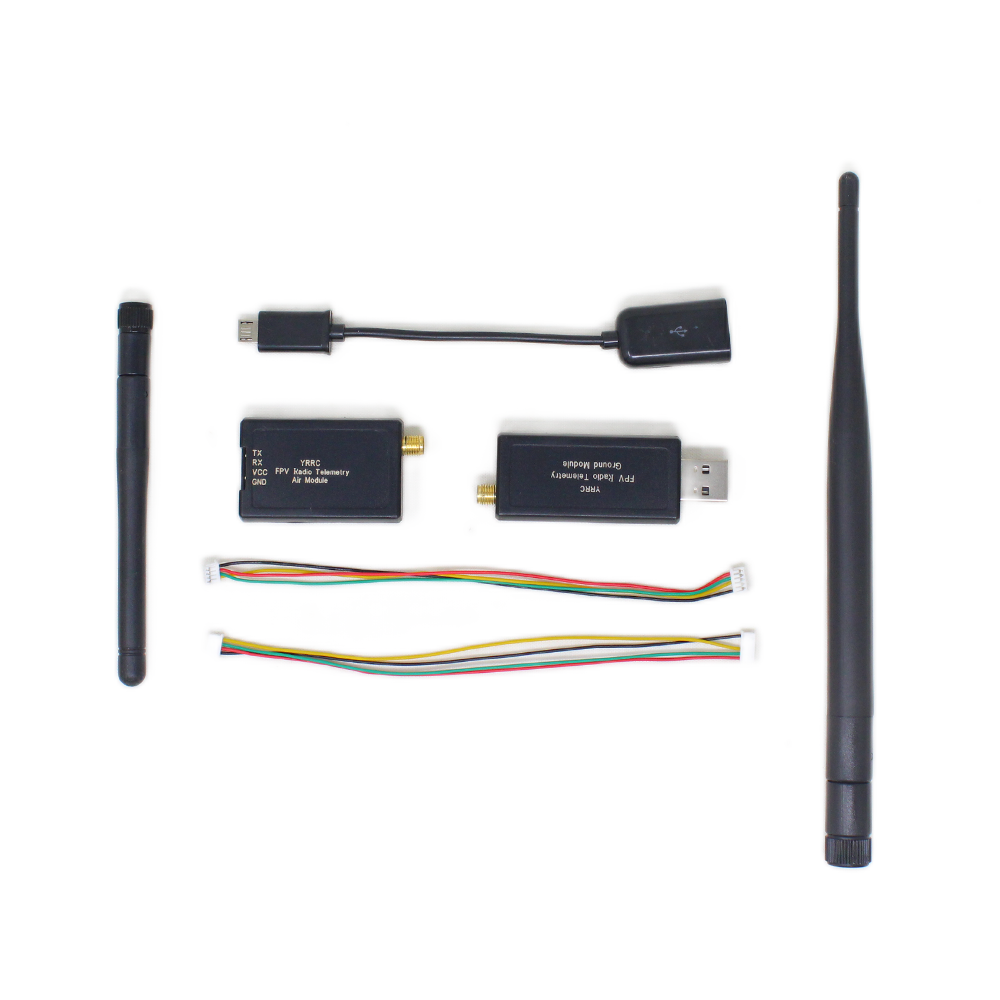

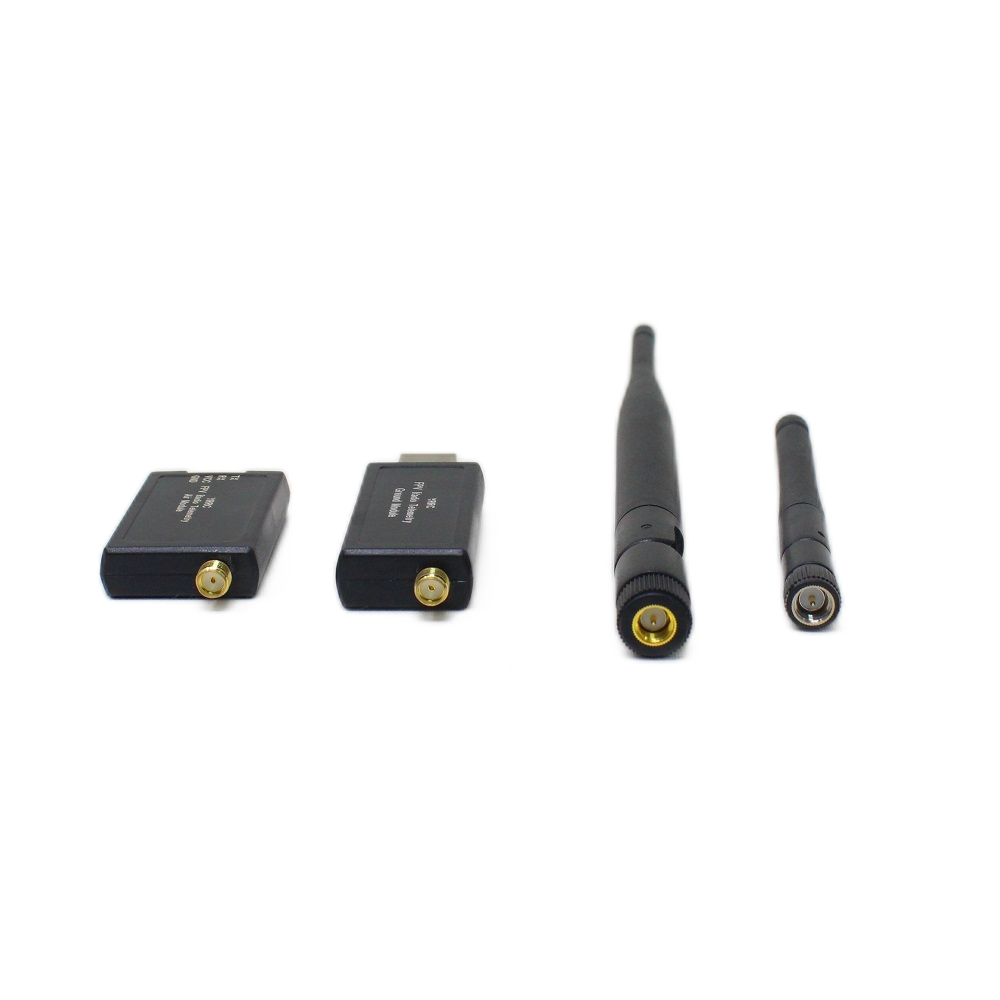

This telemetry kit utilizes two interchangeable transceiver modules, eliminating the traditional air/ground designation. Each module can function as either end of the link, providing flexibility in system setup. The core HM-TRP modules employ a Si1000 8051 microcontroller paired with a Si4432 wireless transceiver, delivering robust 500mW output power on the 915MHz frequency band with Frequency-Hopping Spread Spectrum (FHSS) and Listen-Before-Talk (LBT) protocols for interference resilience.
The system establishes a transparent serial tunnel, framing MAVLink protocol data for transmission. It supports advanced features like configurable duty cycles and built-in forward error correction, capable of correcting up to 25% data bit errors. This makes it suitable for demanding FPV and autonomous drone applications where reliable telemetry for GPS position, battery voltage, artificial horizon, and waypoint navigation is critical.
Additional Information
| Weight | 0.064 kg |
|---|---|
| Dimensions | 25 × 7 × 2 cm |
