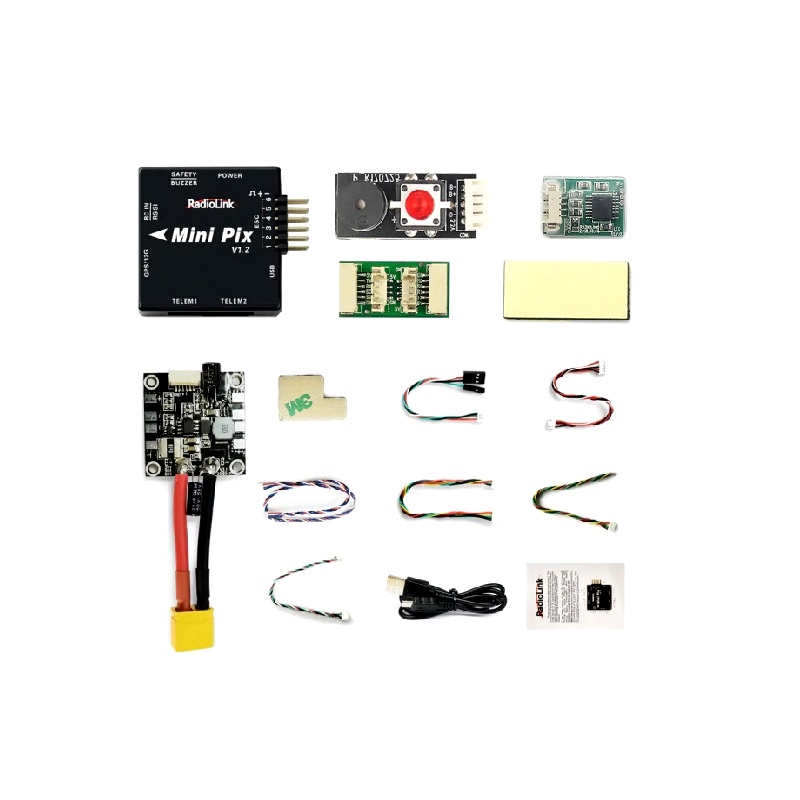

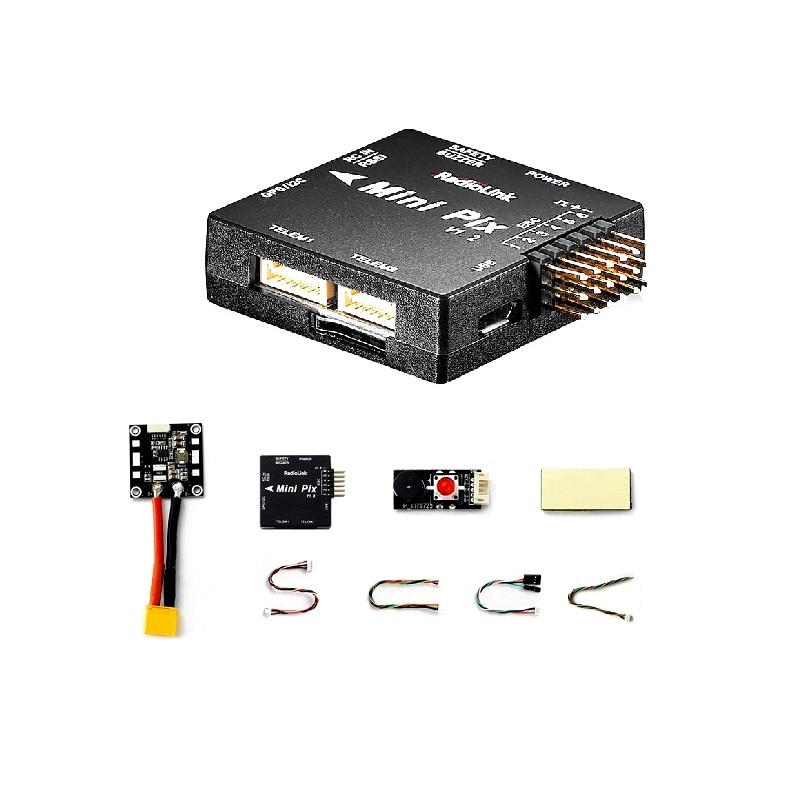

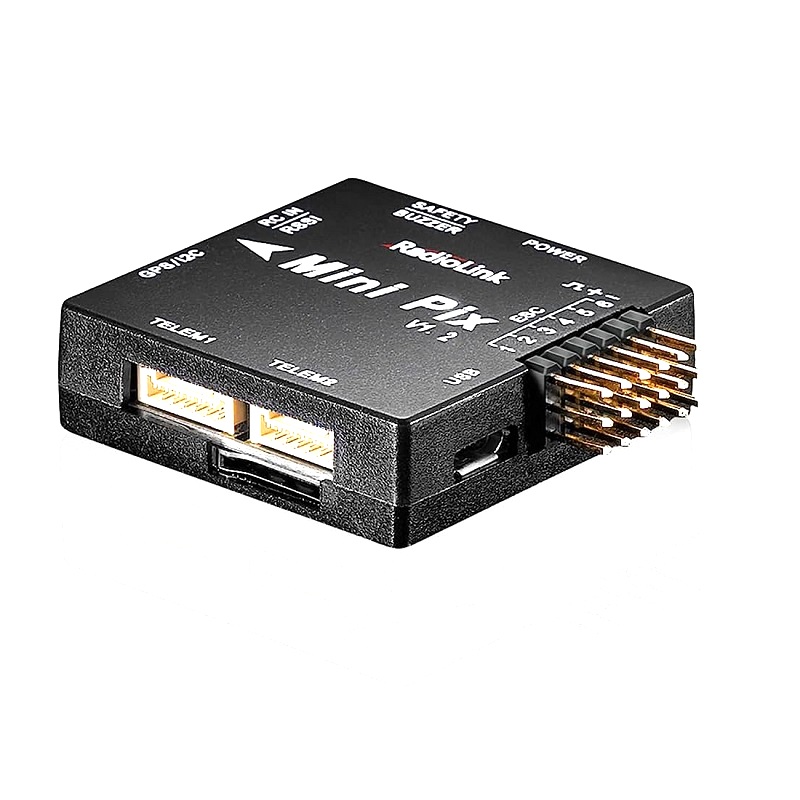

RadioLink Mini Pix Flight Controller
The RadioLink Mini Pix Flight Controller is a compact autopilot system compatible with ArduPilot firmware, featuring 6 PWM/Oneshot inputs, dual telemetry streams, and a vibration-damped design for stable flight data acquisition in FPV and autonomous UAV applications.
Features
- Compact, lightweight design for mini and micro UAV builds.
- Integrated vibration damping for improved sensor accuracy.
- Dual telemetry streams for simultaneous data and image transmission.
- Six PWM/Oneshot inputs for comprehensive servo and ESC control.
- Wide operating temperature range from -40°C to 80°C.
Out of stock
The RadioLink Mini Pix Flight Controller is engineered as a miniaturized autopilot solution, integrating core Pixhawk-compatible sensor suites within a reduced footprint. Its LAN low-loss circuit design enhances signal integrity, crucial for capturing weak telemetry and GPS signals in challenging RF environments. The board’s primary function is to provide stable flight control for multirotor, fixed-wing, and rover platforms running ArduPilot or PX4 firmware.
Structural design focuses on mitigating motor and propeller vibrations through integrated damping, which protects the IMU and barometer for precise altitude and attitude hold. The dual telemetry ports allow pilots to stream flight data to a ground station while simultaneously utilizing an FPV video link, eliminating the need for a field laptop during FPV operation. The controller operates from a stable 5V rail, with a wide operational temperature tolerance suitable for extreme environmental conditions.
Additional Information
| Weight | 0.09 kg |
|---|---|
| Dimensions | 9 × 13.5 × 3.5 cm |
