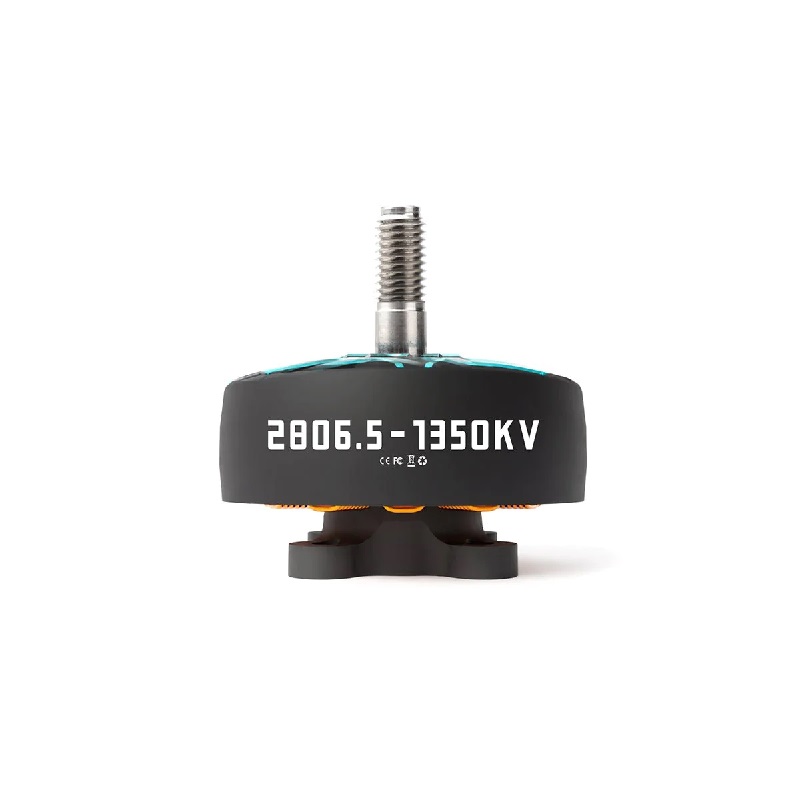

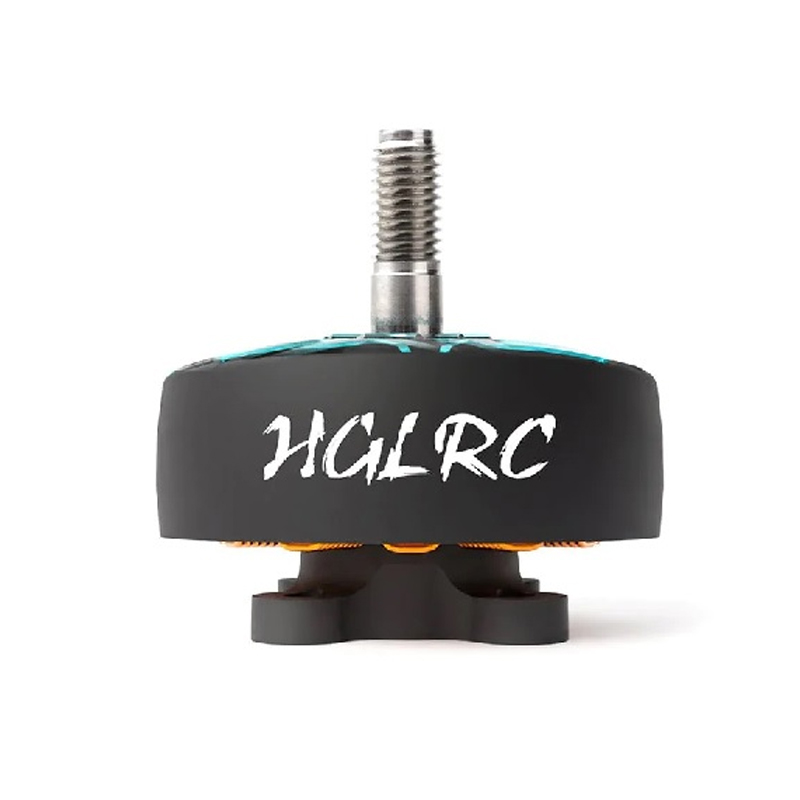

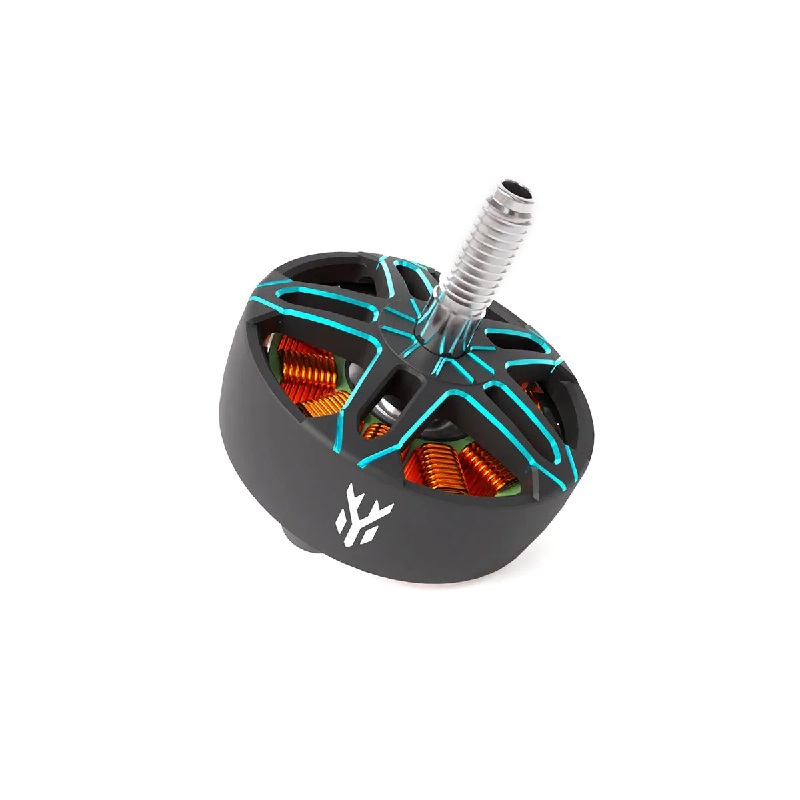

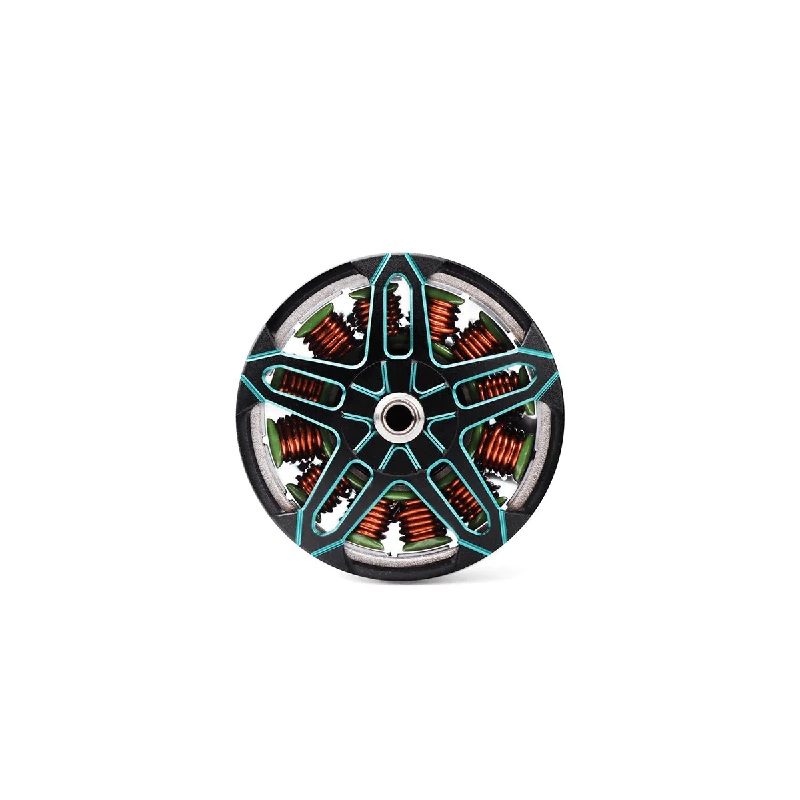

HGLRC SPECTER 2806.5 1350KV Brushless Motor
HGLRC SPECTER 2806.5 1350KV Brushless Motor - Image 2
HGLRC SPECTER 2806.5 1350KV Brushless Motor - Image 3
HGLRC SPECTER 2806.5 1350KV Brushless Motor - Image 4
HGLRC SPECTER 2806.5 1350KV Brushless Motor - Image 5
SKU: DRFC-2888
📋 GST Invoice Available

HGLRC SPECTER 2806.5 1350KV Brushless Motor

₹4,049.00 (Inclusive of all taxes)
Out of Stock

The HGLRC SPECTER 2806.5 1350KV is a high-torque brushless motor engineered for 4-6S LiPo long-range and heavy-lift FPV drones, offering a balance of efficiency and power for 6-7 inch propellers.

Features

  • 1350KV rating optimized for 4-6S LiPo voltage range (14.8-25.2V)
  • High-torque N52H curved magnet design with 12N14P slot-pole configuration
  • Robust 7075 aviation aluminum one-piece rotor and alloy steel output shaft
  • Rated for 40A continuous current (960W max) with >45A ESC recommendation
  • Designed for 7-inch long-range drones and 7-inch X8 Cinelifter configurations

Out of stock

Description

The HGLRC SPECTER 2806.5 motor is built for demanding aerial applications requiring sustained power and thermal resilience. Its core utilizes imported Kawasaki silicon steel stator laminations to minimize eddy current losses, paired with high-temperature 200°C copper windings for stable operation under continuous load. This design prioritizes low-speed torque retention and linear throttle response, essential for precise control in cinematic and endurance flights.

The motor’s structural integrity is ensured by a high-strength 7075 aluminum alloy rotor and an alloy steel M5 output shaft, reducing overall airframe weight while maintaining durability. The anodized two-color finish provides both corrosion resistance and a distinctive appearance. Its 34.53mm diameter and 19.4mm height profile is optimized for integration into 7-inch frame designs without compromising propeller clearance.

Key Features

  • High-Torque Magnetic Circuit: Custom N52H curved magnets in a 12N14P configuration deliver strong magnetic flux for immediate throttle response and efficient power conversion.
  • Advanced Thermal Management: Low-loss silicon steel stator and high-temp 200°C windings reduce heat generation, supporting prolonged high-current operation up to 40A continuous.
  • Durable Aerospace Construction: Machined 7075 aluminum rotor and hardened alloy steel shaft provide a high strength-to-weight ratio and resistance to mechanical stress.
  • Optimized Performance Tuning: Engineered to maintain high torque at low RPMs, offering linear power delivery and fast dynamic response for agile maneuvering and smooth throttle transitions.
  • Precision Mounting Interface: Features a standard 4xM3-Ø19mm mounting hole pattern for secure attachment to motor arms and compatible frames.

Applications

  • 7-Inch Long-Range FPV Drones: Ideal for endurance builds requiring efficient cruise performance and reliable power delivery on 4-6S LiPo packs.
  • 7-Inch X8 Cinelifter Drones: Provides the necessary torque and thrust for heavy-lift octocopter configurations used in professional cinematography.
  • 6-Inch Freestyle & Racing Drones: Suitable for larger, powerful freestyle quads where a balance of top-end speed and low-end punch is desired.
  • Heavy-Payload Multirotor Platforms: Engineered for industrial or survey drones carrying sensors, mapping cameras, or other specialized equipment.

Technical Specifications

Motor ModelHGLRC SPECTER 2806.5
KV Rating1350 KV (RPM/V)
Motor TypeOutrunner Brushless
Stator Size28.0mm x 6.5mm
Slot/Pole12N14P
Continuous Current40 A
Max Power960 W
Input Voltage14.8-25.2 V (4-6S LiPo)
Recommended ESC>45 A
Propeller Size6-7 inch
Shaft DiameterM5
Mounting Hole Pattern4 x M3 (Ø19mm circle)
Motor Diameter34.53 mm
Motor Height19.4 mm
Weight (per motor)51.9 g

Frequently Asked Questions

What is the recommended ESC rating for this HGLRC SPECTER 2806.5 1350KV motor?

HGLRC recommends using an Electronic Speed Controller (ESC) rated for greater than 45A continuous current per motor. Given the motor's own 40A continuous rating, a 45-60A ESC provides a safe overhead for peak thrust demands, especially when using large 6 or 7-inch propellers on 6S LiPo batteries.

What size propellers are compatible with the 2806.5 1350KV motor?

This motor is optimized for 6-inch and 7-inch propellers. The 1350KV rating on 4-6S voltage provides a ideal torque-speed balance for these larger diameters. For long-range efficiency, use 7-inch low-pitch props (e.g., 7030-7040). For more aggressive flight, 6-inch higher-pitch props (e.g., 6045-6050) are suitable.

What is the mounting hole pattern for this motor?

The HGLRC SPECTER 2806.5 motor uses a standard 4-hole M3 mounting pattern with a 19mm bolt circle diameter (4xM3-Ø19mm). This is compatible with most motor arms designed for 28xx and 30xx size motors. The package includes five M3x8mm screws for secure attachment.

Is this motor suitable for a 7-inch X8 (octocopter) build?

Yes, the SPECTER 2806.5 1350KV is explicitly recommended for 7-inch X8 Cinelifter drones. Its high torque output, durable construction, and ability to handle continuous 40A loads make it a reliable choice for distributed propulsion systems that require consistent power across multiple motors to lift heavy camera payloads.

Package Includes

  • 1 x HGLRC SPECTER 2806.5 1350KV Brushless Motor
  • 5 x M3x8mm Mounting Screws
  • 1 x M5 Shaft Nut

Additional Information

Weight 0.064 kg
Dimensions 5.6 × 4.6 × 4 cm
