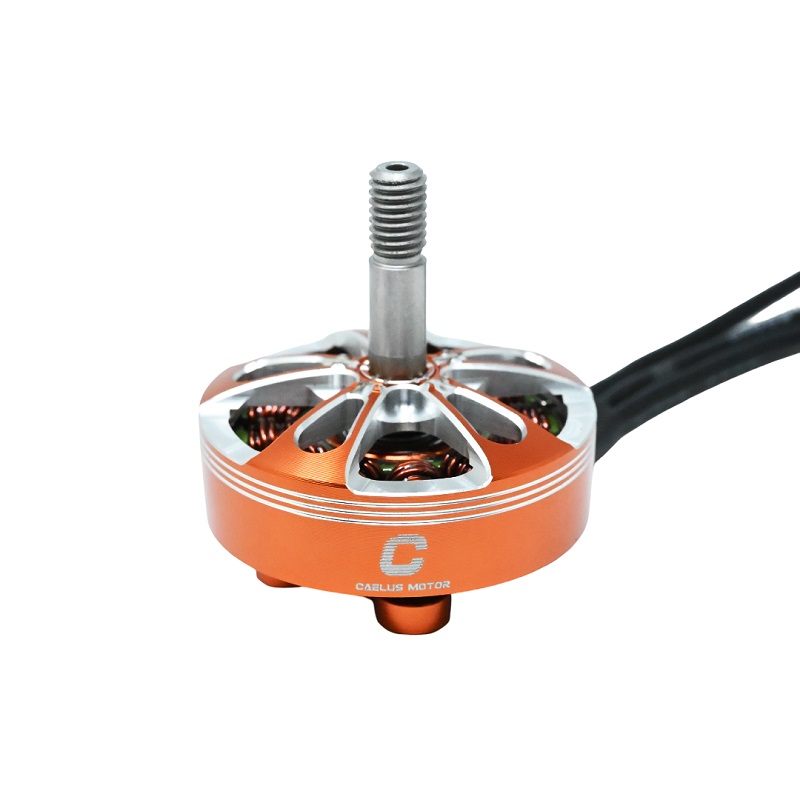

CAELUS FA2807 1500KV Brushless Motor
The CAELUS FA2807 1500KV brushless motor is engineered for 6S LiPo-powered long-range and freestyle drones, delivering high torque and thermal efficiency for 6-7 inch propellers. Its 12N14P configuration ensures smooth, vibration-free power delivery when paired with a compatible 50A+ ESC.
Features
- 1500KV rating optimized for 6S LiPo battery systems.
- 5mm shaft diameter with M5 mounting holes on a 19mm PCD pattern.
- 12N14P stator configuration for smooth, efficient power delivery.
- Supports 6-inch to 7-inch propellers for long-range and freestyle builds.

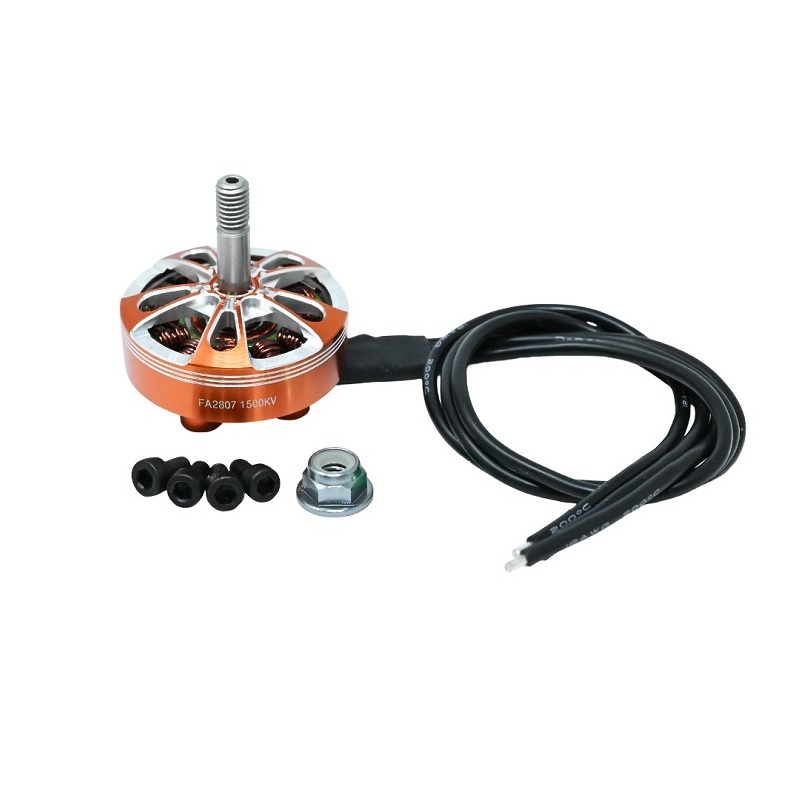

- Includes 18AWG 250mm power leads for direct ESC connection.
Out of stock
The CAELUS FA2807 1500KV brushless motor is a high-torque propulsion unit designed for endurance-focused FPV platforms. Its 2807 stator size provides a robust magnetic field, enabling efficient operation on 6S LiPo packs while maintaining excellent thermal management during prolonged flight sessions.

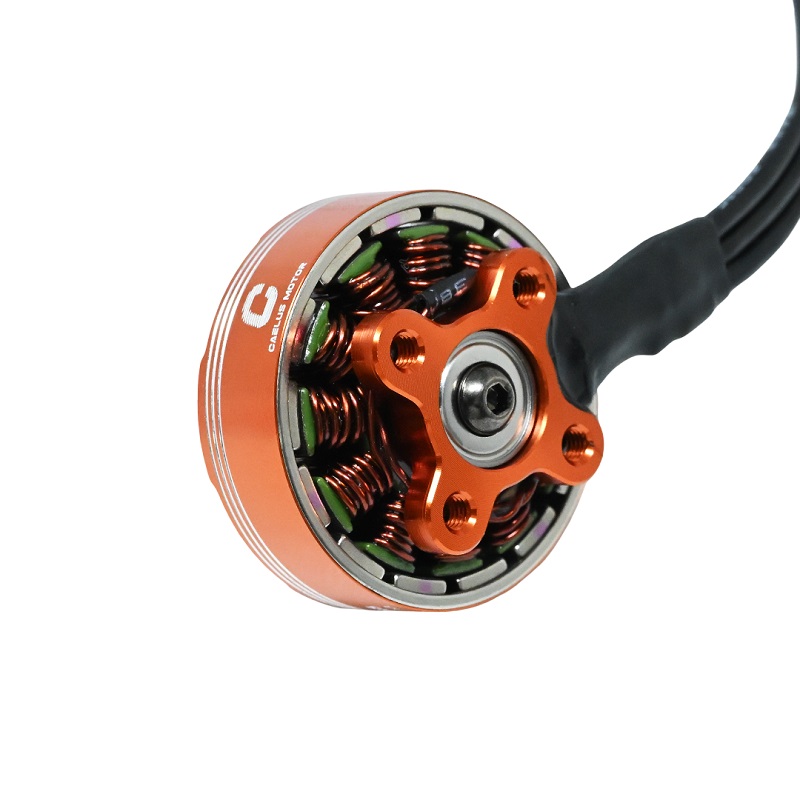

Constructed with a durable 5mm steel shaft and precision-balanced bell housing, the motor minimizes harmonic vibrations for cleaner video feed and stable flight characteristics. The 12N14P (12 stator teeth, 14 magnet poles) configuration enhances torque smoothness across the throttle range, making it suitable for both aggressive freestyle maneuvers and efficient long-range cruising.
Additional Information
| Weight | 0.055 kg |
|---|---|
| Dimensions | 3.36 × 2.79 cm |
