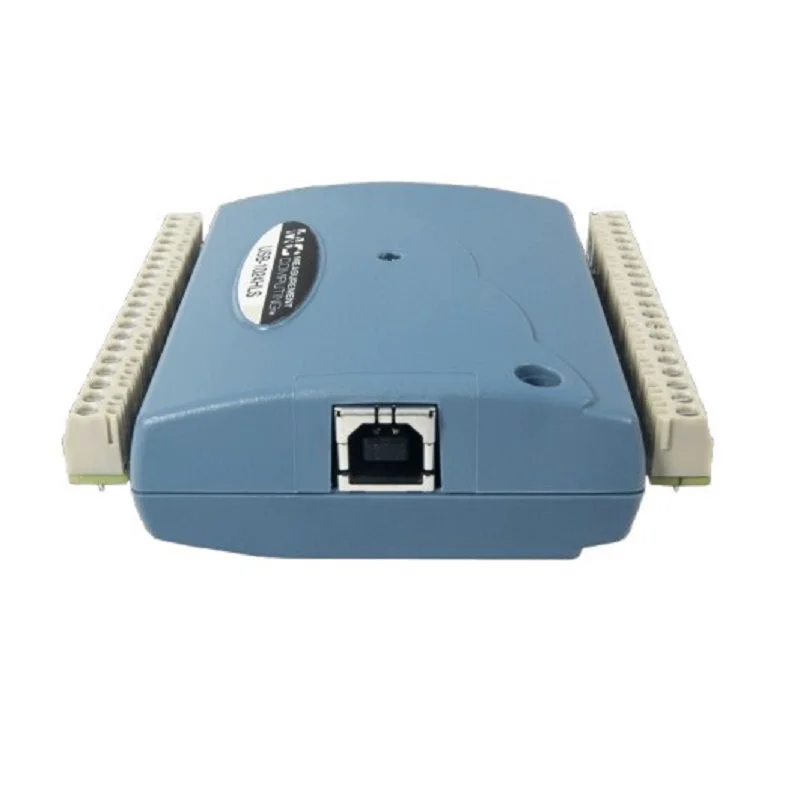

Digilent MCC USB-1024LS 24-Channel Digital I/O USB Device

₹14,399.00 (Inclusive of all taxes)
Out of Stock

The Digilent MCC USB-1024LS is a 24-channel logic-level digital I/O interface device powered directly via USB, featuring a 32-bit event counter and 2.5 mA per-channel drive capability for direct connection to sensors, relays, and other logic-level peripherals without external buffering.

Features

  • 24 logic-level digital I/O channels for extensive data acquisition and control tasks.
  • Integrated 32-bit event counter for precise frequency measurement and pulse counting.
  • 2.5 mA sink/source current per channel enables direct drive of LEDs, small relays, and logic inputs.
  • Plug-and-play USB bus-powered operation eliminates the need for an external power supply.
  • Broad software support includes DAQami, LabVIEW, MATLAB, Python, and Linux drivers for flexible integration.

Out of stock

Description

The Digilent MCC USB-1024LS is a high-performance digital I/O module that adds 24 lines of logic-level digital input and output to any standard USB port. Engineered for reliability and ease of integration, it provides a robust interface for automation, testing, and monitoring systems. Its USB bus-powered design simplifies setup, requiring no external power circuitry.

Each of the 24 channels supports a 2.5 mA sink or source current, allowing direct interfacing with a wide range of digital sensors, indicators, and small actuators. The integrated 32-bit counter input facilitates advanced timing and event-capture applications. The device is supported by comprehensive drivers and software libraries, including DAQami for data logging and visualization, as well as APIs for C++, C#, Python, MATLAB, and LabVIEW, making it suitable for both rapid prototyping and deployed industrial systems.

Key Features

  • 24-channel digital I/O interface for versatile data acquisition and control.
  • Integrated 32-bit event counter for accurate frequency and pulse measurement.
  • 2.5 mA per-channel drive current eliminates need for external buffer circuits.
  • USB bus-powered operation for simple plug-and-play connectivity.
  • Wide software compatibility with DAQami, LabVIEW, MATLAB, Python, and Linux.
  • Compact and robust design suitable for industrial and research environments.
  • 5.5 V input voltage tolerance on digital input lines.

Applications

  • Industrial automation and process control systems.
  • Laboratory test and measurement equipment for data acquisition.
  • Prototyping and educational platforms for digital electronics and control systems.
  • Monitoring and control of digital sensors, switches, and relays.
  • Integration into custom software applications using Python, MATLAB, or LabVIEW.

Technical Specifications

InterfaceUSB
Digital I/O Channels24 channels
Input Current (Sink)2.5 mA per channel
Output Current (Source)2.5 mA per channel
Counter InputOne 32-bit event counter
Power SupplyUSB Bus-Powered (No External Power Required)
Supported SoftwareDAQami, LabVIEW, MATLAB, Python, C++, C#, Linux
ColorLight Blue

Frequently Asked Questions

What software is required to program and control the USB-1024LS?

The device is supported by Digilent's DAQami application for out-of-the-box data logging and visualization. For custom programming, drivers and libraries are available for LabVIEW, MATLAB, Python, C++, C#, and Linux. You can download the appropriate software and examples from the Digilent website after installing the universal MCC DAQ driver package.

Can the USB-1024LS directly drive relays or LEDs?

Yes, each of the 24 digital I/O channels can source or sink up to 2.5 mA, which is sufficient to drive small signal relays, LEDs with appropriate current-limiting resistors, or logic-level inputs of other ICs directly without requiring additional buffer circuitry. For higher-current loads, an external transistor or driver circuit is recommended.

How do I use the integrated 32-bit counter on the USB-1024LS?

The 32-bit counter is a dedicated input channel for frequency measurement, pulse counting, or event timing. You configure it through your software API (e.g., Python with the `mcculw` library or LabVIEW VIs). Connect your signal to the designated counter pin, set the measurement mode (e.g., frequency or count), and read the accumulated value via software commands in real-time.

Package Includes

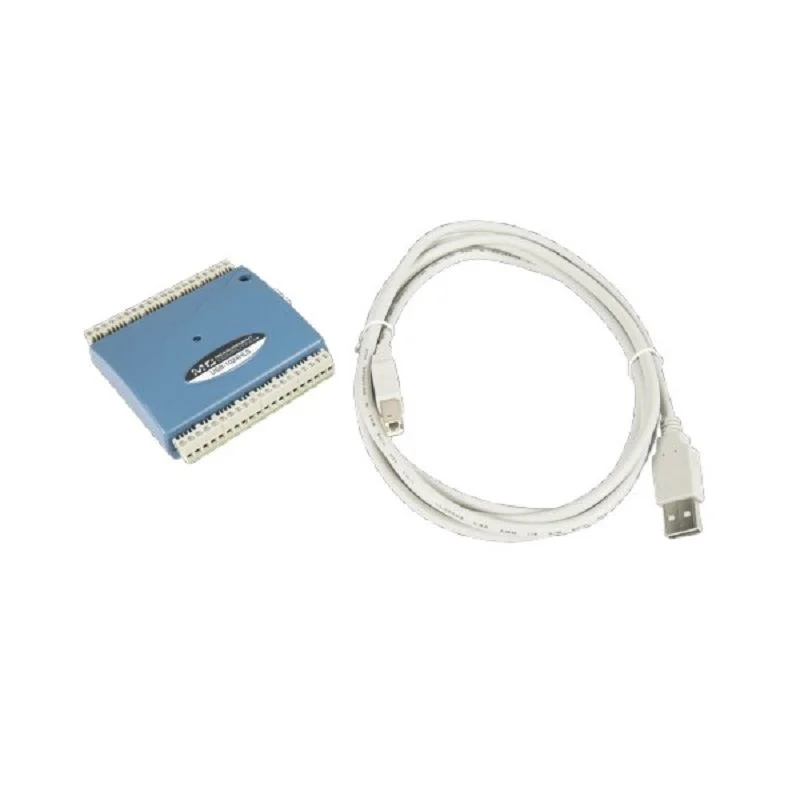

  • 1 x USB-1024LS Digital I/O Device
  • 1 x USB Cable
  • 1 x Printed DAQami Quick Start Insert
  • 1 x MCC Packaging Assembly/Foam

Additional Information

Weight 0.35 kg
Dimensions 18 × 12 × 6 cm
