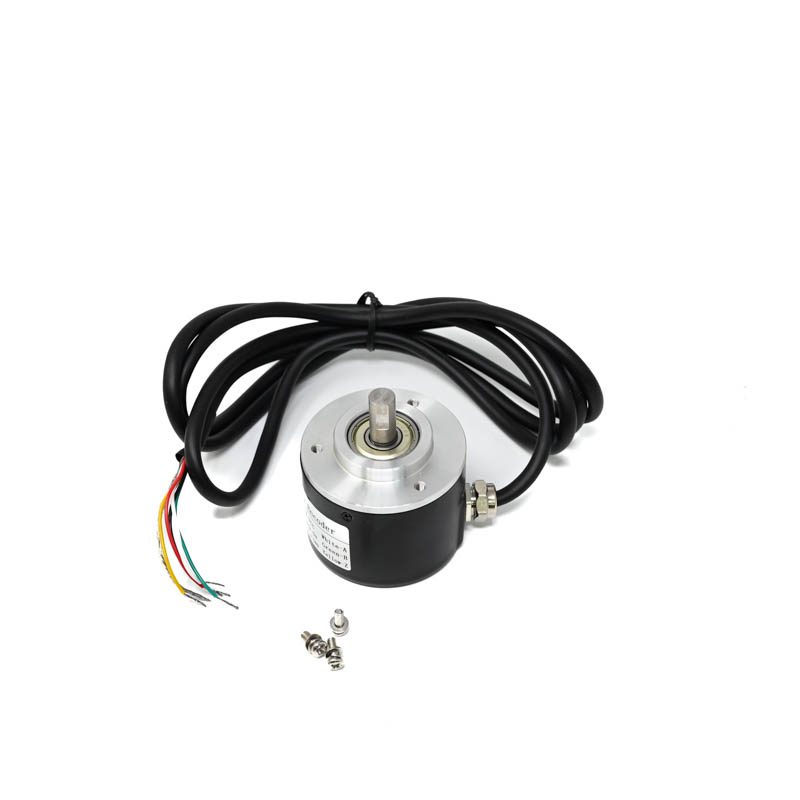

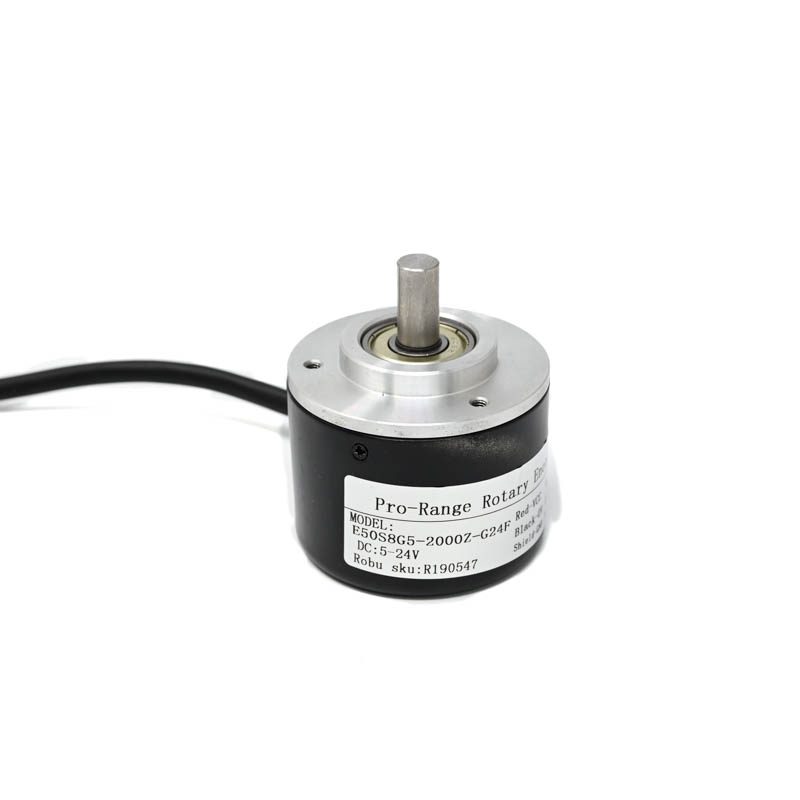

Pro-Range E50S8G5-2000Z-G24F Rotary Incremental Encoder - 50mm, Photoelectric, ABZ 3 Channels, 2000 PPR
The Pro-Range E50S8G5-2000Z-G24F is a 50mm photoelectric rotary incremental encoder delivering 2000 PPR resolution via ABZ three-channel output. Operating from 5-24V DC, it provides precise position and speed feedback for integration with PLCs, servo drives, and motion control systems in industrial and robotic applications.
Features
- High-resolution 2000 pulses per revolution (PPR) for accurate angular position and speed measurement.
- ABZ three-channel quadrature output (A, B, Z index) for enhanced signal reliability and direction sensing.
- Wide operating voltage range of 5V to 24V DC for flexible compatibility with industrial controllers and embedded systems.
- Compact 50mm diameter photoelectric design with a robust housing for reliable performance in demanding environments.
- Standard 38mm PCB mounting hole pattern for straightforward mechanical integration.
Out of stock
The E50S8G5-2000Z-G24F encoder utilizes a photoelectric sensing principle, where a light source and photodetector read a patterned disc to generate precise digital pulses. This method ensures high accuracy and repeatability with minimal mechanical wear. The ABZ output channels provide two 90-degree phase-shifted square waves (A & B) for incremental position and direction, plus a zero-index (Z) pulse for absolute reference once per revolution.
Constructed for industrial durability, the encoder’s housing protects the internal optics from dust and ambient light interference. Its wide 5-24V supply range accommodates common logic levels and industrial DC bus voltages, simplifying integration into existing control architectures for servo motors, CNC machinery, and automated guided vehicles (AGVs).
Additional Information
| Weight | 0.213 kg |
|---|---|
| Dimensions | 8.5 × 8.5 × 6.5 cm |
